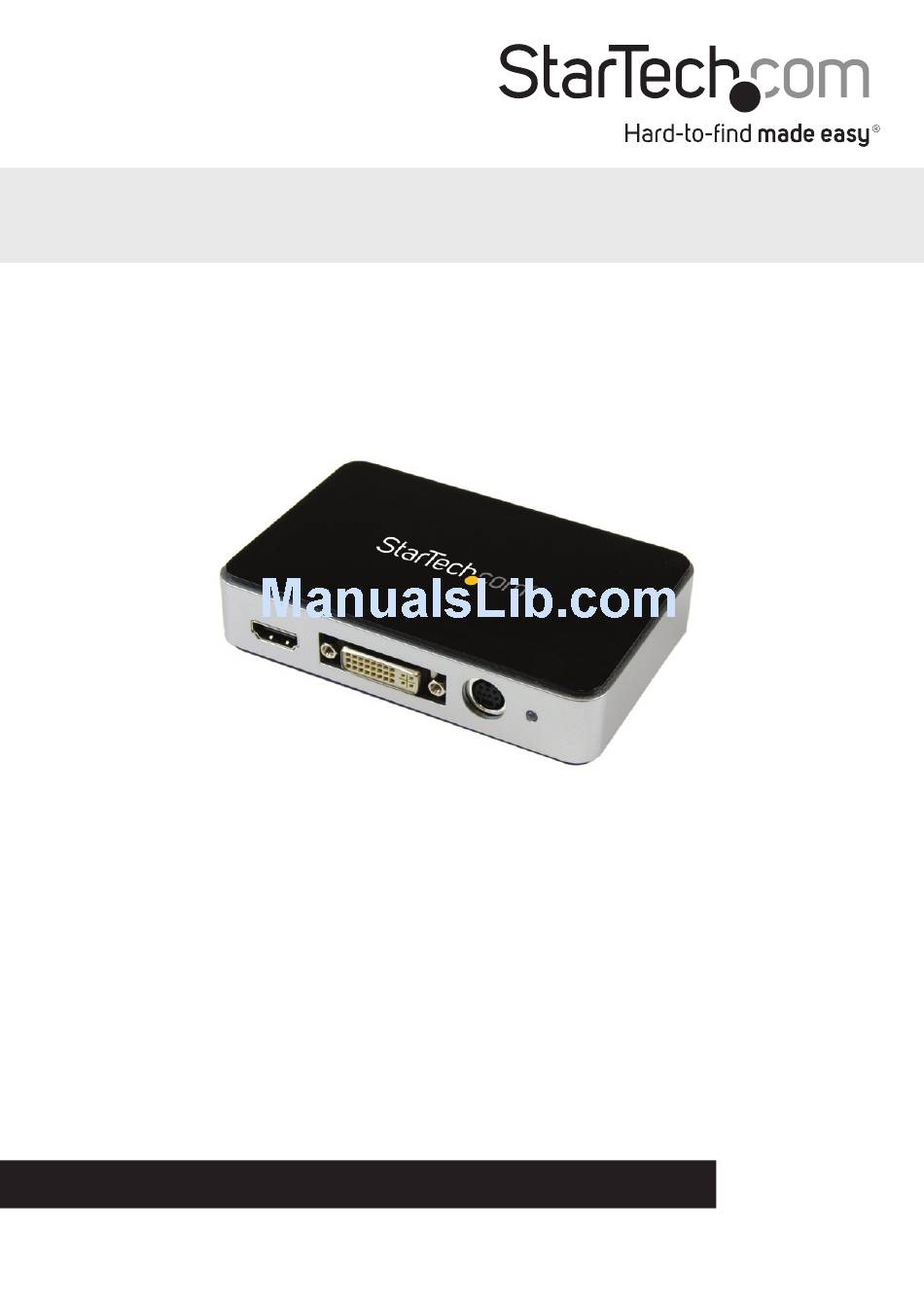

USB 3.0 HD Video Capture Device - 1080p
USB3HDCAP
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 06/27/2014
Advertisement
Table of Contents
Related Manuals for StarTech.com USB3HDCAP
Summary of Contents for StarTech.com USB3HDCAP
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 06/27/2014...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Rear View ..............................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Installation ....................3 Software Installation ..........................3 Hardware Installation ..........................5 Software Operation ................8 How to Use ....................8 Stream Catcher............................ -
Page 4: Product Diagram
Product Diagram Front View HDMI audio/video input port Power LED DVI video input port A/V breakout cable input port (For Component, S-Video, and composite video input + RCA audio input) Rear View USB 3.0 port Instruction Manual... -
Page 5: Introduction
• HDMI/DVI/VGA/Component/S-Video/Composite audio/video source with cabling (DVD, DVR, VCR, Etc.) Notes: • The USB3HDCAP requires a USB 3.0-equipped computer. This product is not backwards compatible with USB 2.0/1.1. • The USB3HDCAP product will not record digitally encrypted content (e.g. DVDs, Blu-rays, etc.). -
Page 6: Installation
Note: Please complete the Software Installation steps prior to Hardware Installation steps. 1. Download the latest software from the StarTech.com website (recommended) Insert the included driver and software installation disc into your DVD-ROM drive. 2. Locate and run the Setup application (Setup.exe). This file will be located in the main file directory. - Page 7 Illustration of the Windows InstallShield during the installation process. 5. When prompted, click “Finish. ” Note: You will be required to restart your computer after completing installation. Instruction Manual...
-
Page 8: Hardware Installation
Hardware Installation Note: Please ensure the Software Installation steps have been completed prior to beginning Hardware Installation steps. 1. Using the included USB 3.0 cable, connect the USB3HDCAP to an available USB 3.0 port on your computer system. USB 3.0 Cable... - Page 9 If your video source is VGA, use the included DVI to VGA video adapter to connect your VGA video source cabling to the DVI video input port on the USB3HDCAP (Please see the diagram on the next page for reference).
- Page 10 (Optional) If you would like to capture a 2-channel RCA audio source along with your video source, connect your RCA audio source cable to the A/V breakout cable input port on the USB3HDCAP along with your desired video source cabling. Video Source Cabling...
-
Page 11: Software Operation
Software Operation 1. Upon starting Windows, if the “Found New Hardware” wizard appears on the screen, cancel/close the window and insert the included Driver CD into the computer’s CD/ DVD drive. 2. AutoPlay should automatically prompt you to run the Setup application file (Setup.exe). - Page 12 Menu Video Window Volume Record/Stop Snapshot * screenshots are for reference only Control Button Button Manually recording video can be done by simply pressing the “Record” button from the control menu along the bottom of the Stream Catcher window. The frame around the video window will turn red while recording.
- Page 13 Record Files Clicking this button will open the folder location where all of the recorded video files are saved in Windows. Schedule Recording The software can be set up to start recording at a specific date and time. Also, you can set this automatic recording option to occur once or multiple times.
- Page 14 Settings The Settings menu is broken into different sections for configuring various aspects of the software. System Settings contains configuration options for the user interface. Device Settings The Device Settings contains configuration options for the video capture hardware. Video and audio input source (HDMI, component, DVI/VGA), video system (NTSC/PAL), aspect ratio and video properties (sharpness, contrast, saturation, hue, brightness) can all be adjusted from this menu.
- Page 15 Video Streaming Streaming using RTMP Streaming Service Provider 1. Obtain the RTMP settings for your video streaming service. The below steps show how to obtain these settings from Justin.TV and Twitch. Note: Steps may vary from different streaming service providers. Please contact your service provider for specific details.
- Page 16 4. In the lower section of this page, you will find “Stream Key: Show. ” Click “Show” and the Stream Key will appear. Instruction Manual...
- Page 17 For Twitch 1. a) Open your web browser and browse to the following website: http://www.Twitch.tv b) Log in and select “Dashboard” from your account drop down menu. c) In the top right select “Streaming Apps. ” d) Click the “Show Key” button and the key will appear. Instruction Manual...
- Page 18 2. Open the Steam Catcher Program and then select RTMP. Note: RTMP (Real Time Messaging Protocol) is a standard for streaming audio/video over the Internet. 3. Obtaining the streaming URL from your streaming service provider. Note: This is specific to your service provider and will likely contain the key located in Step 1.
- Page 19 5. Return to the screen catcher home page and click the blue record dot (pictured below). 6. The video will now be streamed to your streaming service. Instruction Manual...
- Page 20 Streaming with HLS using AppServ 1. Download and install AppServ from the following URL: http://www.appservnetwork.com/ 2. Locate your IP address. Windows 8 a) Open Control Panel b) Click Network and Sharing Center c) Click Local Area Connection 2 d) Click the Details button Instruction Manual...
- Page 21 e) Your IP Address is displayed. Instruction Manual...
- Page 22 Note: Steps for obtaining IP address will vary for different operating systems. Please contact your system administrator for further details. 3. Open the Steam Catcher Program and then select HLS. 4. In the Streaming Public URL, type your IP address followed by, “/live/session0.m3u8. ” 5.
- Page 23 6. Using a different device on your network (Tablet, laptop, etc.) open the web browser and then type the full URL used in Step 5. The URL is built using your computer IP address with, “/live/session0.m3u8” added at the end. Instruction Manual...
-
Page 24: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 25 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
