Summary of Contents for Laird LCD-3D-2D-HD

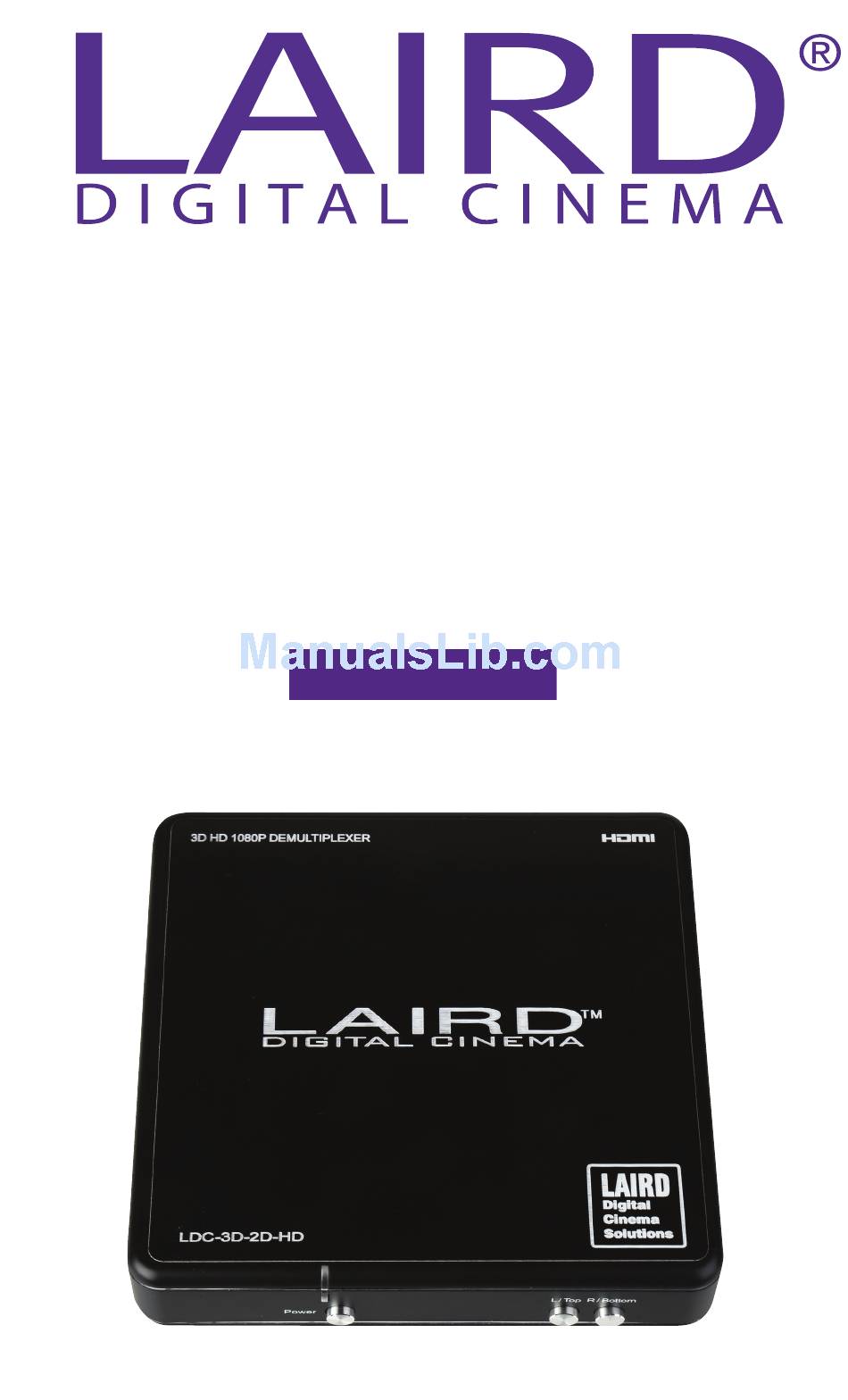

- Page 1 LCD-3D-2D-HD 3D Demultiplexer and Converter Operation Manual...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction 2. Applications 3. Package Contents 4. System Requirements 5. Features 6. Operation Controls and Functions 3 6.1 Front Panel 6.2 Rear Panel 7. Connection Diagram 8. Specifications 9. Acronyms... -
Page 4: Introduction
1. INTRODUCTION The 3D Demultiplexer is a device used to separate a 3D signal into it’s left and right signals for sending to two 2D projectors. The 3D signal must be sent via a 1 to 2 HDMI splitter and each of the two 3D signals must be passed through a 3D Demultiplexer whereby the left or right signal can then be outputted to be passed through to each of the two 2D projectors. -
Page 5: Features
5. FEATURES • Supports 3D content separations for Left/Right fields • Automatically detects 2D or 3D contents • Automatically detects if 3D content is Side-by-Side or Frame Packing • Input resolution supports: - 2D: 480i/p, 576i/p, 720p@50/60, 1080i@50/60 and 1080p@50/60 - 3D: 720p@50/60 (Frame Packing and Side-by-Side), 1080p@24 (Frame Packing) •... -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel L/ T op R / Bottom Power Power Press this button to switch on the device, the LED will illuminate in green. Press it again to set the device to standby mode, the LED will illuminate in red. -
Page 7: Rear Panel
6.2 Rear Panel HDMI Out HDMI In DC 5V HDMI Out Connect to the HDMI input of a TV/projector with an HDMI cable or HDMI to DVI cable or adaptor. HDMI In Connect to a 3D source such as Blu-ray player with HDMI cable or DVI to HDMI cable or adaptor. -
Page 8: Connection Diagram
7. CONNECTION DIAGRAM Example 1: 3D Source (Blu-ray Player) 3D Demultiplexer Control System HDMI Input HDMI OUT 1 HDMI OUT 2 1 x 2 HDMI Splitter CLUX-12S HDMI 1.3 SPLITTER HDMI HDMI Output Output 3D Demultiplexer 3D Demultiplexer HDMI Out HDMI In HDMI Out HDMI In... - Page 9 Example 2a: 3D Source (Blu-ray Player) Convert 3D to 2D output for non-3D Display HDMI Input Power Supply HDMI Out HDMI In Demultiplexer DC 5V HDMI Output 2D TV/Monitor...
- Page 10 Example 2b: 3D Source (Blu-ray Player) Share 3D output with 3D and 2D Displays HDMI Input HDMI OUT 1 HDMI OUT 2 1 x 2 HDMI Splitter CLUX-12S HDMI 1.3 SPLITTER HDMI HDMI Input Output HDMI Out HDMI In Demultiplexer DC 5V HDMI Output...
-
Page 11: Specifications
8. SPECIFICATIONS Input 1xHDMI Output 1xHDMI Input Resolution 2D: 480i/p, 576i/p, 720p@50/60, 1080i@50/60 & 1080p@50/60 3D: 720p@50/60 (Frame Packing and Side-by- Side) & 1080p@24 (Frame Packing) Output Resolution 1080p@60 Hz ESD Protection Human-body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Power Supply 5 V / 3 A DC (US/EU standards, CE/FCC/UL certified) - Page 12 www.lairddigitalcinema.com...
