Club Car Precedent Owner's Manual

Converted gasoline

Hide thumbs Also See for Precedent:

Maintenance and service manual (510 pages)

Owner's manual (88 pages)

Owner's manual (80 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the Precedent and is the answer not in the manual?

Questions and answers

Mike

May 5, 2025

How do I shut down my Precedence golf cart for 6 months?

Summary of Contents for Club Car Precedent

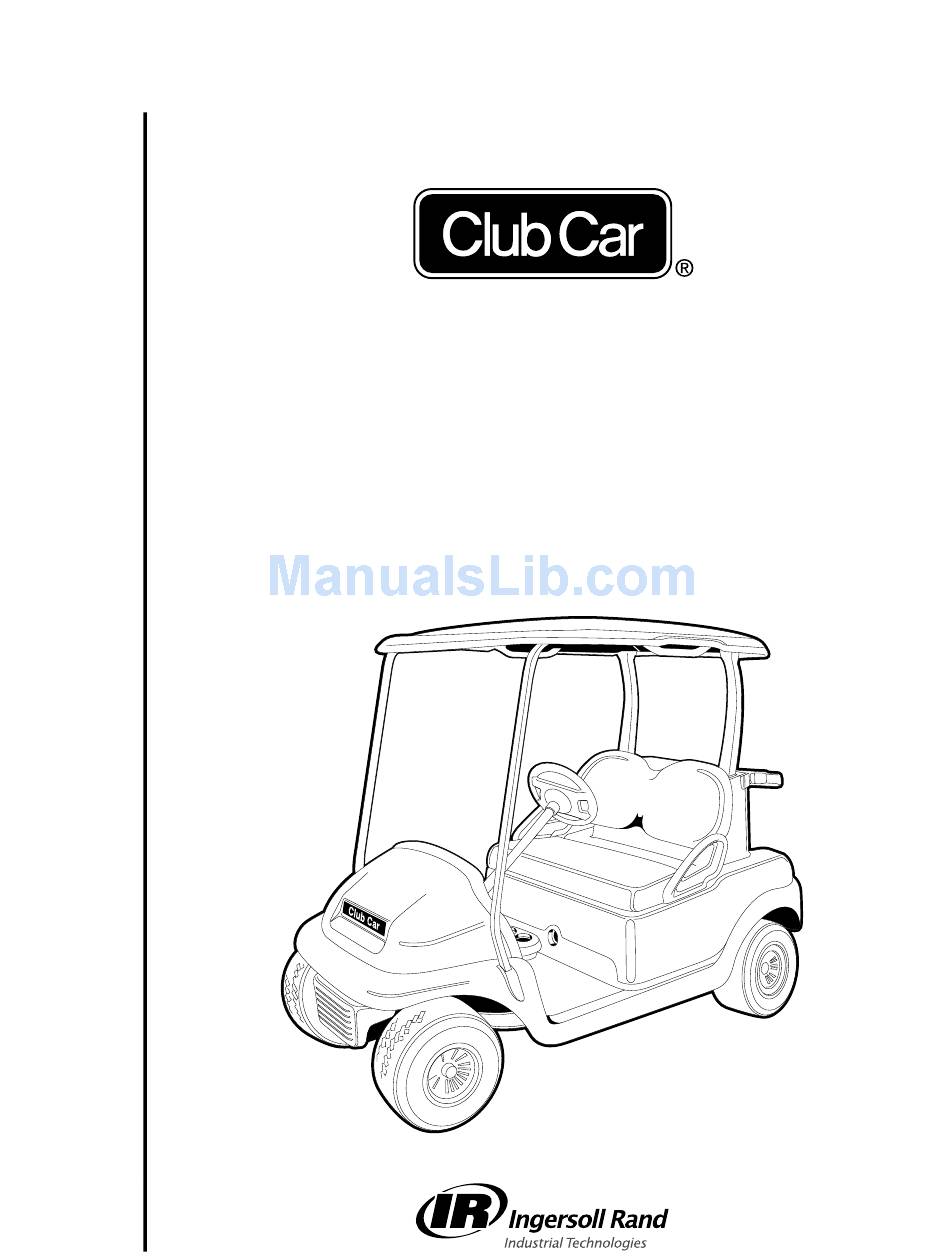

Page 1 Precedent Golf Car Owner’s Manual (Converted Gasoline) [Refer to back cover for applicable build code range]...
Page 3 Your authorized representative checked the vehicle before it was delivered to you and will provide you a copy of the completed vehicle warranty registration form. Club Car is not liable for errors in this manual or for incidental or consequential damages that result from the use of the material in this manual.
Page 4 Club Car products are backed by a customer support system designed to offer you fast, courteous service. In the event that your golf car needs repairs or service, please contact your local authorized Club Car dealer or distributor, who will be able to provide technical advice, perform warranty work, and sell parts and service manuals.
Page 5: Table Of Contents
Engine Oil – Gasoline Vehicles ..........................30 Fueling Instructions – Gasoline Vehicles ......................33 Cleaning the Vehicle ............................34 Accessories................................ 34 Subsequent Owner Registration .......................... 34 Precedent Four-Passenger Vehicle........................35 Vehicle Specifications ............................36 Warranties................................38 Precedent Golf Car Owner’s Manual (Converted Gasoline) Page 3...
Page 6: Safety Decal And Feature Identification
Safety Decal and Feature Identification SAFETY DECAL AND FEATURE IDENTIFICATION The following pages contain safety decal and feature identification information. For detailed information on specific features, read the appropriate section in this manual. Page 4 Precedent Golf Car Owner’s Manual (Converted Gasoline)
Page 7 Low Oil Warning Light 102519201 Decal, Operating Instructions (on steering wheel) Accelerator Pedal 102519301 Decal, Rollover Warning (on instrument panel) Brake Pedal 103783002 Decal, Operating Instructions (on steering wheel) Park Brake Pedal Precedent Golf Car Owner’s Manual (Converted Gasoline) Page 5...
Page 8 Decal, Rotating Parts/Hot Manifold Warning (on 101960501 Choke engine, starter/generator, and transaxle) Decal, Gas/Governor Warning (on fuel tank 102517801 Forward/Reverse Control hold-down bracket) Decal, Frame Ground Warning (on vehicle frame, 102517901 under seat) Page 6 Precedent Golf Car Owner’s Manual (Converted Gasoline)
Page 9 Safety Decal and Feature Identification PRECEDENT VILLAGER 4 Decal, Falling Off Warning (on rear-facing seat 101705701 hand rail and/or on back side of forward-facing seat Foot rest backs) Hand hold Hand rail Precedent Golf Car Owner’s Manual (Converted Gasoline) Page 7...
Page 10: Practice Safety
PROPOSITION 65 – STATE OF CALIFORNIA WARNING • This product contains or emits chemicals or substances that have been determined by the state of California to cause cancer and birth defects or other reproductive harm. Page 8 Precedent Golf Car Owner’s Manual (Converted Gasoline)
Page 11: Safety Details
• Battery – Explosive gases! Do not smoke. Keep sparks and flames away from the vehicle and service area. Ventilate when charging or operating vehicle in an enclosed area. Wear a full face shield and rubber gloves when working on or near batteries. DANGER CONTINUED ON NEXT PAGE Precedent Golf Car Owner’s Manual (Converted Gasoline) Page 9...
Page 12 • The vehicle will not provide protection from lightning, flying objects, or other storm-related hazards. If caught in a storm while driving a Club Car vehicle, exit the vehicle and seek shelter in accordance with applicable safety guidelines for your location.
Page 13 Please contact your nearest Club Car dealer or distributor for information on how to properly recycle your batteries. Precedent Golf Car Owner’s Manual (Converted Gasoline)
Page 14: General Information
International Safety Symbols on Batteries GENERAL INFORMATION These Precedent Golf Cars are available only with gasoline power. Throughout this manual, important features unique to each model are highlighted. We urge the owner/operator to read and understand this manual, and to pay special attention to the features specific to his/her vehicle(s).
Page 15: Model Identification
• Maintaining golf cars in a safe driving condition. • How various rules are to be enforced. The safety committee should include all these items and such others as the committee feels necessary or appropriate. Precedent Golf Car Owner’s Manual (Converted Gasoline) Page 13...
Page 16: Controls And Indicators - Gasoline Vehicles
(REVERSE) to operate the vehicle in reverse. When the handle is in the straight up position, (NEUTRAL), the vehicle will not operate. The engine will stop if it is shifted to this position during operation. Club Car vehicles operate at Page 14 Precedent Golf Car Owner’s Manual (Converted Gasoline)
Page 17 The brake pedal is the large pedal on the left with the word STOP molded into it. To slow or stop the vehicle, press the brake pedal with your foot (Figure 9). Precedent Golf Car Owner’s Manual (Converted Gasoline) Page 15...
Page 18 NOTE: Be sure to return the cam to the OPERATE position after servicing the vehicle, or it will not operate with the Forward/Reverse handle in either the FORWARD or REVERSE position. Page 16 Precedent Golf Car Owner’s Manual (Converted Gasoline)
Page 19 The gasoline golf car is equipped with a low oil warning light, located on the dash panel just below the steering column (Figure 14). If the warning light comes on, oil should be checked and added to the engine as necessary before Precedent Golf Car Owner’s Manual (Converted Gasoline) Page 17...
Page 20: Pre-Operation And Daily Safety Checklist
Use the following checklist in conjunction with the Daily Pre-Operation and Safety Checklist as a guide to inspect the vehicle and check daily for proper operation. Any problems should be corrected by a Club Car distributor/dealer or a trained technician.
Page 21: Driving Instructions
When the pedal is released it should return to the original position. All Club Car vehicles operate at reduced speed in reverse.
Page 22 NOTE: If the Forward/Reverse handle is shifted into the NEUTRAL position, power will be cut off and the engine will stop running. Page 20 Precedent Golf Car Owner’s Manual (Converted Gasoline)
Page 23: Towing
• Do not tow more than one Club Car vehicle with another Club Car vehicle. If more than one vehicle must be towed, an adequately powered vehicle (tractor or full sized truck) properly fitted, with a tow hitch height of 11 inches (28 cm) should be used.
Page 24: Transporting On A Trailer
• For use on public roads, the trailer must meet all federal, state, and local requirements such as taillights, brake lights, etc. • Do not tow a Club Car vehicle behind a passenger vehicle or truck on a public road unless it is on an approved trailer.
Page 25 1. Fuel Shut-off Valve 2. Closed (OFF) 3. Open (ON) NOTE: When 1. Fuel Shut-off Valve selecting valve position, ensure that it is fully opened or fully closed. Figure 15 Fuel Shut-off Valve Figure 16 Fuel Tank Precedent Golf Car Owner’s Manual (Converted Gasoline) Page 23...
Page 26: Maintenance
Any vehicle not functioning correctly should be removed from use until it is properly repaired. This will prevent further damage to the vehicle and avoid the possibility of injury due to unsafe conditions. Contact your local Club Car distributor/dealer to perform all repairs and semiannual and annual periodic service. WARNING •...
Page 27: Periodic Service Schedule
Both the Periodic Service Schedule and Periodic Lubrication Schedule must be followed to keep vehicle in optimum operating condition. Precedent Golf Car Owner’s Manual (Converted Gasoline) Page 25...
Page 28 Lubricate brake system per Lubrication Brake system Schedule. See Section 6 – Wheel Brake Assemblies in the appropriate maintenance and service manual. Check brake cables for damage; replace if necessary. Page 26 Precedent Golf Car Owner’s Manual (Converted Gasoline)
Page 29 • If any problems are found during scheduled inspection or service, do not operate the vehicle until repairs are made. Failure to make necessary repairs could result in fire, property damage, severe personal injury, or death. Precedent Golf Car Owner’s Manual (Converted Gasoline) Page 27...
Page 30: Periodic Lubrication Schedule
32 oz. (0.95 liter) without filter; 38 oz. (1.12 every 400 rounds of golf), or (dispose of properly) liters) with filter annually, whichever comes first Figure 17 Lubrication Points – Gasoline Vehicles Page 28 Precedent Golf Car Owner’s Manual (Converted Gasoline)
Page 31: Battery - Gasoline Vehicles
WARNING • Do not jump start a dead battery using another battery and jumper cables. The battery in the Club Car gasoline vehicle is a 12-volt, low maintenance battery that requires infrequent watering (Figure 18). Any corrosion around the positive (+) or negative (–) terminals should be washed off with a solution of baking soda and water (1 cup (237 mL) per gallon (3.8 L) of water).
Page 32: Engine Oil - Gasoline Vehicles
Even though the low oil warning light on the dash should warn you if your oil becomes low, engine oil level should be checked monthly. Vehicle should be on a level surface when checking oil. Do not overfill with oil. Page 30 Precedent Golf Car Owner’s Manual (Converted Gasoline)
Page 33 Position a pan designed for oil changes under the front drain plug (Figure 21). 1. Drain pan 2. Drain plug 3. Oil filter Figure 21 Engine Oil Drain Plug and Pan Precedent Golf Car Owner’s Manual (Converted Gasoline) Page 31...
Page 34 11. Coat new oil filter gasket with clean engine oil and install the oil filter onto the engine oil filter port (Figure 23). NOTE: Use only Club Car oil filters (CC P/N 1016467) designed for this engine. 12. Hand tighten 2/3 to 3/4 turn after filter gasket contacts mounting surface.
Page 35: Fueling Instructions - Gasoline Vehicles
Lift and remove seat bottom. The fuel tank is located on driver side of vehicle. Remove fuel cap and fill the fuel tank with fresh unleaded gasoline only. See preceding CAUTION. Precedent Golf Car Owner’s Manual (Converted Gasoline) Page 33...
Page 36: Cleaning The Vehicle
SUBSEQUENT OWNER REGISTRATION In the event a vehicle is bought as a used vehicle, we strongly urge the new owner to register the vehicle with Club Car. This will enable us to contact you if the need arises. Please send your name, address, and serial number(s) of the vehicle(s) to Club Car, LLC, P.O.
Page 37: Precedent Four-Passenger Vehicle
Precedent Four-Passenger Vehicle PRECEDENT FOUR-PASSENGER VEHICLE The Precedent four-passenger vehicle is designed to provide a smooth and comfortable ride for four passengers and is offered in a gasoline power configurations. This owner’s manual should be read thoroughly prior to operating the vehicle.
Page 38: Vehicle Specifications
651 lb. (295 kg) 768 lb. (348 kg) Forward speed Curb clearance circle (diameter) 17 ft - 4 in. (528 cm) 17 ft - 4 in. (528 cm) Standard seating capacity Page 36 Precedent Golf Car Owner’s Manual (Converted Gasoline)
Page 39 70.9 dBA Drive-by noise level to operator Test method: EN 12053:2001 Uncertainty: 2 dBA Uncertainty: 2 dBA 0.8 m/s 0.8 m/s Vibration at driver’s seat Uncertainty: 0.096 Uncertainty: 0.096 Test method:EN 13059:2002 Precedent Golf Car Owner’s Manual (Converted Gasoline) Page 37...
Page 40: Warranties
ANY WARRANTY CLAIM. EXCLUSIONS: Excluded from any CLUB CAR warranty is damage to a golf car or component resulting from a cause other than a defect including poor maintenance, neglect, abuse, accident & collision, maintenance adjustments, unreasonable or unintended strain or use, improper installation of accessories, installation of parts or accessories that are not original equipment, nonapproved alteration, and acts of god.
Page 41 REPRESENTATION, PROMISE OR AGREEMENT, WHICH IN ANY WAY VARIES THE TERMS OF THIS WARRANTY. In the event that another pre-printed warranty document and/or certificate offered by or through Club Car at the time of sale of this vehicle (each an “Additional Warranty Document”) is deemed to conflict with the limitations or exclusions contained herein, the limitations and exclusions contained herein shall continue to apply with respect to both this limited warranty statement and, to the maximum extent permitted by law, to each Additional Warranty Document.
Page 42 CLUB CAR recommends that you retain all receipts covering maintenance on your vehicle engine, but CLUB CAR cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
Page 43 CLUB CAR will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.
Page 44 Warranties Page 42 Precedent Golf Car Owner’s Manual (Converted Gasoline)
Page 48 Publication Part Number 103814507 Edition Code 1010A00000 This manual is valid for vehicles with build codes between 55137 and the one indicated at the top of this page.
