- Page 1 1450 First Ave. Page 1 of 10 Chippewa Falls, WI 54729 (800) 283-1141 or (715) 723-1141 Fax: (715) 723-7890 sales@pacer-instruments.com Model DA40T User Manual DA40T User Manual Pacer Instruments, Inc Rev 1.0 www.pacer-instruments.com 11-Aug-2007 Phone: 1-800-283-1141...
- Page 2 DA40T User Manual Pacer Instruments, Inc Rev 1.0 www.pacer-instruments.com...
-
Page 3: Section 1 - Specifications

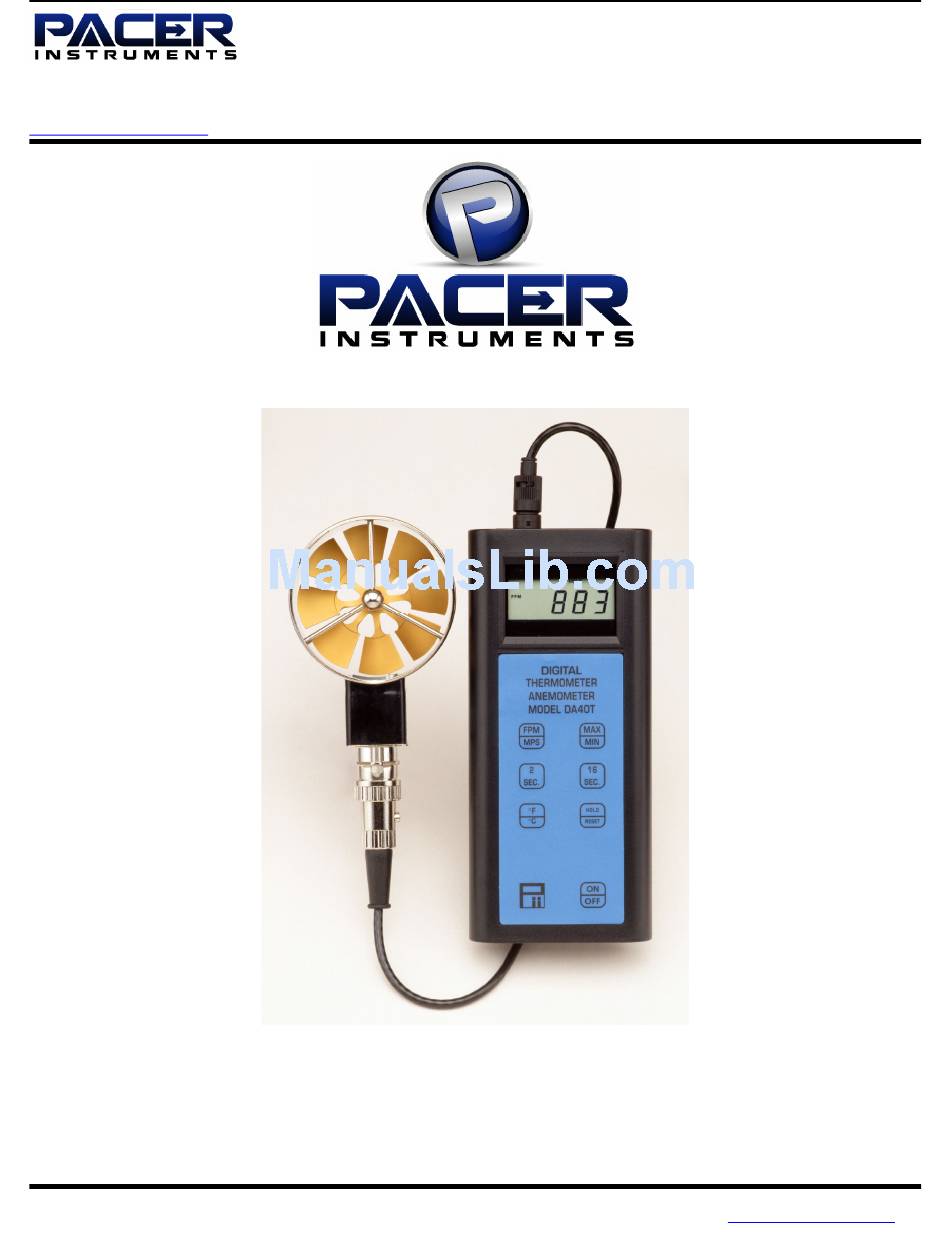

INTRODUCTION Pacer’s model DA40T digital thermometer-anemometer is a versatile instrument for measuring air velocity and temperature of airflow from HVAC ducts or process air flow. The heavy, all metal (except electronics) probe can be used for airstreams which have a wide range of humidity, temperature and contaminants without compromising accuracy. - Page 4 PN 3836 5 ft. connection cable (attached to the APT100 probe) 2 pieces: AA 1.5V alkaline batteries 1 piece: PN 6004 hard-shell carrying case 1 piece: Operation manual DA40T User Manual Pacer Instruments, Inc Rev 1.0 www.pacer-instruments.com 11-Aug-2007 Phone: 1-800-283-1141...
-
Page 5: Section 2 - Switch Functions
Clear the internal memory by turning unit OFF. Clear the “MAX/MIN” mode by pressing any other key (except “HOLD”). See APPENDIX B for description of algorithm that determines MAX and MIN. DA40T User Manual Pacer Instruments, Inc Rev 1.0 www.pacer-instruments.com... -
Page 6: Section 3 - Operation
“MAX/MIN” key a second time. For explanation of the displayed views, see “MAX/MIN” paragraph in SECTION 2, also see APPENDIX B. 8) To HOLD the displayed reading, press the “HOLD/RESET” key. Press key again to clear the HOLD condition. DA40T User Manual Pacer Instruments, Inc Rev 1.0 www.pacer-instruments.com... -
Page 7: Appendix A - Connector Diagram
MIN at E is lower than the 1st MIN, registered at B, and will replace it. F) The zero crossing at F does not form a MIN and will be ignored. This protects against false MIN readings when the probe is withdrawn from the air stream. DA40T User Manual Pacer Instruments, Inc Rev 1.0 www.pacer-instruments.com... -
Page 8: Appendix C - Lcd Display Symbols
Page 8 of 10 Chippewa Falls, WI 54729 (800) 283-1141 or (715) 723-1141 Fax: (715) 723-7890 sales@pacer-instruments.com APPENDIX C – LCD DISPLAY SYMBOLS APPENDIX D – CHANGING BATTERIES DA40T User Manual Pacer Instruments, Inc Rev 1.0 www.pacer-instruments.com 11-Aug-2007 Phone: 1-800-283-1141... -
Page 9: Appendix E - Airflow Volume Calculations
Volume flow = Air Velocity x Area, therefore, Volume flow rate = 450 FPM x 2 sq ft. = 900 CFM. APPENDIX F – ERROR CODES E-08 Temperature lower than -95.0ºC or -139ºF E-09 Temperature higher than 205.0ºC or 401.0ºF DA40T User Manual Pacer Instruments, Inc Rev 1.0 www.pacer-instruments.com 11-Aug-2007 Phone: 1-800-283-1141... - Page 10 1450 First Ave. Page 10 of 10 Chippewa Falls, WI 54729 (800) 283-1141 or (715) 723-1141 Fax: (715) 723-7890 sales@pacer-instruments.com Notes: DA40T User Manual Pacer Instruments, Inc Rev 1.0 www.pacer-instruments.com 11-Aug-2007 Phone: 1-800-283-1141...
