- Page 1 By Miltronics Mfg. Svcs., Inc. Phone: (603) 352-0187 95 Krif Road EFax: (603) 352-7649 Keene, NH 03431 USA sales@pacer-instruments-usa.com ™ Model DA400 ANEMOMETER User Manual DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com Page 1 of 28...

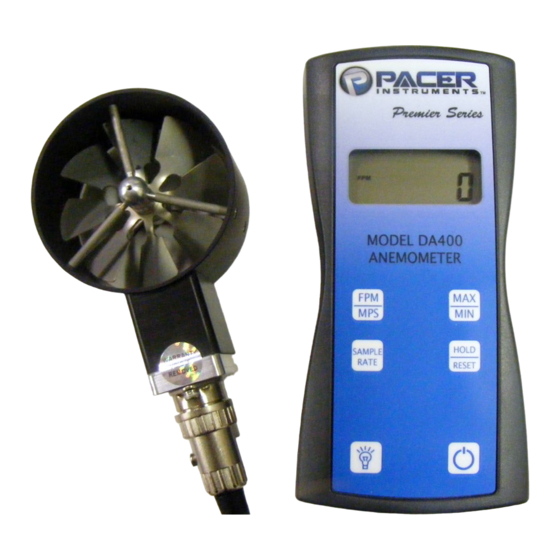

- Page 2 You now own one of the most accurate, reliable, and highly regarded airflow measurement instruments available today. Pacer’s model DA400 digital anemometer is a versatile instrument for measuring air velocity in various applications such as HVAC, aerospace development, industrial process airflow, and fluids research.
-
Page 3: Warranty
DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com... -
Page 4: Important Safety Information
However, there is no guarantee that interference will not occur in a particular situation. DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com... - Page 5 Miltronics is committed to reduce the negative environmental and human health effects of WEEE. DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com...
- Page 6 Dropping the instrument or the probe may cause damage or malfunction to the instrument and may change the calibration data. We recommend sending it in immediately to be checked. DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com...
- Page 7 When storing or shipping the instrument, the manufacturer recommends disconnecting the cable(s) and returning it to the original carrying case. DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com...
-
Page 8: Section 1 - Specifications
3 AA alkaline batteries Battery Life: Approx. 150 hours, without backlight Battery check: Automatic low battery display Display: 0.5” LCD, 4 digits, with LED backlight DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com Page 8 of 28... - Page 9 (3) Size AA 1.5V alkaline batteries • (installed in instrument) (1) Hard-shell carrying case with foam liner • (1) DA410 operation manual • Dimensions INSTRUMENT DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com Page 9 of 28...
- Page 10 By Miltronics Mfg. Svcs., Inc. Phone: (603) 352-0187 95 Krif Road EFax: (603) 352-7649 Keene, NH 03431 USA sales@pacer-instruments-usa.com AP275 PROBE AP100 PROBE DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com Page 10 of 28...
-
Page 11: Section 2 - Switch Functions
To turn the backlight on permanently, hold the backlight key down for 3 seconds. The LCD will flash. The backlight is now switched on permanently. To switch the backlight off, press the backlight key again. DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com... - Page 12 82 is the lowest airspeed reading since the MAX/MIN key was pressed, and the sample rate is set to 16 seconds. To exit MAX/MIN mode, press the SAMPLE RATE key. DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com...
-
Page 13: Appendix A - Lcd Display Symbols
Once the HOLD/RESET key is pressed while in MAX/MIN mode, new airspeed readings are no longer recorded. To return to MAX/MIN mode, press the HOLD/RESET key again. APPENDIX A – LCD DISPLAY SYMBOLS DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com... -
Page 14: Appendix B - Battery Replacement
By Miltronics Mfg. Svcs., Inc. Phone: (603) 352-0187 95 Krif Road EFax: (603) 352-7649 Keene, NH 03431 USA sales@pacer-instruments-usa.com APPENDIX B – BATTERY REPLACEMENT DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com Page 14 of 28... -
Page 15: Appendix C - Airflow Volume Calculations
Step 2: 288 sq in /144 = 2 sq ft. Step 3: Volume flow = Air Velocity x Area, therefore, Volume flow rate = 450 FPM x 2 sq ft. = 900 CFM. DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com... -
Page 16: Appendix D - Analog Outputs (If Equipped)
±2% of reading ±1 digit (±11 FPM). Custom Analog Voltage Outputs are also available – contact Pacer for details. DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com... - Page 17 (603) 352-7649 Keene, NH 03431 USA sales@pacer-instruments-usa.com Analog Output circuit block diagram and connector pin assignment Mating Cable Connector: Binder Part No. 99-0413-00-05 DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com Page 17 of 28...
-
Page 18: Appendix E - Usb Data Output (If Equipped)
COM port number. (You only need to do this once) For Windows users, open the Windows Device Manager (found in Control Panel) and verify that a USB serial port exists as shown below. DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com... - Page 19 Please refer to Appendix G – Viewing and Capturing Data for further instructions. NOTE: Units with USB or RS232 communications, output only Air data at this time. Temperature data is not available on the output. DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com...
-
Page 20: Appendix F - Rs232 Communications (If Equipped)
You are now ready to capture the data being measured by your instrument. Please refer to Appendix G – Viewing and Capturing Data for further instructions. DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com Page 20 of 28... -
Page 21: Appendix G - Viewing And Capturing Data
There are many terminal emulator programs available on the market. It is up to the end-user to determine which program is compatible with his/her system, what settings it may require and the Pacer Instruments/Miltronics product being used. Miltronics Mfg. Svcs., Inc. does not endorse or recommend any of these programs and assumes no liability for their use. - Page 22 You will now receive data from your instrument. The graphic below shows the serial port output data from Parallax Serial Terminal when connected to a Pacer DA400 Instrument. Graphics may vary. DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com...
- Page 23 Model DA430: Air,47,FPM NOTE: Units with USB or RS232 communications, output only Air data at this time. Temperature data is not available on the output. DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com Page 23 of 28...
- Page 24 InstrumentData.csv). Open the file in a spreadsheet application such as Microsoft Excel or OpenOffice Calc. A graph of the data as shown below can now be generated. DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com...
- Page 25 ™ By Miltronics Mfg. Svcs., Inc. Phone: (603) 352-0187 95 Krif Road EFax: (603) 352-7649 Keene, NH 03431 USA sales@pacer-instruments-usa.com Notes: DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com Page 25 of 28...
- Page 26 ™ By Miltronics Mfg. Svcs., Inc. Phone: (603) 352-0187 95 Krif Road EFax: (603) 352-7649 Keene, NH 03431 USA sales@pacer-instruments-usa.com Notes: DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com Page 26 of 28...
- Page 27 Please contact us or visit our website for the latest information on calibrating your instrument. DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com...
- Page 28 Copyright © 2019, Miltronics Mfg. Svcs., Inc. Miltronics, Pacer Instruments, DA400, the Miltronics Mfg., Inc. logo and the Pacer Instruments logo are trademarks of Miltronics Mfg., Inc. DA400 User Manual, PN 10075 Miltronics Mfg. Svcs., Inc. Rev 3.5, 01-Aug-2019 www.pacer-instruments-usa.com...
