Summary of Contents for TiTLEY Scientific TC2201NA

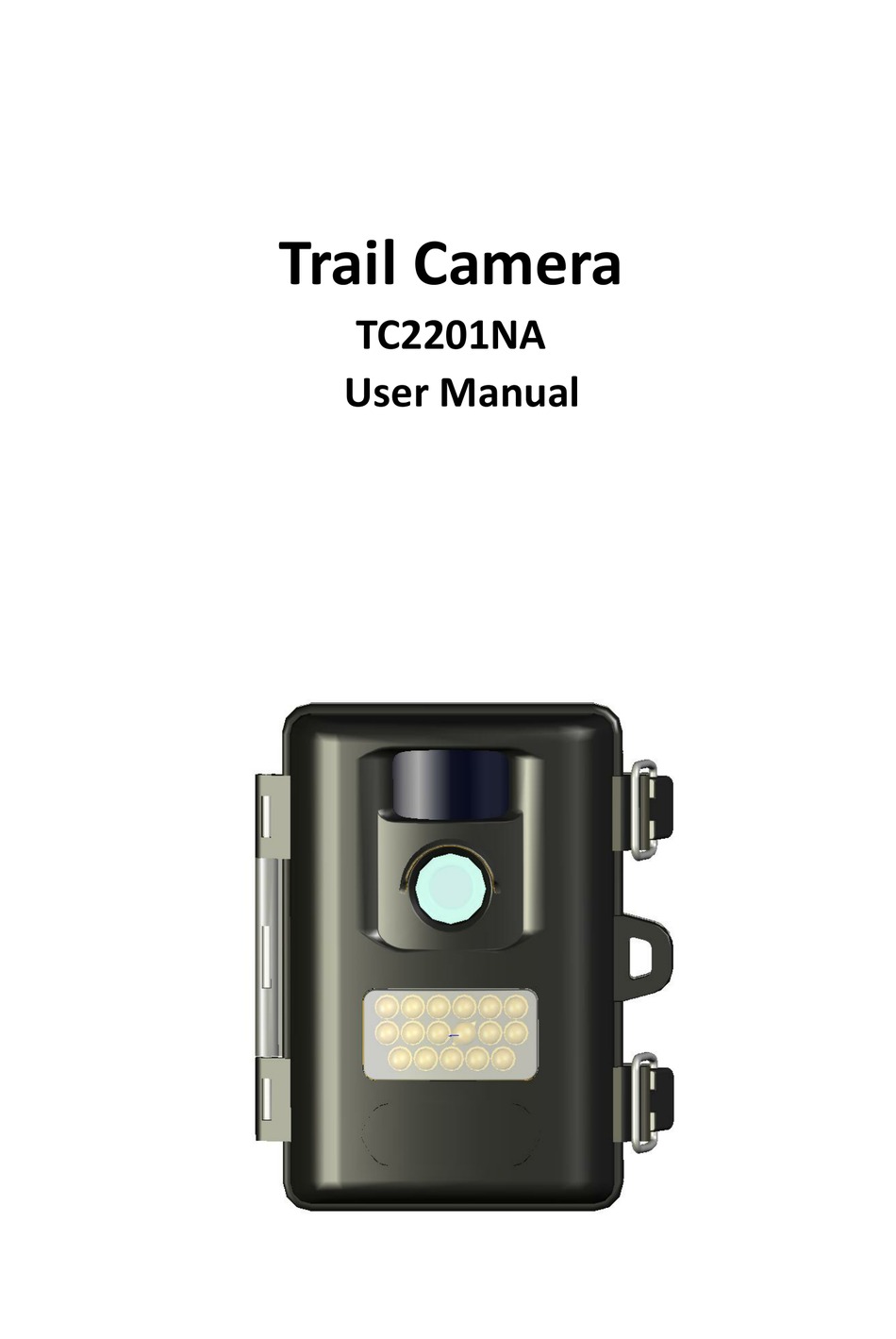

- Page 1 Trail Camera TC2201NA User Manual ...
-
Page 2: Table Of Contents
Index 1. Introduction ........................ 3 2. Digital Trail Scout Specifications .................. 4 3. Parts Identification ...................... 5 4. Packing Contents........................ 6 5. -
Page 3: Introduction
1. Introduction Congratulations on your purchase of the WALDKAUZ digital trail camera. This trail camera is designed to record the activity of wildlife game in the outdoors with its still image and movie modes and weatherproof, rugged construction. ... -
Page 4: Digital Trail Scout Specifications
2. Digital Trail Scout Specifications Product Name Trail ( Game) Camera Model Number WALDKAUZ Image Sensor Type 1/2 Inch CMOS Effective Pixels 2.0 Megapixels Effective Focal Length 9.3 mm Lens Aperture ... -
Page 5: Parts Identification
3. Parts Identification ES-‐5 ... -
Page 6: Packing Contents
4. Packing Contents Model WALDKAUZ Digital Scouting Camera • User Manual • USB cable • Mounting Kit 5. Battery and SD Card Installation WALDKAUZ Digital Scouting Camera is designed to operate using 4*AA Cell Battery. We recommend to use Alkaline battery. -
Page 7: Lcd Menu
accepting up to 32GB SD card (sold separately). Inserting SD card Make sure camera is in the OFF position whenever adding or removing memory. • Insert SD memory card in to the SD card slot completely and in the correct direction as shown by the sticker located at the side of the housing. -
Page 8: Set Camera Delay
3. 4 Digits Display 4. Image Resolution Select 5. Movie Recording 6. Camera Delay Setting 7. SD Card The setting of this camera is very easy. Turn on the unit and then press the SETUP button, the icon will start to blink from ... -
Page 9: Set Date, Year And Time
represents 0.8MP and Hi represents is 2.0MP. Press UP or DOWN to select and press OK to confirm. Default is Hi . Model Lo Hi WALDKAUZ 1028*768 (0.8M) ... -
Page 10: Display How Many Pictures And Video Taken
Date & Time setting will just keep for a while whenever the batteries are removed from the Date & Time stamp after you replace the batteries. ... -
Page 11: Turn On The Camera
a) Insert the strap through the strap slots on the rear housing. b) Wrap the strap around the mounting surface. Secure the strap and tighten the buckle in order to secure the camera. -
Page 12: Secure Your Camera
Make sure to switch the Power to On and press the "SETUP" button again after setting is over. Otherwise the camera will not take any pictures or movies. 7.4 Secure Your Camera ... -
Page 13: Viewing The Images And Movies
8. Viewing the Images and Movies Connect the Camera to PC directly 1. S Power toggle switch to on position 2. Press SETUP button 3. Connect your camera to the PC by the USB cable, the PC will recognize the new device and enter into ... -
Page 14: Glossary
10. Glossary PIR: Passive Infrared Sensor. Senses motion like typical security motion detector. Requires infrared energy (heat) in addition to motion to trip sensor to assure detection of live animals. ... - Page 15 Mass Storage Connect the USB cable to the computer next p , then the computer read the SD card. ES-‐15 ...
