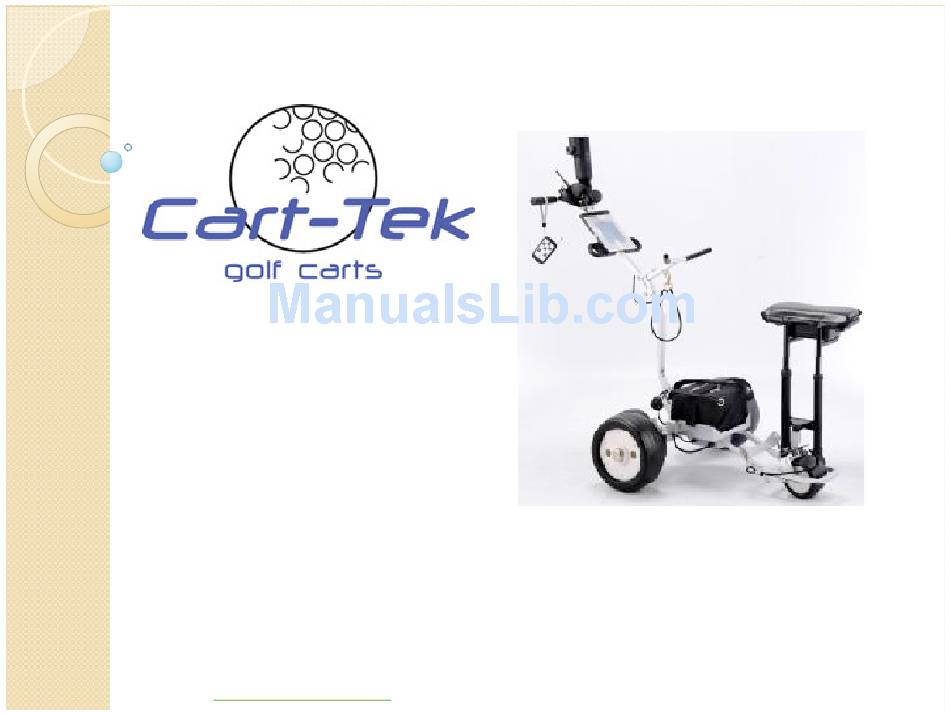

Instruction Manual
GRX-1200-R
GRX-1200-R
Your Cart-Tek golf caddy was thoroughly quality control checked and road
tested before being shipped to your address. We do everything possible to
assure that your cart is in perfect working order upon arrival. Should you
have any issues or questions about the performance or your cart, please email
us at
carttek@mac.com
or call Toll Free 1-866-356-CART (2278)
Advertisement
Table of Contents
Related Manuals for Cart-Tek GRX-1200-R
Summary of Contents for Cart-Tek GRX-1200-R
- Page 1 Instruction Manual GRX-1200-R GRX-1200-R Your Cart-Tek golf caddy was thoroughly quality control checked and road tested before being shipped to your address. We do everything possible to assure that your cart is in perfect working order upon arrival. Should you...
- Page 2 BASIC SET BASIC SET- - UP Remove all components form carton. Note any damage with carrier. Assemble the two large wheels. Depress blade on wheel hub to fully seat wheel onto axle drive pins. Depress and pull wheel out ¼ “ to “free wheel” Lift handle and secure with lower locking knob Extend handle fully and secure in position by lowering the “upper bag rest”...
- Page 3 Manual Mode Manual Mode When you first connect the battery to the cart, the green LED will flash. This is “Standby” mode Push and hold on/off button until the green LED is solid Rotate speed dial clockwise to control speed of cart. Rotate speed dial counter-clockwise to slow/ stop cart’s motion a.) when light turns steadily red, caused by a.) when light turns steadily red, caused by...
- Page 4 Remote Mode Remote Mode When the green light on the cart is solid and the cart is stationary, your cart is ready for remote control transmission. Push forward or reverse function buttons to move the cart. By pressing and holding Left or Right turn, the cart will turn “upon” itself. While cart is moving forward, a quick push of Left or Right turn will adjust the cart’s course.
- Page 5 Programming your Remote Programming your Remote Transmitter Transmitter The red button between the four speed settings is the start/ setting button To adjust tracking (cart trails off to one side or the other, on flat ground) ◦ A. Press and hold Start/ Setting button until LED on Transmitter flashes, the cart will go forward at a slow speed. This is the adjustment mode ◦...
- Page 6 Transmitter” Should you need to replace your remote transmitter, you will need to program it to your GRX-1200-R With the cart on ( solid green LED ), plug the USB connector into the port on the cart and the transmitter (see picture below) Push the Start/Stop button on the cart to put the cart into “Standby”...
- Page 7 Cautions Cautions Before trying to operate your GRX-1200-R, you will need to charge the 12 Volt SLA cart battery overnight. The USB port on the underside of the receiver Dome can be used to charge your remote transmitter battery. This is an alternative to the wall charger or in case you lose power on the course.
- Page 8 Battery Service Battery Service Cart Battery – 12 Volt – 40 Ah To maximize battery life, charge your cart battery immediately following • your round of golf. LED on charger will turn green when battery is fully charged. During periods of inactivity, charge your battery every 30-45 days. •...
