TS-NX: GSM DOOR ENTRY UNIT
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-NX and is the answer not in the manual?

Questions and answers

Summary of Contents for Hive TS-NX

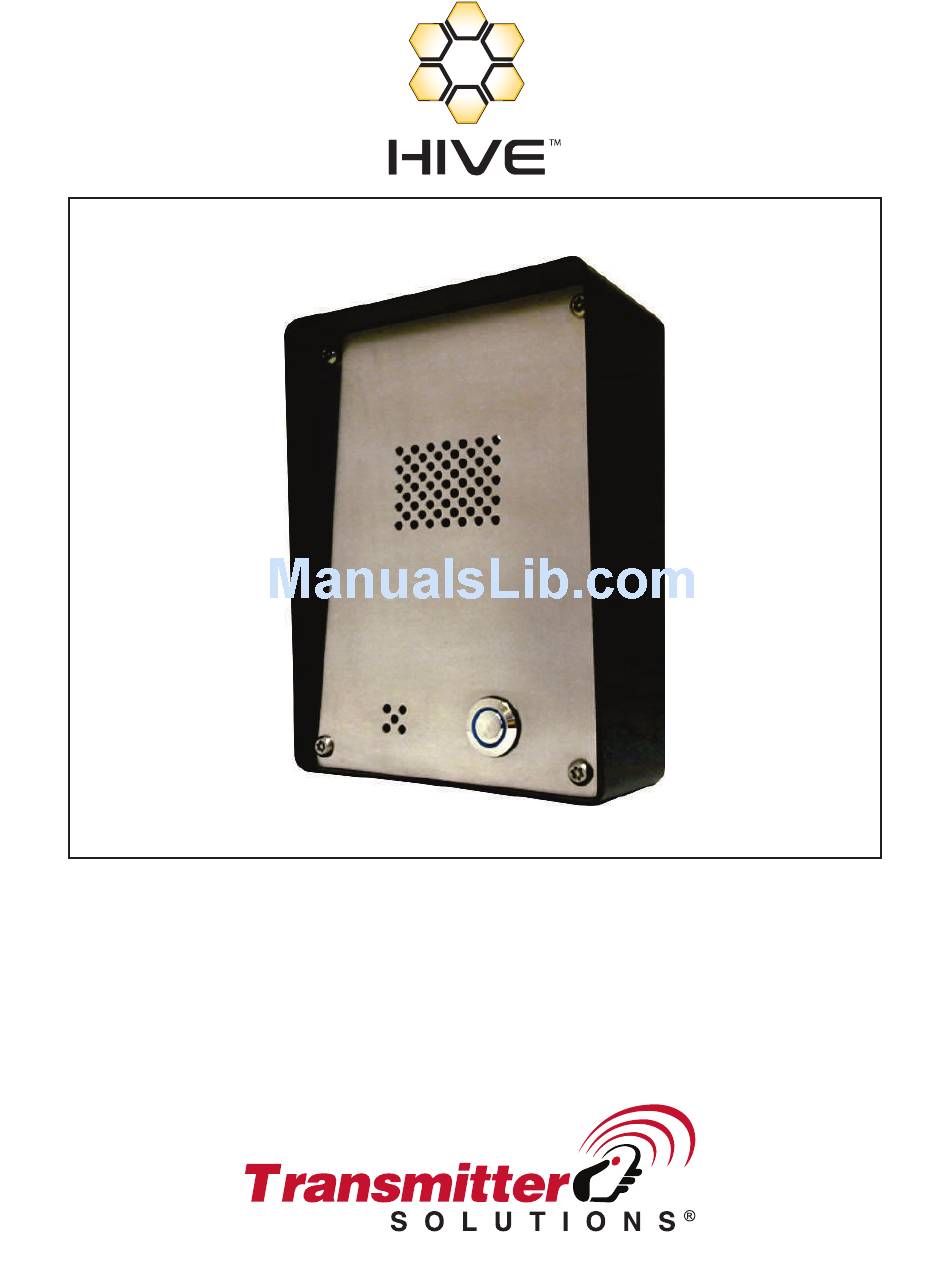

  • Page 1 TS-NX: GSM DOOR ENTRY UNIT Installation Manual...

  • Page 2: Table Of Contents

    CLEAR ALL PROGRAMMED DATA FROM SIM ............. 11   CONNECTION DIAGRAM ................. 12       PROGRAMMING TS-NX ................... 14     THE TS-NX PARAMETERS ................15     ALARM SUPPORT ..........................15     OUTPUT MANAGEMENT ........................19    ...
  • Page 3 10.21 RECEIVE TS-NX LOG ........................... 43     CHANGING PARAMETERS USING THE SMS COMMANDS ........44     DEFAULT SETTINGS ON TS-NX ............... 46     PARAMETERS PRINT-OUT COMMANDS ............. 49     TECHNICAL SPECIFICATIONS ................50 Page   3  ...
  • Page 4 TS-­‐NX   INSTALLATION   M ANUAL     Figures Figure 1: TS-NX Connection diagram..............12   Figure 2: Input Connection diagram...............15   Figure 3: Output Connection diagram ..............20   Page   4  ...
  • Page 5 Table 21: LOG parameters example...............37   Table 22: SMS commands..................38   Table 23: SMS commands example................38   Table 24: TS-NX default settings................48   Table 25: TS-NX parameters print out commands..........49   Page   5  ...

  • Page 6: For Your Safety

    TS-­‐NX   INSTALLATION   M ANUAL     1 FOR YOUR SAFETY Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH ON SAFELY Do not switch the unit on when use of wireless phone is prohibited or when it may cause interference or danger.

  • Page 7: Introduction

    ANUAL     2 INTRODUCTION TS-NX is a simple GSM intercom communication system that is designed to ensure low-cost, reliable and single box solution for intercom application. It is designed for unlimited range, wire free GSM intercom and CLIP support.

  • Page 8: Features And Applications

    TS-­‐NX   INSTALLATION   M ANUAL     3 FEATURES AND APPLICATIONS Features: ⇒ Built-in 4 band GSM module ⇒ Up-to 8 buttons call support ⇒ 2 alarm inputs, 2 additional on extension connector ⇒ 2 outputs (relay supported) ⇒ Up to 100 telephone numbers for CLIP support ⇒...

  • Page 9: Start Up

    ⇒ Insert SIM card to be used for TS-NX in your personal mobile phone. IMPORTANT ERASE THE PIN CODE! ⇒ Insert SIM card in TS-NX device. The unit must be switched OFF when you insert the SIM! ⇒ Connect inputs and outputs to TS-NX.

  • Page 10: Led Display

    TS-­‐NX   INSTALLATION   M ANUAL     LED DISPLAY GREEN LED (LED1) Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak signal, 5 is excellent signal) Red LED (LED2) When LED 2 is ON the unit has a problem with a GSM network connection or the GSM part of the unit is out of order.

  • Page 11: Clear All Programmed Data From Sim

      6 CLEAR ALL PROGRAMMED DATA FROM SIM This is highly recommended when a SIM card you are going to use for the TS-NX is not new and it already has some data stored in the phone book memory. By sending this SMS to TS-NX all programmed parameters and numbers are cleared: ;SDCLR;...

  • Page 12: Connection Diagram

    TS-­‐NX   INSTALLATION   M ANUAL     7 CONNECTION DIAGRAM Before connection the TS- please take look connection diagram. Figure 1: TS-NX Connection diagram Page   1 2  ...
  • Page 13 TS-­‐NX   INSTALLATION   M ANUAL     Page   1 3  ...

  • Page 14: Programming Ts-Nx

    8 PROGRAMMING TS-NX TS-NX device supports different types of programming: ⇒ To program TS-NX parameters put the SIM card into your personal GSM phone. Add programming parameters in SIM Card “Phone Book”. ⇒ You can program TS-NX remotely by SMS command.

  • Page 15: The Ts-Nx Parameters

    INSTALLATION   M ANUAL     9 THE TS-NX PARAMETERS To support versatile functionality of TS-NX different parameters are used. The parameters are divided in logical sections and are described in the following chapters. 9.1 ALARM SUPPORT Alarm reporting is supported by group of different parameters. First section is used to define the relations needed for alarm to be trigged.

  • Page 16: Table 1: In, Id And Dd Parameters

    Time delay for alarm reporting on input 3 Time delay for alarm reporting on input 4 Table 1: IN, ID and DD parameters Example: ♦ Direct programming on the SIM card TS-NX PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description...

  • Page 17: Table 2: In, Id, Dd Parameters Example

    9.1.2.1 TN parameter Telephone numbers for remote alarm reporting are listed as TN parameters. Remote alarm reporting on TS-NX is done via SMS messages. 9.1.2.2 LN parameter This parameter is used to link alarm event from inputs or any other source to the telephone numbers from TN list.

  • Page 18: Table 3: Remote Alarm Reporting Parameters

    Log status. No. linking (TN1 – TN5) Time out for GSM connection. Table 3: Remote alarm reporting parameters When telephone number (calling or messaging TS-NX) is not on the CLIP NOTE list, not acknowledge event occurs (NAC). The telephone number responsible for this event can be send to TN user for notification.

  • Page 19: Output Management

    ;TN1=042376678;LN1=13;LN2=1234;LN7=1;LOT=60; 9.1.3 CONTROLING OUTPUTS WITH DTMF TS-NX can control the outputs with the use of DTMF. This is very useful function in the intercom application. To control the outputs the user must press the combination of 2 digits. First digit is used to select the output (1 to 2), the second digit is used to activate (1) or deactivate (0) the output.

  • Page 20: Figure 3: Output Connection Diagram

    TS-­‐NX   INSTALLATION   M ANUAL     9.2.1 OS parameter TS-NX device has 2 dedicated relay supported outputs. Outputs can be configured to different behavior: ⇒ OS = 0 – Disabled ⇒ OS = 1 – Bi-stable toggle mode ⇒...

  • Page 21: Security Level - Sl

    SL parameter from 0 to 5 defines which telephone number stored in the phone book from TN1 – TN5 can enter into programming and remote control of the TS- NX (dialing the TS-NX phone number or sending the SMS). Page   2 1  ...

  • Page 22: Table 8: Sl Parameter

    INSTALLATION   M ANUAL     NOTE When the SL level is 0, an access to the TS-NX is possible from any phone! Before any SL number is programmed the TS-NX can accept ALL IMPORTANT CALLS. Remote SMS programming and remote controlling is...

  • Page 23: Prepaid Card Credit And Validity Information

      9.4 PREPAID CARD CREDIT AND VALIDITY INFORMATION TS-NX can be used with prepaid SIM cards and its limitations. To be able to overcome this limitation of the prepaid SIM cards, TS-NX offers the possibility of automatic checking mechanism for credit and time expiration.

  • Page 24: Table 10: Prepaid Card Validity Parameters

    String for parsing replay message from CC2 number CTIM String for parsing replay message from CC3 number Table 10: Prepaid card validity parameters Example: ♦ Direct programming on the SIM card TS-NX PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description *448#...
  • Page 25 TS-­‐NX   INSTALLATION   M ANUAL     Page   2 5  ...

  • Page 26: Set-Up Parameters

    Different parameters are used to support versatile functionality of TS-NX. 9.5.1 HTN parameter Hidden telephone number is a parameter used in order to conceal the telephone number of the TS-NX device. The default value is set to “1” which means that the number is displayed. 9.5.2 ESC parameter Parameter is used to define the input used to cancle the outgoing call from the TS-NX device.
  • Page 27 TS-­‐NX   INSTALLATION   M ANUAL     9.5.6 TSTT parameter TSTT parameter is used to define reference point for sending test message. If this parameter is set than after restart of the TS NX first test SMS will be send out at time defined with TSTT parameter.
  • Page 28 MUT parameter enables you mutate the speaker sound while initiating voice connection. 9.5.11 ARST parameter ARST parameter defines periodic of auto restart time (in hours) of the TS-NX device. 9.5.12 ADF parameter Parameter is used to define voice refresh function, to prevent blocking of SIM in some networks.

  • Page 29: Table 12: Set-Up Parameters

    ♦ Direct programming on the SIM card TS-NX PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description Hidden telephone number of the TS-NX device 29340 Manual fixing of the GSM provider (Simobil) Switch on Italian language Microphone volume level Speaker volume level...

  • Page 30: Table 13: Set-Up Parameters Example

    TS-­‐NX   INSTALLATION   M ANUAL     Table 13: Set-up parameters example. ♦ Remote programming by SMS ;HTN=0;MFN=29340;LNG=1;MIC=2;SPK=20;TST=24; BUZ=0;ESC=2; Page   3 0  ...

  • Page 31: Sms Messages Editor

    Input 2, second part of message Input 3, second part of message Input 4, second part of message Table 14: Message parameters. Example: ♦ Direct programming on the SIM card TS-NX PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description Page   3 1  ...

  • Page 32: Intercom

    If the RTNx timer expires before the GSM voice connection is established then TS-NX device calls the next number in XTN1-XTN5 call list. 9.7.3 DTMF auto dial functionality This function is used to provide a support for TS-NX device to be able select extended numbers via DTMF command. 9.7.3.1 SDNx parameter Parameter is used to set the DTMF number in auto self-select function.

  • Page 33: Table 16: Intercom Parameters

    Button 1, delay for DTMF number to send. TZSA Button 1, time zone start period. TZEA Button 1, time zone end period. Table 16: Intercom parameters. Example: ♦ Direct programming on the SIM card TS-NX PROGRAMMING TABLE Page   3 3  ...

  • Page 34: Clip

    TS-­‐NX   INSTALLATION   M ANUAL     SIM CARD PHONE BOOK Name Number Description ATN1 040713470 Button 1, Telephone number 1. ATN2 +38643364850 Button 1, Telephone number 2. RTNA Button 1, time out control for voice connection. Table 17: Intercom parameters example. ♦...

  • Page 35: Table 18: Clip Parameters

    CLIP input activation condition CLP1 CLIP number 1 CLP100 CLIP number 100 Table 18: CLIP parameters. Example: ♦ Direct programming on the SIM card TS-NX PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description CLPEN Enable CLIP functionality CLPOU CLIP control output 2...

  • Page 36: Event Loging

    Parameter is used for defining the number of events printed out on PLOG request. 9.9.2 LOGI parameter Parameter is used to define the media used for logging of events on TS-NX. User can select between nonvolatile memory on TS-NX or select USB to transfer events directly via USB to PC.

  • Page 37: Special Sms Commands

    9.10 SPECIAL SMS COMMANDS These commands can only be issued only over SMS message, and are used to control some special functions of TS-NX device. 9.10.1 ORC command Command is used to control outputs directly via SMS message 9.10.2 SDCLR command To clear all data on SIM card SDCLR command is used.

  • Page 38: Table 22: Sms Commands

    9.10.4 CLPCLR command Command is used to delete all CLP numbers. 9.10.5 MRES command Command is used to manually restart GSM module on TS-NX device. 9.10.6 SSRES command Command is used to manually restart TS-NX device. 9.10.7 Table of parameters...

  • Page 39: Print-Out Of The Parameters

    10 PRINT-OUT OF THE PARAMETERS The user can check the settings of ALL parameters on the TS-NX. 10.1 RECEIVE ALL PARAMETERS (PALL) By sending this command to TS-NX you receive SMS messages with all parameters that are currently programmed in the unit: ;PALL; 10.2...

  • Page 40: Receive Input Parameters (Pin)

    INSTALLATION   M ANUAL     10.6 RECEIVE INPUT PARAMETERS (PIN) By sending this command to TS-NX you receive SMS message with all currently programmed Input parameters (IN1 – IN4): ;PIN; 10.7 RECEIVE INPUT FILTER VALUE (PID) By sending this command to TS-NX you receive SMS message with all currently programmed Input filters (ID1 –...

  • Page 41: Receive All Programmed Sms Messages (P#)

    ANUAL     10.12 RECEIVE ALL PROGRAMMED SMS MESSAGES (P#) By sending this command to TS-NX you receive SMS message with all currently programmed alarm SMS messages (#0 - #4): ;P#; 10.13 RECEIVE SET UP PARAMETERS VALUE (PPA) By sending this command to TS-NX you receive SMS message with all currently programmed Setup parameters (TST, MNF…):...

  • Page 42: Receive Intercom Button 1 Paramaters (Pdea)

    10.19 MANUAL GSM MODULE RETARD (MRES) By sending this command to TS-NX shuts down GSM module and after a few second it switches the power of the GSM module ON again. The unit reboots all parameters from the SIM card.

  • Page 43: Receive Ts-Nx Log

    ANUAL     10.21 RECEIVE TS-NX LOG By sending this command to TS-NX you receive SMS message with log on TS-NX device. ;PLOG; User can use ;PLOG=x,y; to define the number of logs to be printed. x = start event...

  • Page 44: Changing Parameters Using The Sms Commands

    TS-NX please use the following command: ;PTN; Return SMS is (example): ;TN1=0;TN2=0; If you would like to enter telephone numbers in to TS-NX you can use the following example: ;TN1=040713470;TN2=+38643364850; If you would like to receive confirmation SMS write “+” before SMS command: ;+TN1=040713470;TN2=+38643364850;...
  • Page 45   Send SMS message to TS-NX telephone number and in a few seconds you receive SMS message from TS-NX. The sentence of the SMS must be the same as the one you have sent to TS-NX before. Page   4 5  ...

  • Page 46: Default Settings On Ts-Nx

    TS-­‐NX   INSTALLATION   M ANUAL     12 DEFAULT SETTINGS ON TS-NX TS-NX PROGRAMMING TABLE Name Default Value Short Description Empty Telephone number 1 Empty Telephone number 1 Empty Telephone number 2 Empty Telephone number 3 Empty Telephone number 4...
  • Page 47 Empty Check credit, TIM Italy Empty Check credit, Vodafone Italy Input used as cancel button Empty Tel. number of TS-NX device Hidden telephone number Auto answer ring number SIM card time validity Periodic test SMS timeout TSTT Periodic test SMS start time...

  • Page 48: Table 24: Ts-Nx Default Settings

    TS-­‐NX   INSTALLATION   M ANUAL     Table 24: TS-NX default settings. Page   4 8  ...

  • Page 49: Parameters Print-Out Commands

    TS-NX PROGRAMMING TABLE Name Short Description PALL Prints all parameters available on TS-NX. Prints SW version of TS-NX. Prints GSM network signal quality of TS-NX. Prints TNx numbers. Prints LNx links. Prints INx parameters. Prints IDx parameters. Prints ODx parameters.

  • Page 50: Technical Specifications

    TS-­‐NX   INSTALLATION   M ANUAL     14 TECHNICAL SPECIFICATIONS Description Value Power Supply 12 - 24V AC/DC Current consumption - peak Current consumption - transmitting mode 250mA Current consumption - idle mode 40mA Quad band GSM module 850/900/1800/1900 PCB dimensions 106 ×...
