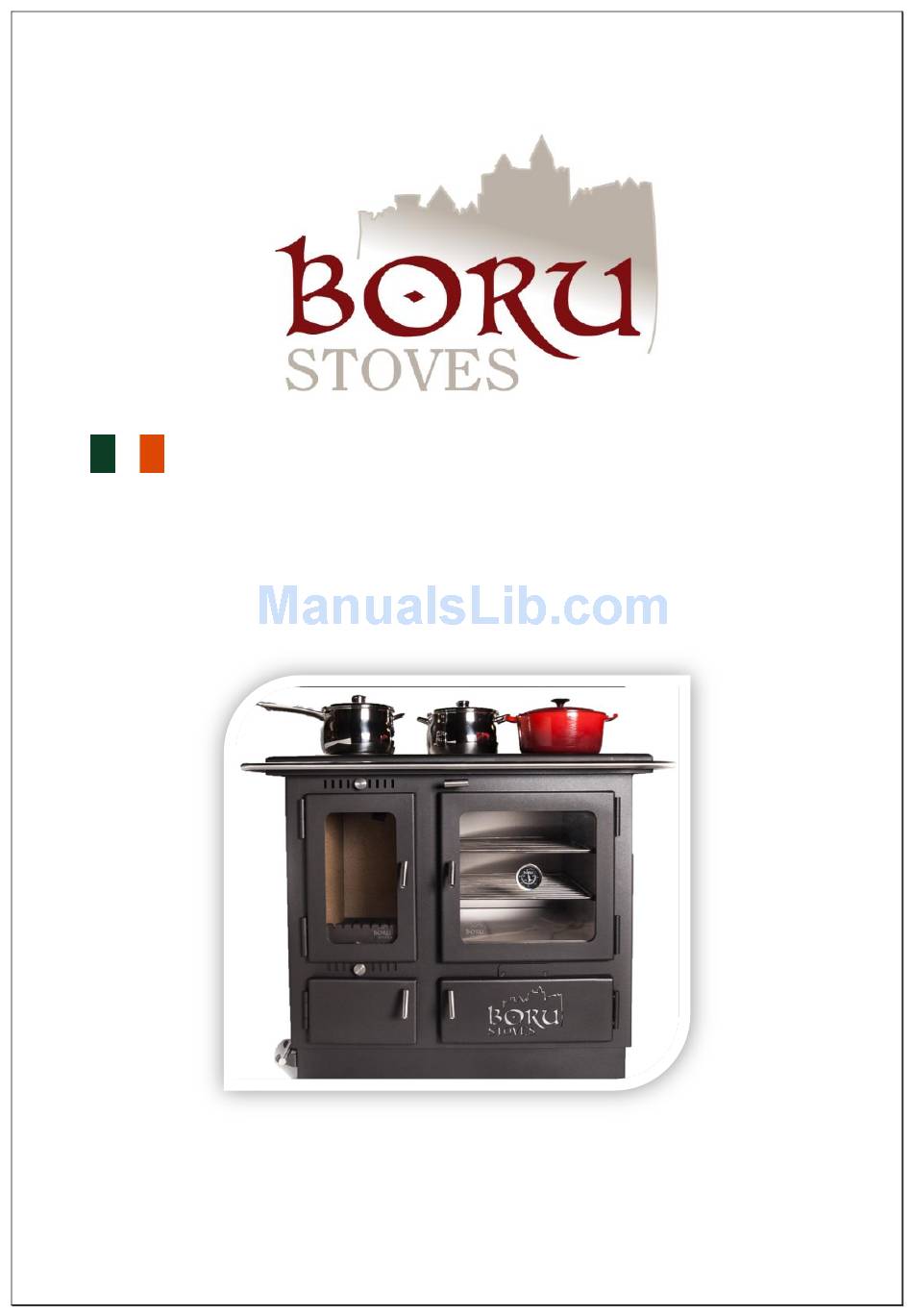

  • Page 1 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Made in Ireland Congratulations! On the purchase of your The Ellis Cook Stove. Model BCS01 REPORT NO: 526-S-02-2...
  • Page 2: Safety Notice

    Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Installation – Operating – Parts Instruction Manual An accredited competent person must carry out the installation of this appliance; Local building regulations must be adhered to. Please hand these instructions to the stove user when the installation is complete.
  • Page 3 In 2009 the first stove went into production and what a reaction it got. So much so that by the end of 2009 Boru Stoves had 3 products on the market with 10 people employed and 2,500 square feet of factory.
  • Page 4 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS SPECIFICATIONS Maximum Heat Output 28,000 BTU Weight 660 lbs. Fire box size 1.42 ft...
  • Page 5 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS SAFETY NOTICE 1. If this stove is not properly installed, a house fire may result. 2. To reduce the risk of fire, follow the installation instructions. Failure to follow instructions may result in property damage, bodily injury, or even death.
  • Page 6 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS CAUTIONS HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE  AWAY. DIRECT CONTACT MAY CAUSE SKIN BURNS.  DO NOT USE CHEMICALS OR FLUIDS TO IGNITE THE FIRE.  DO NOT BURN WASTES, FLAMMABLE FLUID SUCH AS GASOLINE, NAPHTHA ...
  • Page 7: Pre Installation

    Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS THE STOVE LOCATION It is very important to position the wood stove as close as possible to the chimney, and in an area that will favor the most efficient heat distribution possible throughout the house. The stove must therefore be installed in the room where the most time is spent, and in the most spacious room possible.
  • Page 8 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Installation IF YOU’RE BORU STOVE IS NOT PROPERLY INSTALLED, OPERATED AND MAINTAINED, A HOUSE FIRE MAY RESULT. FOR SAFETY, FOLLOW ALL INSTALLATION, OPERATION AND MAINTENANCE DIRECTIONS. CONTACT LOCAL BUILDING OFFICIALS ABOUT RESTRICTIONS, PERMITS AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA.
  • Page 9: Chimney Connection

    Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS the house. It is also essential that the flue system is kept clean and seals are maintained to ensure the draft is not lost. A blocked chimney flue could result in death or serious injury.
  • Page 10 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Do not use the connector pipe as a chimney. Each chimney connector or stovepipe section must be installed to the stove flue collar and to each other with the male (crimped) end toward the stove.
  • Page 11 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Chimney DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE This room heater must be connected to a 6” factory built UL 103 type HT chimney in the Standard for Chimneys, Factor-Built, Residential Type and Building Heating Appliance, UL 103 or a code-approved masonry chimney with a flue liner.
  • Page 12: Factory Built Chimney

    An effective vapor barrier must be maintained at the location where the chimney or component penetrates to the exterior of the structure. Boru Stoves cannot be held responsible for poor chimney performance or a poorly installed chimney.
  • Page 13: Masonry Chimney

    Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Masonry Chimney Ensure that a masonry chimney meets the minimum standards of the National Fire Protection Association (NFPA) by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. Have the chimney cleaned before the stove is installed and operated.
  • Page 14: Weather Conditions

    Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Weather conditions The weather conditions outside the building could have an effect on the burning performance of the Boru stove. These could include: Windy days - smoking from the appliance. This could be caused by turbulent airflow around ...
  • Page 15: Floor Protector

    Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS FLOOR PROTECTOR Your Boru cook stove does not require thermal floor protection but does require the ember protection matt / heat matt (Part No:USC-37) which will be supplied with your stove. To fix your floor protector into position, ensure that the two leg adjusters at the back of the stove...
  • Page 16 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Ember Protector – Part No: USC-37...
  • Page 17: Installation Clearances

    Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Installation Clearances It is extremely important that you respect required installation distances and that you respect local installation regulations. This is for your safety! The manufacturer is not responsible for the product, if it is not installed following these recommendations. These clearances may only be reduced by means approved by the regulatory authority.
  • Page 18 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Chimney Configurations...
  • Page 19 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS METHOD A Minimum 3.5 in. (90mm) thick brick masonry wall framed into combustible wall with a minimum of 12 – in. (305mm) brick separation from clay liner to combustibles. Fireclay liner (ASTM C 315, Standard Specification for Clay Fire Linings, or equivalent), minimum 5/8-in.
  • Page 20 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Sheet steel cement connector, minimum 24 gauge (0.024 in. (0.61mm) in thickness, with a ventilated thimble, minimum 24 gauge (0.024 in. (0.61mm) in thickness, having two 1-in. (25.4mm) air channels, separated from combustibles by a minimum of 6in. (152mm) of glass fibre insulation. Opening shall be covered, and thimble supported with a sheet steel support, minimum 24 gauge (0.024 in.
  • Page 21 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Operating Your Boru Stove 1. Build fire directly on base of the stove. 2. Only open door to fuel/refuel the stove. Operating the stove with the door open will result in excess air that will cause the stove to over fire.
  • Page 22 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Controlling Your Boru Stove For your stove to burn correctly you need air to burn the fuel. The volume of air is controlled using the two lever sliders located over the top and bottom of the door of the cook stove.
  • Page 23 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Heat Distribution Lever Horizontal Position – Heat directed to hot plates. Vertical Position – Heat directed to oven Door Handle Multi Tool Located on a holster on the left hand side of the Stove (Bottom Corner) To Operate –...
  • Page 24: Ash Removal

    Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Refueling Before refueling increase the airflow by increasing the airflow for a one minute as this will  ensure that there is no build up of harmful gasses within the stove. Care must be taken when refueling the stove. Use the multi tool handle provided as the ...
  • Page 25: Replacement Parts

    Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Outside weather conditions  Incorrect additional ventilation to building  Blocked flue / chimney  For advice on the correction of persistent flue problems consult a qualified Solid Fuel heating  engineer before continuing to use your Boru Stove.
  • Page 26: Stove Maintenance

    Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Only genuine replacement Boru parts may be used in this appliance. Contact your local dealer for details. Stove Maintenance It is very important that your stove be checked regularly for the following: 1. Creosote: When wood is burned slowly, it produces tar and other organic vapours, which combine with expelled moisture to form creosote.
  • Page 27: Cleaning The Glass

    Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Cleaning the Glass Generally the glass will clean itself when a good fire is established using the airwash system (left lever). However there will be times when the glass has to be cleaned by hand. To do this use a soft cloth and a nonabrasive cleaner.
  • Page 28 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS BORU STOVE PARTS...
  • Page 29 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS...
  • Page 30 6. Glass is covered for 1 year (thermal breakage only). You must arrange to deliver or ship the stove or part to an authorized Boru Stoves dealer at your own expense and arrange for pickup or delivery of the same after the repairs have been made.
  • Page 31 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS Report Number: 526-S-02-2 The Ellis Cook Stove - Model BCS01 covered in this Owner’s Guide has been tested and listed by OMNI - Test Laboratories, Inc. of Portland, Oregon. The test standards utilized were UL 1482-2011 for the United States.
  • Page 32 Boru Stoves® BCS01 SAVE THESE INSTRUCTIONS USER NOTES This page is provided for your use to record maintenance and operating notes.
