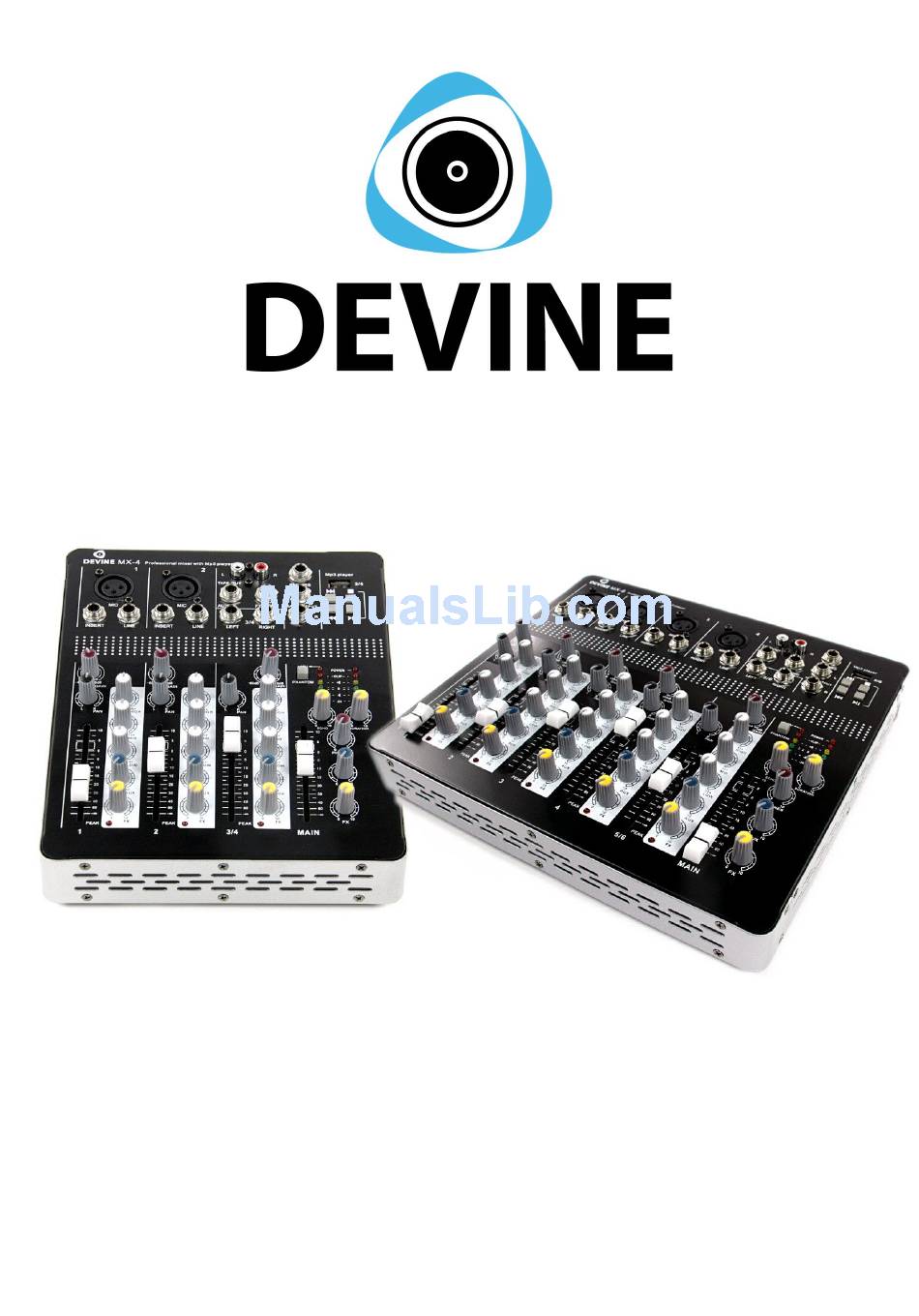

- Page 1 MX-4 / MX-6 Compact PA, recording and broadcasting mixer User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 27-08-2013 RV Revision date + author initials: 20-02-2014 RV...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Devine does not take responsibility for any damage or injury caused by improper use.
- Page 4 Introduction Thank you for purchasing this Devine MX PA-mixer. Before you unpack all the received items, carefully read this manual to become familiar with the functions of the mixer. Also check the contents of the box to make sure all necessary parts are included.
-
Page 5: Preparing Mixer
Thanks to the built-in USB MP3-player, it is possible to playback MP3-files. The compact construction of the MX-4 and MX-6 mixers makes it possible to place them on a desk or table during use. The rubber feet on the bottom of the mixer provide stability and sufficient grip. Therefore, the mixer will not move when operating the faders or encoders. - Page 6 Microphone input (XLR connector). Use this connector to plug in a dynamic or condenser microphone. Carefully read the user manual of your microphone, as it may be possible that your microphone needs Phantom Power (provided by this mixer). Insert. Use this 6.35 mm stereo jackplug connector (TRS) to connect peripheral equipment such as compressors, equalizers, feedback destroyers, gates, and so on.
- Page 7 Channel fader. The slider for each channel, also described as channel fader, is a volume controller for the specific channel. When positioned all the way down, no sound will be let through to the main mix. When positioned on the 0-point, all sound will be let through. The channel fader is able to reach a level of ‘10’, but this is not recommended as this amplifies the sound with a certain factor and may cause distortion and/or reduction of audio quality.
- Page 8 same time. Combining dynamic and condenser microphones with active Phantom Power should not cause any harm to your microphones. Phantom Power LED indicator. LED-indicator, showing if Phantom Power is active for the mono channels. Power LED indicator. LED-indicator, showing the current power status of the mixer. When connecting the included power supply to a suitable wall outlet, the LED should activate directly.
- Page 9 example the Low EQ), try decreasing the High and Mid EQ’s first. This will keep your audio signal in optimal condition without altering or distorting the other frequencies. - A channel fader is not a gain encoder. The channel fader is only designed to be able to change the volume easily when the gain is set correct.
-
Page 10: Troubleshooting
Troubleshooting Problem Possible Cause Solution No sound, or very low sound No phantom power Connect or activate phantom signal from condenser power supply microphones Volume set too low Increase incoming volume and gain on your mixer, interface or other sound processing device Microphone positioned too far Place the microphone closer to the away... -
Page 11: Technical Specifications
Technical specifications Features: compact mixer for small PA, recording and broadcasting purposes 2 (MX-4) or 4 (MX-6) mono inputs (MIC/Line) Insert option for all mono channels Common +48V phantom power for all microphone inputs Gain control for each input 3-band EQ for each input... - Page 12 Power consumption: 15 Watts Power supply: 230V, 50 Hz Dual power adapter, 2x 17V AC output Lockable 3-pin power adapter cable Dimensions MX-4: 245 x 190 x 65 mm Dimensions MX-6: 276 x 256 x 62 mm Any information and illustrations shown in this user manual are subject to change without further notice.
