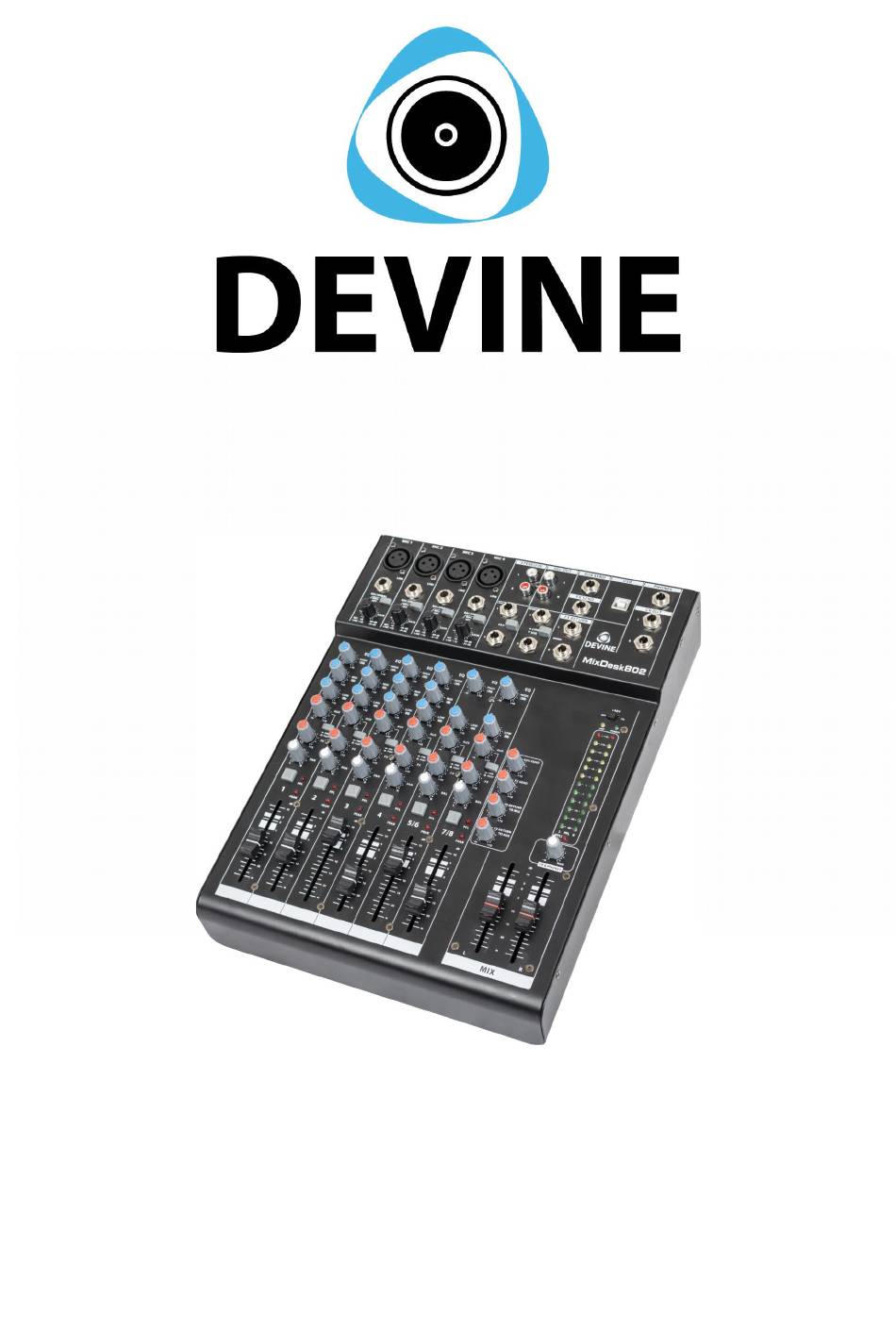

- Page 1 MixDesk PA mixers 802 / 1002 / 1202 (-FX-MP) User manual The information in this user manual is subject to change at any time without notice. Version: Date of creation and author's initials:04-12-2018 RV Revision date and author's initials: -...
- Page 2 Introduction Thank you for purchasing this Devine PA mixer. We advise that you read this user manual in its entirety before unpacking the contents of the box, so that you are familiar with all of the functionality that this product has to offer.
-
Page 3: Safety Instructions
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. Everyone involved with the installation, operation and maintenance of this device must: - Be qualified - Be skilled - Have read the instructions in this user manual - Be sure that neither the device nor the included accessories are damaged. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Devine cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
-
Page 5: Mono Channels
Guidelines and operation of this device While the various MixDesk mixers are similar to use and built in much the same way, some of the following information and images may not apply to your model. Be sure to check whether certain features are present on your model by comparing it to the information shown in this user manual for best results. -
Page 6: Stereo Channels
Please note: the FX pad is activated post fader. If the gain knob of the channel is turned all the way down so that no sound is sent to the Master signal, no signal will be sent to the effects section either. Pan: the Pan knob makes it possible to direct the mono channel's output signal towards the left or right side. -
Page 7: Digital Media Player
EQ: the stereochannels all have a 2-band EQ that gives you control over the balance between the low and high frequencies. At 80 Hz or 12 kHz, sounds can be dampened or boosted by -15 or +15 dB. This can be handy for accentuating the high tones in vocals, for instance. -
Page 8: Mix Section
Rec out: via the Rec Out (RCA) output a stereo signal can be sent to recording equipment. This output is linked to the Main out. USB: the 2-in, 2-out USB interface on the mixer can be connected to almost any computer. This makes it possible to play music or record the Main Out signal for internet radio or podcasting purposes, for instance. - Page 9 FX Send: the FX Send knob allows you to determine the level at which the output signal is sent out via the FX Send output. This can be adjusted using the FX knob per channel. FX (Return) to mix: the FX (Return) to mix knob allows you to determine the level at which the FX Return input or the effects processor (see effects processor) reaches the mix fader.
- Page 10 Product type Which inputs and outputs Laptop, smartphone, MP3 player, Stereo channel if a lot of control is desired tablet Tape in if a lot of control is desired Dynamic vocal microphone Mono channel, phantom power not required Ribbon microphone Mono channel, don't activate phantom power! Condenser vocal or instrument Mono channel, activate phantom power...
- Page 11 Mixer troubleshooting guide If you have a problem with your mixer, please consult this troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common problems that occur with PA mixers and equipment regularly used with them, but it does not and cannot cover every eventuality.
- Page 12 distorted, or clipped signal for a longer period of time, this can cause permanent damage to its internal components. If you suspect that the woofer or tweeter is damaged, contact your local dealer for assistance. Insufficient volume through Phantom power is not on Check whether your microphone microphone requires phantom power.
-
Page 13: Specifications
Specifications General specifications for all models: - practical and compact PA mixers - desktop design with clear layout - suitable for mixing various audio sources - various inputs and outputs for microphone and line signals - various options for connecting equipment - optimal control over all inputs - robust metal housing with synthetic side panels - power connector (C14) with fuse holder (5 x 20 mm, T1.6AH250V) - Page 14 Trademark footnote The Bluetooth® wordmark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by DEVINE is under license. Other trademarks and trade names are from their respective owners. The information in this user manual is subject to change at any time without notice.
