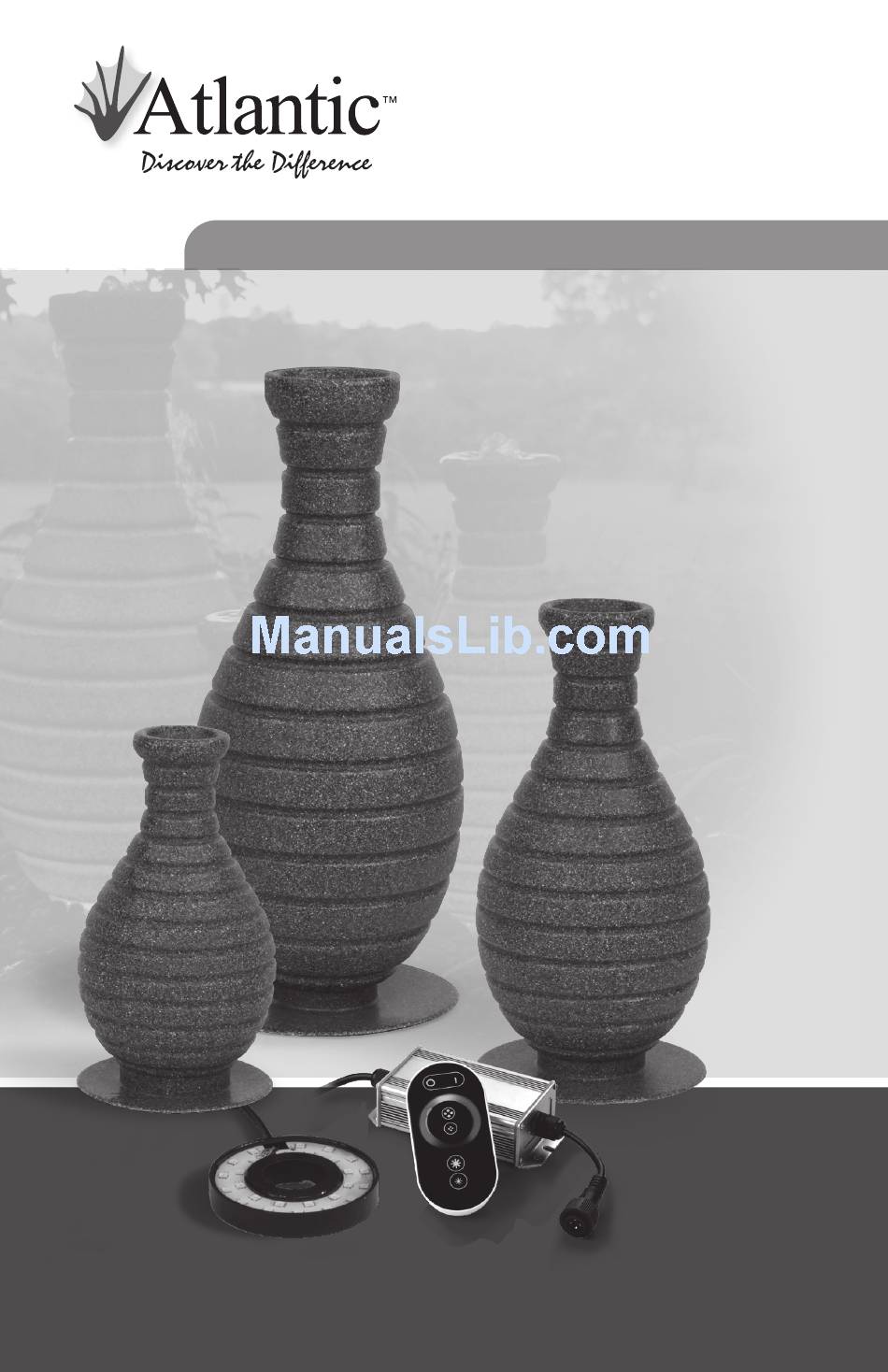

- Page 1 Operating Manual Color Changing Fountains 1-877-80-PONDS www.atlanticwatergardens.com...
-
Page 2: Installation
Failure to do so will void the warranty. Installation Fountain Installation • Atlantic Color Changing Fountains have been designed to work in conjunction with Atlantic Fountain Basins, Fountain Plumbing Kits and Mag-Drive Series pumps. Please review the instructions included with these products before you begin installation to ensure that all components of your project are installed correctly. - Page 3 • Slide the light ring over the standpipe so that the LEDs are facing upward into the fountain. Install the ¾” insert x ¾” socket elbow on the bottom of the standpipe. Do not use glue when making this connection so that the fountain and light ring can be easily removed for cleaning or winterization.
-
Page 4: Operation
Connecting the Light Ring Follow the connecting chart below to connect all cables. Ensure that the unit is not plugged in while connecting. Color Changing Light Ring Transformer Control Module Color Changing Light Ring 3-way Transformer Control Module Splitter Operation Technical Data (Control Module) Input Power: AC12V Working Temperature:... - Page 5 Preset Light Changing Modes Solid Crystal White 7 color jump change Continuous full spectrum fade change Red-Green-Blue dimmer change 7 color dimmer change Solid Red Solid Green 7 color dimmer then 7 color jump change Solid Blue Flashing Red Solid Aqua Flashing Green Solid Purple Flashing Blue...
-
Page 6: Warranty
• If the light ring blinks three times and stops, the remote and control unit are synchronized. • If the light ring blinks six or more times, it is clearing all codes. Repeat steps 1-3. Warranty Color Changing Fountains and all their components carry a one-year limited warranty. -
Page 7: Troubleshooting Guide
Troubleshooting Guide Always turn off power before inspecting the Color Changing Fountains. Failure to observe this precaution can result in a serious accident. Before ordering repairs, carefully read through this instruction booklet. If the problem persists, contact your dealer. Problem Possible Cause Possible Solution Remote is not working... - Page 8 1-877-80-PONDS www.atlanticwatergardens.com...
