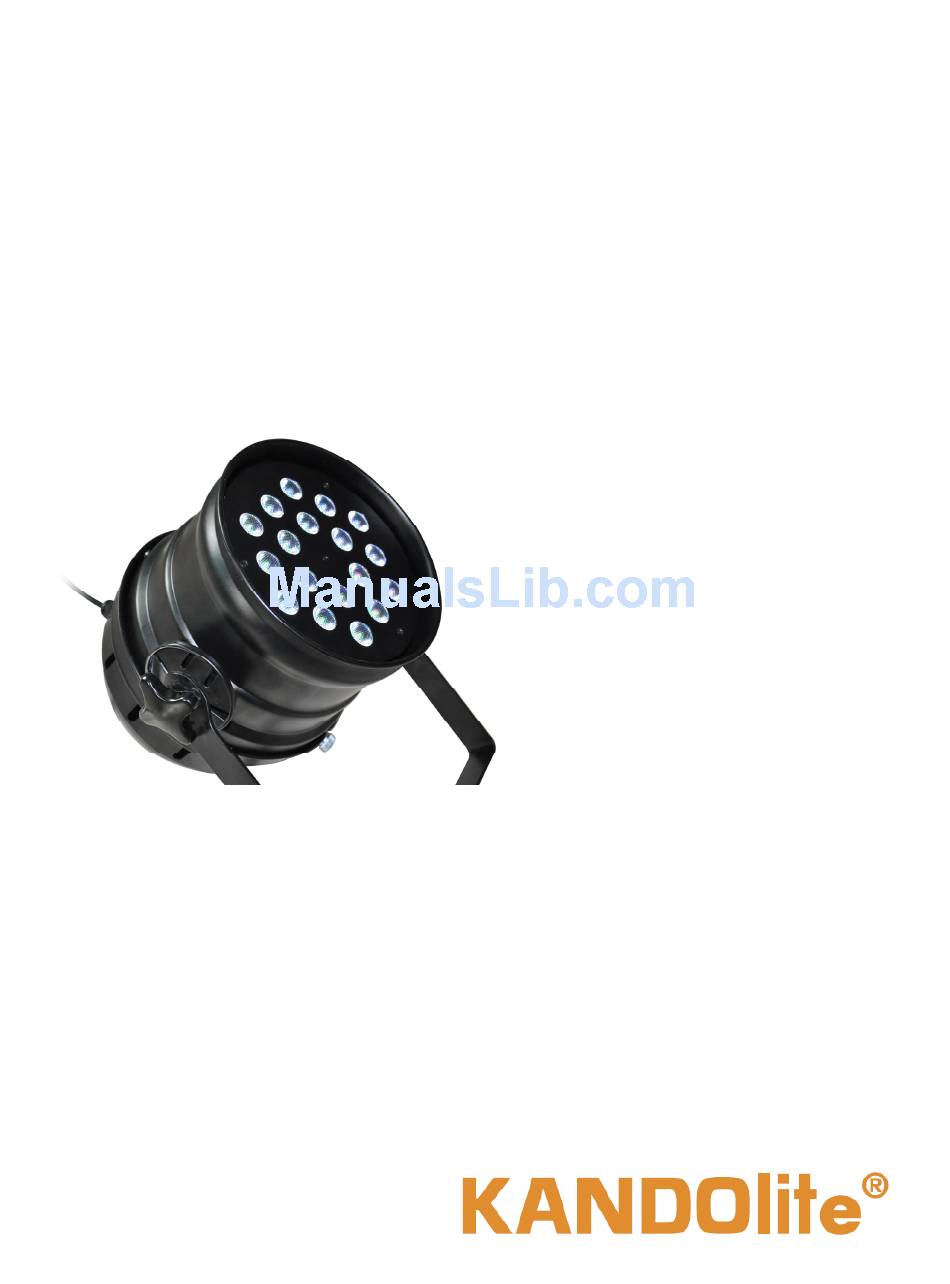

- Page 1 USER MANUAL K64P818RGBW...
-
Page 2: Table Of Contents
I n d e x summarize ................. 3 safety instruction ..............3 outside size picture ............. 4 main function ..............5 DMX controller function ............5 Display operation instruction..........7 Manual instruction............... 8 Operating control instruction..........9 XRL connection instruction ..........11 Connection picture .............13 Problem analyse..............14 Technicals secification…………….…………………………..………16... -
Page 3: Summarize
It uses power switch, performs low weight and consumption, stable capability and long life. International standard DMX 512 signal is requested. Packing list • K64P818RGBW light • DMX cable 1PC (Sold separately) • The use manual •... -
Page 4: Outside Size Picture
● Make sure the power supply voltages are consistent with this lights E nsure the ， use of voltage is in the range of the request technical parameter. ●before the installation, please check the light’s fasteners and mechanical structure have been received in good condition and appear no damage. ●This light is designed for indoor use, working temperature is lower than 40 degree. -
Page 5: Main Function
Main Function • Each color of LED with 256 dimming. RGB can make over 16.7 million colors • dim 0%-100%, Strobe g radual change j umping change 、 、 • DMX512 Controller 4 button set DMX ID address with led display ，... - Page 6 Channel DMX Value Control Function Remark 0-255 R 0-100% 0-255 G 0-100% 0-255 B 0-100% 0-255 W 0-100% Channel DMX Value Control Function Remark 0-255 General dimming 0-255 R 0-100% 0-255 G 0-100% 0-255 B 0-100% 0-255 W 0-100% Channel DMX Value Control Function Remarks...
-
Page 7: Display Operation Instruction
Display Operation • MENU : access the menu or return to a previous menu option • ENTER: select the current menu option • UP: menu selection or parameter increments • DOWN: menu selection or parameters decrease... -
Page 8: Manual Instruction
Manual Instruction Addr A001-A512 DMX Mode SLAV SL.AV Slave receiving mode DMX receiving channel CHNd 3.4.5.8 choosing SP-- SP-SP15 Built-in program speed Pr-- Pr00-Pr15 Built-in program AS00-AS1 Color Jumping MENU FADE FA00-FA15 Gradual Changing mode FLAS FL00-FL15 White strobe mode r000-r255 Red dimming g000-g255... -
Page 9: Operating Control Instruction
Operating instruction MENU is used to access the menu or return to a previous menu option. It can 、 not be used to select and store the current menu option. Press UP / DOWN to choose a desired menu item. Here are the operation details : •... - Page 10 • Press ENTER to select and store the current menu options. DMX mode will be o stored automatically and the screen will stop glinting. • DMX channel choosing C HNd mode ： • Press MENU g o back to the initial setting ，...
-
Page 11: Xrl Connection Instruction
Operating Control Instruction Master/Slave Master T he master should set as built-in program and shows” P - X – X” send out ： synchronization signals. To avoid the host signal and DMX512 signals interfere with each other, should cut off the DMX512 signals. The signal lines are longer than 60 meters should increase a signal amplifier. - Page 12 The Conversion between 3pin and 5 pin XLR If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable...
-
Page 13: Connection Picture
Connecting picture ： Cable connecting picture... -
Page 14: Problem Analyse
Problem Analyze Problem Checking way Check the power source plug is in normal or not Can not turn on the Check the switch of the lights is off or on light Check it the fuse if in normal Check the DMX cable is connect to the lights or not DMX can not control Check the DMX512 controller work in normal or not Check the DMX cable is normal or not... - Page 15 Some of the LED not Use the multimeter to check if the led is bright or not, of light not, please change the led check whether current limiting resistor is normal or not Check constant current IC is normal or not (compared with the normal IC) Single color leds Check the switch of this color is normal or not...
-
Page 16: Technicals Secification
Technical Specification • Input voltage: AC 100-264v / 47-63Hz • Output voltage: DC24V • Consume: 144W • Lamp Type: High Power LED (8W) • Lamp Spec: 4-in-1 8W 1 8PCS （ ） • Constant current driver: 500MA • Refresh rate : >400HZ •... - Page 17 Copyright 2012 KANDOLITE. All rights reserved. Due to continuous improvements and innovations, specifications may change without notice.
