Summary of Contents for Kandolite KMLSP60W

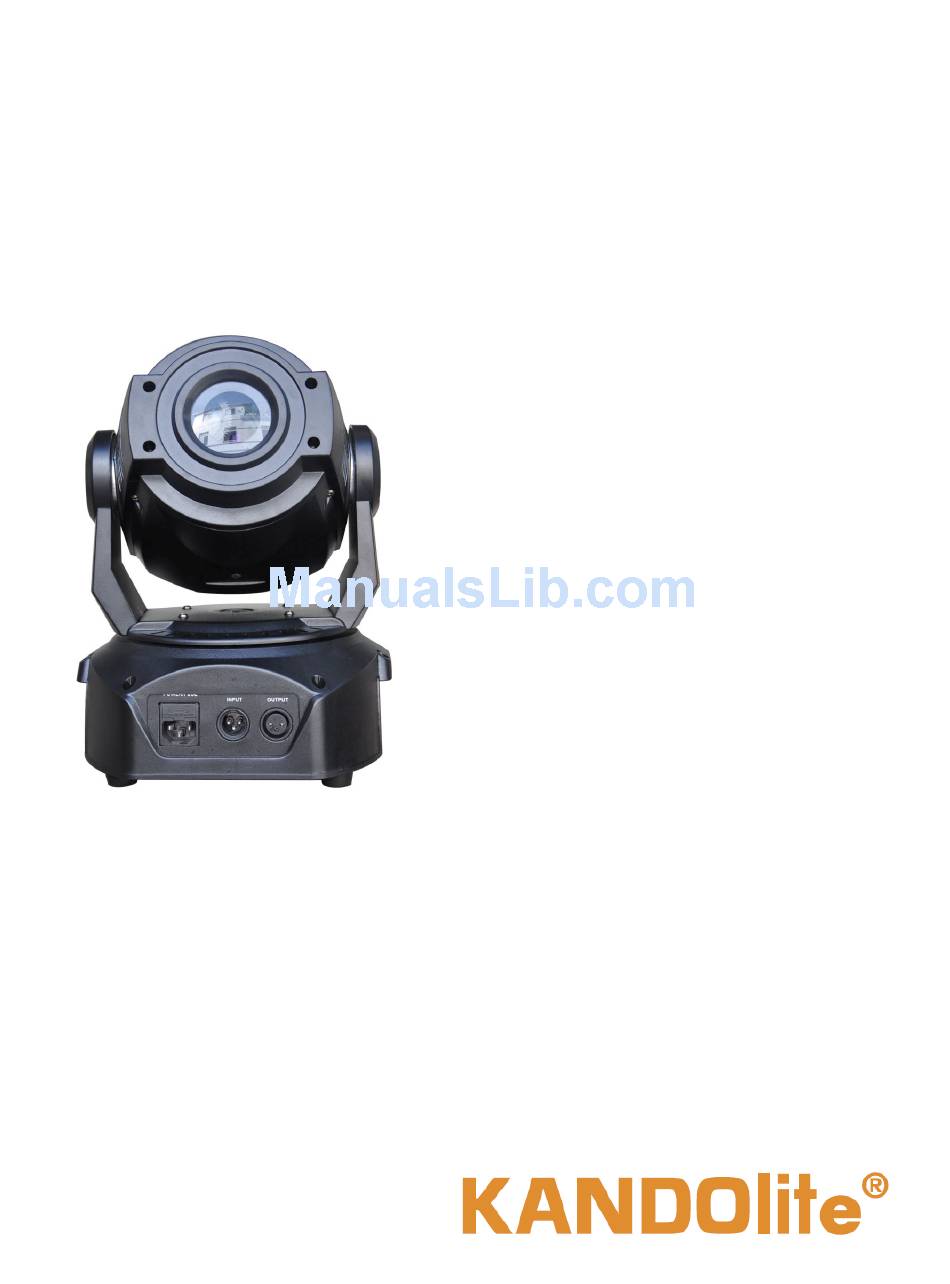

- Page 1 USER MANUAL KMLSP60W...
-
Page 2: Table Of Contents
I n d e x Summarize ................. 3 Statement ................3 Safety instruction ............... 4 Installation instruction ............5 Display operation instruction..........6 DMX controller function ............7 XRL connection instruction ..........9 General troubleshooting .............10 Maintenance...............10 Lamp cleaning……………...………….…………………………..………11 Technical’s specification…………….………………………..……..…12... -
Page 3: Summarize
Statement Thank you choosing our professional KMLSP60W LED moving head light This user guide includes very important to guarantee the safe and proper use of the light, please read carefully and operate according to the instruction... -
Page 4: Safety Instruction
Safety instruction • Please consult eligible personas before maintenance • Please make sure the power supply has been cut off during installation, maintenance, and transportation. • Please do not use power supply and lamps of different specifications • During operation, the high temperature the light creates might lead to danger, therefore please don’t put any inflammable and explosive things around the light, and please don’t touch the light body during operation. -
Page 5: Installation Instruction
Installation instruction Dimension Diagram • The product is suitable for indoor use only, operation temperature is below 35 degree • The installation, operation and maintenance persons must get familiar with the light performance before operation, so that to avoid damage during transportation before fist usage •... - Page 6 Display Operation MENU : access the menu or return to a previous menu option ENTER : select the current menu option : menu selection or parameter increments DOWN : menu selection or parameters decrease • Address code • Reset • Auto •...
- Page 7 DMX Control Function Mode 9 Mode 10 Mode 15 DMX value control function CH 1 CH 1 CH 1 0 - 255 X : Pan CH 2 CH 2 CH 2 0 - 255 Y : Tilt CH 3 0 - 255 X : Pan, Fine CH 4 0 - 255...
- Page 8 105 - 111 gobo 2 (shake slow to fast) 112 - 118 gobo 1 (shake slow to fast) 119 - 125 open (white) gobo river (clockwise of rotation , 126 - 192 slow to fast) gobo river (anticlockwise of 193 - 255 rotation , slow to fast) gobo effect wheel 0 - 18...
-
Page 9: Xlr Cable Connecting
XLR cable connecting XRL cable： ： ： ： The stand connection way of the XRL is: one end connects to the male plug, and the other connects to the female. ： ， Noted In order to avoid failures and interference signal transmission we connect （... -
Page 10: General Troubleshooting
The Conversion between 3pin and 5 pin XLR If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable General troubleshooting Failure description measure Fail to start Power fuse intact bulb The normal lamp is not Inspect DMX start address setting controlled by the controller Check XLR signal lines... -
Page 11: Maintenance
Maintenance • When the light has broken and other damage should be promptly replace. • When the light bulb has deformation, the damage should be immediately replaced. • When the lamp not boot, check whether the lamp power supply fuse blown, such as blown, fuse fitted on the corresponding specifications. -
Page 12: Technical's Specification
Do not use alcohol and other organic solvents to clean lamp shell, so as • to avoid causing damage. • Technical Specification • Power supply : AC 120v / 230v / 60/50Hz • Control : DMX 512 • Channels : CH09, CH10 & CH15 •... - Page 13 Copyright 2012 KANDOLITE. All rights reserved. Due to continuous improvements and innovations, specifications may change without notice.
