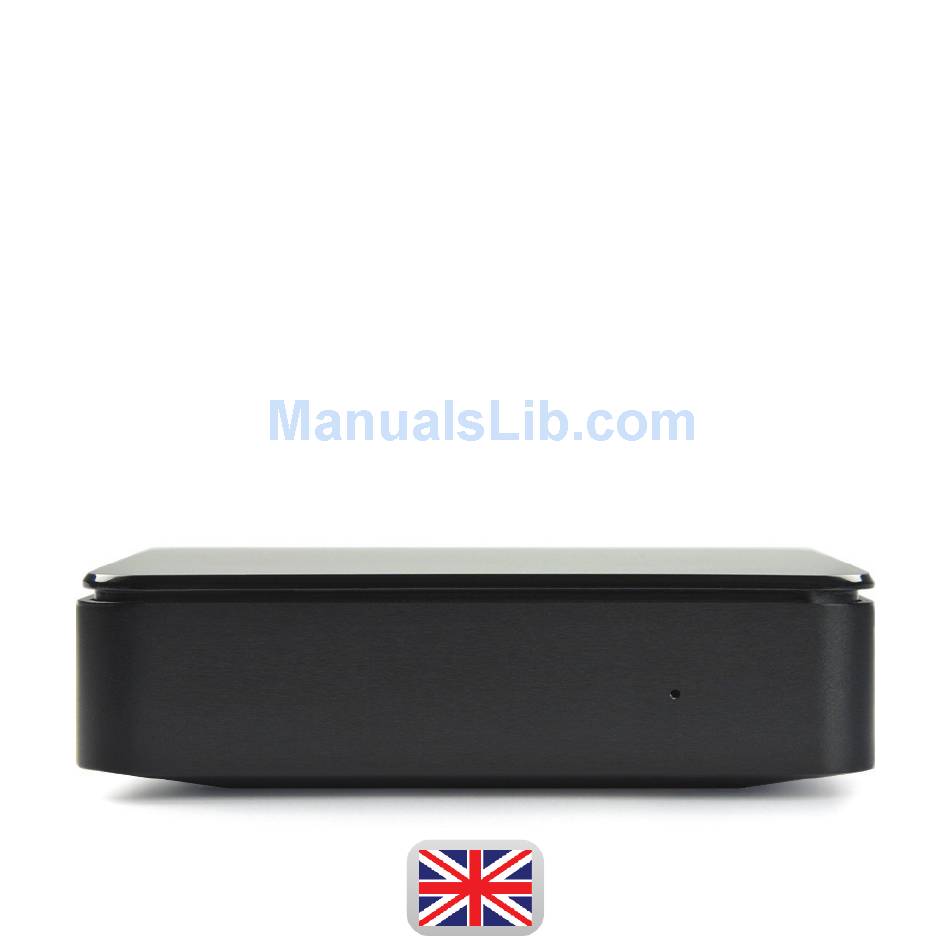

- Page 1 IPTV STB QUICK GUIDE Detailed user manual download from www.my-home-television.com...
- Page 2 Dolby Digital: Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. HDMI: Transferring uncompressed video data and compressed or uncompressed dig- ital audio data from a HDMI-compliant source device. MPEG2: Audio and video compression and transmission. Note: Set-top Box ´s firmware is subject of ongoing software development therefore not all the functionalities described in the manual respont to the current status.
-
Page 3: Important Safety Instructions And Warnings
IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS WARNING! To reduce the risk of fire or electric shock, do not expose the device to rain or moisture. - Read these instructions carefully! - Follow these instructions! - Mind all the warnings! • Do not remove device covers as this may result in personal injury or mechanical damage. There are no user serviceable parts inside •... -
Page 4: Table Of Contents
CONTENT IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS CONTENT CONNECTING OF SET-TOP BOX TO YOUR LOCAL NETWORK CONNECTING OF SET-TOP BOX TO YOUR Wi-Fi NETWORK CONNECTING OF SET-TOP BOX TO A TELEVISION CONNECTING OF SET-TOP BOX TO A TELEVISION USING ANALOGUE AV CABLE CONTROLING OF SET-TOP BOX BY IR2 CONNECTING OF SET-TOP BOX TO THE MAIN SUPPLY IDENTIFICATION OF PARTS THE REMOTE CONTROL (RC) - BUTTONS DESCRIPTIONS THE REMOTE CONTROL (RC) - BUTTONS DESCRIPTIONS FREQUENTLY ASKED QUESTIONS (FAQ) SETTINGS - TV OUTPUTS OTHER OPTIONAL SET-TOP BOX FEATURES. OTHER OPTIONAL SET-TOP BOX FEATURES. TECHNICAL SPECIFICATION - 4 -... -
Page 5: Connecting Of Set-Top Box To Your Local Network
CONNECTING OF SET-TOP BOX TO YOUR LOCAL NETWORK Connecting of Set-Top Box to local network. Internet RJ 45 cable Router / HAG RJ 45 cable - 5 -... -
Page 6: Connecting Of Set-Top Box To Your Wi-Fi Network
CONNECTING OF SET-TOP BOX TO YOUR Wi-Fi NETWORK Place your Set-Top Box within the reach of wireless network Connect Set-Top Box to wireless network Use the following steps to set the connection in Menu: Settings > Wifi > Scan AP > Select AP > Insert password > Reboot Set-Top Box Internet RJ 45 cable Embeded Wi-Fi... -
Page 7: Connecting Of Set-Top Box To A Television
CONNECTING OF SET-TOP BOX TO A TELEVISION Connecting to a Television by a HDMI cable. HDMI cable - TV/Set-top Box Using this type of connection set in Menu: Settings / TV Outputs / Type of connection – HDMI / HD resolution – 1080i,720p or 576i (480i for NTSC) depending on type of TV. -
Page 8: Connecting Of Set-Top Box To A Television Using Analogue Av Cable
CONNECTING OF SET-TOP CONTROLING OF BOX TO A TELEVISION USING SET-TOP BOX BY IR2 ANALOGUE AV CABLE Controling a STB by a IR2 sensor, if STB is hidden ( e.g. in furniture). Connecting to a Television by a AV adaptor cable. IR2 sensor - to be placed in visible area AV cable... -
Page 9: Connecting Of Set-Top Box To The Main Supply
CONNECTING OF SET-TOP IDENTIFICATION BOX TO THE MAINS SUPPLY OF PARTS After connecting of a Set-top box to a Television or PC screen by one of the mentioned options, plug the set-top box into the mains supply. Front panel In order to put Set-top box into standby mode use standby button on remote control. - Page 10 THE REMOTE CONTROL (RC) 28** 29** 27** 26** 25** - 10 -...
- Page 11 BUTTONS DESCRIPTIONS On/Off - StandBy - to set the device to StandBy mode. To switch to device on again, press StandBy once again. Numeric keys 0 – 9 switching the channels, inserting the signs. Switching the channels for 2 and 3 digits program number Radio MENU - to display or exit from the menu Volume - to adjust the sound level Play / Pause - video keys - to control video on demand movies or recorded sequences Forward / Rewind - video keys - to control video on demand movies or recorded sequences EPG - electronic program guide - to display program list of channels Time display MUTE – to disable or enable the sound The last watched channel Settings Recording - quick entry to recording menu Channel selection - use this buttons to access the next or previous channel Information about current program - information about following programs - buffer - amount of downloaded audio and video segments*** STOP - video key - to controll video on demand movies or recorded sequences, Record button Selected option confirmation Navigation keys - for moving within the menu - for switching the channels in channel list in one position - Up/Down arrows - for switching the channel in channel list in five positions - Left/Right arrows Exit button Timer - sleep functionality One step back Mosaic 25** Video content 26** Internet browser launching 27** Favourites or stream profile selection (***) 28** Channel menu - its content depends on your television service provider. For example: - Display mode - Audio track change - PIP – picture in picture - On/Off - Teletext (only on supported channels) - Subtitles (only on supported channels)
- Page 12 FREQUENTLY ASKED QUESTIONS (FAQ) Before you contact your provider regarding any troubles with you set-top box, check these Frequently Asked Questions. You might find you answer right here. TROUBLE HELP AND ADVICE Picture on the screen is OK • double check Menu/Settings/TV Outputs – if all selected options are in compliance with b ut there is no sound connection of set-top box to your TV (depending on type of your TV) • check the connection of AV cable (if you are connected via AV cable) • volume is down or MUTE button on remote control of set-top box or TV is pressed No picture • incorrect setting of TV Outputs on set-top box. Use front panel of set-top box to correct it.
- Page 13 SETTINGS - TV OUTPUTS Use right arrow to enter the right side of Settings. Use Menu button to return to the left side of Settings. Single – connecting of TV aspect ratio: Broadcast system 1st TV set. Single+PIP Switching the formats PAL / NTSC –...
- Page 14 OTHER OPTIONAL SET-TOP BOX FEATURES. Archive – Archive by genres Media Player (music, pictures, movies) Multi EPG BitTorrent (music, pictures, movies) Personal Video Recorder Internet Browser - 14 -...
- Page 15 Weather Video On Demand Mosaic Hotel IPTV Pause TV / Start-over TV Music On Demand - 15 -...
-
Page 16: Technical Specification
TECHNICAL SPECIFICATION 115 x 115 x 32 (mm) Dimensions: 12V/1A (external power supply adapter 100-240V, 50/60Hz) Power Supply: HDMI 1.4b AV connector (CVBS, L+R audio) TOSLINK¬ (S/PDIF digital optical audio output) Connectors: RJ45 (Ethernet 10/100baseTx) USB 2.0 External IR sensor CPU: STiH206 DRAM: 256MB DDR3 Hardware: Flash: 512MB Embedded Wi-Fi (802.11 b/g/n) MPEG-2 H.264 (AVC) VC-1 (WMV9) Video: MPEG-4 part 2 (DivX, XviD) Flash (VP6, Sorenson) MPEG-1 (layer I/II) Dolby Digital (AC-3) Audio: AAC (HE-AAC v2 Profile) FLAC Vorbis Linux Operating System: Remote control, AV Cable adaptor, Power supply adaptor, HDMI cable, Batteries, Manual, IR 2 extended cable (only Accesoriess: on selected models) www.my-home-television.com To save up internet datas, Set-top box switches off automatically after 2 hours of remote control inactivity. Number of RJ45 connectors on back panel depends on STB version.
