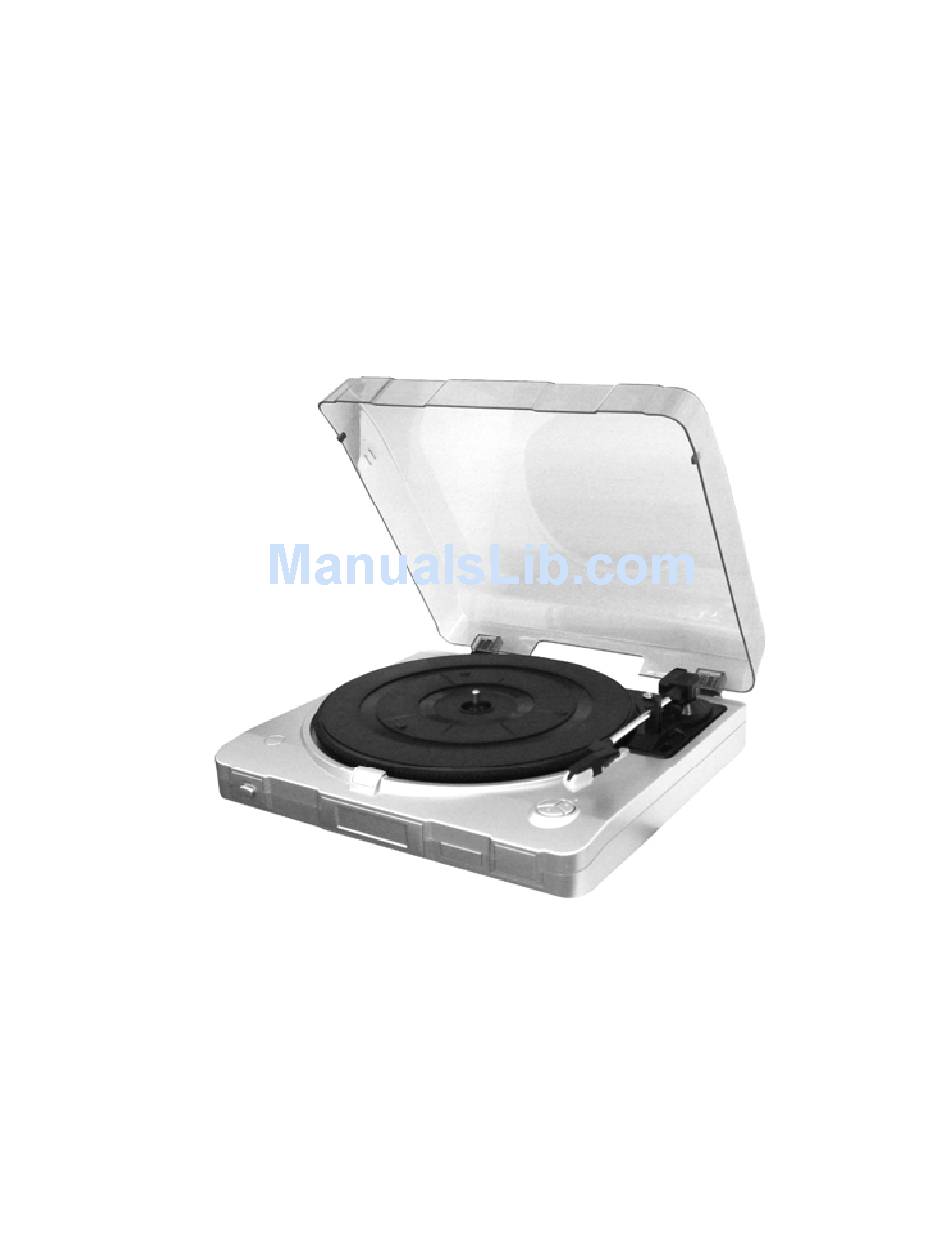

MODEL E-E010
USB TURNTABLE

Advertisement

Table of Contents
loading

Related Manuals for Zennox E-E010

Summary of Contents for Zennox E-E010

  • Page 1 MODEL E-E010 USB TURNTABLE...

  • Page 2: Table Of Contents

    Table of Contents ---------------- Page 2 Important Safety Instructions ------------------------- Page 4 Precautions ------------------------- Page 5 Before Use ------------------------- Page 6 Location of Parts --------------------- Page 7 Preparation for Use How to Replace the Stylus (Needle) ------------- Page 7 --------------------- Listening to a Record Page 8 --------------...

  • Page 3: Important Safety Instructions

    PART I: USB TURNTABLE IMPORTANT SAFETY INSTRUCTIONS FOR AUDIO PRODUCTS-READ THOROUGHLY When using electrical products, basic precautions should always be followed including: Read Instructions-All the safety and operating instructions should be read before the product is operated. Retain Instructions-The safety and operating instructions should be retained for future reference.
  • Page 4 13. Lightning-For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

  • Page 5: Precautions

    Precautions Safety Information CAUTION: 1. In order to shut off the power of this product completely, unplug the power cord from the wall outlet. Be sure to unplug the unit if you do not intend to use it for an extended period of time, such as a vacation.

  • Page 6: Before Use

    Before Use 1. Choose unit installation location carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, cold or moisture. Keep away from sources that hum, such as transformers or motors. 2.

  • Page 7: Location Of Parts

    Location of parts 1. POWER Switch 2. TRANSIT SCREW 3. TONE ARM 4. SECURITY HOOK 5. TONE ARM REST 6. SPEED CONTROL SWITCH 7. STOP Button 8. Eject Button 9. PLAY Button 10. TURNTABLE 11. USB Jack 12. Line Out 13.

  • Page 8: Preparation For Use

    Preparation for Use 1. Connect the AC power cord to AC outlet. 2. The transit screw protects the phonograph chassis during transportation. If the speed of your phonograph seems slow or you hear a rubbing sound, adjust the screw with a coin to correct the balance of the turntable.

  • Page 9: Listening To A Record

    Listening to a Record 1. Connect the AC power cord to AC outlet. The standard is 120V-60HZ. 2. Plug the 2 ends of the LINE OUT Cable into the auxiliary input (Aux) on your TV, home entertainment receiver or other music system.

  • Page 10: Audacity Installation

    PART II: Audacity Software The provided CD disc contains the following software: (1)Audacity-src-1.2.6---------For Macintosh (2)Lame_enc.dll---------------(To convey music file to MP3) (3)AUTORUN (4)Audacity set up (5)Audacity. dmg---------------For Macintosh (6)LameLib-Carbon-3.91-----For Macintosh The software is compatible with Window 98, 2000, ME, XP, VISTA and Macintosh. NOTE: In the VISTA system, the default MONO 1 CH in the recording option should be changed to STEREO 2 CH manually.
  • Page 11 1. Please insert the Audacity software disk that comes with your unit. Go to My Computer and double click the CD ROM Drive. 2. Locate the Audacity Setup. If the Audacity set up doesn’t come up automatically, click on the Arrow V and double click on CD Rom.

  • Page 12: Installing The Audacity Software

    Installing the Audacity Software 3. The Audacity Setup Wizard will appear. Click on Next to install the software. 4. Click on “I accept the agreement” and click on Next.
  • Page 13 5. Continue to click on the Next buttons.
  • Page 14 6. Click on the Install button to start installation.
  • Page 15 7. Click on Finish to complete installation.
  • Page 16 8. You can now open the Audacity software and start recording your files. NOTE: Once you set up Audacity, you do not need to re-set it with each use. (For additional information, visit the Audacity website at http://audacity.sourceforge.net) Audacity Interface Audacity Interface---Settings and controls.

  • Page 17: Audacity Control Buttons

    Audacity Control Buttons Using the attribute controls button at the top of the screen to go to beginning, Play, Record, Pause, Stop and End. Use the File, Edit, View, Project, Generate, Effect and Analyze menus to Save, Export, and edit the music. 1.

  • Page 18: Audacity Preferences

    Audacity Preferences Click the “Edit” on the Audacity interface, select “Preferences”. The screen will open up Audacity Preferences. You can see the AudioI/O, Quality, File Formats, Spectrograms, Directories, Interface, Keyboard and Mouse in the Audacity preference interface.
  • Page 19 Select the recording device: AK5371 Click the “Audio I/O” at the Audacity Preferences interface. Click the “Device” and select “Ak5371”. Click the “Channels” and select 2 (stereo). Click the “OK”. Note: If you couldn't find the "AK5371" from the Device list, close the Audacity Software and re-open then try again.

  • Page 20: Recording Operation Steps

    Recording Operation To download music into computer: 1. Place the record on the turntable. 2. Move the tone-arm over to the record to start playing. ）button to start recording. 3. Click the Record（ The waves (top and bottom) will show on the interface. 4.
  • Page 21 NOTE: If do not have the fluctuant wave on the interface when recording, adjust the recording volume as follows: Click the “Start” in the left corner of the computer, Select “Programs”, “Accessories”, “Entertainment”, “Sound Recorder” to enter Sound Recorder interface. Sound Recorder Interface Select Edit and click “Audio Properties”...
  • Page 22 Audio Properties Interface Select sound recording default device and click Ak5371, then click the Volume to enter Wave In interface. Wave In Interface Adjust the recording volume from the middle or higher. The fluctuant wave will show on the interface when recording.

  • Page 23: Preparing To Export And Save For Mp3 Format

    Preparing to Export and Save For MP3 Format Prepare for MP3 Export--- (Additional software “lame_enc.dll” needs to be installed.) 1. Please make sure that the Audacity disc is still inserted in your computer. 2. Click the “Edit” Tab on the Audacity interface, select “Preferences”. 3.
  • Page 24 4. A dialog box will appear. Click “Yes”. 5. Another box appears to locate the “CD ROM”. You will find the “lame_enc.dll” software. Click the software then click Open.
  • Page 25 6. Click on the OK Button. Now the MP3 software set up is complete and you may proceed with the recording and exporting to MP3 format. NOTE: Device will export to MP3, WAV and Ogg formats.

  • Page 26: Dividing Tracks

    Dividing Tracks Note: Follow the previous instructions to download the songs but DO NOT click the “Stop“ button when the first song is finished. Click the “Pause “button on computer. For the next song, replace the album or move tone-arm to another desired song. Click the “Pause” button to continue the download. Only click the “Stop”...
  • Page 27 2. Move cursor to the wave graphic area, left click mouse and hold then drag from left to right. You can see the time bar color changing to gray (highlighted). Release the mouse when the highlighted time bar has reached 1:45 (end of first song). 3.
  • Page 28 See interface example below, saved as MP3 format: Complete box below: NOTE: The above box will come up every time Audacity is opened.
  • Page 29 Second song to be divided and saved: 1. Move cursor to the wave graphic area at 1:45 (beginning of 2 song). Left click mouse and hold then drag from left to right until you reach 4:00 (end of 2 song). You can see the area from 1:45 to 4:00 highlighted.
  • Page 30 Export and Save for WAV and Ogg Formats (After Recording is Completed) When the song is finished, click the ( ) ) on the screen. Then press the “STOP” button on the turntable. You have a music download on your computer now. But the music needs to be converted to WAV, Ogg, or MP3 formats before exporting.
  • Page 31 2. Once you have chosen to which file format recording should be exported, the interface below appears. Here you may provide the file name and the location where it will be saved, ie. desktop. Then click “Save”. Save as WAV Save as Ogg...
  • Page 32 COPYING THE MUSIC FILE TO AN MP3 PLAYER 1. Connect MP3 player to your computer via USB cable. 2. Turn on your computer. 3. Double click on “MY COMPUTER”. 4. Locate the drive named “REMOVABLE DISK” or “MP3 PLAYER” – This is your MP3 player. 5.
  • Page 33 Listening to the music on iPod After exporting music for WAV, Ogg, MP3 formats, if you want to listen to music on your iPod, you must first install iTunes software into your computer. (iTunes is the music application you use with an iPod.) See instructions below on how to use iTunes to transform your music onto iPod.
  • Page 34 Now I will give an example for iTunes 7.6.2.9 version. Dblclick iTunes Set Up to install the iTunes software follow the screen instructions to complete the set up. 2. View the iTunes version. Click the “Help” on the iTunes window, then select “About iTunes”. iTunes 7.6.2.9 version...
  • Page 35 Check your iTunes version to be sure it is the same as above (7.6.2.9). 3. To Connect iPod to your computer. Plug one end of iPod Cable Dock Connector into the USB port on your computer, and then connect the other end to iPod. Click on “Devices”, then select “Summary”...
  • Page 36 In the “Summary” interface, you can see the iPod information, including name, capacity, software version, sync function, etc. The “Sync” button is used to synchronize the iPod with the iTunes. Click on “Music” to enter into interface below: 5. Music Interface In the “Music”...
  • Page 37 Click the “File” tab, and select “Add folder to Library”. A dialog box will appear and you may select the Music file. Then click the “OK” button.
  • Page 38 If iTunes supports the song file format, the songs are automatically added to the iTunes library. You can also drag individual song files to iTunes. You can see that all songs will list on the right of the iTunes (as above). 7.
  • Page 39 8. Click “Music” for music interface (below). Select “Sync music”. A box will come up advising that all existing songs and play lists on the iPod Administrator will be removed. Click the “Sync” button to synchronize the music files in the iTunes to iPod. 9.

  • Page 40: Troubleshooting

    Specifications RECORD PLAYER section Motor……………………………..………..DC servo motor Drive System………………………..…….Belt Drive Speeds………………………………..……33-1/3 rpm, 45 rpm and 78 rpm Wow Flutter………………………….…….Less than 0.25% (WTD) S/N Ratio…………………….…………….More than 50 dB Cartridge Type…………………………….Ceramic Stereo Cartridge Stylus………………………………………402-M208-165 Output Level……………….………………160-380 mV (5 cm/sec at 1 KHz) GENERAL Power Requirements……..……….………AC 120 V~ 60 Hz Power Consumption…......
