Ascendent X3NS Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

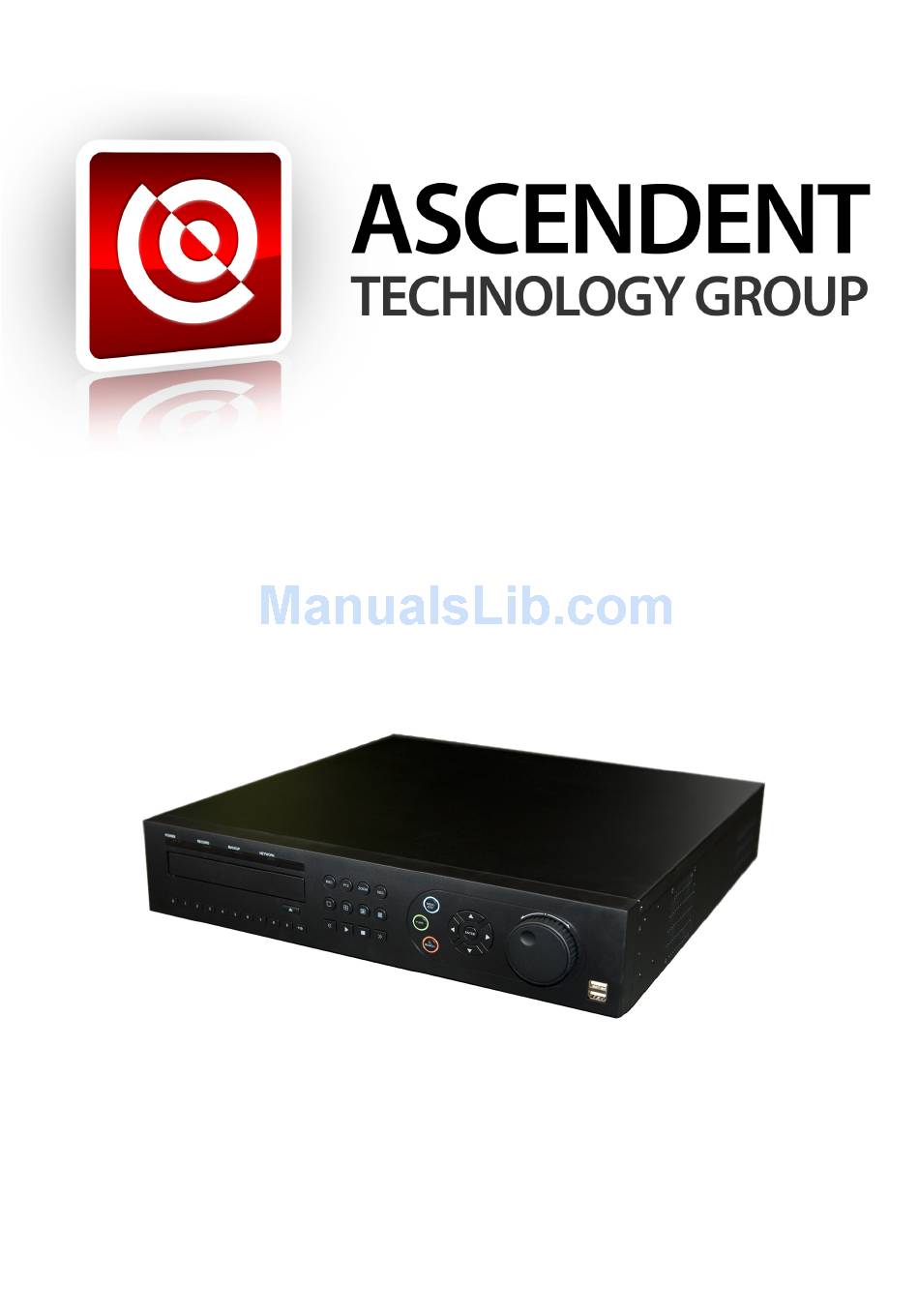

X3NS Series DVR
User's Manual
Please read this manual before using your DVR, and retain it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X3NS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Ascendent X3NS Series

Summary of Contents for Ascendent X3NS Series

  • Page 1 X3NS Series DVR User's Manual Please read this manual before using your DVR, and retain it for future reference.

  • Page 2: Table Of Contents

    Standalone DVR Contents Contents Chapter 1 Service Requirement Chapter 2 Product Information Chapter 3 Basic Product Operation Power on/off System Login Screen display MODE(Screen setup) Digital Zoom Recording Search Playback Backup SPOT Audio Log View Remote-control ID Sequence Chapter 4 System Setup Chapter 5 Firmware Upgrade...

  • Page 3: Service Requirement

    Standalone DVR Chapter 1 Service Requirement Limitation of warranty We warrant that Standalone DVR series will be free from defects in materials and workmanship under normal use and service for all parts excluding hard drives for a period of one year after the date that the customer purchased the product.

  • Page 4: Product Information

    Standalone DVR Chapter 2 Chapter 2 Product Information Product Information Features Enable integrated video monitoring and system management by networking with maximum 1000DVRs systems through CAMS(Central Automated Monitoring System) interface. High quality video display and system stability through embedded operating system with hardware MPEG4 video compression chip.
  • Page 5 Standalone DVR Firmware upgrade using network and USB port. Remote upgrade using CMS Free alarm (max 30secs), port alarm (max 120secs) recording Watermarking Private backup viewer E-Map’s layout mapping able to install maximum 4 HDDs or 1 ODD and 3HDDs able to install maximum 4 HDDs or 1 ODD and 3HDDs Page: User Manual Ver.

  • Page 6: Basic Product Operation

    Standalone DVR Chapter 3 Chapter 3 Basic Product Operation Basic Product Operation Page: User Manual Ver. 1.3...
  • Page 7 Standalone DVR FRONT CASE Button Description FRONT CASE Button Description (16ch) SEQ. button Function button Division rotating surveillance button Setup Status, Audio, Backup, P/T/Z, SEQ, Log list SPOT button Menu button Setup SPOT monitor Shows the menu, moves to upper menus and complete setup LED Indicator PTZ.
  • Page 8 Standalone DVR Remote Controller Button Description Remote Controller Button Description 1) Rec/Stop button 2) DIV-ID button Records/stop images Set DVR-ID 3) Numeric buttons Applies setup details and select channel 4) Audio button Generates audio through speaker 7) Z/F button Operates Zoom/Focus camera 5) Menu button Shows the menu.

  • Page 9: Power On/Off

    Standalone DVR Power on/off Power on Press the power button at the back to be ‘ON’ to turn it on after connecting the power cable. Power off ① press ‘Menu’ button [menu system shutdown] ② select ‘Shutdown’ and press ‘ENTER/OK’ button. ③...

  • Page 10: Screen Display

    Standalone DVR Screen display [ Pl b k t t [ Playback status ] [ Channel status ] Channel number : Playback in progress Camera name : Pause : Recording : Playback per frame : Play backward per frame : Motion detection in process : Speed playback : Speed play backward : Sensor detection in process...

  • Page 11: Mode(Screen Setup)

    Standalone DVR MODE(Screen setup) CLICK right Mouse button(Only for 8ch/16ch product) Full screen mode press this button. shifts to next channel each time you press this button. Quad screen mode press this button. shifts to the next channel each time you press this button. - If you press a channel number button on remote-controller while being displayed in the current quad screen, the selected channel turns full screen.
  • Page 12 Standalone DVR 9 division screen mode press this button 16 division screen mode press this button POP screen mode *only for 9Ch & 16Ch products -press ‘POP’ button, it will display a certain channel larger than other channels. OSD mode - press ‘OSD’...
  • Page 13 Standalone DVR PIP screen mode You can monitor 2 screens at the same time with small screen inside of one screen. (1) press ‘PIP’ button on the remote control. (2) press ‘PIP’ button one more time the display channels will be exchanged. ‘PIP’...
  • Page 14 Standalone DVR SPOT screen Display real time screen of another screen-mode in different monitor using ‘SPOT OUT’ port at the back of product. ▶Press ‘Function’ button and select ‘Spot’ to set up ‘SPOT’ screen. (1) type ① single channel ▷playback only one selected channel in full screen ▷playback only one selected channel in full screen mode.

  • Page 15: Digital Zoom

    Standalone DVR Digital zoom press (ZOOM) button in full screen mode to active digital zoom. zoomed area moves as you press arrow buttons. size of zoomed area gets bigger and smaller as you press (ZOOM ) button one more time. press ‘ENTER/OK’...

  • Page 16: Search

    Standalone DVR Search press ‘SEARCH’ button. Then you can see the ‘Search’ menu like below. ‘SEARCH’ b tt th ‘S h’ lik b l (admin password is required, default value is ‘0000’.) 0000 Search by time (1) input the date and time to search. Press ‘ENTER/OK’ button. Search by calendar (1) you can see ‘calendar’...

  • Page 17: Playback

    Standalone DVR Go to first playback from the beginning part of recorded. Go to last playback from the recent part of recorded playback from the recent part of recorded. How to view ‘Covert-on (Hidden)’ channel 0000 Select ‘SHOW HIDDEN CH’. Click this icon, Or ‘Search’...

  • Page 18: Backup

    Standalone DVR Backup data protection with virtual password backup data using USB device(or CD/DVD). (1) Connect ‘USB’ device to the DVR’s USB port.(or CD/DVD media into the ODD) (2) Press ‘Function’ button and select ‘Backup’ (3) Select options from menu. DEVICE –...
  • Page 19 Standalone DVR •NOTE: Do not remove USB device during Backup!. Note: In case backup data file size is too small, then backup will be completed shortly without showing this progress window without showing this progress window. Page: User Manual Ver. 1.3...
  • Page 20 Standalone DVR Backup viewer (1) open file : Load the backup data. (2) AVI: save the selected channel to avi during playback Select channel click this icon(start) click again(finish) (3) save : save the playback images as bmp file. (4) Print screen image (5) watermark : check if there is any modification of data.
  • Page 21 Standalone DVR Open file (1) Click ‘Open file’ button from the main screen. (2) Select files to playback. (3) Input backup password backup password (4) After it completes to load the backup file you can playback it and save it as bmp files (4) After it completes to load the backup file, you can playback it, and save it as bmp files.
  • Page 22 Standalone DVR Audio playback (1) Load files with audio data. (2) Select and playback the channel, which audio is saved, it playbacks audio data at the same time. Save (1) Save backup data. (2) Select screen division. (3) Click ‘save’ button. (4) Name the ‘Bmp’...
  • Page 23 Standalone DVR Watermark (1) Load files to check watermarking (2) Click ‘watermark check’ button. (3) Click playback or speed playback button. (4) It shows the image with error message if there is any modification of data. It shows ‘ENTER/OK’ in the status box if there is no modification of data. Page: User Manual Ver.

  • Page 24: Ptz

    Standalone DVR PTZ(FUNCTION) PTZ operation press button to display in full screen and you can operate PTZ cameras. press ‘ENTER/OK’ button in PTZ mode, you will see ‘PTZ-ADVANC’ menu. PTZ general movement (1) moves pan/tilt camera from up/ down and right/ left using arrow keys. (2) enlarge or reduce the screen size by Z- /Z+buttons while using zoom camera.

  • Page 25: Spot

    Standalone DVR SPOT(FUNCTION) SPOT operation SPOT operation Press ‘FUNCTION’ button at the front panel, select ‘SPOT’ to setup. COVERT -ON SCREEN SPOT OUT DISPLAY COVERT-ON COVERT ON NO IMAGE IS SHOWN Note: Refer to page 30 in ‘User Manual’ to select Spot out channels. *Screen display setup –...

  • Page 26: Audio

    Standalone DVR Audio(FUNCTION) Turn on/ off audio. Turn on/ off audio. N.B you can only playback audio in full screen mode. Audio On : Turn on audio Mute : Turn off audio Log View(FUNCTION) search the system event log. event type – select types of event to search event type select types of event to search from –...

  • Page 27: Remote-Control Id

    Standalone DVR Remote –controller ID Remote-controller ID Remote controller ID (1) can use to operate several DVRs at one site with one remote-controller. (2) can operate a certain DVR according to the registered ID value. ① DVR ID It will turn yellow if remote controller’s ID matches with DVR ID. Then you can operate the DVR. It will turn red if remote controller’s ID does not match with DVR ID Then you cannot operate It will turn red if remote controller s ID does not match with DVR ID.

  • Page 28: System Setup

    Standalone DVR Chapter 4 Chapter 4 System setup System setup Page: User Manual Ver. 1.3...
  • Page 29 Standalone DVR Before setting up system Starting system menu (1) press ‘Menu’ button. (2) input administrator’s password on the password box. NOTE: default value: 0000 NOTE: default value: 0000 Menu format DISPLAY CAMERA RECORD EVENT STORAGE NETWORK SYSTEM GENERAL PROPERTY MOTION HDD FORMAT SETUP...
  • Page 30 Standalone DVR Saving/Canceling menu setup saving menu setup : select ‘ENTER/OK’’ button. canceling menu setup : select ‘Cancel’’ or ‘Menu’ buttons. Text input box (1) select letters/symbols using arrow buttons. (2) press ‘ENTER/OK’ button to select the letter/symbol. ( ) p (3) the selected letters/symbols will show on the top text box.
  • Page 31 Standalone DVR Setting up screen display Screen display setup – On Screen Display Status bar – indicate the status bar on the bottom of screen. Camera title – indicate the name of each channel. Camera boarder – indicate the boarder-line of each channel. Language –...
  • Page 32 Standalone DVR Screen display setup – live sequence scanning (full screen) Setup duration time for live sequence scanning in full screen. NOTE : can input maximum 99 second. NOTE : can input maximum 99 second. NOTE : can input maximum 99 second. NOTE : can input maximum 99 second.
  • Page 33 Standalone DVR Screen display setup – spot sequence scanning (full screen) Setup duration time for spot sequence scanning in full screen. NOTE NOTE NOTE : can input maximum 99 second. NOTE : can input maximum 99 second. Screen display setup – spot sequence scanning (quad screen) Setup duration time for spot sequence scanning in quad screen Setup duration time for spot sequence scanning in quad screen.
  • Page 34 Standalone DVR Screen display setup – miscellaneous Deinterlace prevent screen twittering during playback of image which is recorded in low frame rate and 720X480 or 720X576 resolution. VGA frequency setup the frequency of connected VGA monitor. - 800 * 600 - 1024 * 768 1024 * 768 - 1280 * 1024...

  • Page 35: Camera Setup

    Standalone DVR Camera Setup Camera setup – general title – input channel names. SHOW– show or hide channels. audio – select connected audio channels. Camera setup – PTZ ID – input camera IDs. protocol – select the registered protocol. baud – select the registered baud. Page: User Manual Ver.
  • Page 36 Standalone DVR Camera setup – preset NOTE : system will record according to preset positions of camera. NOTE : system will record according to preset positions of camera. check if camera supports preset function before setting up. check if camera supports preset function before setting up. can setup 64 preset positions for each channel.
  • Page 37 Standalone DVR Camera setup – TOUR NOTE : you can move camera to follow the path by saved preset positions for each channel. You can set 4 NOTE : you can move camera to follow the path by saved preset positions for each channel. You can set 4 scan point list for each channel.
  • Page 38 Standalone DVR Camera setup – COLOUR camera – select a camera. bright bright – adjust color brightness. adjust color brightness contrast – adjust color contrast. color – adjust camera color default value – set it as default value. Camera setup – position Camera setup position camera –...

  • Page 39: Record Setup

    Standalone DVR Record setup Record setup – Property resolution – set recording resolution for each channel. NTSC 720 x 480 720 x 576 720 x 240 720 x 288 352 x 240 352 x 240 352 x 288 352 x 288 quality –...
  • Page 40 Standalone DVR Record setup – schedule system records according to set schedule. see below to see how to set up schedule. Continuous recording Recording when even occurred C(continue)+E(event) (Blank) Not recording (1) Select a channel to set up schedule. (2) Select day/time to record and press ‘ENTER/OK’ button. (3) it shifts to different type as you press ‘ENTER/OK’...
  • Page 41 Standalone DVR Record setup – miscellaneous overwrite – erase previous video data and record over it when HDD is full. auto delete – automatically delete data after set date. continuous record – you cannot stop recording while it is in process as it continuously records. watermark –...

  • Page 42: Event Setup

    Standalone DVR Event setup NOTE : you have to set it as ‘Even recording’ at ‘Schedule record setup’ to use this function. NOTE : you have to set it as ‘Even recording’ at ‘Schedule record setup’ to use this function. When the event (sensor/motion/video loss) is detected on DVR side, DVR alerts by message pop-up, beep sound or E-mail notification.
  • Page 43 Standalone DVR Event setup - sensor record – select camera to record on sensor detection. type – select sensor type. alarm out – activate alarm out on sensor detection. Event setup – VLOSS (Video Loss) ALARM-OUT – select alarm port. NONE: disable alarm out.
  • Page 44 Standalone DVR Event setup – E-MAIL EVENT E-MAIL(ON/OFF): select ‘on’ to enable the function. MOTION(ON/OFF): select ‘on’ Motion event detection. SENSOR(ON/OFF): select ‘on’ Sensor event detection. VLOSS(ON/OFF): select ‘on’ Video Loss event detection. DVR NAME: input DVR name showing on E-mail. E-MAIL ADDRESS: input E-mail address maximum 3.
  • Page 45 Standalone DVR Event setup – MISC pre-recording time – setup pre-recording time on the selected event detection pre recording time setup pre recording time on the selected event detection. post-recording time –setup post-recording time on the selected event detection. ALARM buzzer – enable alarm buzzer on the selected event detection. alarm out time –...
  • Page 46 Standalone DVR Storage Storage – HDD format HDD f You must format HDD when you install HDD. (1) select installed HDD and format. (2) system will reboot after formatting is completed. Storage – AUTO-BACKUP AUTO-BACKUP – We provide external USB TYPE storage. You can backup data using.
  • Page 47 Standalone DVR Network Network – setup static – input static IP address and gateway, net mask. DHCP – system automatically recognizes IP address. PPPOE – ADSL only, input registered ID and password. Page: User Manual Ver. 1.3...
  • Page 48 Standalone DVR Network - DDNS NOTE NOTE NOTE : system supports free DDNS sites such as dyndns.com, ipupdater.com. NOTE : system supports free DDNS sites such as dyndns.com, ipupdater.com. DDNS it DDNS it server – select registered server. server-URL – indicate registered server URL user ID –...

  • Page 49: Access List

    Standalone DVR Access list System can limit remote-PC, accessing network. Able to register Static IP and only remote-PC with registered IP can access system. NOTE : the system restricts all the other IPs, those are not registered if you once register an IP. If you want NOTE : the system restricts all the other IPs, those are not registered if you once register an IP.
  • Page 50 Standalone DVR Server CC IP – input connection info of CAMS CC. PORT – input connection port of CAMS CC. (default value: 6500) CMM IP – input connection info of CAMS CMM. PORT – input connection port of CAMS CMM. (default value:7600) Page: User Manual Ver.
  • Page 51 Standalone DVR System System – Configuration info NOTE : you can save the set values for menu to USB storage. NOTE : you can save the set values for menu to USB storage. Load configuration – loads saved configuration information. Save configuration –...
  • Page 52 Standalone DVR System – Time management Current time – indicates current time of system. Date format – select date format to display. classification display YY/MM/DD 2008/03/03 MM/DD/YY 03/03/2008 DD/MM/YY 03/03/2008 Time format – select time format to display. classification display AM/PM 01:39:01 PM 24 HOURS...
  • Page 53 Standalone DVR Time synchronization When using TIME SYNC Function, please select “SNTP”. And then, System can Automatically connects to internet time-server to check current time. ti ll t t i t t ti t ti Server IP – input time-server IP address. Omit ‘www’.
  • Page 54 Standalone DVR System – Software Show current software version. Upgrade firmware software. System – Miscellaneous Remote-controller ID – input remote controller ID. KEYBOARD – control the system using keyboard contoller. Key tone Key-tone – set buzzer sound on/off set buzzer sound on/off System –...

  • Page 55: Firmware Upgrade

    Standalone DVR Chapter 5 Chapter 5 Firmware Upgrade Firmware Upgrade Page: User Manual Ver. 1.3...

  • Page 56: Usb Upgrade

    Standalone DVR NOTE : There are two ways to upgrade firmsare. NOTE : There are two ways to upgrade firmsare. (1) USB upgrade – upgrade system using USB memory stick. (1) USB upgrade – upgrade system using USB memory stick. (2) NETWORK upgrade (2) NETWORK upgrade (2) NETWORK upgrade –...

  • Page 57: Network Upgrade

    Standalone DVR Network upgrade Network upgrade (1) Press ‘Menu’ button and move to the next software. [Menu 　 system 　 software] (2) You will see a new box if you select ‘Upgrade’. (3) Select ‘Network upgrade’. (4) Select ‘Server IP’ with firmware file and file name. then select ‘ENTER/OK’. (5) You can manually input server IP and file name if the system appointed server IP and file name is different is different.

  • Page 58: Cms - Display Mode

    Standalone DVR Chapter 6 CMS – Display Mode Display Mode Setup Mode Search mode Page: User Manual Ver. 1.3...

  • Page 59: User Interface

    Standalone DVR User Interface search saved image by remote or local search. Search : Setup : setup on CMS system. Monitor DVR sites, Camera, Sensor, and Control through E-MAP. Monitor DVR sites, Camera, Sensor, and Control through E MAP. E-Map : E Map : can check or print ‘Log file’...

  • Page 60: Display Screen

    Standalone DVR Display screen #1 [CAM01] : It represents site code, screen number, and camera name. R : “R” It represents this image is saving on CMS. : It represents this image is with audio data. C 10-12 16:30:14 : It represents the time of data transmitted. “10-12 16:30:14”...
  • Page 61 Standalone DVR PTZ Controller: can control PTZ from the remote site of CMS via network. - Click ICON of PTZ as the left image. - Can control up , down, left & right direction of PTZ. - Can Zoom IN / OUT of PTZ. - Can control speed of Zoom IN &...
  • Page 62 Standalone DVR - ScanPoint Setting: after selecting ScanPoint ,, click SET Button.. According to the order of the left image menu, select Preset number & dwell time. ScanPoint can be set up to 4 times per camera. -ScanPoint Operation: Select ScanPoint at PTZ Main controller, input ScanPoint number on number, and then click RUN Button, can be operation for Scanpoint function.
  • Page 63 Standalone DVR Connection list & Sensor/Control & Screen Division Connection list There are two ways which are Pre-Memorize and DVR list on the connection list. Pre-Memorize show the information for each DVR site on the list. show the information for each DVR site on the list. Screen list: can change the position of camera after selecting screen or list.

  • Page 64: Screen Division

    Standalone DVR Sensor/Control - Select the registered site name, then, click each button of sensor and control to activate. Screen Division - Various surveillance modes available through division buttons. Status Status List : It represents the event message of CMS program. Status List : Click the button to check the details of event message.
  • Page 65 Standalone DVR Save Disk List : Select the drive to setup save disk for the data from each DVR site. Save Disk List : Free space of and the status of each drive can be checked. 2WAY AUDIO : Audio communication between CMS and DVR available. Click ‘AUDIO CHAT’...
  • Page 66 Standalone DVR E-Map : Monitor the position of DVR Camera Sensor and Control through E-MAP E Map : Monitor the position of DVR, Camera, Sensor, and Control through E MAP. Log Viewer : Check ‘Log file’ in the CMS system by clicking the button.

  • Page 67: Setup Mode

    Standalone DVR Chapter 6 CMS – Setup Mode Display Mode Setup Mode Search mode Page: User Manual Ver. 1.3...
  • Page 68 Standalone DVR Setup USER : make the user group with different privilege. Default is ‘ADMINISTRATOR’. Registered user list : It represents the group of registered users. Register new user : Register new user : click this button to add new user, and click ‘Apply’. Privilege : you can assign different privilege to each user.
  • Page 69 Standalone DVR DVR Setup : setup the network connection. Registered site list : It represents registered DVR LIST. IP address of my computer : It represents IP information of CMS System. DVR Info : Input the information of Network connection as DVR is registered.
  • Page 70 Standalone DVR Delete : click it to remove the registered site. Edit site : edit setup information. Conn. Setting : it is for modem connection setup. You should setup Modem on OS, and this button will be enabled. Adjust the time for retrying connection. If there is no response from the site system, the system will retry connection as you set up.
  • Page 71 Standalone DVR Show versions : shows the version of CMS currently using, click ‘Send site version’ to show the information of site version. DVR Info.: shows the information of connecting site, program version, time, capture card type, the number of sensor and control. Page: User Manual Ver.
  • Page 72 Standalone DVR Display DISPLAY : It represents CMS DISPLAY SCREEN and setup information on the LIST. Setup Pre-Memorize : Display list can be generated by clicking “+” and “-” after setup display. SCREEN Info : Select DVR name and camera after selecting Display List to monitor the appropriate image.
  • Page 73 Standalone DVR SCHDULER DVR list : shows a list of registered DVR. Recording Schedule : setup save schedule for the selected DVR from the DVR - Select DVR to save from DVR List. - Drag or click to select the date/time to change the schedule. - Click ‘C’...
  • Page 74 Standalone DVR SAVE DISK Install drive(s) list: shows a drive list of CMS system. Save drive: shows the list of drives to DVR data, transmitted to CMS. Setting up ‘Local Drive’ 1) Select a drive to save data from ‘Installed drive(s) list’ 2) Click ‘Add Disk’...
  • Page 75 Standalone DVR EMC (Emergency Management Center) EMC mode : when the emergency event happen on the site, the event image is sent to CMS system automatically with multiple or single screen. Enable EMC : checkmark to enable EMC. Select the event mode either by motion or by sensor or control.
  • Page 76 Standalone DVR EMC single screen pop-up : automatically pop up with site name and camera number. Page: User Manual Ver. 1.3...
  • Page 77 Standalone DVR Setting up OTHERS Tool Tip : shows function explanation if you put the mouse on the function key. Tool Tip : shows function explanation if you put the mouse on the function key. Digi-Clock display format : select display format of digi-clock. Motion Detection Setup: shows the motion detected area if the transmitted dada is motion Event Restore setting value from latest registry backup file : in case of system shutdown changes...

  • Page 78: Remote Setup

    Standalone DVR Remote Setup Camera 1) Camera list : shows camera list installed on the site, and you can make the setup on the network. Select a camera to setup. 2) Camera name : change the camera name, and adjust color, brightness, contrast of the camera.
  • Page 79 Standalone DVR Record speed 1) Image size : select image size for recording. 2) Individual camera recording setup : select image quality, frame rates for each camera. SCHEDULER 1) Recording schedule : select a date of a week, and setup recording schedule. Selected value will be shown in red mark.
  • Page 80 Standalone DVR SENSOR 1) Connect SENSOR to CAMERA, and setup SENSOR TYPE. SYSTEM 1) DVR info : shows the connected DVR information such as DVR name, program version. 2) Network info : shows network connection information such as IP address, subnet mask, gateway. 3) User info : shows user list of the connected DVR.

  • Page 81: Cms - Search Mode

    Standalone DVR Chapter 6 Chapter 6 CMS – Search Mode Search Mode Display Mode Setup Mode Search mode Page: User Manual Ver. 1.3...

  • Page 82: Search Mode

    Standalone DVR Search Mode Digi Digi- - clock Digi Digi- - clock clock clock Calendar Calendar Calendar Calendar Playback Playback Playback Playback Screen Screen Screen Screen System System System System System System System System Utility Utility Utility Utility Screen Screen Screen Screen Division...

  • Page 83: Playback Screen

    Standalone DVR Playback Screen C10(Camera 10) : ‘C10’ is screen number, ‘Camera10’ is the camera name of save data. x 1 : shows how many times the picture zoomed in. Move the mouse on a screen, and double click of the right mouse button to select.

  • Page 84: Time Table

    Standalone DVR Time table When you click ‘Search’ button, the system is loading the save data, and the data save location will be shown on the time table with different color of the event. Double click each cell to playback the data. Camera zone : displays all cameras installed on the system.
  • Page 85 Standalone DVR Playback control buttons : - Move to the first image of the data. - Play backward per frame. - Play backward. - Stop to playback. - Playback - Play forward per frame. - Move to the last image of the data. Special search : click ‘Special search’...
  • Page 86 Standalone DVR Save : click to save the data as JPEG, AVI, price format. Data will be saved with viewer, so it will auto-run and you can view it on any PC without special program. Camera : select a camera. Save Audio data Time setting : setup the time of the data which you’re going to save.
  • Page 87 Standalone DVR Special Search 1) Real Player : it is a special tool to playback audio data. Audio data will be marked inside of the data sell 2) Multi time Player : you can playback the data on the multiple time zone on the same playback screen.
  • Page 88 Standalone DVR 4) Object Search : you can quickly search movement or missing of an object on the specific zone. Select a camera to search and then click ‘scan button’. Drag to designate the area to search. Sensitivity : select the sensitivity from 0 to 24. Default is 13. SEC/MIN : select search by minute or by second.

  • Page 89: Remote Search

    Standalone DVR Remote Search Remote Search : search the saved data on DVR sites. Digi Digi- - clock Digi Digi- - clock clock clock Calendar Calendar Calendar Calendar Playback Playback Playback Playback Screen Screen Screen Screen System System System System System System System...
  • Page 90 Standalone DVR Recording event : Search by event. It playbacks only the selected event data if you checkmark ‘Event Mode’. Real-Time Play : playback ‘Audio’ and ‘Video data’ in real time. Page: User Manual Ver. 1.3...

  • Page 91: Cms - Emap Editor/Viewer

    Standalone DVR Chapter 7 CMS - eMAP Editor / Viewer Site Map: Drawing or map can be used as E-MAP for three-D surveillance of DVR sites. Editing E-MAP 1) Click image on LIVE screen and SITE MAP button. The default E-MAP file will be open. (Default: E-MAP FILE SITE-100) (Default: E-MAP FILE SITE-100) 2) SITE NAME should be the same as the name of the E-MAP.
  • Page 92 Standalone DVR 4) Click ‘File NEW’ and select bmp/ JPG file for E-MAP. 5) On the bmp/ JPEG file user can arrange camera, control, sensor by using CAMERA,CONTROL, SENSOR buttons. 6) Right mouse button can be clicked on the arranged cameras to change the direction or to change the original image to PTZ camera image.
  • Page 93 Standalone DVR CMS Map: DVR site maps can be managed by CMS MAP. Click CMS MAP button The above map will be displayed and the name of this file is Click CMS MAP button. The above map will be displayed and the name of this file is CMS.EMP.
  • Page 94 Standalone DVR EMAP Basic menu File File 1) NEW: Find new bmp. file. 2) OPEN: Open bmp. file or previous EMAP file. 3) SAVE: Save file. 4) SAVE AS: Save file with another name. 5) CLOSE: Close EMAP file or bmp. file. 6) EXIT: Finish EMAP Editor.

  • Page 95: Cms - Remote Update

    Standalone DVR Chapter 8 Remote Update CMS - Firmware Update - You can remote-update NS DVR programs, those are connected through network, using CMS. Check points before use 1) check if the version of NS DVR is later than ‘usb_ft_16-080311-01’. [consultation] you can check the version as follow;...
  • Page 96 Standalone DVR 5) Click ‘Browse’ button from ‘Firmware Upload’ window. 6) Search the file, provided from supplier or dealer. Click ‘Open’ button. 7) Click ‘Update’ button from ‘Firmware Upload’ window. Then it will start uploading the update file to the selected DVR. 8) After uploading, the ‘INFO’...
  • Page 97 Standalone DVR Firmware Upload window Firmware Upload window 1) display the name of update DVR. 2) display the update file folder that you selected. 3) display uploading status of update file. 4) display the uploading progress of update file by %. 5) display the update DVR IP information.
  • Page 98 Standalone DVR Setup Upload, Download - You can upload, download the setup value of NS DVR connected to network by CMS. Check points before use 1) check if the version of NS DVR is later than ‘usb_ft_16-080311-01’. [consultation] you can check the version as follow; ‘NS DVR FRONT의 FUNCTION KEY STATUS STATUS BOX’...
  • Page 99 Standalone DVR 5) Click ‘Browse’ button from ‘Setup Upload’ window. 6) Select the saved NS DVR setup value from ‘Open’ window. Click ‘Open’ button. 7) Click ‘Update’ button from ‘Setup Upload’ window. Then it will start uploading the NS DVR setup value to the selected DVR. 7) Click Update button from Setup Upload window.
  • Page 100 Standalone DVR How to use Setup download function 1) Connect DVR that you want to setup upload, download. 2) Select DVR that you want to setup upload, download from DVR list. 3) Click ‘REMOTE SETUP’ button ( 4) In ‘SETUP’, go to ‘SYSTEM’ and select ‘Setup’ from Update options, click ‘Export’ button. 5) Click ‘Browse’...
  • Page 101 Standalone DVR 7) Click ‘Download’ button from ‘Setup Download’ window. Then it will start downloading NS DVR setup value. 8) After downloading, the ‘INFO’ window will pop up. click ‘OK’ button. Page: User Manual Ver. 1.3...

  • Page 102: Web Cms

    Standalone DVR Chapter 9 Web CMS user Web CMS : Remote monitoring available through internet explorer without the specific software. 36 Display Screens, Division screens, PTZ Controller supported. • Input IP or domain on the address. • Install ActiveX file related to Web CMS. Page: User Manual Ver.
  • Page 103 Standalone DVR starting screen of connection starting screen of connection Click ‘Connect’ button to input each information and IP address for connection. Click ‘Connect’ button after input DVR Type, name, user’s ID, password, Site IP, port number etc. Page: User Manual Ver. 1.3...

  • Page 104: Misc

    Standalone DVR Chapter 10 MISC [I/O CONFIGURATION] 1. Number of supporting port X3S-9120 X3S-8240 X3S-16120 X3S-16480 Sensor 9ports 16ports 8ports 16ports ALARM 4ports 4ports 4ports 4ports RS-485 1port 1port 2port 2port 2. Connecting information of Alarm/Sensor Page: User Manual Ver. 1.3...
  • Page 105 Standalone DVR 3 RS-485 connecting configuration 3. RS 485 connecting configuration 1) DVR-Key Board controller Cross [Key board controller] Note) For correcting operation of DVR when using this function, user must setup System-ID. (SETUP SYSTEM MISC) Page: User Manual Ver. 1.3...
  • Page 106 Standalone DVR 3 RS-485 Connecting Configuration 3. RS 485 Connecting Configuration 2) DVR-PTZ camera Cross Note) For correcting operation of DVR when using this function, user must setup System-ID. (SETUP SYSTEM MISC) Page: User Manual Ver. 1.3...
  • Page 107 Standalone DVR 2-WAY Audio confiuration LAN/WAN Speaker Network Speaker Note: For using two way audio communication, ☞ at Windows system, it must be operated correctly for Audio device without problem. Control Panel Hardware device manager check at Sound, video and game controllers Page: User Manual Ver.
  • Page 108 Standalone DVR ☞ after preparing MIC / Speaker or Headset , it must be connected with CMA system. [CAMS/CMA Rear Pannel] Mic in Speaker out ☞ after preparing MIC / Speaker or Headset , it must be connected with DVR system.

  • Page 109: Chapter 11 Warranty

    Standalone DVR Chapter 10 Warranty WARRANTY We warrant that Standalone DVR series(Product) will be free from defects in materials and workmanship for a period of one year from the date the customer acquires the Product. If such a defect occurs, return the Product to us and we will, at our opinion, either repair or replace Product. This remedy is your exclusive remedy for breach of this warranty.
  • Page 110 Standalone DVR Page: User Manual Ver. 1.3...
