- Page 1 OPERATION AND MAINTENANCE MANUAL 150 mm Air orbit sander Art. 0419 ORIGINAL INSTRUCTIONS...
- Page 2 Manual on the date of issue, listed on this page; however, the machine may be subject to potentially major technical changes in the future, without the Manual being updated. Therefore, see FERVI for information about modifications that could be implemented. REV. 3 October 2013...
-
Page 3: Table Of Contents
HARDWARE CONTENTS GENERAL SAFETY INSTRUCTIONS............. 4 Risks Associated with the Work Area ................4 Risks Associated with the Presence of Rotating and/or Moving Parts......4 Personal protective equipment ..................5 Technical support......................5 DESCRIPTION OF THE SANDER AND INTENDED USE......... 6 Technical specifications ....................6 IMPROPER USE AND CONTRAINDICATIONS.......... -
Page 4: General Safety Instructions
HARDWARE 1 GENERAL SAFETY INSTRUCTIONS During use, maintain control of the tool. The operators represent the most important aspect of safety. To best protect against the risk of injury, work cautiously and carefully. The pneumatic tool should not be used and repaired by someone under the influence of drugs or alcohol. -
Page 5: Personal Protective Equipment
HARDWARE 1.3 Personal protective equipment When using the pneumatic tool, always wear the following: Hearing protection Safety shoes Work gloves Protective goggles (cap, earplugs, etc.) 1.4 Technical support For any problems and/or concerns, please contact, without hesitation, the Customer Service Department of the dealer, who has specialised staff, specific equipment and spare parts. -
Page 6: Description Of The Sander And Intended Use

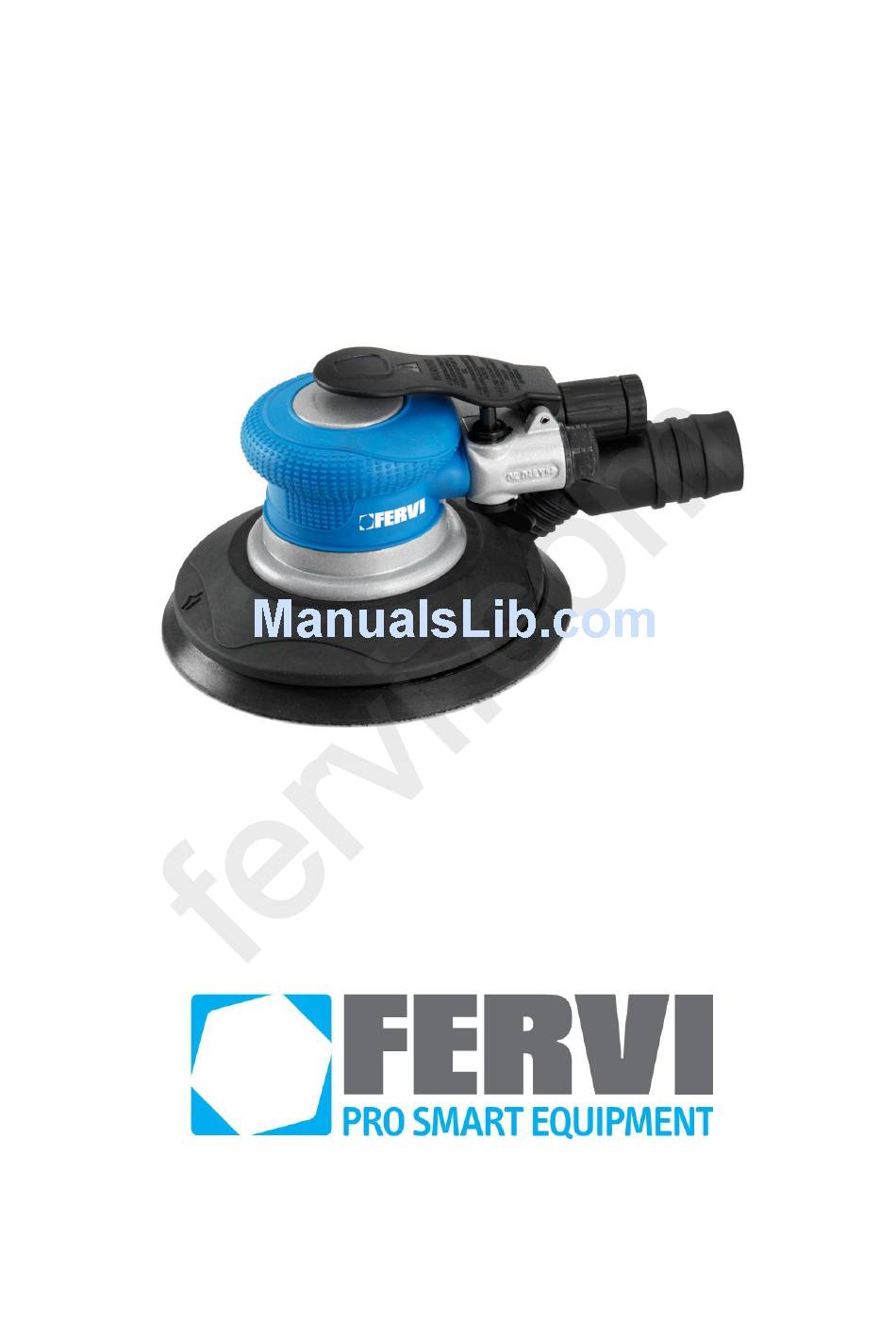

(discs), it is possible to smooth or polish different materials, such as metals, wood and plastic. The sander Art. 0419 is made up of the following parts (see Figure 1): Figure 1 – Sander Art. 0419. -
Page 7: Improper Use And Contraindications
HARDWARE 3 IMPROPER USE AND CONTRAINDICATIONS IT IS STRICTLY FORBIDDEN TO !! Allow the tool to be used by untrained personnel and those who have not read the instruction manual; Use the tool for different purposes and uses other than those for which it was designed, i.e. -
Page 8: Commissioning
HARDWARE 4 COMMISSIONING 1. Remove the air inlet cap, then screw the nozzle into hole: 1/4" NPT Male Quick-Release Coupling 2. Put a few drops of lubricating oil (without resin acid) in the air inlet nozzle. 3. Check the flexible air supply hose. If it is damaged, broken, torn or deformed it must not be connected to the tool. -
Page 9: How To Use
HARDWARE 5 HOW TO USE 5.1 Attaching the abrasive tools (discs) Crushing and Cutting Before attaching and/or removing the discs, always remove the air supply hose. Protective gloves Before attaching and/or removing the discs, wear suitable protective gloves. 1. Select the disc with the desired size. 2. - Page 10 HARDWARE The Sander is equipped with a knob for adjusting the rotation speed of the disc according to the type of material and the type of work to be performed: the harder the material, the greater the speed of rotation. Turn the speed adjustment lever of the disc to the desired position: Figure 3 –...
-
Page 11: Maintenance And Cleaning
HARDWARE 6 MAINTENANCE AND CLEANING The purpose of this chapter is to provide all the information on maintenance procedures and their frequency as required by the Sander. Frequency INTERVENTION Daily Weekly 1. General visual inspection 2. General cleaning 3. Clean the air outlet nozzle 4. -
Page 12: Bill Of Materials And Spare Parts
HARDWARE 7 BILL OF MATERIALS AND SPARE PARTS Page 12 of 13... - Page 13 0419/23 O-Ring 0419/02 Upper part 0419/24 Pin 0419/03 Start lever 0419/25 Rotor 0419/04 Pin 0419/26 Rotor blade 0419/05 Seeger 0419/27 Rear cylinder head 0419/06 O-Ring 0419/28 Bearing 0419/07 Pin 0419/29 Seeger 0419/08 O-Ring 0419/30 Sealing ring 0419/09 Knob - valve...
