SolarGoesGreen SGG-PIR-54 Owner's Manual

SolarGoesGreen SGG-PIR-54 Owner's Manual
READ AND FOLLOW ALL INSTRUCTIONS FOR FIRST USE

1. PARTS CONTAINED

Solar Panel - Battery Box
54 SMD-LED Motion Activated Flood Light
Twin Wire Connected to Flood Light
Wall Mount Bracket
Screws and drywall anchors

2. INSTALLATION

2.1 Installation of solar panel box
a)
Choose a place where sunlight is unobstructed and abundant during daytime;
The solar panel box MUST be installed in a well-lit location where it can receive maximum
sunlight during daytime hours. Any cover that shades the panel will affect its ability absorb
sunlight and decrease the amount of power and duration of the flood light's operation. The
solar panel box is all weather
The selected location should not be near a night time light source such as porch lights, street
lights, etc., as these lights might prevent the solar PIR light from automatically turning on. The
solar panel can be positioned on a flat surface with the supplied wall mount unit.
b)
Installation of wall mounting bracket

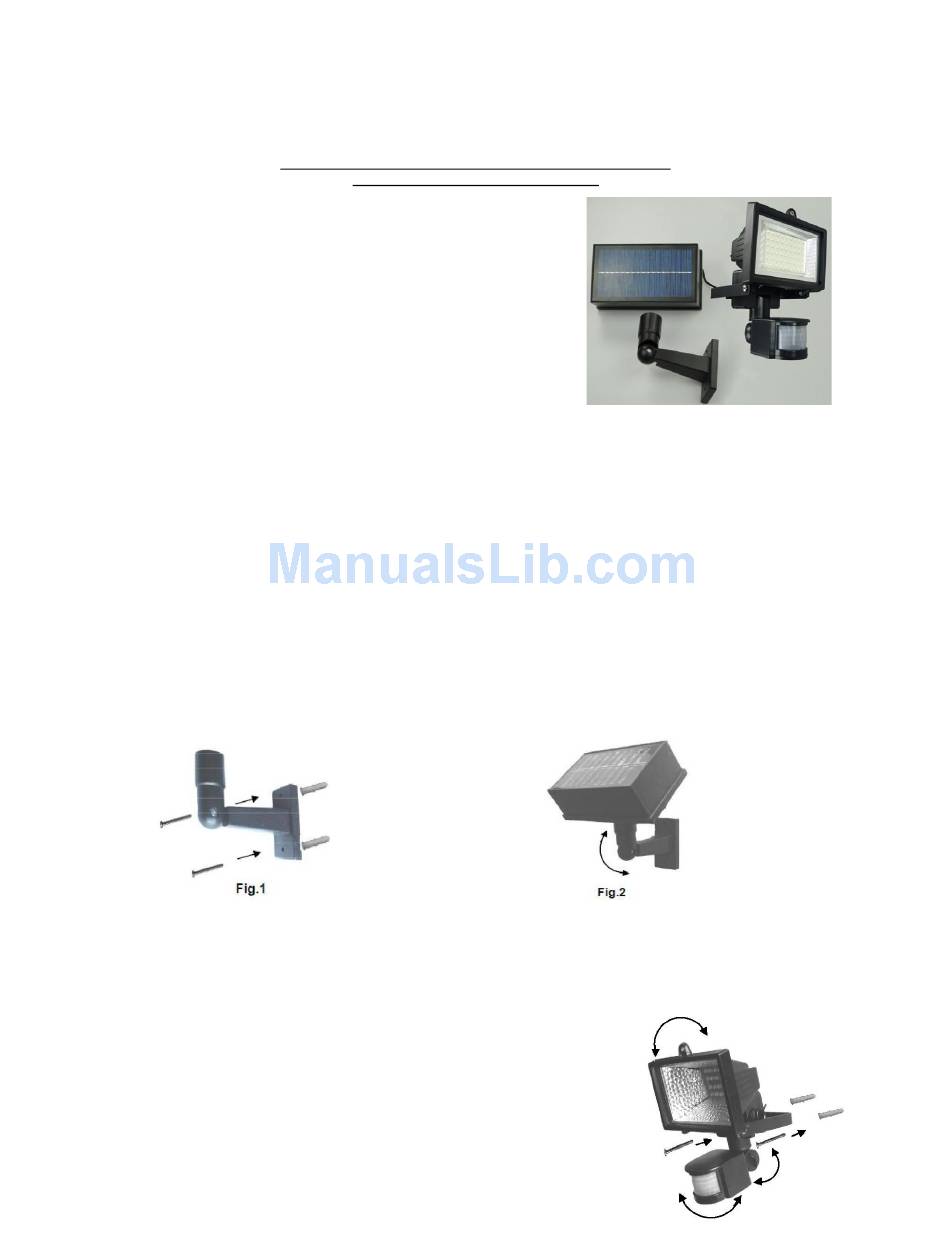

Fix the wall mounting bracket to an appropriate surface by using provided screws and drywall
anchors (Fig.1).
c
)
Put the solar panel box onto the wall mount bracket. For optimum performance the solar
panel box can be adjusted by using the joint (Fig.2). Make sure that the solar panel is directed
towards the sun for maximum charging.
2.2 Installation of flood light
a)
Install the LED light where illumination is needed at night.
b)
Mount the flood light by using the provided screws and drywall anchors (Fig.3).
c)
Adjust the angle of sensor by using the joint.
d)
Readjust the angle of flood light as needed.
2.3 Insert the wire's plug into the jack located on the bottom
of the solar panel box.
2.4 After installation is finished, turn ON the switch positioned
SAVE IT FOR FUTURE REFERENCE.
it will not be affected by exposure to rain, snow or temperature.
Fig.3
