Instruction Manual
Model 4300
OPERATOR MANUAL
DORAN SCALES, INC.
1315 PARAMOUNT PKWY.
BATAVIA, IL 60510
1-800-262-6844
FAX: (630) 879-0073
http://www.doranscales.com
MANUAL REVISION: 4.0
MAN0165
10/3/2005
Advertisement
Related Manuals for Doran 4300
Summary of Contents for Doran 4300

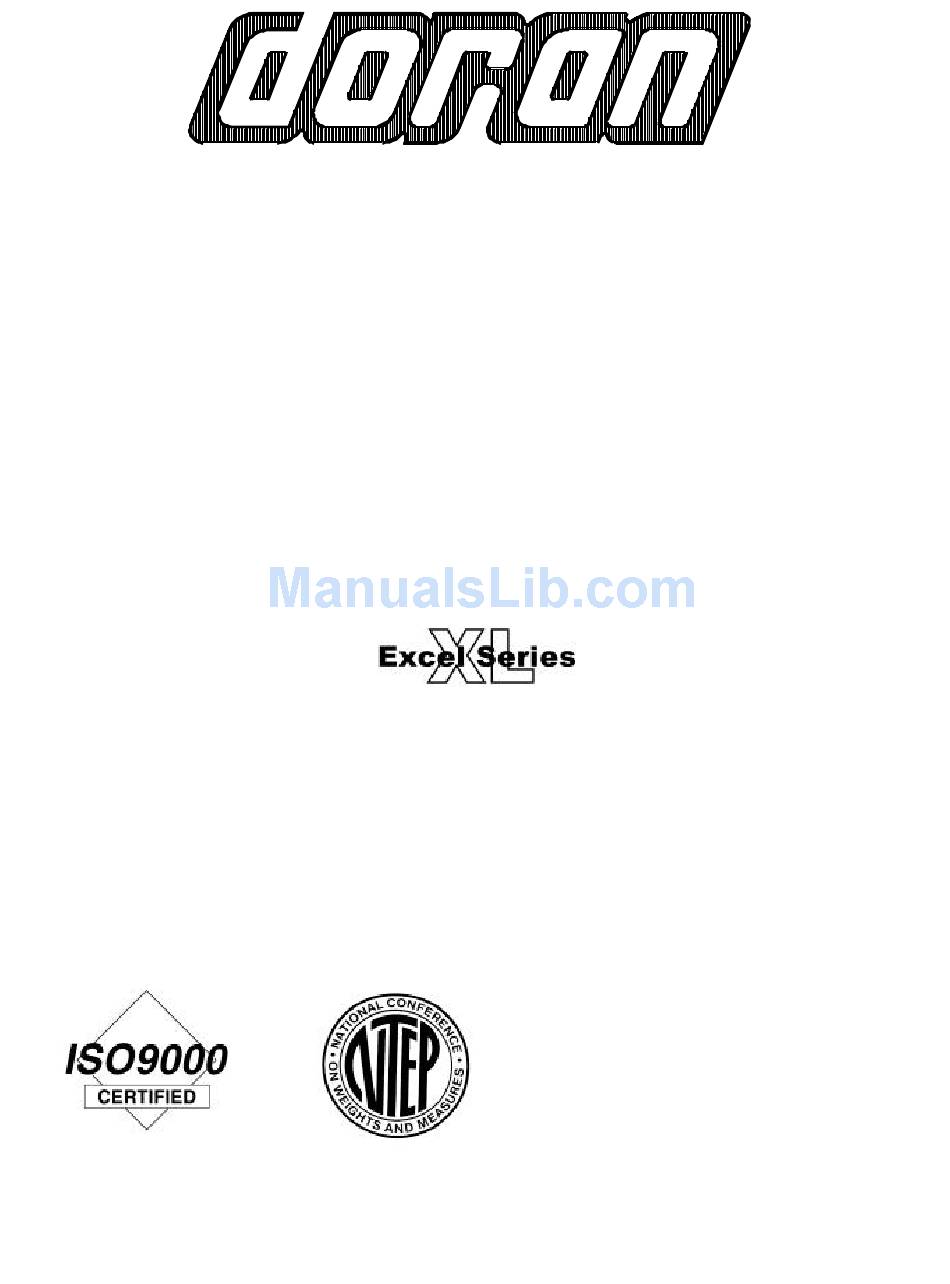

- Page 1 Model 4300 OPERATOR MANUAL DORAN SCALES, INC. 1315 PARAMOUNT PKWY. BATAVIA, IL 60510 1-800-262-6844 FAX: (630) 879-0073 http://www.doranscales.com MANUAL REVISION: 4.0 MAN0165 10/3/2005...
- Page 2 This scale uses state of the art technology to provide you with a low cost solution to the most demanding weighing applications. With ease of use and setup in mind, the scale is simple to set up and ready to use. The Model 4300 offers many features. A few of these features are listed below: ? NTEP certification for Class III installations to 10,000d.
-
Page 3: Unpacking Your Scale
Be sure the AC power is not excessively noisy - this can occur if large inductive loads, such as solenoids or motors, are on the same power line. The Model 4300 has a filtered power supply to reduce the effects of normal line noise, but severe fluctuations may cause operation problems. If problems occur, noise... - Page 4 Quick Start User's Guide Figure 1. 4300 Front Panel Layout Basic Weighing Operations: 1) Remove all items from the scale platter. 2) Press ZERO to zero the scale. The weight display should now read zero. 3) Place an item on scale platter and wait for the motion (MOT) indicator to turn off, indicating a stable weight.
- Page 5 ZERO button. The scale will zero immediately. The 4300 will not zero if the scale is in motion. The 4300 is equipped with an optional Zero on Demand feature which holds zero requests until motion stops.
- Page 6 (arrows on the button indicate the scroll direction) until the desired check weight is reached. Once the desired value is reached, pressing ZERO (ENTER) will enter the desired value in the scale. The 4300 also offers five band check weighing feature. Refer to your dealer or Instruction manual for details.
- Page 7 ACCEPT indicators will light followed by momentary "under" message. Then repeat steps 2 to 4. NOTE: The model 4300 is configured at the factory for the digital entry of over and under limits. Other entry configurations are available, refer to your dealer or Instruction manual for details.
- Page 8 NOTE: To digitally adjust platform weight for over and under limits, the Checklimit Entry Mode C.E. menu is set to SCS option. Refer to your dealer or Instruction manual for details. Push-button Entry of Over and Under Limits: (optional configuration) 1) Zero the scale.
- Page 9 5) To enter the UNDER limit, press and hold the UNDER button until the display shows "louu" and the UNDER and ACCEPT indicators flash. 6) Then follow steps 2 to 4. NOTE: To digitally enter in high and low limits, the following parameters must be configured.
- Page 10 When the battery is too low to run the scale, the 4300 automatically turns off and will not operate again until the battery is recharged. The scale remains accurate and useable even with the "BATT" on.
-
Page 11: Troubleshooting
Troubleshooting Scale Messages: Message Meaning The scale has successfully completed the requested “donE” Function Complete action. The requested action has been canceled prior to “Abort” Aborted Function completion. "rEL Pb" Release push The scale has detected that a key has been depressed for button. - Page 12 Averaging to a higher setting to stabilize the reading. If you are still experiencing a problem with your scale, or if the problem you are having is not covered in the above list, please contact your Doran Scales authorized dealer. Error Messages...
