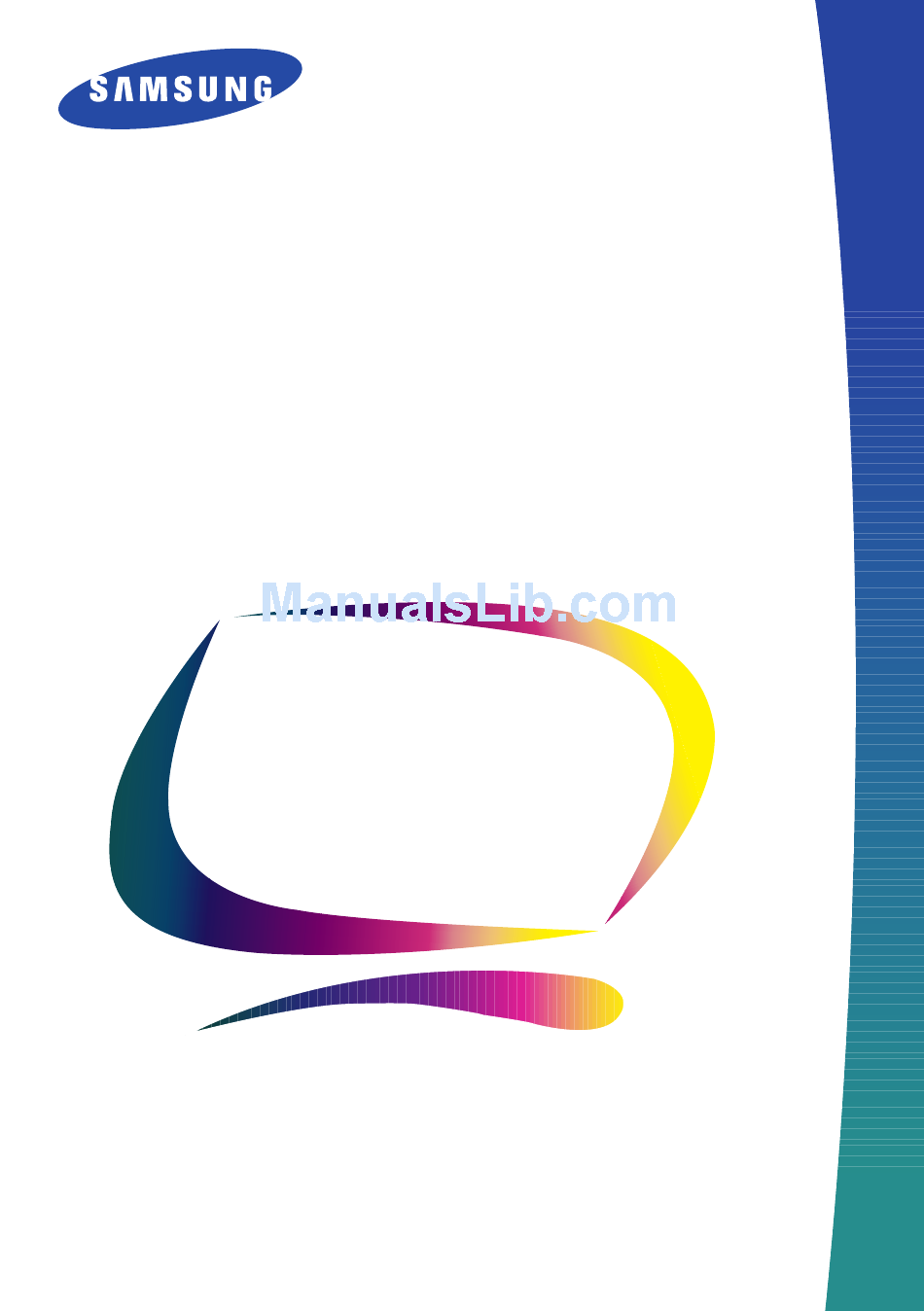

- Page 1 SyncMaster 550b SyncMaster 750s SyncMaster 750b Color Monitor Owner’s Instructions...
-
Page 2: Safety Instructions
Safety Instructions Before connecting the AC power cord Do not expose the monitor to rain or to an outlet, make sure the voltage use it near water (in kitchens, near designation on your monitor corre- swimming pools, etc.). If the monitor sponds to the local electrical supply. -
Page 3: Table Of Contents
Table of Contents Safety Instructions..............ii Your New Monitor . -
Page 4: Your New Monitor
Your New Monitor Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Driver Installation Diskette Manual Power Cord EXIT EXIT MENU MENU MENU Warranty card Stand Monitor (Not available in all locations) Connecting Your Monitor Turn off your computer and unplug Power cords... -

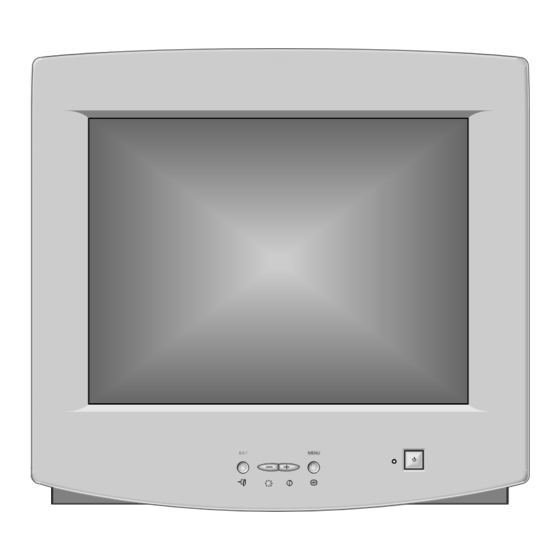

Page 5: Front Panel
Your New Monitor Front Panel EXIT EXIT MENU MENU EXIT ( ) button controls. (See the section below on Closes the on-screen menu. It is also Direct Access Buttons.) used to return to the previous menu when using the on-screen menu MENU ( ) button system. -
Page 6: Operation
Operation On-screen Menu System Your monitor has an on-screen menu system, accessed by the buttons on the front of your monitor, that allows you to adjust characteristics of the screen image. Display changes are indicated by on-screen adjustment icons. Some functions have sub-menus. Push the menu button to display the main menu. -
Page 7: Monitor Function Control
Operation Icon Monitor Function Control Brightness Brightness Background brightness of screen. -– Decreases brightness + Increases brightness Access Function Contrast Contrast Contrast of screen image. -– Decreases contrast + Increases contrast Access Function Horizontal Position H-Position Horizontal screen position. -– Moves screen left + Moves screen right Access Function Vertical Position... -
Page 8: Pincushion
Operation Icon Monitor Function Control Pincushion Pincushion Straightens screen vertical edges. -– Curves image inward Access Function + Curves image outward Geometry Trapezoid Width of top and bottom of screen. Geometry -– Widens bottom of screen + Widens top of screen Access Function Parallelogram Exit Menu... -
Page 9: Language
Operation Icon Monitor Function Control Language Language 1 2 3 4 5 6 7 8 9 -– and + scroll through on-screen English language options. Access Function (English/ Deutsch/ Francais/ Italiano Exit Menu Português/ Español/ Svenska/ Russian/ Korean) Advanced Advanced H- Moiré... -
Page 10: Zoom
Operation Icon Monitor Function Control Zoom Zoom -– Reduces view of display area + Enlarges view of display area Access Function Degauss Degauss Removes color distortion caused by magnetic fields. Do not use more than once in 30 minutes. Access Function Recall Recall Returns monitor to original settings. -
Page 11: Troubleshooting
Troubleshooting Before calling for service, check the information in this section to see if you can solve the problem yourself. If you do need assistance, please call the phone number on the warranty card, the phone number on the back cover of this manual, or contact your dealer. There is no screen image Check to see that both the monitor and the computer are plugged in and turned on. -
Page 12: Power Saver
Power Saver This monitor has a built-in power management system called Power Saver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you move the computer's mouse or press a key on the keyboard. -
Page 13: Specifications
Specifications Specifications Models: SyncMaster 550b / 750s / 750b Picture Tube • 550b: 15” (38 cm) Full square type (35 cm Viewable) • 750s / 750b: 17” (43 cm) Full square type (40.6 cm Viewable) • 90° Deflection • Dot pitch: 550b / 750s: 0.24 mm (H) / 0.14 mm (V) 750b: 0.22 mm (H) / 0.13 mm (V) -
Page 14: Index
Index Operation, 5, 6, 7, 8 Advanced, 7 On-screen menu system, 4 OSD Lock/Unlock, Brightness, 3, 5 Button Parallelogram, 6 Buttons, ), 3 Pinbalance, 6 Pincushion, 6 Power button Color temperature, 7 Power cords, Connecting your monitor, 2 Power port, 2 Contrast, 3, 5 PowerSaver, 10 Degauss, 8... - Page 15 Box 713, S-194 27 Upplands Vasby Mexico D.F. Tel. 5747-5100 Tel.: (468) 590-966-00 RFC: SEM950215S98 Fax : (468) 590-966-50 IMPORTADO POR:SAMSUNG ELECTRONICS MEXICO S.A. DE C.V. SATURNO 44 COL. NVA. INDUSTRIAL VALLEJO DEL. GUSTAVO A. MADERO C.P. 07700 MEXICO D.F. TEL. 5747-5100 RFC: SEM950215S98 EXPORTADO POR: SAMSUNG ELECTRONICS CO.,LTD.
-
Page 16: Regulatory Information
The party responsible for product compliance: The Federal Communications Commission Radio Fre- SAMSUNG ELECTRONICS CO., LTD quency Interference Statement includes the following America QA Lab of Samsung warning: 85 West Tasman Drive Note: This equipment has been tested and found to...
