Firefox 5 Installation And Operating Instructions Manual

Flue Gas Temp at Flue Gas
Spigot Mass Flow
O
446 C 3.4 g/s (wood)
4.7 g/s (ancit)
As tested to the requirements of EN13240 for intermittent use.
Output
Anthracite
Wood Logs (less than 20% moisture)
Coal (E)
Peat (E)
Closed Fire Briquettes
Outputs stated are under ideal test conditions. Variations will occur due to installation, atmospheric condi-
tions and fuel quality.
(E) - estimate calculated
Essential characteristic
Test fuel
Fire Safety
Emission of combustion products, related to 13% O
Surface Temperature
Thermal output / Energy efficiency
Release of dangerous substances
email sales@percydoughty.com
Flue Diam Ventilation Ventilation Reqt
Reqt with draught
125mm None 1500mm
5 inches
Output kW
Firefox 5 Hours
4.6
4.9
4.3
4.7
4.6
Performance
Beech Anthracite
Pass
CO: 0.14 vol% CO: 0.17 vol%
2
3
Dust: 73 mg/m Dust: 86 mg/m
0
3
NO : 98 mg/m
x 0
C H : 183 mg/m 3
x y 0
Pass
4.9kW / 78.1% 4.5kW / 73.4%
Pass
Percy Doughty & Co.
Imperial Point, Express Trading Estate,
Stone Hill Road
Farnworth, Bolton, BL4 9TN
Telephone 01204 868550 Fax 01204 868551
web www.percydoughty.co.uk
16
stabilizer
2
2
2.33in
INSTALLATION AND OPERATING INSTRUCTIONS
Cycle
4
1
4
2
4
Pass
3
0
Pass
Pass
The Firefox Stove operates at very high temperatures. All persons including children
and the infirm should be warned of this and not be allowed to touch any surfaces
whilst in use. The operator must use the tools provided. The mitten provided is a tool.
FIREFOX

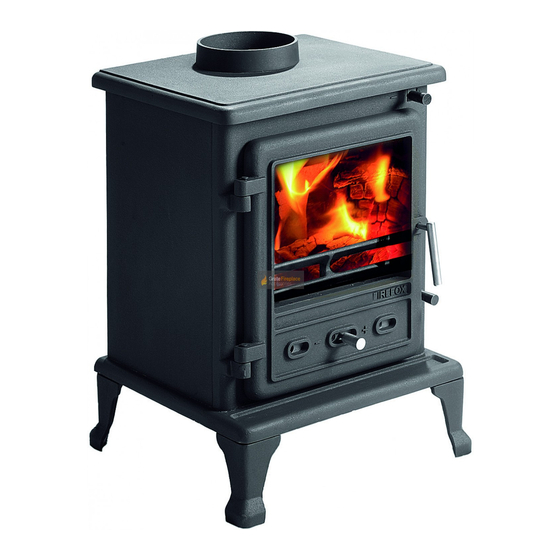

CAST IRON MULTI-FUEL STOVE
V 5.2
Conforms to EN13240:2001
Constructional Requirements
For Intermittent Use
Not to be used in a shared flue
FIREFOX 5
(to be left with the householder)
APPROVED
