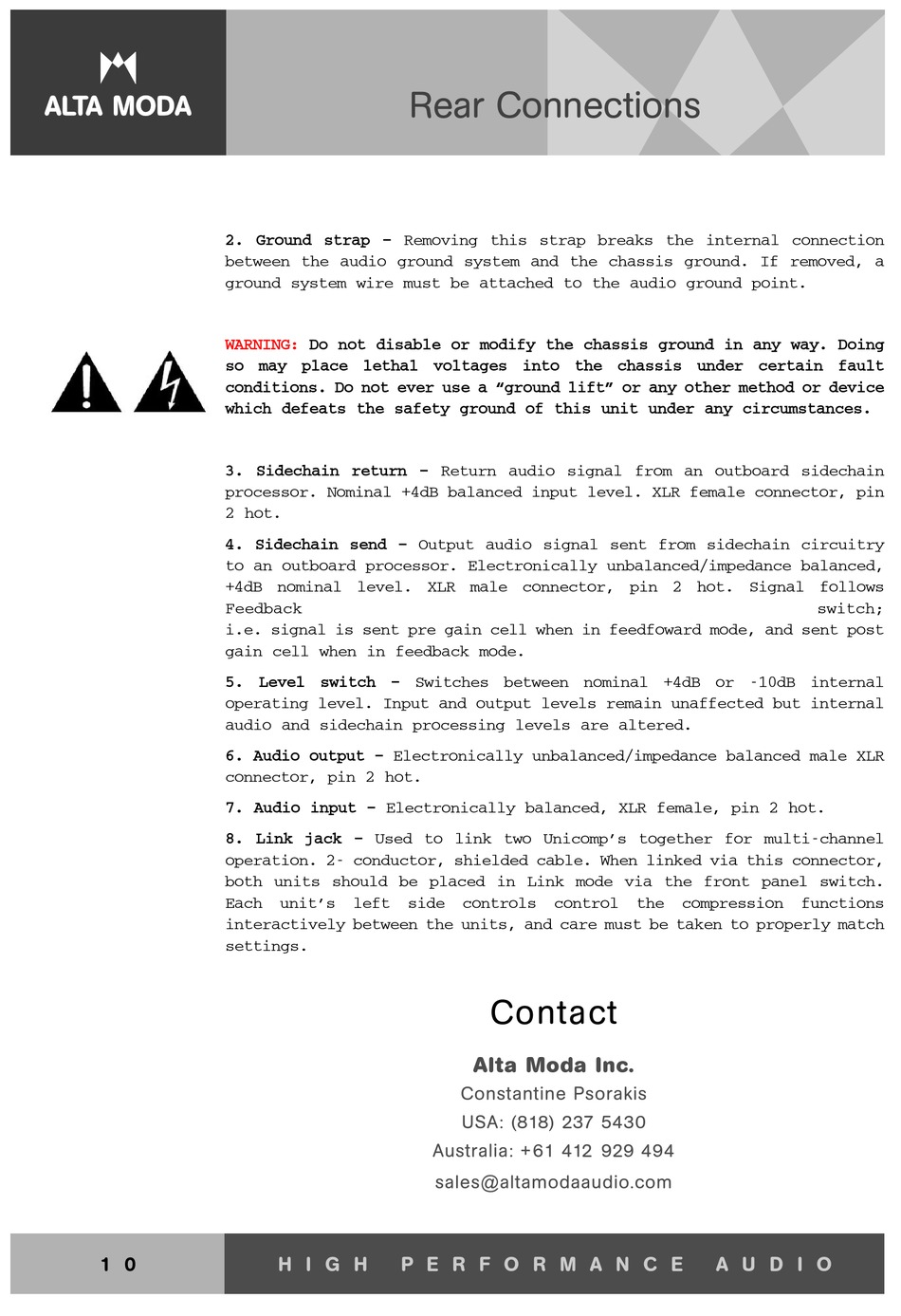

Alta Moda Unicomp Operator's Manual page 10

Rear Connections
2. Ground strap – Removing this strap breaks the internal connection
between the audio ground system and the chassis ground. If removed, a
ground system wire must be attached to the audio ground point.
WARNING: Do not disable or modify the chassis ground in any way. Doing
so may place lethal voltages into the chassis under certain fault
conditions. Do not ever use a "ground lift" or any other method or device
which defeats the safety ground of this unit under any circumstances.
3. Sidechain return – Return audio signal from an outboard sidechain
processor. Nominal +4dB balanced input level. XLR female connector, pin
2 hot.
4. Sidechain send – Output audio signal sent from sidechain circuitry
to an outboard processor. Electronically unbalanced/impedance balanced,
+4dB nominal level. XLR male connector, pin 2 hot. Signal follows
Feedback switch;
i.e. signal is sent pre gain cell when in feedfoward mode, and sent post
gain cell when in feedback mode.
5. Level switch – Switches between nominal +4dB or -10dB internal
operating level. Input and output levels remain unaffected but internal
audio and sidechain processing levels are altered.
6. Audio output – Electronically unbalanced/impedance balanced male XLR
connector, pin 2 hot.
7. Audio input – Electronically balanced, XLR female, pin 2 hot.
8. Link jack – Used to link two Unicomp's together for multi-channel
operation. 2- conductor, shielded cable. When linked via this connector,
both units should be placed in Link mode via the front panel switch.
Each unit's left side controls control the compression functions
interactively between the units, and care must be taken to properly match
settings.
