M128
SERVICE MANUAL- M128

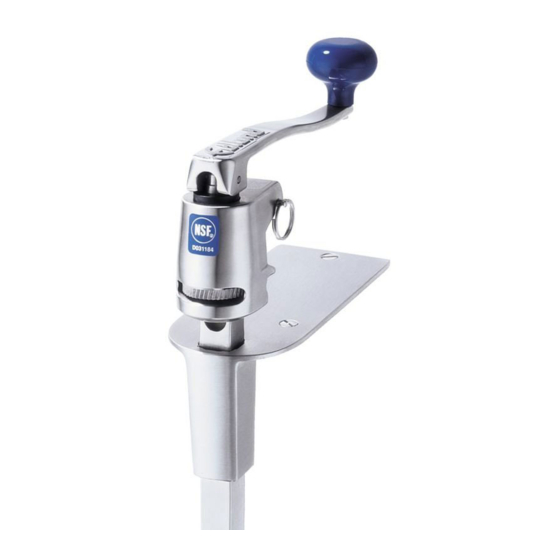

MODEL #S-11 MANUAL CAN OPENER
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-11 and is the answer not in the manual?

Questions and answers

Related Manuals for Edlund Company S-11

Summary of Contents for Edlund Company S-11

  • Page 1 M128 SERVICE MANUAL- M128 MODEL #S-11 MANUAL CAN OPENER...
  • Page 2 Model S-11 Knife holder Assembly (A941) Fig. #1 and Fig. #2 Slide the S-11 "O" seal (R085) over the knife retaining screw (S276) until the seal is against the knurled screw head. Place the knife (K032) against the front of the tang of the knife holder, H063, align the holes and secure in place using the knife retaining screw (S276).
  • Page 3 Please note: The Edlund Model S-11 can opener holds two patents and is designed to provide many years of trouble free use. All S-11 parts are repairable and replaceable. We are so confident in this product that we offer a full 5-year warranty against...
  • Page 4 M128 Model S-11 Can Opener Trouble Shooting Guide Problem Cause Correction I. Can opener will not 1. Drive gear is worn. 1. Replace gear (G030). turn can. 2. Drive gear needs cleaning. 2. Clean drive gear (G030) and gear slot using cleaning tool (ST-93).
  • Page 5 M128...
  • Page 6 S-11 CAN OPENER PART # DESCRIPTION A050 ARBOR, S-11 A941 WELDMENT & ASSEMBLY, S-11 HEAD TUBE A941L WELDMENT & ASSEMBLY, S-11 LONG HEAD TUBE A942 ASSEMBLY, S-11 HANDLE/ARBOR A943 WELDMENT, S-11 HANDLE/KNOB A944C ASSEMBLY, S-11 CLAMP BASE A944H ASSEMBLY, HARDWARE PKG., S-11 BASE...
