Summary of Contents for Edlund Company G-2

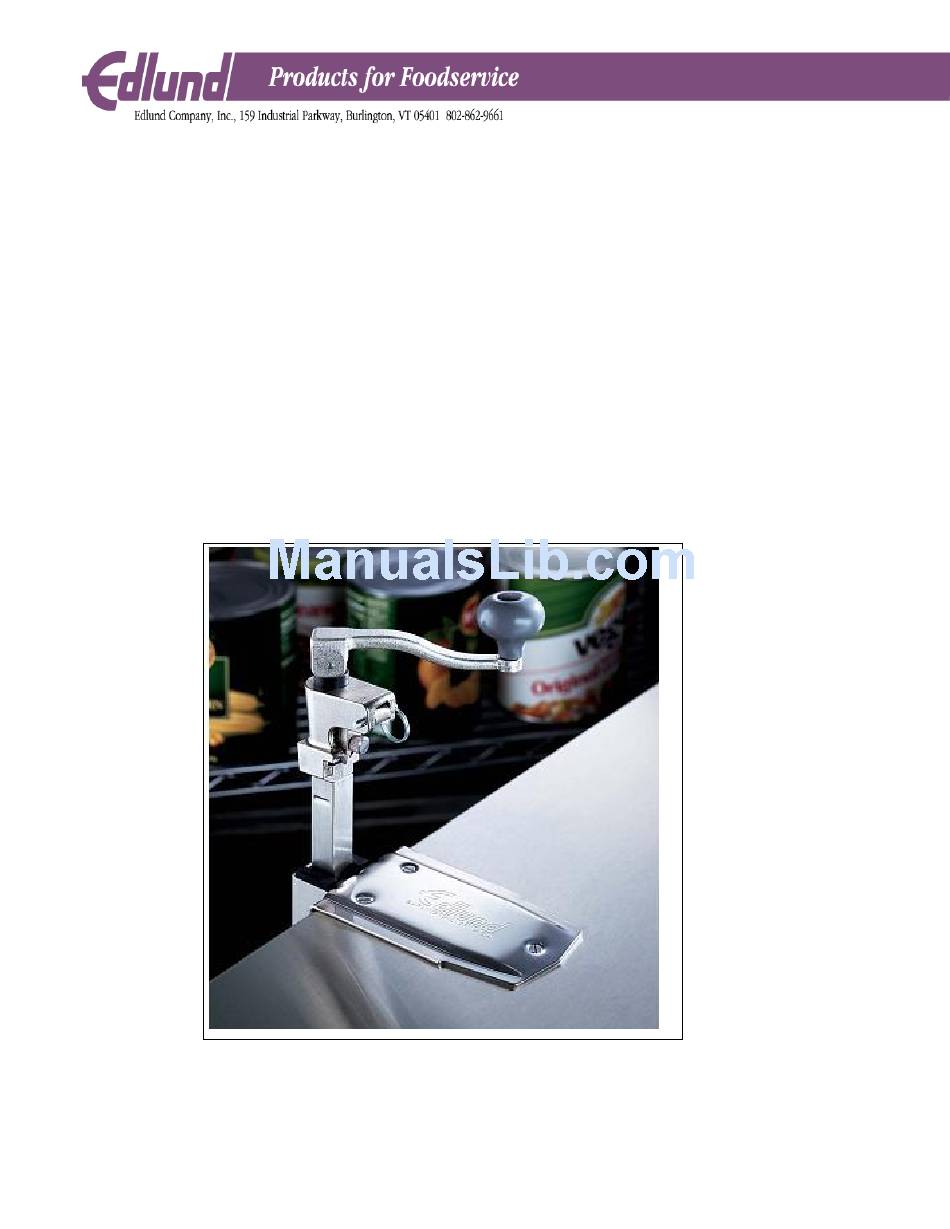

- Page 1 M129 SERVICE MANUAL- M129 MODEL #G-2 MANUAL CAN OPENER...
- Page 2 M129 Model #G-2 Can Opener Assembly Procedure The Model #G-2 can opener will be assembled according to the following procedure. Model #G-2 Handle and Arbor Assembly (A210) (Fig. 1) Insert arbor (A032) into slot at end of handle assembly (A209). Align holes and secure using a roll pin (P026S).
- Page 3 M129 Model No. G-2 Can Opener Trouble Shooting Guide Problem Cause Correction I. Can opener 1. Drive gear is worn. 1. Replace gear (G011). will not turn can. 2. Drive gear needs cleaning. 2. Clean drive gear (G011) using cleaning brush (ST-93).
- Page 4 M129 P 0 2 6 S S 2 6 1 A 2 1 0 P 1 6 5 A 0 3 2 K 0 1 1 G A 2 0 9 S 2 5 5 - 3 H 0 0 2 S 1 5 1 - 3 B 1 2 2 - 3 P 1 9 9...
- Page 5 G011SP GEAR, #G-2, #2 SINGLE PACK H002 HANDLE, #2, #8, #G-2 H050 HOLDER, #G-2 KNIFE I066 INSERT, #U-12 AND #G-2 BASE (#2 REG) K070M KNIFE, #G-2, #2/20 24 PKG. K070SP PKG. KNIFE, #G-2, #2/20 SINGLE PACK K011G KNOB, #G-2 MANUAL CAN OPENER...
