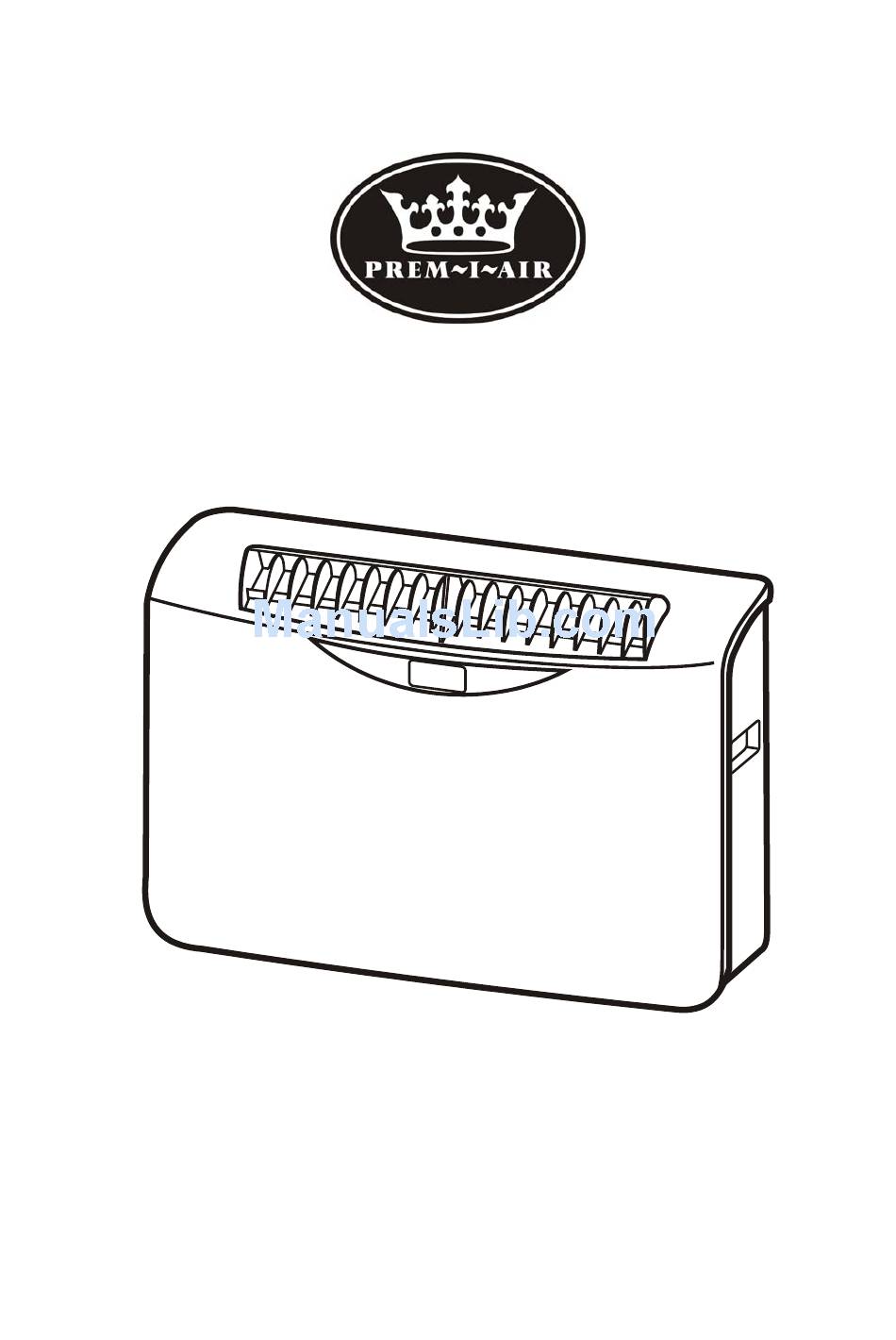

- Page 1 8000BTU AIR CONDTIONER COOLING & HEATING Model PMINISW8W / PMINISW8C PLEASE READ THIS INSTRUCTION MANUAL BEFORE OPERATING AND KEEP SAFE FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
CONTENT Title Page A. Specification B. Before use C. Important safety instructions 5, 6 D. BS plug wiring E. Product description 8, 9 F. Wall mounting installation instruction 10-14 G. Assembly instruction for mobile unit (only available 15, 16 in combi model) H. -
Page 3: Specification
A. SPECIFICATION PMINISW8W Model PMINISW8C Capacity(W) Cooling Capacity 2300 Heating Capacity 2400 Power Cooling Heating Dehumidifying Capacity (L/day) Air Volume (m Power Supply 220-240V ~ /50Hz Noise Level (dB) Refrigerant (g) R407C / 400g Net Weight(KG) (not includes accessories) Dimension... -
Page 4: Before Use
B. BEFORE USE Transport & store the unit in an upright position only. Leave it in an upright position for at least 3 hours before first use. DO NOT dispose of any packaging until the installation of the air conditioner is completed. After having removed the packing, check that all the content is intact and complete. -
Page 5: Important Safety Instructions
C. IMPORTANT SAFETY INSTRUCTIONS Always place the unit on an even, level surface. An opening in a window (in portable version only) or wall is required to accommodate the exhaust hose to expel the hot air. Ensure the unit is connected to an earthed power supply of the correct rating. - Page 6 Energy Saving Tips Blocking of the filter reduces the efficiency of the air and increases its power consumption by up to 6%. Avoid opening doors frequently. Each person present in a room provides between 100 Watts and 150 Watts of heat. Consequently, the more people there are in a room, the less effective the unit will be in cooling.
-
Page 7: Bs Plug Wiring
D. BS PLUG WIRING Wiring Instructions: Should it be necessary to change the plug please note the wires in the mains lead are coloured in accordance with the following code: BLUE - NEUTRAL BROWN - LIVE GREEN AND YELLOW - EARTH As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:... -
Page 8: Product Description
E. PRODUCT DESCRIPTION Air outlet Wire control connection (optional) VFD display Caster bracket locking holes (using in mobile version only) Remote control storage Caster bracket hanging hole (using in mobile version only) Control panel Air exhaust Handles Air inlet Dust filter Drainage hole Hanging holes (for wall mount Caster bracket hanging hole... - Page 9 Wall mounted kit: W1. Wall bracket W2. Pipe flange W3. Air intake pipe (dia.120mm) W4. External grating W5. Hot air discharge pipe (dia.130mm) W6. Template for wall drilling W7. Extension condensate hose W8. Screw kit Mobile kit (optional): P1. Castors assembly P2.
-
Page 10: Wall Mounting Installation Instruction
F. WALL MOUNTING INSTALLATION INSTRUCTIONS 1. Positioning the air conditioner To obtain maximum performance from your unit, it must be correctly positioned. Please following the guidelines and instructions below in full, as failure to do so could cause potential installation problems: The air conditioner must be installed on an exterior wall that has access to the outside and a... - Page 11 COMPULSORY FIXING POINTS MINIMUM DISTANCE FROM CEILING EXTRA FIXING POINTS TO USE IF THE WALL IS NOT SOLID HOT AIR AIR INTAKE HOLE DISCHAGE HOLE Remark: 160MM TWO COMPULSORY FIXING POINTS FOR INDOOR PIPE ADAPTORS DRAINAGE HOLE MINUMUM DISTANCE All Dimensions are in MM FROM FLOOR Drawing paper size: A1 2.
- Page 12 3. Drilling the Wall Please note: If you are drilling the hole above ground floor level, please ensure that the outside area is supervised until drilling has been completed. INTAKE AND OUTLET HOLES This operation should be carried out using the proper tools (diamond tip or core bit drills with high twisting torque and adjustable rotation speed)
- Page 13 4. Installation of vent tubes After drilling the holes, the plastic pipes supplied with the air conditioner need to be fitted through them. The pipe with a diameter 130mm (hot air discharge) has to be fitted in the right hole. The length of the pipes should be matches to the thickness of the wall..
- Page 14 6. Fitting the unit on bracket After checking again that the fastening bracket is securely fastened to the wall, and that any necessary preparations for electric connection and condensate drainage have been made, tilt the unit slightly towards you to aid the operation of fastening the unit onto the bracket.
-
Page 15: Assembly Instruction For Mobile Unit (Only Available In Combi Model)
G. ASSEMBLY INSTRUCTION FOR MOBILE ONLY (only available in combi model) If combi model is purchased, the mobile accessories are included. 1) Castors kit Two sets of castors system provided. Lift up the unit carefully. DO NOT TURN THE UNIT UPSIDEDOWN Fit the tongue of the Castor Frame in the square hole on the bottom of the base plate. - Page 16 3) Hose and grille Screw the Metal Grille (P2) to cover the right hole on the back of the unit. Screw the Unit Flange (P3) to cover the left hole on the back of the unit. Select a suitable location; make sure you have easy access to an electrical socket.
-
Page 17: Operating Instructions
H. OPERATION INSTRUCTIONS CONTROL PANEL VFD DISPLAY Control Panel Functions On/Off Starts or Stops the Unit Mode Select the functions of the unit for: Auto Mode Cooling Mode Dehumidifying Mode Fan Mode Heating Mode... - Page 18 Fan Speed Control Select the fan speed for: High / Medium / Low The fan speed can be visually distinguished by the speed of the digital air segments progressing out from the windmill fan image on the VFD display. Temperature Select the desired temperature by pressing either “UP”...
- Page 19 OPERATION USING CONTROL PANEL 1) Cooling Operation a) If using in mobile mode, ensure that the exhaust duct is correctly installed. b) Plug the Power Cord in to the power outlet socket c) Turn on the unit by pressing the ON/OFF Button on the control panel. d) Press MODE Button until “...
- Page 20 3) Fan Operation a) Plug the Power Cord into the power outlet socket. b) Turn on the unit by pressing the ON/OFF Button on the control panel. c) Press the MODE Button until “ ” appears on the VFD display. d) Select the fan speed by pressing the FAN Button.
- Page 21 Sleep Mode (This Mode is available when using Remote control) a) The air conditioner is in operation b) Press SLEEP Button, the “ ” appears on the VFD. c) The fan motor of indoor unit runs in low speed d) When in cooling mode, during the first two hours, the temperature will be increased 1 C per hour.
-
Page 22: Operation Using Remote Controller
I. OPERATION USING REMOTE CONTROLLER 1. Remove the cover from the back of the remote control. 2. Insert two AAA dry-cell batteries (batteries included). 3. Insert the power plug into an outlet. 4. Always point the remote control signal transmitter toward the unit when o perating. - Page 23 5. Clock Time settings: HR and MIN To set the hours, press HR button once, the time will add 1 hour, continue to press this button, the clock will add by 1 hour until extended 11 hours, then will change to PM or AM and return to 0(12:00). To set the minutes, press MIN button once, the clock will add 1 minute, continue to press this button and the clock will add by 1 minute until extended to 59 minutes, the return 00.
-
Page 24: Maintenance
J. MAINTENANCE Note: Make sure power is off and the plug is pulled out of the power outlet before performing any maintenance activities. Clean or replace filter If the air filter is blocked with dust, the airflow volume will reduce. It is recommended that the filter be cleaned at least once every two weeks. -
Page 25: Trouble Shooting
K. TROUBLE SHOOTING Please check the following items before asking for repairing: PROBLEMS CAUSES SUGGEST SOLUTIONS The unit does not work Power supply fault: 1. Not plugged in; 1. Plug in correctly; 2. Faulty plug or socket; 2. Change the plug or socket; 3. -
Page 26: Service & Warranty
L. SERVICE & WARRANTY • Do not operate the unit with a damaged cord or plug, after the unit malfunctions, or has been dropped or damaged. • For your convenience, record the complete model number and product name (located on the Product Identification Plate), the date you purchased the product, and attach your purchase receipt docket as proof of purchase.
