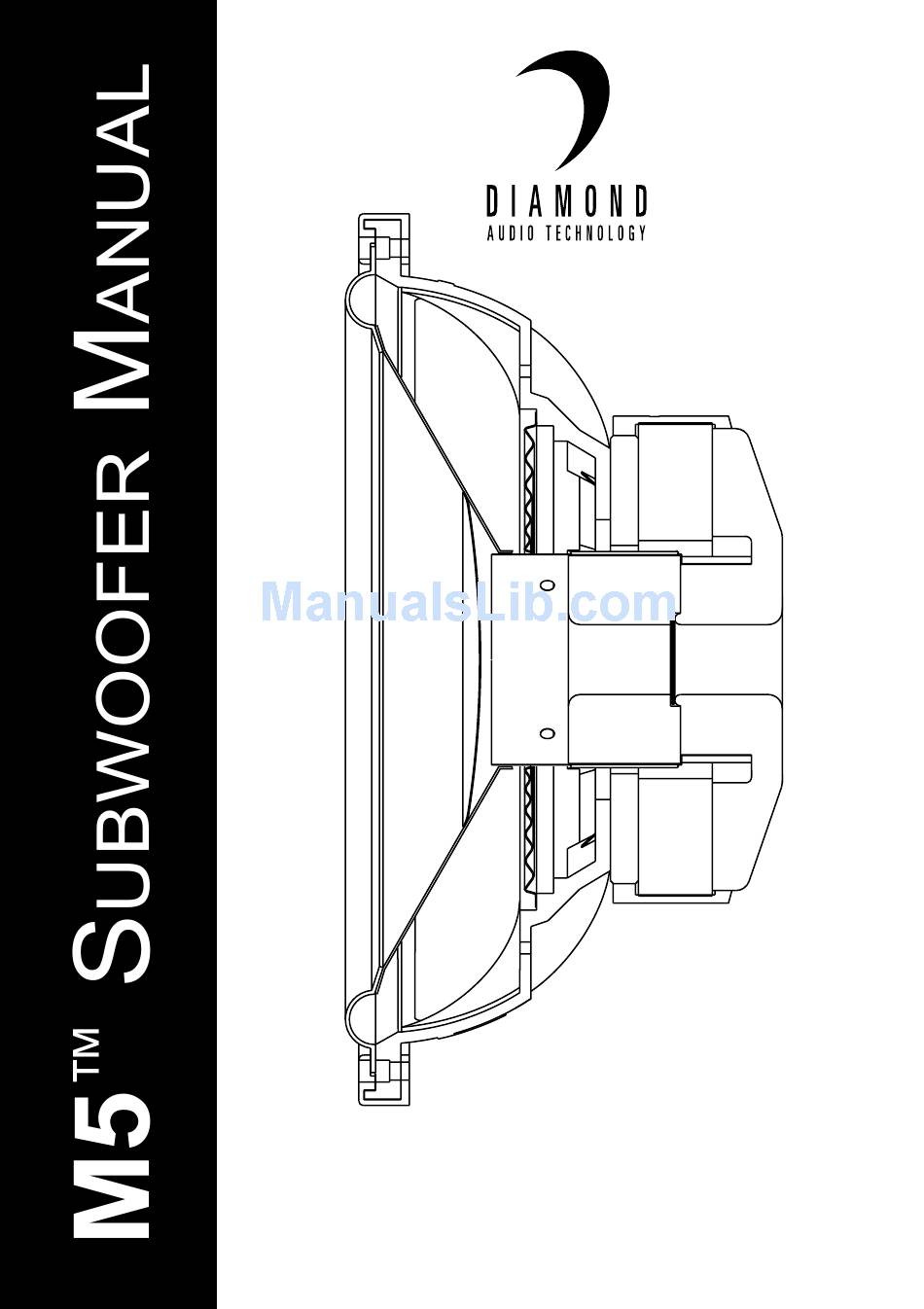

- Page 1 Subwoofers covered: M5101 M5121 10” (250mm) Dia. 12” (300mm) Dia. w/ Mag-Alloy Cone w/ Mag-Alloy Cone...
- Page 2 small sealed-box...
- Page 3 Thiele/Small Parameters M5101.4 M5101.4D M5121.4 M5121.4D Znom (W) 4.00 4.00 Re (W) 3.10 3.10 Fo (Hz) 23.8 23.5 .319 .388 5.49 5.75 .301 .364 Vas (L) 54.4 89.8 BL (T·M) 14.4 15.6 Sd (M²) .035 .053 Cms (mM/N) 312.6 223.4 Mms (g) 142.6...
- Page 4 M5101 Below graphs show SPL at 100W input. Tech Data… Model M5101.4 Single-driver enclosures include driver/vent displacements. Box Type Sealed-SM Œ Sealed-LG Volume [Vb] .50 Ft³ [14 .88 Ft³ [25 Tuning [Fb] Vent [D x L] in Vent [D x L] mm Cont.
- Page 5 M5121 Below graphs show SPL at 100W input. Model M5121.4 Single-driver enclosures include driver/vent displacements. Box Type Sealed-SM Ž Sealed-LG Volume [Vb] .60 Ft³ [17 1.0 Ft³ [28 Tuning [Fb] Vent [D x L] in Vent [D x L] mm Cont.
- Page 6 M5101 M5121 Mech Data… 10” [25cm] 12” [30cm] Subwoofer Subwoofer Engineering Detail Drawing: • Mounting Depth [A] • Cutout Diameter [B] Driver Displacement [Dd] Driver Displacement [Dd] • Overall Diameter [C] • Recess Depth [D] All Dims in IN.[mm]...
- Page 7 š L I M I T E D W A R R A N T Y S T A T E M E N T › one (1) year three (3) years and installed by...
- Page 8 Please exercise restraint in its operation. Diamond Audio Technology, Inc. 3030 Pennsylvania Ave. Santa Monica, CA 90404 Tel: 310.582.1121 Fax: 310.582.1502 http://www.diamondaudio.com © 1999 Diamond Audio Technology, Inc. - All rights reserved. Part No. 705-5099 Rev. A...
