Do the following to adjust the screen image:

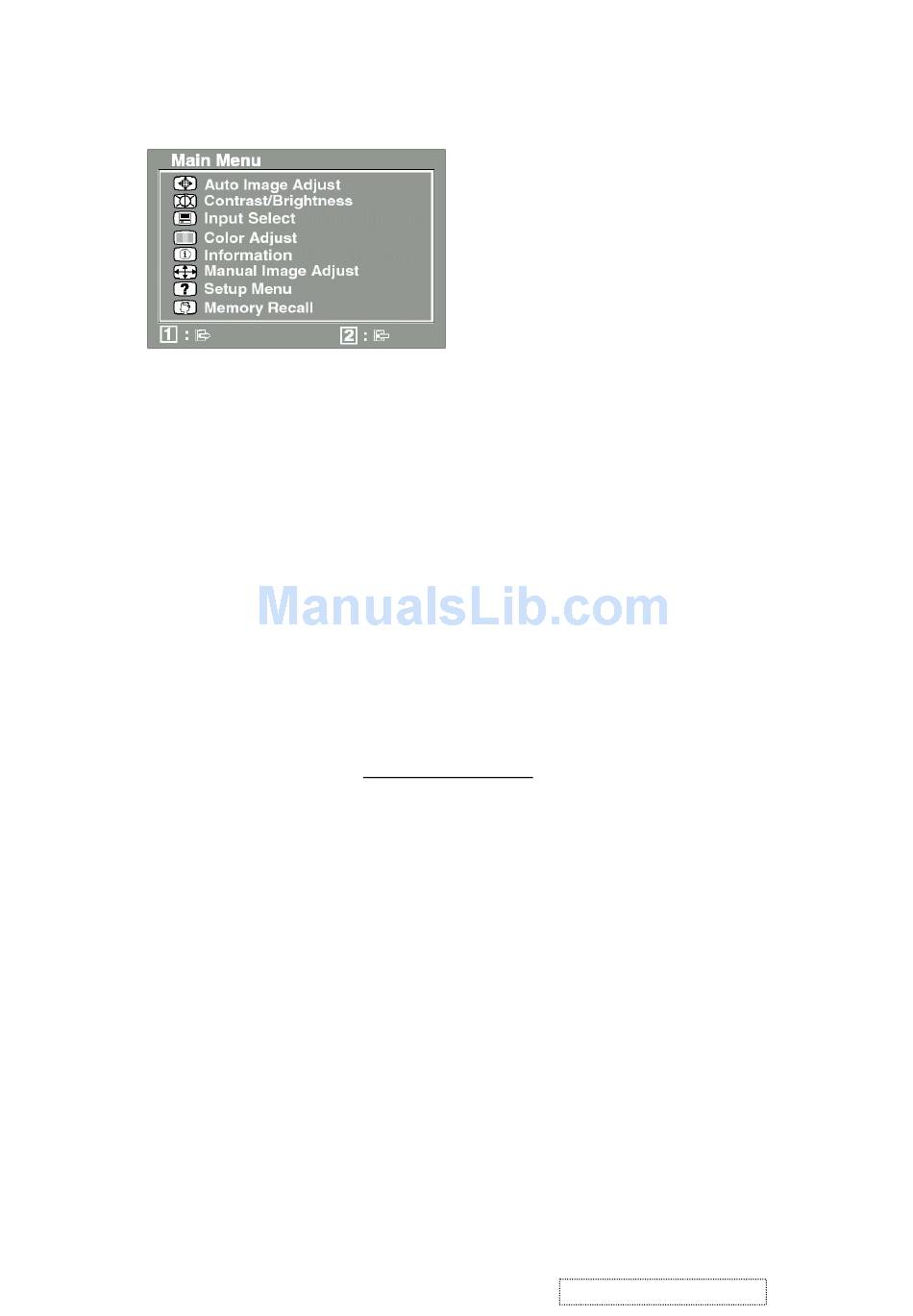

To display the Main Menu, press button [1].
1
NOTE: All OnView menus and adjustment screens disappear automatically
after about 30 seconds.
To select a control you want to adjust, press
2
Main Menu.
After the control is selected, press button [2].
3
To adjust the control, press the up
4
To save the adjustments and exit the menu, press button [1] twice.
5
The following tips may help you optimize your display:
• Adjust your computer's graphic card so that it outputs a video signal 1600 x
1200 @ 60 Hz to the LCD display. (Look for instructions on "changing the
refresh rate" in your graphic card's user guide.)
• If necessary, make small adjustments using H POSITION and V POSITION
until the screen image is completely visible. (The black border around the
edge of the screen should barely touch the illuminated "active area" of the
LCD display.)
