wr100manual
5/16/06 11:41 AM
Σελίδα 39

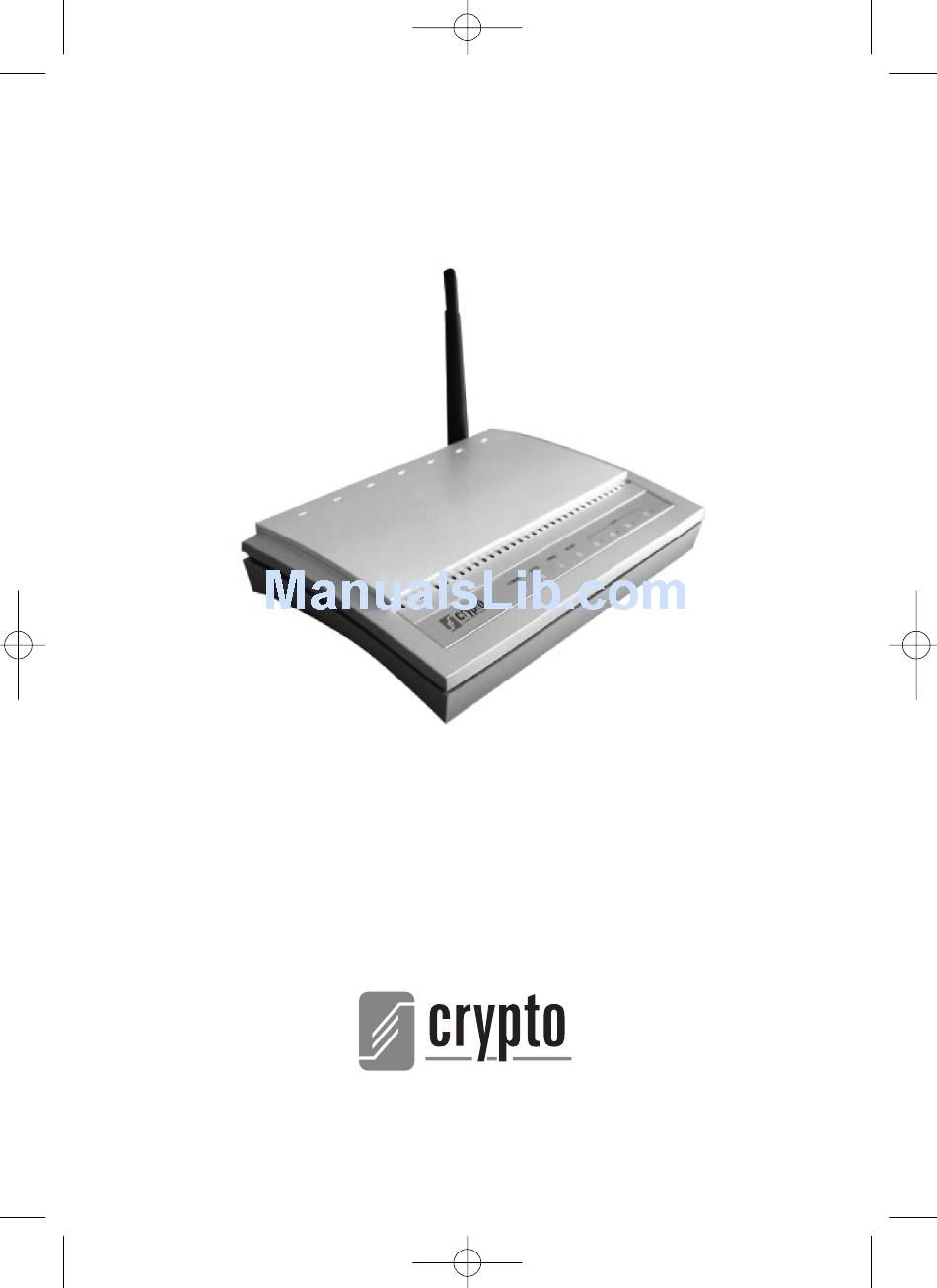

U S E R S M A N U A L
WR 100 Wireless Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WR 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crypto WR 100

Summary of Contents for Crypto WR 100

  • Page 1 5/16/06 11:41 AM Σελίδα 39 U S E R S M A N U A L WR 100 Wireless Router...
  • Page 2 wr100manual 5/16/06 11:41 AM Σελίδα 40 Contents P P a a c c k k a a g g e e C C o o n n t t e e n n t t s s _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _41 T T h h e e W W R R 1 1 0 0 0 0 W W i i r r e e l l e e s s s s R R o o u u t t e e r r _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 41 P P r r o o d d u u c c t t F F e e a a t t u u r r e e s s _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 42 F F r r o o n n t t P P a a n n e e l l _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 42...

  • Page 3: Package Contents

    4. Printed Manual 5. Warranty 2 The WR 100 Wireless Router Congratulations on purchasing the WR 100 Wireless Router, a reliable and secure Internet router, which enables multiple users to share the Broadband Internet connection through an ADSL or cable modem.

  • Page 4: Product Features

    wr100manual 5/16/06 11:41 AM Σελίδα 42 2.1 Product Features ñ 4-in-1 solution: Wireless Access Point, Router, 4-port Switch, Firewall ñ Compliance with IEEE 802.11g, IEEE 802.11b standards ñ Data rates up to 54Mbps for 802.11g and 11Mps for 802.11b ñ One 10/100M WAN port for connection to WAN ñ...

  • Page 5: Rear Panel

    ñ W W i i r r e e l l e e s s s s c c o o n n n n e e c c t t i i o o n n s s . .

  • Page 6: Configuring The Router

    wr100manual 5/16/06 11:41 AM Σελίδα 44 4 Configuring the Router To access the configuration menu launch a web browser, such as Internet Explorer, and type the router’s IP address. The default IP address is 192.168.0.1. Enter your username and password and click O O K K . . The default username is "...
  • Page 7 wr100manual 5/16/06 11:41 AM Σελίδα 45 ñ Make sure that the IP address 192.168.0.1 is not occupied by another computer of the LAN. If so, change the router’s IP address in one unoccupied in the range: 192.168.0.2 - 192.168.0.154. The subnet mask must be set to 255.255.255.0 and the Gateway to 192.168.0.1.

  • Page 8: Running Status

    wr100manual 5/16/06 11:41 AM Σελίδα 46 4.1 Running Status This page provides important information on the status of your wireless router. W W A A N N s s t t a a t t u u s s displays the current status of the following items: Link, WAN IP, Netmask, Gateway, DNS, Secondary DNS, Link Δype, Linked Time.

  • Page 9: Advanced Config

    wr100manual 5/16/06 11:41 AM Σελίδα 47 Select one of the available ways that you will be using to access the Internet. 1 1 . . A A D D S S L L V V i i r r t t u u a a l l D D i i a a l l - - u u p p ( ( P P P P P P o o E E ) ) Select this, if your ISP requires the PPPoE (Point-to-Point Protocol over Ethernet) protocol to connect you to the Internet.

  • Page 10: Wireless Router

    If you choose to connect to an existing network, for example, you need to specify the router’s IP for the WAN side. This IP can be totally different from the IP range used on the LAN side. That is the great advantage of the WR 100 wireless router.
  • Page 11 wr100manual 5/16/06 11:41 AM Σελίδα 49 M M A A C C A A d d d d r r e e s s s s C C l l o o n n e e If your ISP restricts service to PCs only, use the MAC Clone feature to copy a PC Media Access Control (MAC) address to your router.

  • Page 12: Wlan Setting

    wr100manual 5/16/06 11:41 AM Σελίδα 50 This page lets you change your DNS settings. You can choose to enable or disable the "DNS Server" feature, you can change you DNS Address or fill in a secondary DNS Address. 4.4 WLAN Setting This is a set of pages that give you access to the Wireless settings of the router.
  • Page 13 wr100manual 5/16/06 11:41 AM Σελίδα 51 C C h h a a n n n n e e l l : : The channel that the Wireless Router will operate in. You can select a channel between 1 and 11, or select the AUTO option. Disable SSID: When disabled, the router will stop broadcasting the SSID to the wireless hosts.
  • Page 14 wr100manual 5/16/06 11:41 AM Σελίδα 52 A A u u t t h h e e n n t t i i c c a a t t i i o o n n : : Select the authentication mode (Open System or Shared Key). A WEP Key can be entered in both Open System and Shared Key authentication modes (in both cases a secret key is used but the authentication procedure is different).
  • Page 15 wr100manual 5/16/06 11:41 AM Σελίδα 53 E E n n c c r r y y p p t t i i o o n n M M e e t t h h o o d d : : Select the encryption method (auto, TKIP – Time Key Integrality Protocol or AES –...

  • Page 16: Dhcp Server

    wr100manual 5/16/06 11:41 AM Σελίδα 54 T T r r a a n n s s m m i i t t R R a a t t e e : : Select a data rate value (54/48/36/24/18/12/9/6/11/5.5/2/1/Best). When B B e e s s t t is enabled the device will select the optimal transmission rate.
  • Page 17 wr100manual 5/16/06 11:41 AM Σελίδα 55 D D H H C C P P S S e e r r v v e e r r D D H H C C P P S S e e r r v v e e r r : : Check the box to enable the DHCP server function. I I P P P P o o o o l l S S t t a a r r t t i i n n g g A A d d d d r r e e s s s s : : Select the lower bound of the IP range.

  • Page 18: Virtual Server

    wr100manual 5/16/06 11:41 AM Σελίδα 56 D D H H C C P P C C l l i i e e n n t t L L i i s s t t You can assign an appointed IP address to a LAN station. I I P P A A d d d d r r e e s s s s : : Enter the desired IP address.
  • Page 19 wr100manual 5/16/06 11:41 AM Σελίδα 57 To add a service using Virtual Server, perform the following steps: 1. Enter the S S e e r r v v i i c c e e P P o o r r t t number or select an item from the well known services that appear in the list E E .
  • Page 20 wr100manual 5/16/06 11:41 AM Σελίδα 58 To create a DMZ, type the server’s IP address, check the E E n n a a b b l l e e box and click S S a a v v e e . . You can click R R e e s s e e t t to restore the page to the last saved state.
  • Page 21 wr100manual 5/16/06 11:41 AM Σελίδα 59 4.7 Security This set of pages allows you to configure the security settings of your router. C C l l i i e e n n t t F F i i l l t t e e r r You can use this feature to filter Internet access for local clients based on IP addresses, application types and time of day.
  • Page 22 wr100manual 5/16/06 11:41 AM Σελίδα 60 U U R R L L F F i i l l t t e e r r This feature allows you to type in a string and the router will block any URL that contains that string.

  • Page 23: Access The Internet

    wr100manual 5/16/06 11:41 AM Σελίδα 61 M M A A C C F F i i l l t t e e r r This feature allows you to specify a device in your local network by its MAC address and allow/prevent it from accessing the router. Check the E E n n a a b b l l e e box to enable MAC Address Filtering.
  • Page 24 wr100manual 5/16/06 11:41 AM Σελίδα 62 P P r r e e v v e e n n t t N N e e t t w w o o r r k k A A t t t t a a c c k k Check the P P r r e e v v e e n n t t N N e e t t w w o o r r k k A A t t t t a a c c k k box to enable this feature.

  • Page 25: Routing Table

    wr100manual 5/16/06 11:41 AM Σελίδα 63 W W A A N N P P o o r r t t P P i i n n g g This feature discards PING from the WAN side. To forbid external users to ping your router, check the box I I g g n n o o r r e e p p i i n n g g d d a a t t a a f f r r o o m m W W A A N N p p o o r r t t .
  • Page 26 wr100manual 5/16/06 11:41 AM Σελίδα 64 S S t t a a t t i i c c R R o o u u t t e e Static Routing is the process in which the system network administrator manually configures network routers with all the necessary information for successful packet forwarding.

  • Page 27: System Tool

    wr100manual 5/16/06 11:41 AM Σελίδα 65 4.9 System Tool T T i i m m e e In this page you can configure the router’s time settings. Select the time zone of the country you are currently in and click S S a a v v e e . . You must be connected to the Internet so that the router can obtain this kind of information.
  • Page 28 3. Click R R e e s s t t o o r r e e . . 4. Reboot the router. U U p p g g r r a a d d e e In this page you can update the firmware of your WR 100 router.
  • Page 29 wr100manual 5/16/06 11:41 AM Σελίδα 67 1. Type the IP address of a computer running a TFTP server. 2. Select the firmware file to download. 3. Click U U p p g g r r a a d d e e . . R R e e s s t t o o r r e e F F a a c c t t o o r r y y Click R R e e s s t t o o r r e e to reset the router’s settings to the factory default values.
  • Page 30 wr100manual 5/16/06 11:41 AM Σελίδα 68 After using this option, you must reboot the router for the factory settings to be restored. R R e e b b o o o o t t Click R R e e b b o o o o t t to reboot the router. Rebooting is the equivalent of unplugging the power adapter and then plugging it back in.

  • Page 31: Technical Support

    wr100manual 5/16/06 11:41 AM Σελίδα 69 U U s s e e r r I I D D : : Type the username you want to use. O O r r i i g g i i n n a a l l P P a a s s s s w w o o r r d d : : Type the old password. N N e e w w P P a a s s s s w w o o r r d d : : Type the new password.

  • Page 32: Technical Specifications

    wr100manual 5/16/06 11:41 AM Σελίδα 70 6 Technical Specifications S S t t a a n n d d a a r r d d s s D D a a t t a a R R a a t t e e s s ñ...
  • Page 33 wr100manual 5/16/06 11:41 AM Σελίδα 71 7 Glossary 802.11 802.11 refers to a family of specifications developed by the IEEE for wireless LAN technology. 802.11 specifies an over-the-air interface between a wireless client and a base station or between two wireless clients 802.11b (also referred to as 802.11 High Rate or WI-Fi) -- an extension to 802.11 that applies to wireless LANS and provides 11 Mbps...
  • Page 34 wr100manual 5/16/06 11:41 AM Σελίδα 72 character. Since computers use 8-bit byte (256 character combinations) and ASCII uses only the first 128 (0-127), the second set of 128 characters (128-255) are technically not ASCII, but are typically used for different language and math symbols representation.
  • Page 35 wr100manual 5/16/06 11:41 AM Σελίδα 73 variety of cable types at 10 Mbps. Ethernet is similar to the IEEE 802.3 series of standards. Firewall Router or access server, or several routers or access servers, designated as a buffer between any connected public networks and a private network.
  • Page 36 wr100manual 5/16/06 11:41 AM Σελίδα 74 Media Access Control. Lower of the two sublayers of the data link layer defined by the IEEE. The MAC sublayer handles access to shared media, such as whether token passing or contention will be used. MAC address Standardized data link layer address that is required for every port or device that connects to a LAN.
  • Page 37 wr100manual 5/16/06 11:41 AM Σελίδα 75 Static Route Routing information that is manually configured into either a router or host. Such information is not subject to dynamic update via routing protocols. Subnet Mask A mask used to determine what subnet an IP address belongs TFTP Trivial File Transfer Protocol.
  • Page 38 wr100manual 5/16/06 11:41 AM Σελίδα 76...
