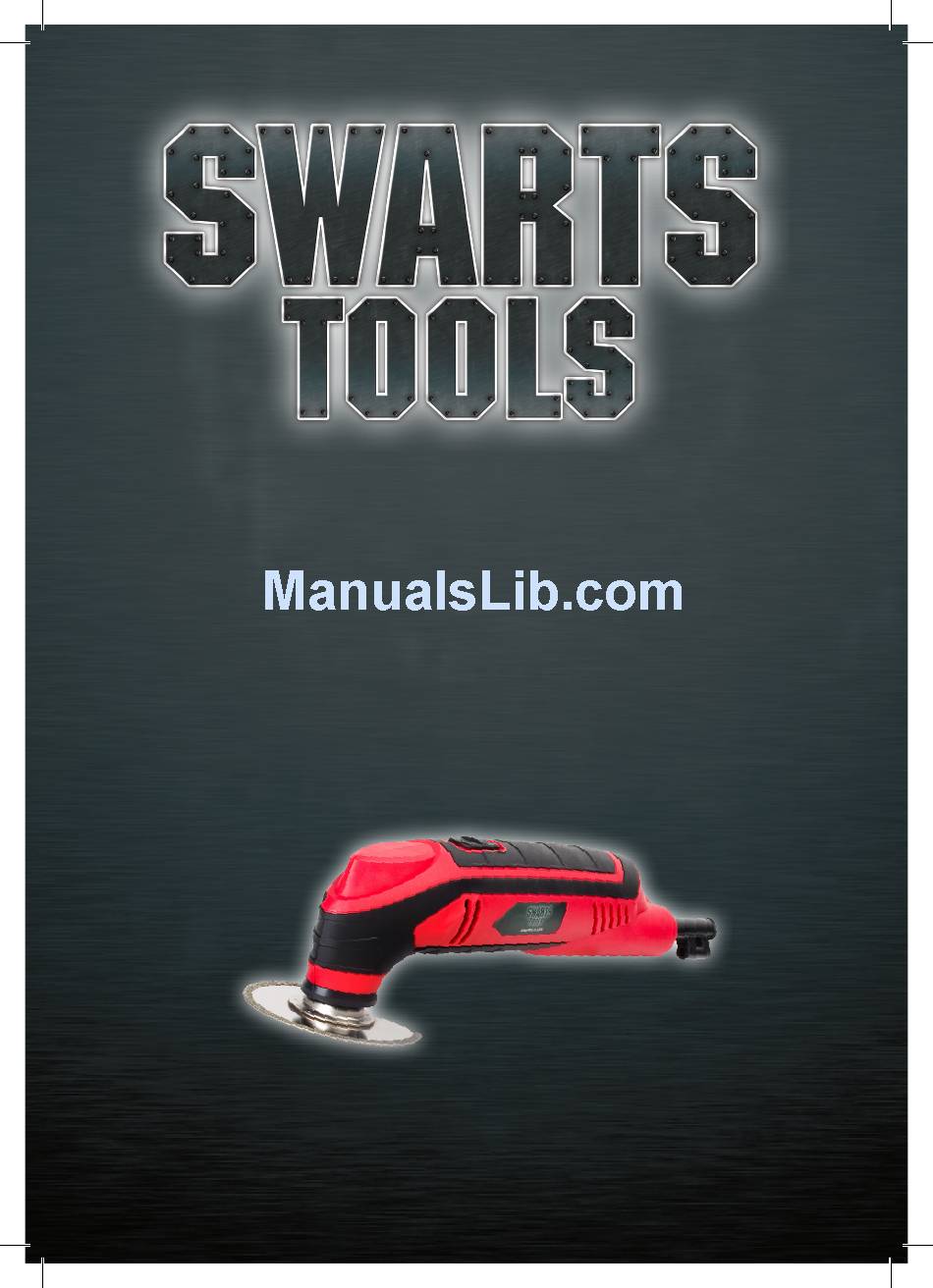

- Page 1 INSTRUCTION BOOKLET AND WARRANTY INFORMATION 220W Multitool Part No.SW2000 PLEASE READ CARE AND SAFETY INSTRUCTIONS BEFORE USE...
-
Page 3: Table Of Contents
CONTENTS GETTING STARTED 1.0....................................Safety 2.0....................................Tips 3.0................................Description of Parts 4.0..................................Unpacking 5.0..............................Blade Usage Suggestions OPERATION 6.0..................................Safety Notes 7.0..................................Fitting Tools 8.0..................................Operating CARE 9.0..................................Maintenance 10.0................................... Storage 11.0 ..................................Environment 12.0....................................FAQ 13.0..............................Technical Specifications 14.0..................................Warranty SAFETY GENERAL POWER TOOL SAFETY WARNING: Read all safety warnings and all instructions. -
Page 4: Safety
ELECTRICAL SAFETY Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with grounded surfaces such as pipes, radiators, stoves and refrigerators. There is an increased risk of electric shock if your body is grounded. - Page 5 Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
-
Page 6: Tips
Locking Bolt 32mm Cutting Blade 28mm Cutting Blade 10mm Cutting Blade 20mm Cutting Blade 32mm Cutting Blade Fingertip Sander Triangle Rasp Fingertip Sandpaper x 3 Triangle Sandpaper x 3 Triangular Sanding Pad Triangle Coarse Sander Swarts Tools Multitool INSTRUCTION BOOKLET... -
Page 7: Unpacking
UNPACKING INSTRUCTION BOOKLET... -
Page 8: Blade Usage Suggestions
BLADE USAGE SUGGESTIONS SW2033: 68mm High Speed Steel SW2027: 32MM Wide Stainless Flush Cutting Blade Steel Flush Cutting Blade This blade is great for doing flush and plunge This blade is great for doing flush and plunge cuts in timber, plastic and drywall. It is most cuts in timber, plastic and drywall. -
Page 9: Safety Notes
READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. INTENDED USE The machine is intended for sawing and cutting – using the specified accessories – wooden materials, plastic, gypsum, non-ferrous metals and fastening elements (e.g. -
Page 10: Fitting Tools
FITTING TOOLS If required, remove an already mounted application tool/accessory. Loosen the screw with the hex key and remove the tool/accessory. Be sure to clear any debris. Mount the suitable tool/accessory in such a manner on the tool holder that the offset faces downward. Turn the tool/accessory to a position favourable for the respective job, and allow it to engage into the cams of the tool holder. -
Page 11: Maintenance
SEPARATING Note: When separating wall tiles take into consideration that the application tools/accessories wear heavily when used for longer periods of time. SANDING The removal rate and the sanding pattern are primarily determined by the choice of sanding sheet, the preset oscillation rate and the applied pressure. -
Page 12: Storage
STORAGE 10.0 Store the tool, instruction manual and all accessories in a secure, dry place. In this way you will always have the information and parts ready to hand. ENVIRONMENT 11.0 When the time comes to dispose of this product please consider the environment and take it to a recognised recycling facility instead of disposing with general household waste. -
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS 13.0 Operating Voltage - 240vAC 50Hz Oscillating speed - 11000 – 20000rpm Oscillating angle - 3.2° Sound Pressure Level (dB(A)) - 86dB Dimensions - 353x266x95mm -Approx. (14x10x4”) Weight - 1.1Kg Product Code - SW2000 INSTRUCTION BOOKLET... -
Page 14: Warranty
WARRANTY 14.0 The product is warranted to be free from defects in materials and workmanship, under normal use and service for a period of 24 months from the date of sale. This warranty covers defective parts and workmanship, provided that the product is shipped pre-paid to the seller within 24 months of purchase of goods. - Page 16 PLEASE READ CARE AND SAFETY INSTRCTIONS BEFORE USE...
