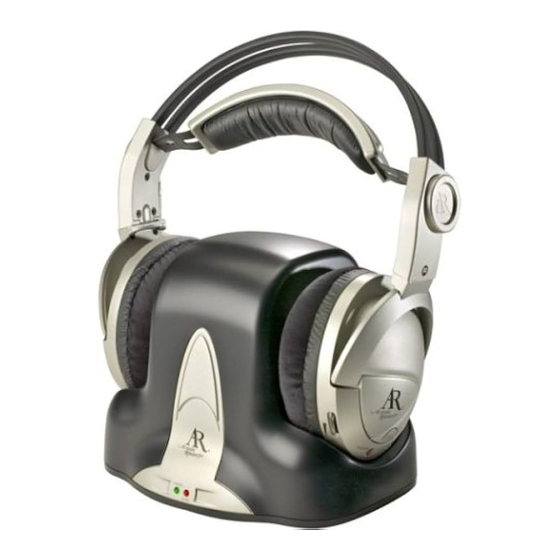

- Page 3 900MHz WIRELESS STEREO HEADPHONES WITH AUTO TUNING Model AW771 Installation and Operation Manual...
-
Page 4: Table Of Contents
Table of Contents Location of functions………..………………………………………… Connecting the headphone system.………………………………… III. Adjusting the transmitter....…………………………………. IV. Tuning the headphones………..……………………………………... 7 Turning the headphones off……..…………………………………… VI. More helpful information ……..……………………………………… 8 VII. Troubleshooting ..………..……………………………………….. 9 VIII. Specifications & Features ..…………………………………………… 10 IX. Warranty …………………………..…………………………………… Introduction AR Wireless Stereo Headphones expand and enhance your enjoyment of music or TV sound. -
Page 7: Location Of Functions
I. Location of Functions Headphones Headphones (right ear cup) (left ear cup) Volume control Self-adjusting headband Power indicator light Battery compartment cover Power/scan control (on/off tuning) Charging contacts Tuning indicator light Transmitter Back View: Transmitter Front View: Charging indicator light Transmitter power input jack Audio level indicator light Audio input cable... -
Page 8: Connecting The Headphone System
120V AC be left plugged in and powered at all wall outlet times. If you do not intend to use the AW771 for an extended period of time, you may wish to unplug the transmitter AC power adapter. AC Power Adapter (N) II. - Page 11 Using Optional Alkaline Batteries: The AW771 headphones can also be powered by 3 AAA alkaline batteries (not included). You may experience slightly longer play time with alkaline batteries, but you will not be able to recharge them, as you can with the supplied NiMH...
- Page 12 Charging Batteries: Warning: The AW771 built-in charger will charge rechargeable NiMH (supplied) or NiCd batteries only. DO NOT attempt to charge any other batteries except those specified above. Note: The included NiMH batteries can be charged at any time, without any adverse memory effect, whereas NiCd batteries must be fully discharged before they can be recharged in order to avoid a reduction in performance.
-
Page 15: Adjusting The Transmitter
III. Adjusting the Transmitter Transmitter power input jack Audio level indicator light Audio input cable Input level control Channel select switch 1.Turn ON your audio source (i.e., A/V receiver, TV, portable CD player, etc.) and play music at a normal listening volume. 2. -
Page 16: Tuning The Headphones
IV. Tuning the Headphones Power/scan control (on/off tuning) Volume control Tuning indicator light Power indicator light 1. Push the power/scan control (F) to turn the headphones ON. The power indicator light (E) will illuminate red. The tuning indicator light (G) will illuminate green, indicating that the headphones are tuned to the transmitter. -
Page 19: More Helpful Information
VI. More Helpful Information i. About Fixed-Level Audio Outputs: A fixed-level, or line-level audio output is considered ideal since it provides an audio signal unchanged by adjustments to the audio source volume control. Hint: Fixed-level audio outputs from stereo receivers/amps will typically be designated as Tape, Tape 1, and Tape 2 outputs, or VCR audio output connections. -
Page 20: Troubleshooting
VII. Troubleshooting The following troubleshooting guide takes you through some of the more common problems associated with the installation and/or operation of these wireless headphones. If the problem persists, please call 1-800-732-6866 and a knowledgeable customer service representative will assist you. Issue: Cause and solution: •... -
Page 23: Specifications & Features
VIII. Specifications & Features Transmitter Omnidirectional Effective transmitting range: up to 300 feet* Adjustable audio level input 3 selectable broadcast frequencies (between 912.5 and 914.5 MHz) Line-level, stereo audio input with 3.5mm stereo mini plug (1/4" headphone adapter and “Y” cable included) UL-listed AC power adapter Headphones Push-button, auto-lock tuning... -
Page 24: Warranty
IX. Warranty ONE YEAR LIMITED WARRANTY Recoton Corporation (the Company) warrants to the original retail purchaser of this product that should the product or any part thereof be proven defective in material or workmanship within One Year from the date of original purchase, such defects will be replaced without charge for parts or labor.
