FSD-100
Smoke Detector Sensitivity Meter
User Guide
WARNING: This document contains information on limitations regarding product use and func-
tion and information on the limitations as to liability of the manufacturer. Read the entire manu-
ally carefully.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSD-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DSC FSD-100

Summary of Contents for DSC FSD-100

  • Page 1 FSD-100 Smoke Detector Sensitivity Meter User Guide WARNING: This document contains information on limitations regarding product use and func- tion and information on the limitations as to liability of the manufacturer. Read the entire manu- ally carefully.

  • Page 3: Table Of Contents

    Table of Contents Introduction Out of the Box..................2 Battery Installation.................. 2 Controls and Indicators................3 Operation Power Up/Power Down................4 Smoke Detector Testing................6 Viewing Test Records ................7 Downloading Test Records ..............8 Checking Tester Status................10 Appendix A: Status and Troubles Appendix B: Sensitivity Measurement Conversion...
  • Page 4 Notes:...

  • Page 5: Introduction

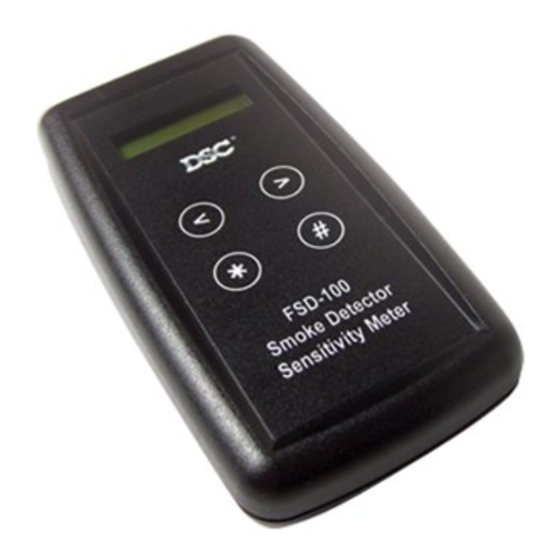

    Introduction The FSD-100 Smoke Detector Sensitivity Meter is intended for comprehensive in- place-testing of the WS4916, FSA210 and FSA410 Series Smoke Detectors. The meter is hand held and battery operated, providing 20 hours of continuous operation and stores up to 500 detector tests.

  • Page 6: Out Of The Box

    Out of the Box The FSD-100 tester includes the following: 1 FSD 100 Smoke Detector Sensitivity Meter 1 Duracell® Procell® PC1604 Alkaline 9VDC Battery 1 PC-Link Local Download KIT-DB09 1 Download kit adaptor 1 User Guide 1 Quick Reference Guide Battery Installation: 1.

  • Page 7: Controls And Indicators

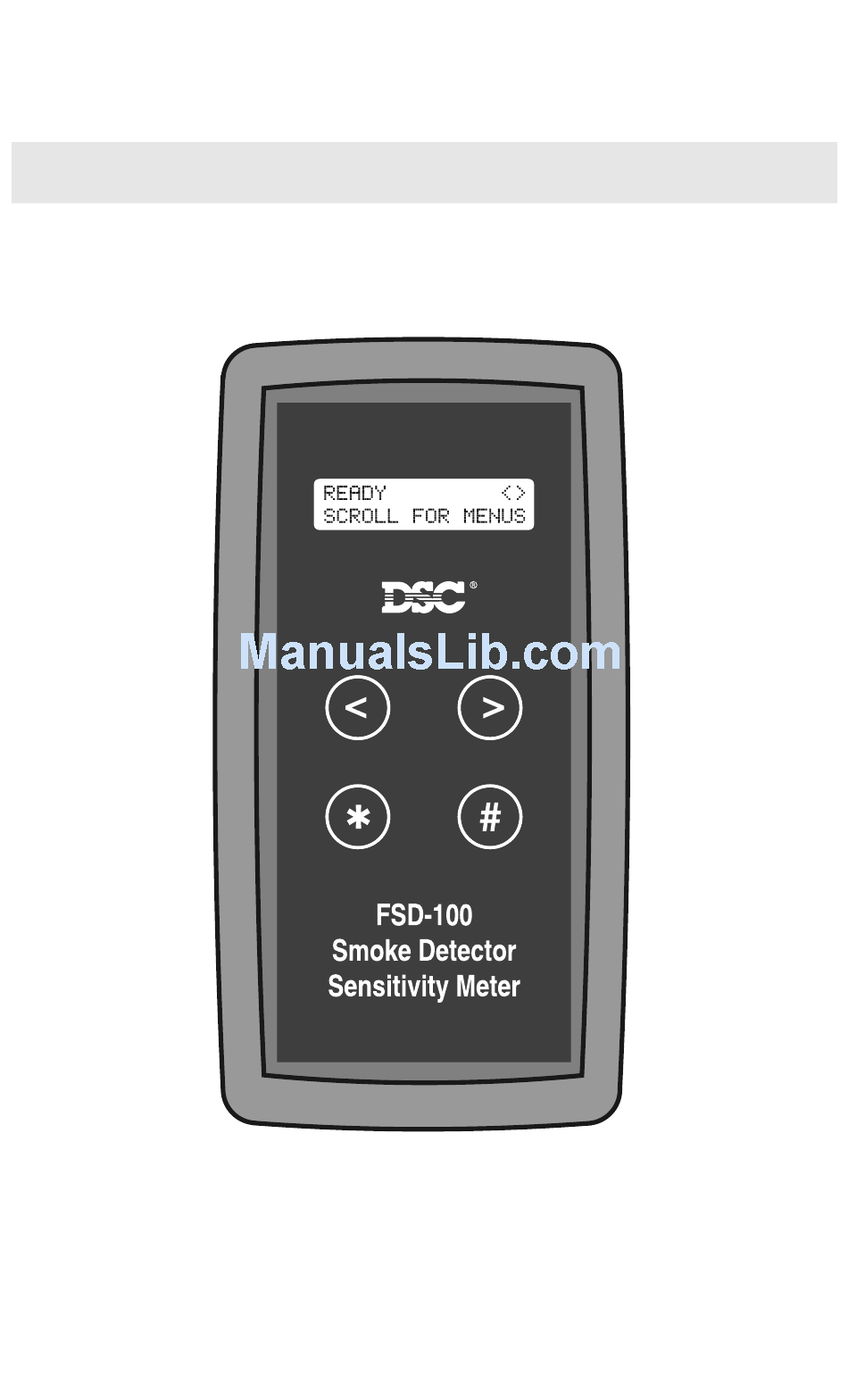

    Controls and Indicators The FSD-100 displays all information on a 32 character LCD. A PC-LINK connection is located on the right side of the unit for downloading data to a PC. The use of the , and keys varies depending on the screen you are cur- rently in.

  • Page 8: Operation

    NOTE: 99% indicates that the battery is fully charged. Replace battery when 1% is indicated. This screen will be displayed for 2 seconds. FSD-100 V1.00 BATTERY LIFE=99% Record Capacity: Indicates the current number of tests stored in the tester out of a maximum of 500 tests.
  • Page 9 Powering Down: The tester can be powered down in two ways: 1. The unit will automatically power down 4 minutes after the last keypress regardless of the screen it is currently in. 2. Pressing the scroll key 5 times from the Ready mode screen will dis- play the "Press for Power Down"...

  • Page 10: Smoke Detector Testing

    Position the FSD-100 less than 2.5cm (1”) from the center dome of the smoke detector. The Smoke Detector and the FSD-100 Tester will indicate that data is being transmit- ted and received by sounding a series beeps from each device.

  • Page 11: Viewing Test Records

    Viewing Test Records The Test Records section can be entered directly after a Smoke Detector Test when the PRESS FOR DATA REVIEW screen appears. This option allows you to review the preceding test only. Test records can be reviewed by following the steps indicated in Figure 4. Figure 4 - Viewing Test Records For Factory Use For Factory Use...

  • Page 12: Downloading Test Records

    Downloading Test Records Scroll to the "PRESS FOR DOWNLOAD" screen. Connect the Tester to the Personal Computer. Figure 5 - Tester Setup Open Microsoft® HyperTerminal® or equivalent. Configure the Serial COM Port as follows: • Set Baud Rate to 9600 •...
  • Page 13 Figure 6 - Downloading...

  • Page 14: Checking Tester Status

    Checking Tester Status Tester info menu allows you to check the battery life and the number of records stored. If there is a Time/Date Trouble, the time and date can be programmed in this menu. Figure 7 - Checking Tester Status...

  • Page 15: Appendix A: Status And Troubles

    Appendix A: Status and Troubles The following table lists the Troubles TRBL: 12345678 * and Status Readings found in the STAT: 12345678 Trouble Status screen Troubles Status Smoke Low Sensitivity Tamper Smoke High Sensitivity For Factory Use Smoke Sensor Test Failed Smoke Sensor Trouble/Fault Smoke Sensor Fault Low Battery...

  • Page 16: Limited Warranty

    FCC Compliance Statement CAUTION: Changes or modifications not expressly approved by DSC could void your authority to use this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
