ORBRY Smart Touch User Manual

Colour touchscreen thermostat
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OBSMART
Smart Touch
Thermostat
Colour
Touchscreen
Thermostat

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart Touch and is the answer not in the manual?

Questions and answers

Related Manuals for ORBRY Smart Touch

Summary of Contents for ORBRY Smart Touch

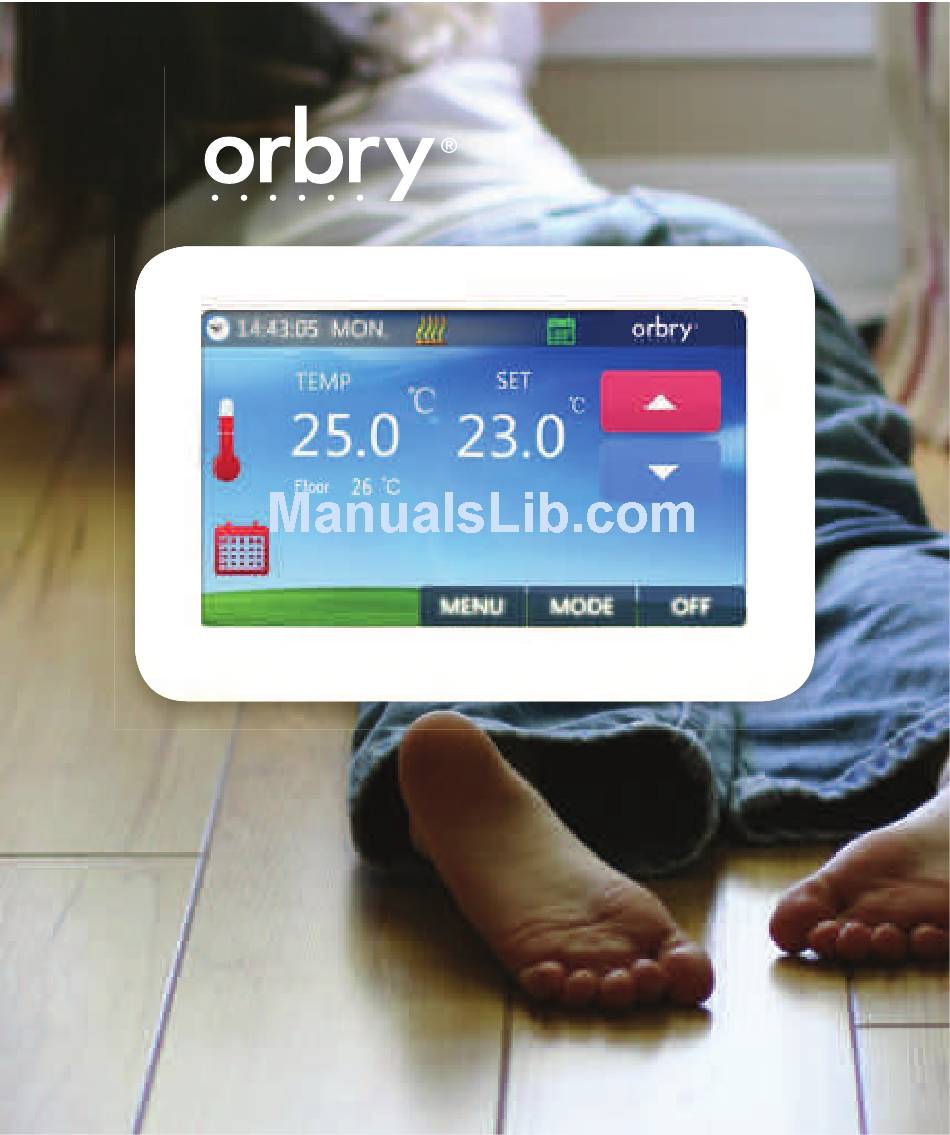

  • Page 1 OBSMART Smart Touch Thermostat Colour Touchscreen Thermostat...

  • Page 2: Important Safety Regulations

    The Orbry Smart Touch Thermostat is a digital thermostat, which is designed for electric underfloor heating systems with a maximum load of up to 16A (3600W). The Orbry Smart Touch features a 4.3” colour touchscreen display and four (4) languages.

  • Page 3: Before You Begin

    Step 1: Release the face plate Place the unit face down on a hard surface and push the three (3) clips located on the bottom of the Orbry Smart Touch in with a screwdriver to release the face plate. Step 2: Disconnect ribbon cable & remove face plate Once the face plate has been gently opened disconnect the ribbon cable to release the face plate.
  • Page 4 Sensor and ensure each screw is tightened Ensure system is correctly earthed. correctly. Fix the Orbry Smart Touch Thermostat to the wall Align the Orbry Smart Touch with your back box and fi x in place with the screws provided.
  • Page 5 PROGRAMMING THE ORBRY SMART TOUCH Orbry Smart Touch Thermostat Interface ROOM On / Off button Heating icon Mode button Weekday icon Menu button Ambient temperature Down button Clock icon Up button Temperature icon Mode icon Floor temperature Set temperature Mode icon area...

  • Page 6: Preset Modes

    PROGRAMMING THE ORBRY SMART TOUCH Preset Modes Manually switch between these preset temperature modes to allow flexibility outside of your heating schedule. Economy mode – Preset a low energy saving temperature 18°C for economical comfort and energy savings. Comfort mode – Preset a comfort temperature (e.g. 25°C) and enjoy warmth outside of your heating schedule.

  • Page 7: Schedule Settings

    PROGRAMMING THE ORBRY SMART TOUCH Schedule settings Press the MENU Button, then press to review your weekly schedule. Select Mon – Fri, Sat or Sun to edit your custom heating schedule. RETURN Example: If you would like to edit your Sunday schedule, then press the Sun column to enter the edit page (as shown).

  • Page 8: Language Select

    PROGRAMMING THE ORBRY SMART TOUCH Edit date & time Press the MENU button, then button to edit the date and time with the buttons. Press APPLY to save the changes. RETURN Preset temperature mode Press the MENU button, then button to select a mode.

  • Page 9: Protection Settings

    Low protection: This is a frost protection mode designed to function when the Orbry Smart Touch is switched off. If the ambient temperature reaches the set protection temperature, the system will automatically switch on to maintain a minimum temperature.

  • Page 10: Parameter Settings

    PROGRAMMING THE ORBRY SMART TOUCH Parameter settings To access the parameter settings, switch the Orbry Smart Touch OFF and immediately press the button for two (2) seconds. You can set the desired values by pressing << OR >>. Go to the other pag- es by pressing PRE or NEXT.

  • Page 11: Technical Specifications

    TECHNICAL SPECIFICATIONS Dimensions 19mm 31mm 60mm 94mm 4.3” 130mm...

  • Page 12: Product Features

    16A (3600W) Temperature range 5 ~ 35 Ambient 0 ~ 50 Sensor NTC 10k 10kΩ at 25 Accuracy ± 0.5 Warranty 3 years IP Rating IP30 Width 130mm Height 87mm Depth 50mm (31mm in wall) www.orbry.com info@orbry.com 0845 208 0221...
