GreenBrook T41D-C Installation & Operating Instructions

L L I I G G H H T T S S E E N N S S I I T T I I V V E E L L I I G G H H T T S S W W I I T T C C H H
I I N N S S T T A A L L L L A A T T I I O O N N / / O O P P E E R R A A T T I I N N G G
I I N N S S T T R R U U C C T T I I O O N N S S
MODEL NUMBER: T41D-C
Thank you for purchasing a quality security timer
from Greenbrook. Please read these instructions
fully prior to initial use.
Every effort has been made to ensure that the
guidance information on this sheet will enable the
installation of the security light switch to be
carried out safely and correctly.
IF IN DOUBT, INSTALLATION
SHOULD BE MADE BY A QUALIFIED
ELECTRICIAN IN ACCORDANCE WITH
CURRENT WIRING REGULATIONS.
I I M M P P O O R R T T A A N N T T
FOR EFFECTIVE OPERATION, THIS UNIT MUST BE
EXPOSED TO DIRECT DAYLIGHT AND SHOULD NOT
BE COVERED BY CURTAINS OR FURNISHINGS.
ALSO, IT SHOULD NOT BE SUBJECTED TO STRONG
STREET LIGHTING, AS THE LIGHT SENSOR CANNOT
DIFFERENTIATE BETWEEN DAY & NIGHT.
A
B
C
A. FUSE CARRIER Pull out to replace
fuse (a special 3A BS646 20mm x 5mm,
this is not an ordinary 3amp fuse)
B. DARKNESS SENSITIVITY CONTROL
Allows switch to react to different
levels of darkness
C. DARKNESS SENSOR Monitors light
levels
D. PUSH ON/OFF Switch - Allows unit to
operate as ordinary light switch.
Activates even when lid is closed.
E. OVERRIDE SWITCH MAN: Manual
mode
AUTO: Automatic programme mode
F. TIME ON Allows selection of "ON"
periods up to 8 hours (in hourly
intervals)
G. RED NEON Lit when in automatic mode
H. RESET BUTTON
W W I I R R I I N N G G I I N N S S T T R R U U C C T T I I O O N N S S
Before attempting any installation work, turn off
the electrical supply at the main switch, fuse box
or consumer unit and for additional safety
remove the fuse.
ONLY SUITABLE for tungsten filament lamp
loads of 40 to 400 watts maximum, and low
energy (CFL)11W and above.
GreenBrook light switches cannot be used with
any other electronic products.
DO NOT USE -
• In two way systems with dimmers or any
other switch containing electronic
circuitry.
• With fluorescent strip lights.
• With low voltage lighting.
W W I I R R I I N N G G I I N N S S T T A A L L L L A A T T I I O O N N I I N N O O N N E E
W W A A Y Y S S W W I I T T C C H H E E D D C C I I R R C C U U I I T T

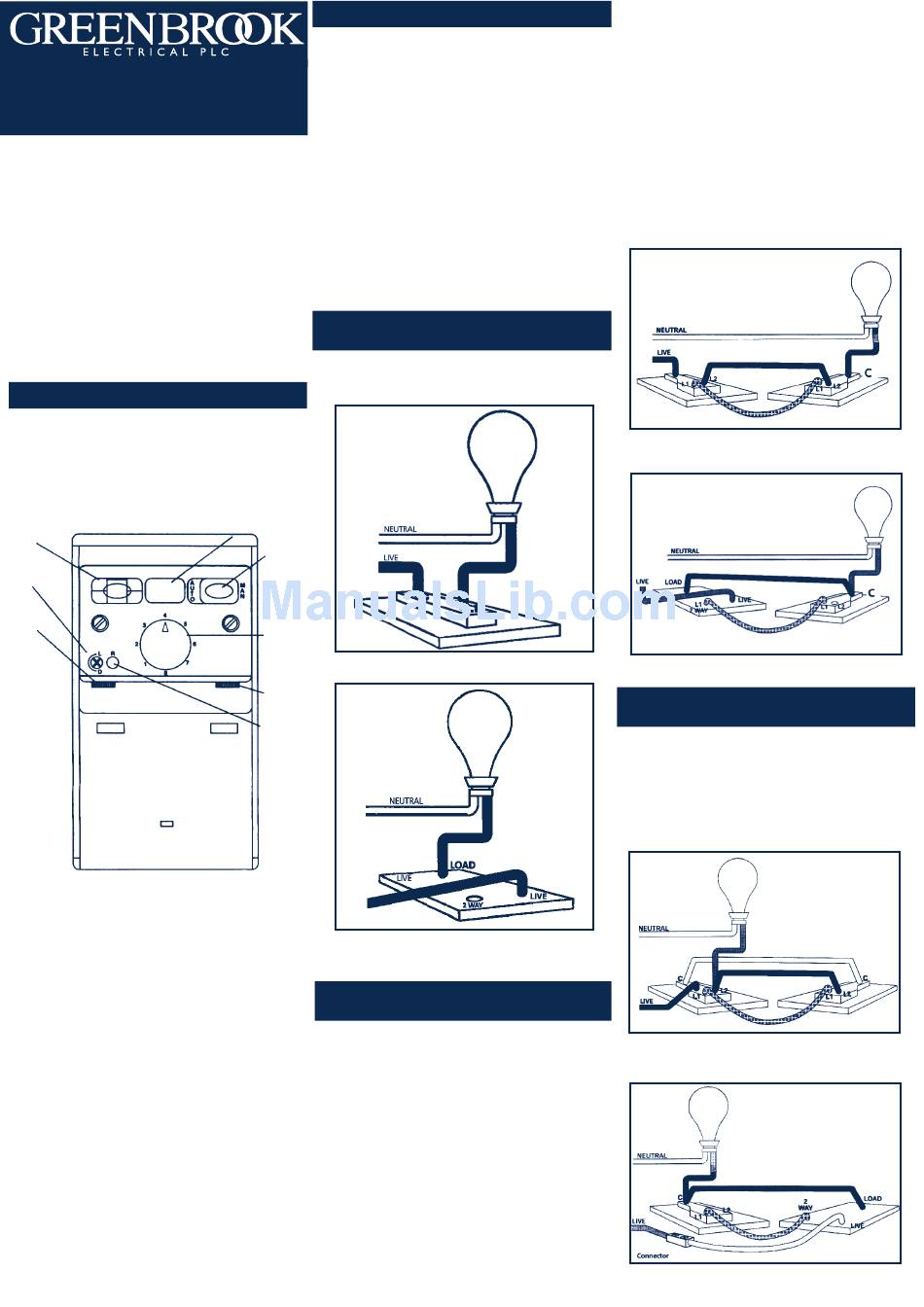

Diagram 1 - Before
D
E
F
Diagram 2 - After
G
H
EARTHS MUST REMAIN CONNECTED TO
W W I I R R I I N N G G I I N N S S T T A A L L L L A A T T I I O O N N I I N N T T W W O O
W W A A Y Y S S W W I I T T C C H H E E D D C C I I R R C C U U I I T T
Before installing your security Light switch in a
two way circuit it is first necessary to determine
which method of wiring has been used in your
home.
The primary reason for doing this is to make sure
that the security switch is wired in such a way
that has a permanent live feed at all times in
order to power the electronic timer.
1. TURN OFF THE MAIN SUPPLY.
2. Loosen the two switch plates from the wall.
3. Do NOT disconnect any wires at this stage.
YELLOW AND GREEN
METAL BACK BOX
4. Study the existing wiring arrangement;
compare to the 'Before' illustrations.
- if you find 3 wires at each switch
(excluding the earth wire) see diagram 3.
- if you find 5 wires at one switch and 3 wires
at the other (excluding the earth wire) see
diagram 5.
After establishing the appropriate wiring
method install the Security Light Switch as
per the corresponding 'After' illustration.
Diagram 3 - Before YELLOW AND GREEN
3 Wires in both switches
EARTHS MUST
REMAIN CONNECTED TO
Diagram 4 - After
Timer installed at live
wire end only
METAL BOX
W W I I R R I I N N G G I I N N S S T T A A L L L L A A T T I I O O N N F F O O R R
5 5 & & 3 3 W W I I R R E E A A R R R R A A N N G G E E M M E E N N T T
Diagrams 5 to 7 show various installations before
and after your Greenbrook security timer has
been fitted.
Diagram 5 - Before
5 & 3 wire arrangement
Yellow & Green earths
must remain connected
Diagram 6 - After
Light switch timer at 3 wire end
Yellow & Green earths must
remain connected to metal box
to metal box
