Com.X1

Getting Started

Version 1.01, July 26, 2010
Welcome to the world of Comma intelligent Asterisk™ solutions! This leaflet will help you to get
started with your new Com.X1 solution. This getting started guide addresses networking and
installation of the Com.X1 unit and should be read in conjunction with the Com.X1
Administrator's guide.
For further information see
Description

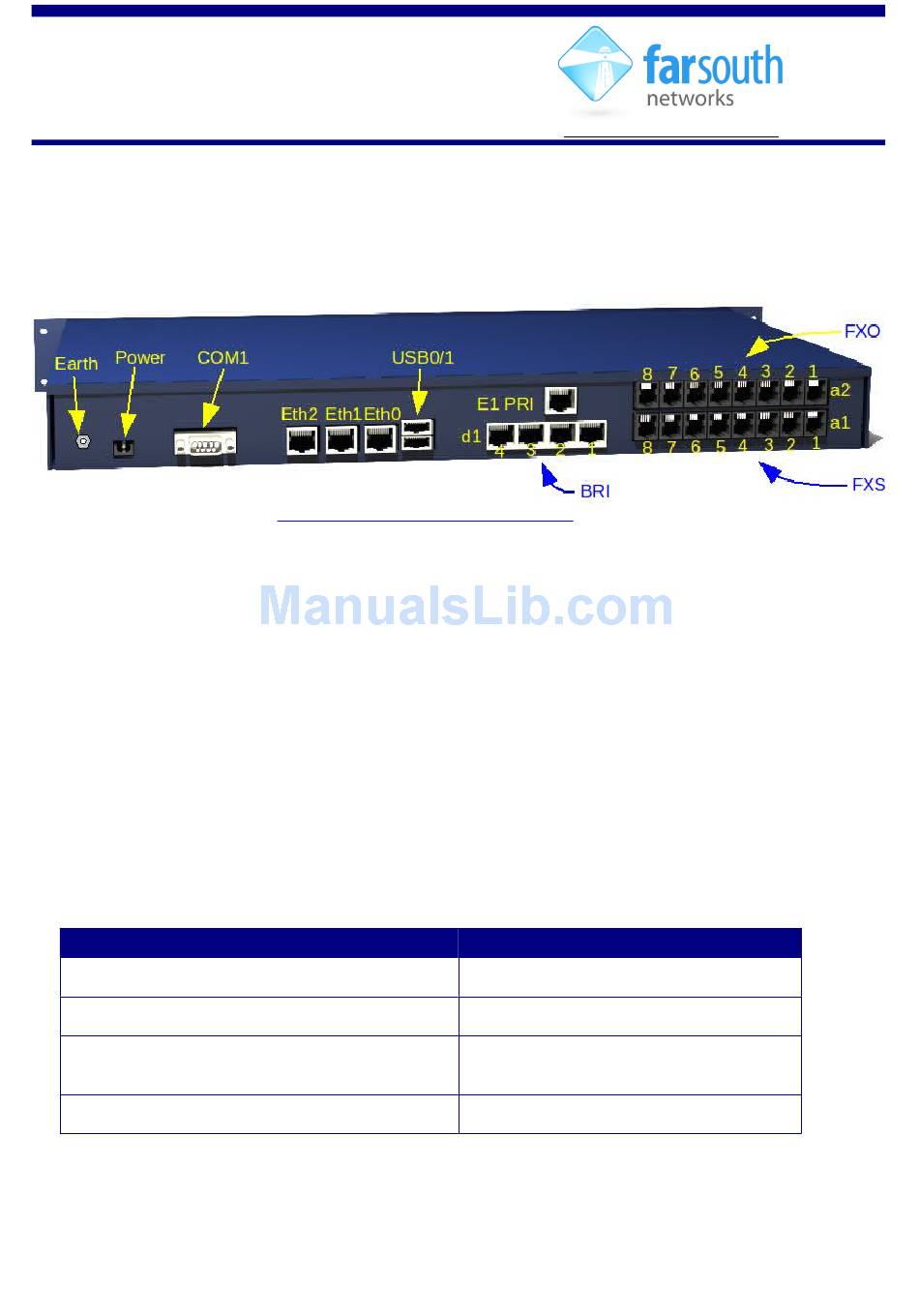

The figure above shows a typical Com.X1. The BRI and FXS/FXO positions are modular and
may or may not be present, depending on model.
The available slots for analogue interfaces are numbered a1 & a2. Each a1 & a2 slot may be
installed with octal FXO, octal FXS or 4FXS/4FXO card, providing eight RJ11 ports, numbered
1 to 8. Thus each analogue RJ11 interface is designated a1-1 to a1-8 and a2-1 to 8.
A single slot is available for Basic Rate ISDN (BRI) interfaces, it is numbered d1. The d1 slot
may be installed with a quad BRI card, providing four RJ45 ports, numbered 1 to 4. Thus
each BRI interface is designated d1-1 to d1-4.
A single Primary Rate ISDN (E1 PRI) interface is provided.
Three 100Base-T LAN interfaces are provided, designated LAN1 (Eth0), LAN2 (Eth1) & LAN3
(Eth2).
The remaining connectors are Earth, Power, USB0 & USB1, as shown.
The front panel LED (not shown) displays basic diagnostic information as follows:
Code
Flashing red
Solid yellow
Flashing green/red
Solid green
http://farsouthnet.com/mediawiki
Copyright © 2008-2010 Far South Networks (Pty) Ltd
http://www.farsouthnet.com
Description
No network
Boot state
Manager or stream error (check software
configuration)
0K
