VBrick EtherneTV-STB Quick Start Manual

Ethernetv-stb set top box
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EtherneTV-STB
Set Top Box
Set Top Box v3.7.3b
Quick Start Guide
September 14, 2006
4410-0134-0005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EtherneTV-STB and is the answer not in the manual?

Questions and answers

Related Manuals for VBrick EtherneTV-STB

Summary of Contents for VBrick EtherneTV-STB

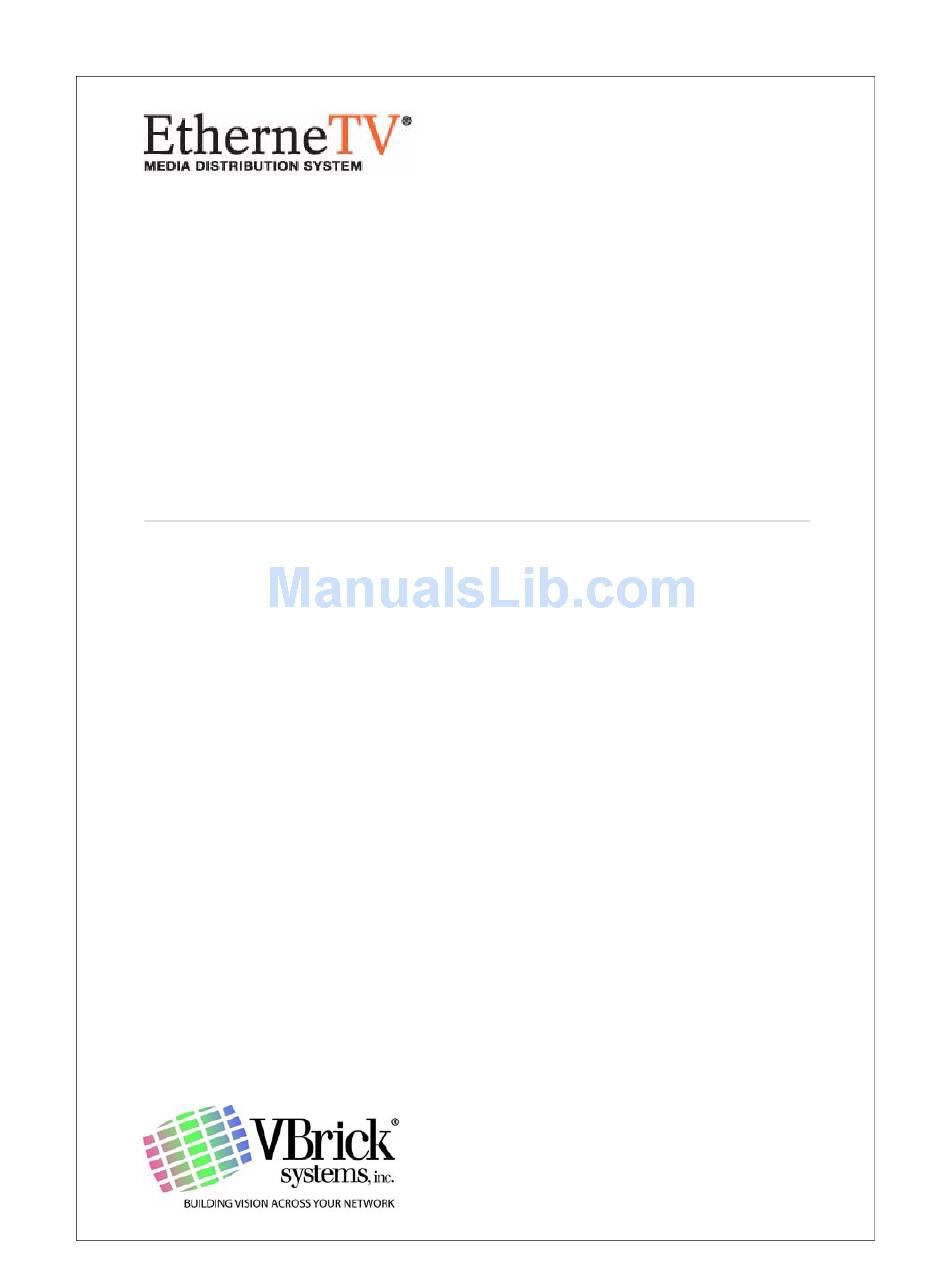

  • Page 1 EtherneTV-STB Set Top Box Set Top Box v3.7.3b Quick Start Guide September 14, 2006 4410-0134-0005...
  • Page 2 This document may also have links to third-party web pages that are beyond the control of VBrick. Use these links at your own risk. The use of such links does not imply that VBrick endorses or recommends the content of any third-party web pages.

  • Page 3: Step 1. Choose A Start Mode

    Step 2. Connect the Set Top Box The VBrick EtherneTV Set Top Box is shipped with Audio/Video, S-Video, and power cables and a handheld IR remote control unit. An optional wireless keyboard is also available.

  • Page 4: Step 3. Set The Ip Address

    Table 1. Front Panel – Left to Right Infrared Sensor Above LEDs. Used for IR remote control and wireless keyboard. Waiting Blinks red during initial start-up. Transfer Blinks white when accessing flash memory. Power Steady green when power is applied. On/Off On/Off push button.

  • Page 5: Finding The Dhcp Ip Address

    STB v3.7.3b Quick Start Guide present. If a DHCP server is not available, you can configure the set top box with a static IP address. The STB is set to a default IP address of as a convenience. In most 172.17.11.111 cases, this should be changed to avoid conflicts.

  • Page 6: Step 4. Configure The Start Mode

    See the STB Admin Guide for more information. Setup for MCS Mode To configure the STB for MCS Mode: 1. On your PC, open Internet Explorer and enter the IP address of the EtherneTV-STB in the URL (address) window. 2. Log in as root 3.
  • Page 7 STB v3.7.3b Quick Start Guide Navigating in MCS Mode Select Channel Using the handheld IR remote control and press the up/down channel button to highlight the desired channel selection. Once the stream is highlighted, use the IR remote control button to Select start the selected video in the Preview Window.
  • Page 8 IP addresses, port numbers, encoder types and program listings correspond to actual network settings. A keyboard must be attached or use the wireless keyboard available from VBrick to make these changes. See the STB Admin Guide for detailed XML configuration examples.
  • Page 9 C:\> Setup for Local-Fullscreen Mode To configure the STB for mode: Local-Fullscreen 1. On your PC, open Internet Explorer and enter the IP address of the EtherneTV-STB in the URL address window. 2. Log in as root 3. Password admin 4.
  • Page 10 Stream Type Command Syntax Multicast MPEG-4 http://<ipaddr>/<path to sdp file> (remote) (e.g. http://172.22.2.2/myPath/myStream.sdp) Unicast MPEG-1 RTSP@UNICAST_MPEG1://#dataPort=<port> Unicast MPEG-2 RTSP@UNICAST_MPEG2_TRANSPORT://#dataPort=<port> RTSP MPEG-1 RTSP@KASENNA_MPEG1://<ipaddr>/program (EtherneTV-NXG) RTSP MPEG-2 RTSP@KASENNA_MPEG2_TRANSPORT://<ipaddr>/program (EtherneTV-NXG) RTSP MPEG-1 RTSP@INFOVALUE_MPEG1://<ipaddr>/program (EtherneTV-VOD W) RTSP MPEG-2 RTSP@INFOVALUE_MPEG2_TRANSPORT://<ipaddr>/program (EtherneTV-VOD W) RTSP MPEG-4 RTSP@ISMA://<ip addr>/program Watching TV in Local-Fullscreen Mode In this mode the STB will display the stream you selected in Step 8 above.
  • Page 12 VBrick Systems, Inc. 12 Beaumont Road Wallingford, Connecticut 06492, USA...
