Feed Water Saddle Valve Installation - Rayne RayneClear Installation, Operation & Service Manual

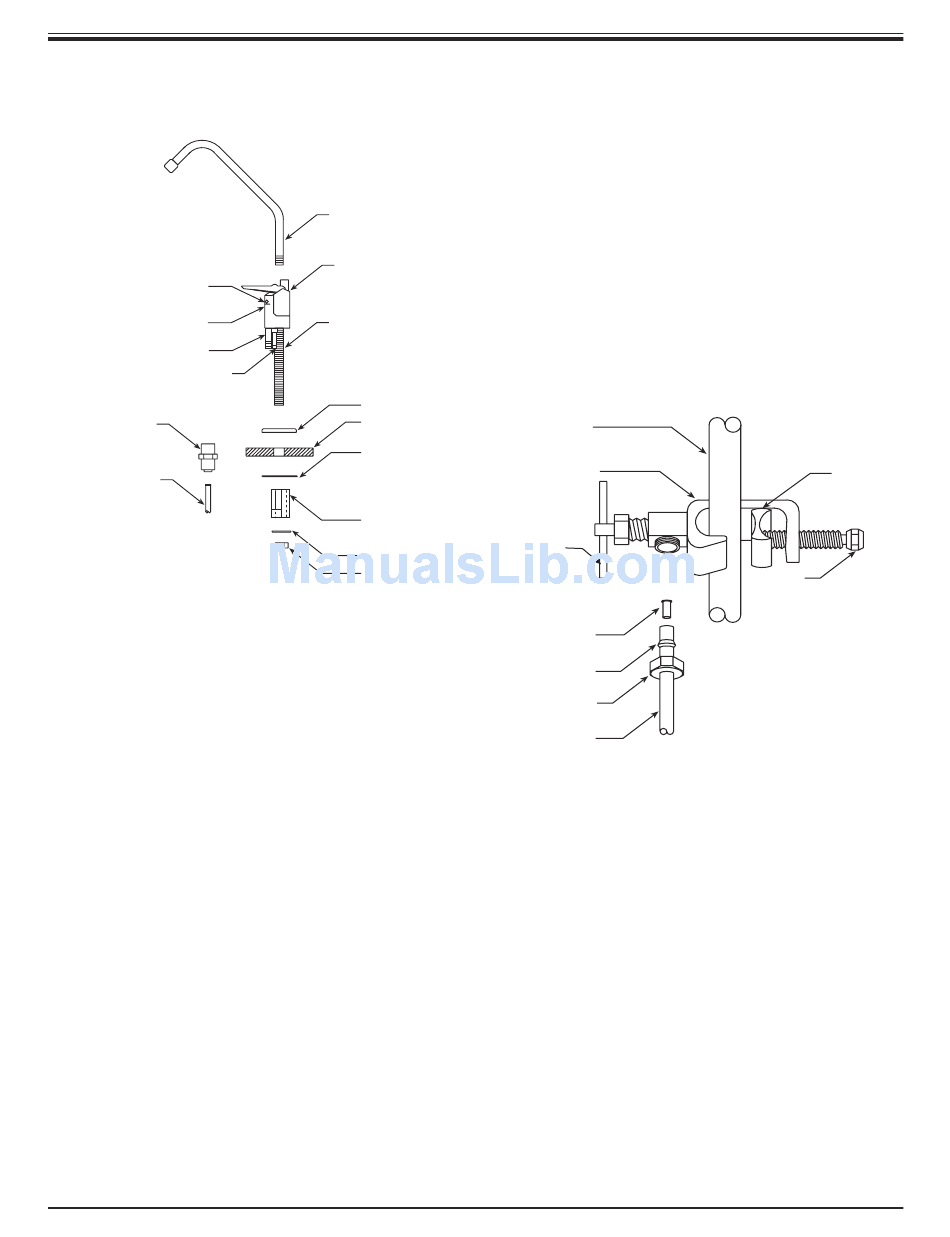

LONG REACH AIR GAP FAUCET
WITH 3/8" CONNECTOR
Air Gap Window
Critical Level
Line
Reject Outlet For
Drain Clamp Line
Reject Inlet For
Manifold Drain Line
3/8" Polytube
Quick Connect
Fitting
3/8" Blue Polytube
Figure 2
3. Assemble and attach the Faucet. (Refer to
Fig. 2 above.)
•Assemble the Body and Spout by removing
the plastic shipping plug from the Body and
then firmly pressing in the Spout.
•In the following order, place the Face Plate
(Escutcheon) on the
•From the top of the counter place the stud
through the mounting hole.
•From the bottom of the counter top in the
following order assemble the steel Slotted
Washer, the Plastic Spacer (with open end
7
upwards), the / " Washer and the
16
7
/ " Hex Nut.
16
7
•To the end of the /
16
3/8" Polytube Quick Connect Fitting. Once
snug by hand take a pair of pliers and tighten
the fitting an additional half turn. Don't over
tighten.
•Rotate the Spout and Body into position.
Align the Slotted Washer and the Spacer to
Spout
Plastic Shipping
Plug (Remove)
CL
7/16" Stud
Face Plate
(Escutcheon)
Mounting
Surface
Slotted Washer
Plastic Spacer
7/16" Washer
7/16" Hex Nut
7
/ " stud.
16
" stud screw on the
allow access to the Hose Barbs, and tighten
the Hex Nut while holding the faucet in
alignment with a padded Crescent wrench.
Do not over tighten.
B. Feed Water Saddle Valve Installation
Decide on location. Do NOT connect to a hot
water feed line. If you are not sure of the supply,
run the hot water and feel the supply piping.
Water over 85°F may cause permanent damage to
the RO Membrane. (Refer to Fig. 3 below.)
FEED WATER SADDLE VALVE
Cold Water
Line
Saddle
Valve
Handle
Insert
Plastic
Ferrule
Compression
Nut
Tubing To
Manifold
Inlet
1. Shut off the water supply and drain the line.
2a. To install on (soft) Copper Tubing supply line:
•Turn the Handle of the Feed Water Saddle
Valve counter clockwise (outward) until the
lance does not protrude from the gasket. It
may have to be pushed in.
•Assemble the Feed Water Saddle Valve on
the tubing.
3
–for / " OD tubing use the back plate
8
side with the small groove to prevent
distortion of the tubing.
–for larger tubing (up to
large groove of the back plate.
6
Reversible
Back Plate
Tightening
Screw
Figure 3
5
/ " OD) use the
8
