Rayne RayneClear Installation, Operation & Service Manual page 4

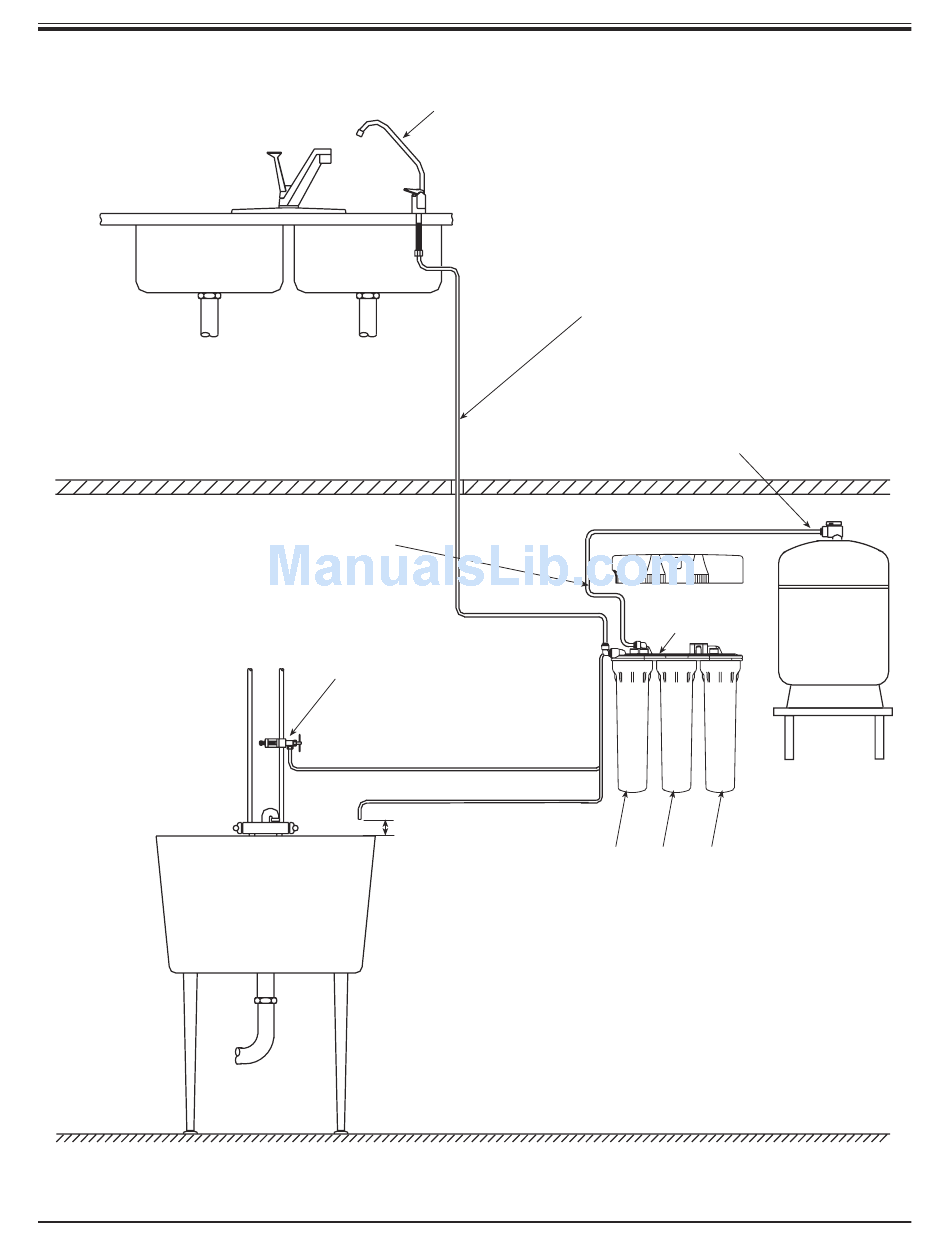

OPTIONAL RAYNECLEAR BASEMENT INSTALLATION DIAGRAM
FLOOR
BASEMENT
FLOOR
NOTE: FOR BEST FLOW RATE,
KEEP TUBING FROM HOLDING
TANK TO R.O. MANIFOLD AS
SHORT AS POSSIBLE
FEED WATER
SADDLE VALVE
(COLD WATER
LINE ONLY)
1" AIR GAP
REQUIRED
PLEASE NOTE: IF AIR GAP ON FAUCET IS NOT USED IN BASEMENT
INSTALLATIONS, A PROPER AIR GAP MUST BE CREATED. PLEASE
CHECK WITH LOCAL PLUMBING CODES. SEE EXAMPLE ABOVE.
DISPENSING
FAUCET
NOTE: FOR BEST FLOW RATE,
KEEP TUBING FROM R.O.
MANIFOLD TO DISPENSING
FAUCET AS SHORT AS
PRODUCT
POSSIBLE
(3/8" Blue)
INLET
(1/4" Red)
DRAIN
(1/4" Black)
ACTIVATED
CARBON
POST FILTER
HOUSING
2
HOLDING TANK
SHUTOFF VALVE
(Open Position)
TANK
(3/8" Yellow)
COVER
DRINKING
WATER
RO MANIFOLD
HOLDING
TANK
MOUNT HOLDING
TANK ON SHELF OR
STRAP BETWEEN
FLOOR JOISTS
(Shelf Or Straps Not
Included)
REVERSE SEDIMENT
OSMOSIS PREFILTER
MEMBRANE HOUSING
HOUSING
