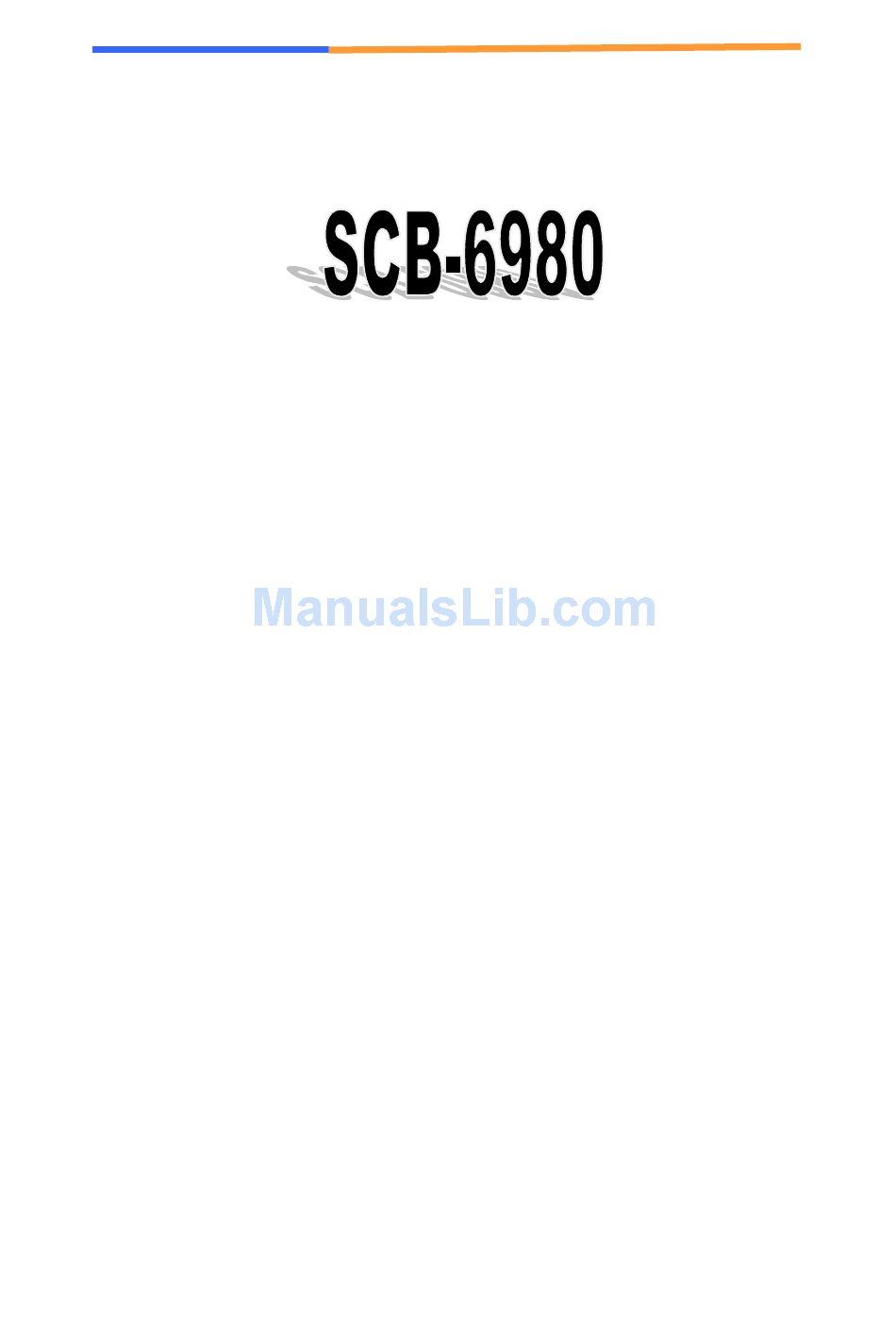

- Page 1 User’s Manual Networking Appliance Desktop Intel® Cedarview D2550/N2600 Network System, 6 Copper GbE, CF, SATA, PCI-E, Bypass User’s Manual Version 1.0a AEWIN Technologies Co., Ltd Jan., 2013...
- Page 2 For more information on SCB-6980 or other AEWIN products, please visit our website http://www.aewin.com.tw. For technical supports or free catalog, please send your inquiry to info@aewin.com.tw...
-
Page 3: Table Of Contents
Chapter 3. Utility & Driver Installation .............. 23 3.1 Operation System Supporting ................23 3.2 System Driver Installation ................24 3.3 LAN Driver Installation ................... 24 Appendix C: System Resources ................25 Appendix D: Cable Development Kit ..............28 AEWIN Technologies Co., Ltd Jan., 2013... -
Page 4: Chapter 1. General Information
User’s Manual Chapter 1. General Information 1.1 Introducing The SCB-6980 is a desktop hardware platform designed for network service applications. Built with Intel® Embedded IA components with warranty of longevity, the SCB-6980 supports Intel® Atom™ D2550, N2600 low-voltage processor with Intel® ICH10R I/O controller. - Page 5 Temperature Storage -20 ~ 75°C (-4 ~ 167°F) Temperature Humidity 10 ~ 85% relative humidity, non-operating, non-condensing Weight 1pc/Box, 4kgs, 14cm(W) x 38cm(D) x 23.2cm(H) 5Boxes/CTN, 20kgs, 40cm(W) x 72.4cm(D) x 26.4cm(H) Certification CE/FCC AEWIN Technologies Co., Ltd Jan., 2013...
-
Page 6: Order Information
SCB-6980. Keep the box and carton when you probably ship or store SCB-6980 in near future. After you unpack the goods, inspect and make sure the packaging is intact. Do not plug the power adapter to the appliance of SCB-6980 if you already find it appears damaged. -
Page 7: Precautions
User’s Manual 1.5 Precautions Please make sure you properly ground yourself before handling the SCB-6980 appliance or other system components. Electrostatic discharge can be easily damage the SCB-6980 appliance. Do not remove the anti-static packing until you are ready to install the SCB-6980 appliance. -
Page 8: System Layout
User’s Manual 1.6 System Layout SCB-6980 Front Side SCB-6980 Rear Side 2.5” SATA HDD Bay CF card DDR3 SO-DIMM AEWIN Technologies Co., Ltd Jan., 2013... -
Page 9: Board Dimension
User’s Manual 1.7 Board Dimension AEWIN Technologies Co., Ltd Jan., 2013... -
Page 10: Chapter 2. Connector/Jumper Configuration
User’s Manual Chapter 2. Connector/Jumper Configuration 2.1 Connector/Jumper Location and Definition AEWIN Technologies Co., Ltd Jan., 2013... - Page 11 User’s Manual SCB-6980 Connector and Jumper: Connector Description Connector Description KB/MS Connector CN25 Power JACK +12V Connector SATA Connector CN26 Watchdog/Bypass selection System FAN Connector PCIE1 PCI-E x1 Slot COM2 Connector SATA Power Connector SPI Connector PCI-E slot +5V voltage selection USB 2X5 Header (2.54mm)
-
Page 12: Connector And Jumper Setting
CN1: PS/2 KB/MS Pin Header Define Define KCLK MCLK KDAT MDAT PS2_GND PS2_GND PS2_VCC PS2_VCC CN2: SATA Connector Signal Ground Ground Ground CN3: System FAN Define Ground +12V Speed Detect CN4: COM2 pin header AEWIN Technologies Co., Ltd Jan., 2013... - Page 13 TXD# CTS# DTR# RI#2 Ground CN5:SPI Pin Header Define Pin Define +3.3V Ground SCLK MISO MOSI NONE CN6: USB Pin Header Define Define USB1N USB2N- USB1P USB2P Ground Ground Ground CN7: Port 80 Connector AEWIN Technologies Co., Ltd Jan., 2013...
- Page 14 Define Define +3.3V LAD0 LAD1 LAD2 LAD3 6 LFRAME_N PLTRST_N PORT80_PCLK 10 CN8: VGA pin header Define Define GREEN BLUE Reserved RED RTN GREEN RTN BLUE RTN Reserved HSYNC VSYNC Reserved CN10: CPU FAN AEWIN Technologies Co., Ltd Jan., 2013...
- Page 15 CN12: PCIE x4 Slot (Option, only support PCI-E x1/x2) +12V PRSNT1# +12V +12V +12V +12V SMCLK SMDAT +3.3V TRST# +3.3V 3.3Vaux +3.3V WAKE# RST# RSVD CLK+ CLK- PRSNT2-1# RSVD RSVD PRSNT2-2# RSVD Define Define +12V +12V +12V +12V +12V AEWIN Technologies Co., Ltd Jan., 2013...
- Page 16 +3.3V TEST +3.3V +3.3V +3.3V +3.3V +3.3V PLTRST PWROK A13 PCIECLKP TXP5 A14 PCIECLKN TXN5 RXP5 B17 SLOT_+5V A17 RXN5 TXP6 A19 SLOT_+5V TXN6 RXP6 RXN6 B31 PCIESEL A31 CN13: LCM KEYPAD Pin Header AEWIN Technologies Co., Ltd Jan., 2013...
- Page 17 User’s Manual Define ACK# BUSY SLCT Ground CN14: LCM pin header Define Define P_AFD# P_INIT# P_SLIN# LCM_PD1 LCM_PD0 LCM_PD3 LCM_PD2 LCM_PD5 LCM_PD4 LCM_PD7 LCM_PD6 LCM_BK_CTRL BK_CTRLP CN16: USB Connector Define Define AEWIN Technologies Co., Ltd Jan., 2013...
- Page 18 CN18/CN19/CN20/CN21/CN22/CN23: LAN RJ-45 Connector Define Chassis Ground Chassis Ground Chassis Ground Chassis Ground D1: Speed indicated LED 1 Gbps GREEN 100 Mbps YELLOW D2 :Link/Activity LED Link GREEN Activity BLINKING CN25: DC +12V Power Jack (2Pin) AEWIN Technologies Co., Ltd Jan., 2013...
- Page 19 JTAG2(B) SMDAT(B) JTAG3(B) GND(P) JTAG4(B) 3.3V(P) JTAG5(B) JTAG1(B) 3.3V(P) 3.3VAUX(I) 3.3V(P) WAKE*(B) PWRGD(I) RSVD(B) GND(P) GND(P) REFCLK+(I) HSOP0(I) REFCLK-(I) HSON0(I) GND(P) GND(P) HSIP0(O) PRSNT2*(B) HSIN0(O) GND(P) GND(P) Define Define +12V +12V +12V +12V +12V AEWIN Technologies Co., Ltd Jan., 2013...
- Page 20 User’s Manual SMBCLK SMBDAT +3.3V TRST# +3.3V +3.3V +3.3V PLTRST PWROK A13 SLOTCLKP B14 SLOTTXP A14 SLOTCLKN B15 SLOTTXN A15 A16 SLOTRXP A17 SLOTRXN PW1: HDD POWER Define +12V AEWIN Technologies Co., Ltd Jan., 2013...
- Page 21 Jumper Setting JP1: PCI-E slot +5V voltage selection Setting CLOSE OPEN JP2: PCI-E x1/x2 selection PCI-E Slot PCI-E x1 PCI-E x2 JP3: Clear CMOS Setting Normal (Default) Clear CMOS JP6: GPI/Reset selection Setting RESET AEWIN Technologies Co., Ltd Jan., 2013...
-
Page 22: Compactflash Tm Card Socket Pin Define
Assignment Assignment Assignment Ground 11 Ground RESET 12 Ground ORDY 13 VCC DREG 14 Ground DACK 15 Ground 16 Ground 17 Ground RDY/BSY Ground 18 A02 Ground 19 A01 SCSE Ground 20 A00 Ground AEWIN Technologies Co., Ltd Jan., 2013... -
Page 23: Chapter 3. Utility & Driver Installation
Please install the GbE modules properly before you install the OS, driver or other software. 3.1 Operation System Supporting SCB-6980 can support Windows® and Linux® operation system as follows. Before installation, please check your OS version. If your OS is not in the following list, please upgrade your OS version. -
Page 24: System Driver Installation
SCB-6980 offers the system driver in the setup CD. Please install the driver following the procedures. 3.3 LAN Driver Installation SCB-6980 offers the LAN driver in the setup CD. Please click the Autorun file and install the driver following the procedures. 1. Insert the setup CD of SCB-6980 into your CD-ROM drive. -
Page 25: Appendix C: System Resources
Appendix C: System Resources Interrupt Controller: The SCB-6980 is a fully PC compatible appliance. If you would like to use extra add-on cards, please make sure that the IRQs do not conflict. Any remaining IRQs then may be assigned to this PCI Bus. You are able to use Microsoft’s Diagnostic (MDS.EXE) utility included in Windows directory to... - Page 26 User’s Manual DMA7 Free Memory Map: The following table indicates memory of SCB-6980. The address ranges specify the runtime code length. Memory below 1MB (1MB ~ 640KB) Address Range Type Owner A0000 ~ AFFFF VGA Adapter B0000 ~ BFFFF VGA Adapter...
- Page 27 D000 ~ DFFF PCI-PCI Bridge E000 ~ EFFF PCI-PCI Bridge F000 ~ F01E PCI-PCI Bridge F020 ~ F03E USB Controller F040 ~ F05E USB Controller F060 ~ F07E USB Controller F140 ~ F146 VGA Adapter AEWIN Technologies Co., Ltd Jan., 2013...
-
Page 28: Appendix D: Cable Development Kit
User’s Manual Appendix D: Cable Development Kit The SCB-6980 offers some cables for development use. DK001 Item & Description Part No. Ethernet Cat.5 Cable 2M/ RoHS 46L-EC5200-00 Cross Over 2M Color/ RoHS 46L-CO5202/4-00 RJ45 to DB9 2M Cable/ RoHS 46L-RJDB91-00...
