Hardware Setup Guide
Unpacking
Step. 1

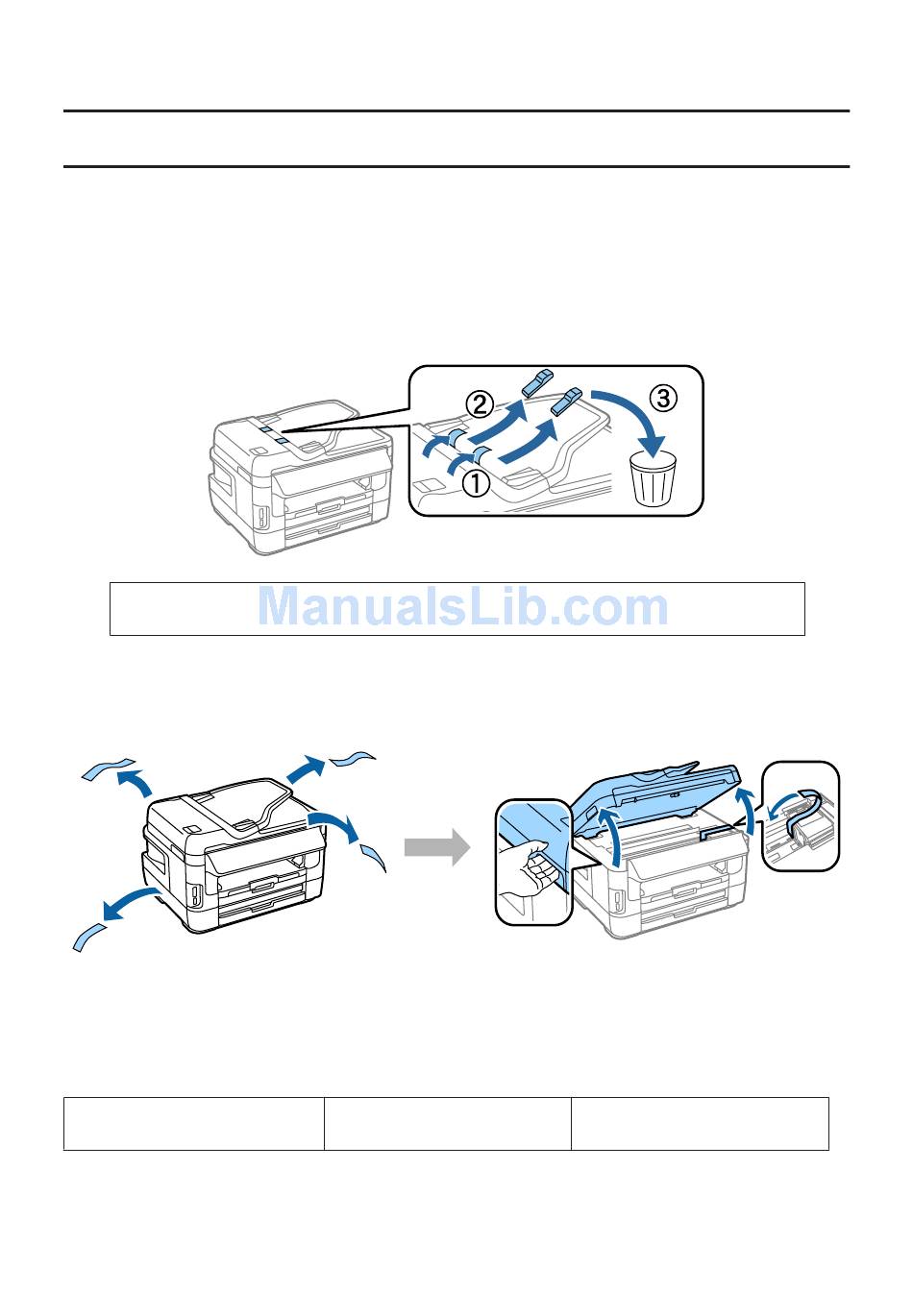

Remove all protective materials.
The illustrations in this manual are for a similar model. Although they may differ from your actual model, the
method of operation is the same.
Step. 2
Remove all protective materials.
Connecting the Product to a Phone Line
Connect a phone cable to the LINE port on the back of the product. Choose one of the following.
Connecting to PSTN (standard phone
line ) or PBX
Hardware Setup Guide
Connecting to DSL
1
Connecting to ISDN

Advertisement

Table of Contents
loading

Related Manuals for Epson NPD4909-01

Summary of Contents for Epson NPD4909-01

  • Page 1 Epson NPD4909-01 EN Hardware Setup Guide Hardware Setup Guide Unpacking Step. 1 Remove all protective materials. The illustrations in this manual are for a similar model. Although they may differ from your actual model, the method of operation is the same.

  • Page 2: Connecting A Phone Device

    Epson NPD4909-01 EN Hardware Setup Guide Telephone wall jack or PBX port If you have a PBX console in the room, connect the telephone cable from the console to the LINE port. DSL filter If your DSL modem is equipped with a built-in DSL filter, you do not need a separate DSL filter.

  • Page 3: Turning On The Printer

    Epson NPD4909-01 EN Hardware Setup Guide Turning on the Printer Step. 1 Connect the power cable and plug it in. Step. 2 Turn on the printer. If an error occurs check that no protective material has been left inside the printer.

  • Page 4: Selecting A Language, Country, And Time

    Epson NPD4909-01 EN Hardware Setup Guide Selecting a Language, Country, and Time Go to the printer, and then follow the instructions to select your language, country/region, and time. Installing Ink Cartridges Step. 1 Raise the scanner unit and open the ink cartridge cover.
  • Page 5 Epson NPD4909-01 EN Hardware Setup Guide Step. 2 Gently shake all ink cartridges four or five times, and then remove the cartridges from their packaging. ❏ For the initial setup, make sure you use the ink cartridges that came with this printer.

  • Page 6: Loading Paper

    Epson NPD4909-01 EN Hardware Setup Guide Step. 4 Close the ink cartridge cover and the scanner unit slowly. Ink charging starts. Wait until the charging is finished. Loading Paper Step. 1 Pull the paper cassette all the way out, and then remove the cover.
  • Page 7 Epson NPD4909-01 EN Hardware Setup Guide Slide the side edge guides until they are flush with the edges of the paper. Step. 3 Reattach the paper cassette cover. Keep the cassette flat and slowly and carefully reinsert it all the way into the product.

  • Page 8: Selecting Paper Source Settings

    Epson NPD4909-01 EN Hardware Setup Guide Selecting Paper Source Settings Go to the printer, and then select the paper source settings. Select the paper size and paper type that you have loaded. If your printer has two cassettes, choose which cassette you want to setup, and then select the paper source settings.
  • Page 9 Epson NPD4909-01 EN Hardware Setup Guide 1. The type of paper you use has an influence on the environmental impact of your printer. Choosing paper certified under environmental stewardship initiatives, such as EN 12281:2002, or carrying recognised ecolabels, can help reduce your impact on the environment through the initiatives the manufacturers implement.
