- Page 1 MusiCall User manual MAX 8.8 – MAX8.8D MAX8.16 – MAX8.16D...
- Page 2 MusiCall user manual Notes...
-
Page 3: Safety Instructions

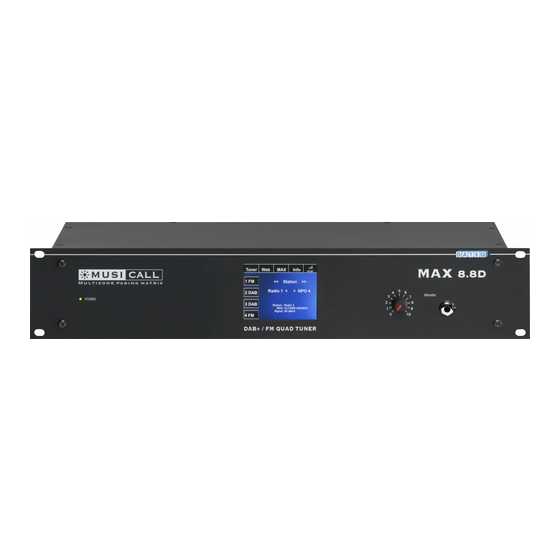

MusiCall user manual Safety instructions All safety instructions, warnings and operating instructions must be read first. All warnings on the equipment must be heeded. The operating instructions must be followed. Keep the operating instructions for future reference. The equipment may never be used in the immediate vicinity of water; make sure that water and damp cannot get into the equipment. - Page 4 16 mono RCA inputs and optional 8 local audio inputs. Each can be equipped with it’s own MRC wall controller and MRA local Musicall MAX8.8 audio input. Configuration and control possible using the internal webserver. The MAX8.8D is the DAB+ central matrix equipped with a quadruple DAB+/FM and WEB tuner.
- Page 5 MusiCall user manual Matrix connections Audio inputs The Matrix allows to connect several audio inputs like CD players, MP3 players, computers or satellite receivers. Zone control To control the different audio zones wall controllers can be connected to the matrix. Using these controllers each zone can select an audio source and set it’s desired volume.
-
Page 6: User Control
MusiCall user manual User control Wallunits MRC3 – MRC4 The wallunits are placed into the different rooms (zones) and are connected using a two wire connection to the matrix. The wallunits are placed into a standard flush box (MRC3) or can be mounted onto the wall (MRC4). Using these wallunits users can access volume control and audio source selection. - Page 7 MusiCall user manual Control WallUnits The audio source for a zone can be selected by pressing ‘channel +’ or ‘channel -‘. The number of sources sequence depends matrix configuration. By pressing the ‘channel +’ and ‘channel - ‘ simultaneously, the local audio input will be selected. Adjusting the volume for a zone is done by pressing ‘volume +’...
- Page 8 MusiCall user manual Consoles Paging zones Each button contains a zone or number off zones that can be changed using the configuration website. On addressing a zone, the LED turns red. At this point the ‘chime’ is heard. On the LED turning green, a voice call can be made.
- Page 9 MusiCall user manual DAB+ / FM QUAD Tuner The MAX8.8D and MAX8.16D are equipped with a quadruple DAB+/FM and a single web stream tuner. Using the touch screen display control is made possible. Adding to tuner functionality monitoring sources though the headphone is made possible and vital information about the system can be reviewed.
- Page 10 MusiCall user manual Web encoder Within the Web tab all preset stream sources can be monitored. After selecting the desired web stream the encoder will connect to the stream server and monitoring can be done using the front panel headphone connection. Adjusting the web stream source will affect all zones that have selected web stream as source.
-
Page 11: Technical Specifications
MusiCall user manual Technical Specifications AUDIO INPUTS INPUT 1...8 Signal level............0 dBu Impedance ............10 kOhm Input noise ............< -78 dB (IHF-A) Crosstalk between inputs ........ < -72 dB @ 1kHz Input attenuators ..........0...25 dB steps of 0.5 dB Headroom ............ -
Page 12: Product Support
MusiCall user manual Product support For questions about the Musicall system, parts and other products you can contact your local dealer or: Dateq Audio Technologies B.V. De Paal 37 Telephone: 0031 36 54 72 222 1351 JG Almere Fax: 0031 36 53 17 776...
