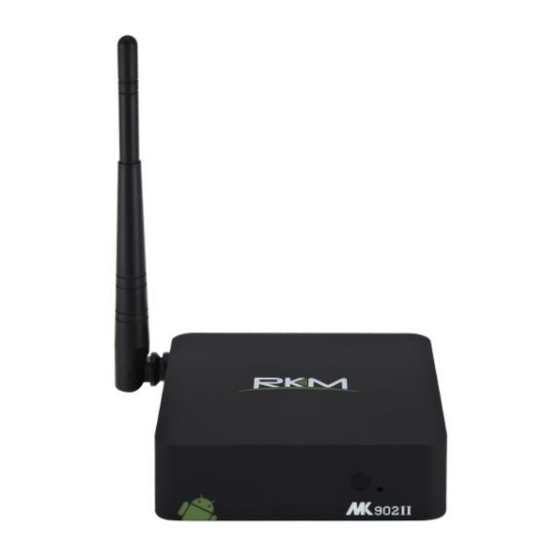

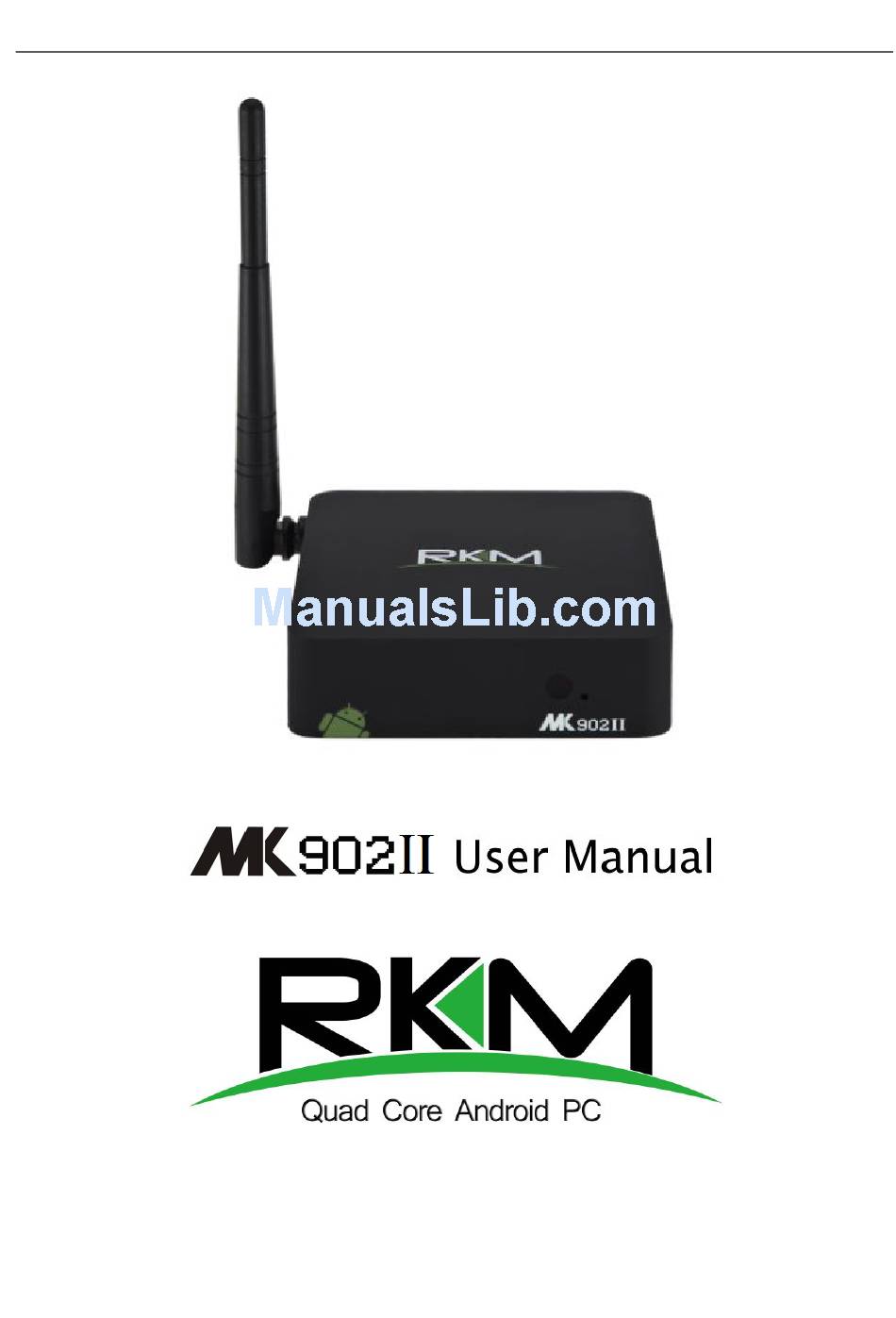

- Page 1 RKM MK902II User Manual Shenzhen Rikomagic Tech Corp.,Ltd Page0...
-
Page 2: Table Of Contents
RKM MK902II User Manual Table of Contents Declaration..............................2 1. MK902 hardware introduce......................... 3 1.1 Connector MK902II..........................3 1.2 Device connection Instruction......................4 2. Remote control definition........................5 3. Boot state..............................6 4. Main Screen Introduction........................7 4.1 Function column..........................7 4.2 Status bar............................8 4.3 Application............................ -
Page 3: Declaration
RKM MK902II User Manual Declaration The user manual includes all the information of safe and correct operation instruction. To avoid accident and product damaged, please make sure go through all the content carefully before using the product. Please keep the product away from high temperature, humid and dusty environment. -
Page 4: Mk902 Hardware Introduce
Take out the device insert into your TV HDMI port through HDMI cable, make sure TV setting is HDMI input mode.(Refer to TV set user manual). b) Charge MK902II by power adapter. c) Suggest using 2.4G wireless keyboard or mouse. Plug 2.4G receiver on USB Host connector, if only mouse plugged, the device will provide soft keyboard during operation;... -
Page 5: Remote Control Definition
RKM MK902II User Manual 2. Remote control definition Power button: once press to sleep or awake; long press to power off or power on. Mute: during playing press this button to turn off or turn on audio output. Page4... -
Page 6: Boot State
RKM MK902II User Manual Home: press this key to return main menu screen. Menu：During playing or browsing webpage, press this button to pop up hidden menu. Up/down/left/right button: During menu setting or file browse, press these arrow keys to select corresponding files; During playback, up/down arrows can be used as volume up,volume down. -
Page 7: Main Screen Introduction
RKM MK902II User Manual If user want to take pure android launcher, then access Setting Home select Laucher3, press to go to desktop. 4. Main Screen Introduction 4.1 Function column Page6... -
Page 8: Status Bar
RKM MK902II User Manual Return button: click to return to previous directory; Homepage button: click it anytime to return to main menu; Program button: Click to check all the running program; Screenshot icon, press this icon to take screenshot. Volume decrease button: Click to decrease volume;... -
Page 9: Settings
RKM MK902II User Manual 1. If the preloaded APP is beyond the first page, drag the page towards right or rolling the mouse roller to the second page to find other Apps; 2. If you want, you can long-press the APP and drag onto the desktop. -
Page 10: Wifi Setting
RKM MK902II User Manual 5.1 WIFI Setting Once turn on WiFi, the MK902II will auto search available wireless router within 20 meters, user just choose a router and input correct password to connected network. 5.2 Ethernet Setting If there is no WIFI in the house, suggest to connect a USB LAN adapter (please select right matched USB LAN adapter) to setting Ethernet. -
Page 11: Sound
RKM MK902II User Manual 5.7 Sound This is for Sound settings; Volume: Control volume level; Operate prompt tone: Setting prompt tone during operating; Screen saver sound: Setting screen saver sound. 5.8 Display Font size: Setting font size according to your favorite. -
Page 12: Apps
RKM MK902II User Manual The balance space is equal to the sum of two partitions. 5.11 Apps In this option, user could view installed and running Apps, at same time could check DDR parameters. 5.12 Security User can set password according to their request. -
Page 13: Install/Uninstall Apps
Long-press a file or folder to pop-up a menu, including: Copy, Delete, Move, Paste, Rename options, if no need execute operation, just click “cancel”. 7. Install/Uninstall Apps MK902II supports many commonly used third-party Apps. You can install or uninstall Apps freely; there are two methods available for installing Apps. 7.1 Online installation Please login Google Play store or other Android marketing to download Apps (User should have Gmail account if download from Google play store);... -
Page 14: Uninstall Apps
RKM MK902II User Manual 7.3 Uninstall Apps Click SettingsApps, click an Apps you want to uninstall, the uninstall window will pop up click uninstall to uninstall. If you don′t want to uninstall just exit. 8. DLNA DLNA : Through some special APP(such as iMediaShare Lite.), all the multimedia files can be pushed from smart phone or Android tablet PC to big screen, user can share those pictures/music/videos with family or friends freely. -
Page 15: System Recovery/Update
RKM MK902II User Manual 13. System recovery/update If your MK902II has following issues, please solve these issues by recovery/update methods. 1. If you need update to the latest firmware, 2. After boot, there is no signal; 3. There is only boot screen;... - Page 16 RKM MK902II User Manual 13.1.2 Connect MK902II with computer. 1. Prepare USB cable and plug into PC USB port first(don't connect with USB slave now) 2. Prepare a thin metal stick, press the recover button by the stick according below method.
- Page 17 RKM MK902II User Manual 3. Don’t loose the stick, at same time, plug the USB cable to USB slave port of the MK902II, after 3-5s,loose the stick. 13.1.3 USB driver installation. There will pop up a guide window to install new driver.
- Page 18 RKM MK902II User Manual Choose the options as picture display, click “Browse”, find out “USB Driver”, click “Next” to install. If installation finished, computer will pop up below window, click “Finish” to finish. 13.1.4 How to recovery/update by RKBatch Tool After installation, the “connect device”...
- Page 19 RKM MK902II User Manual Then Click “restore” (the third button of below picture) for recovery, as below. This procedure will take around 3minutes, please wait patiently, during recovery/upgrade, don’t remove the USB cable.Till below screen appeared, means recovery is successful.
-
Page 20: Recovery/Update On Windows Win7 System
RKM MK902II User Manual 13.2 Recovery/update on Windows WIN7 system 13.2.1 Download FW and RKBatch Tool Pls refer to 13.1.1. 13.2.2 Connect MK902 II with computer through USB slave. Pls refer to 13.1.2 13.2.3 Install the USB driver. Press “computer” with right key, computer---management--device management--other device, pls check below picture. - Page 21 RKM MK902II User Manual Double click unknown device. Press update driver,Click browse for driver software on your computer. And choose the correct driver. If your computer is WIN7 32bit, choose x86--win7; if it is WIN7 64bit, choose x64—win7. Page20...
- Page 22 RKM MK902II User Manual Press next, will pop up below window, Click on the image below red circle option.Click install. Till below screen appear, means driver installed successfully. Page21...
- Page 23 RKM MK902II User Manual 13.2.4 How to upgrade or restore by RKBatch Tool. Pls refer to 13.1.4. Shenzhen Rikomagic Tech Corp.,Ltd Add: 7F Bao’de Industrial Center, Lixin South RD,Fuyong Street, Bao'an,Shenzhen,China,518103 Official website: www.rikomagic.com Tel: 86-755-29981801; Fax: 86-755-27317052 After service: service@rikomagic.com...
