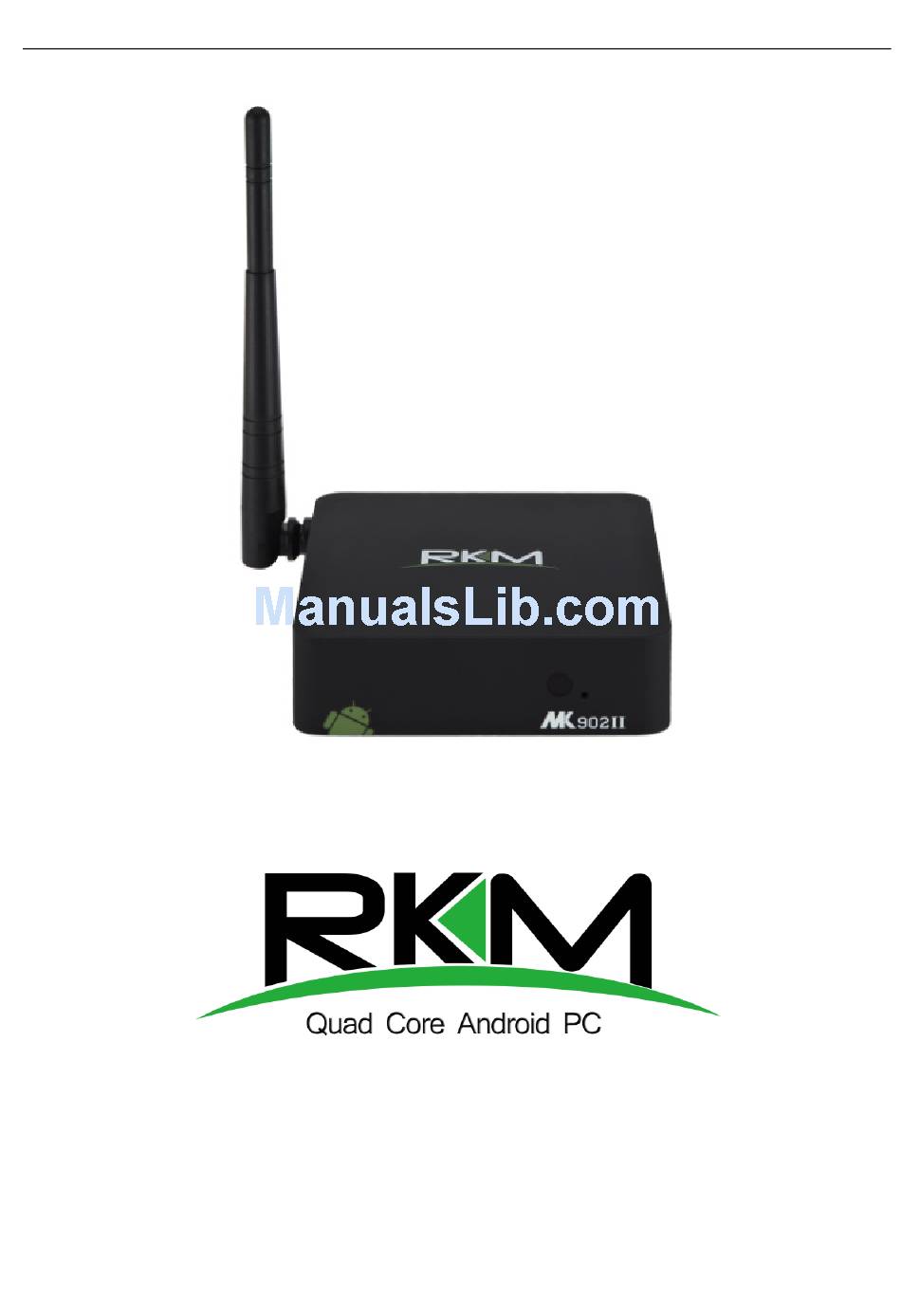

- Page 1 MK902II User Manual Shenzhen Rikomagic Tech Corp.,Ltd...
- Page 2 FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Table Of Contents
MK902II User Manual Table of Contents Declaration ................................. 2 Connector..............................3 ................................... 3 2. Device connection Instruction......................... 3 3. Boot state ............................... 3 4. Main Screen Introduction..........................5 4.1 Move/Delete desktop icon ........................5 4.2 Function column ............................ 6 4.3 Status bar .............................. 7 4.4 Application............................. -
Page 4: Declaration
MK902II User Manual Declaration The user manual includes all the information of safe and correct operation instruction. To avoid accident and product damaged, please make sure go through all the content carefully before using the product. Please keep the product away from high temperature, humid and dusty environment. -
Page 5: Connector
Take out the device insert into your TV HDMI port through HDMI cable, make sure TV setting is HDMI input mode.(Refer to TV set user manual). b) Charge MK902II by power adapter. Mouse left button for “ok”, right button for “return”, rolling for page up and page down, Keep holding left button to drag icon or copy/paste file. - Page 6 MK902II User Manual Then access to boot animation; After around 30 seconds, device would access to main screen;...
-
Page 7: Main Screen Introduction
MK902II User Manual 4. Main Screen Introduction 4.1 Move/Delete desktop icon Long-press any icon on the main menu, you could put it in any position as you like, at the same time you could put the other apps shortcut to the desktop. -
Page 8: Function Column
MK902II User Manual Move the cursor to any space and drag towards left or right for page rolling. Also you can use the mouse wheel for rolling page. 4.2 Function column Return button: click to return to previous directory;... -
Page 9: Status Bar
MK902II User Manual Homepage button: click it anytime to return to main menu; Program button: Click to check all the running program; Volume decrease button: Click to decrease volume; Volume increase button: Click to increase volume; Properties button: in different apps, it shows different contents. It′s equivalent to Windows properties button;... -
Page 10: Application
MK902II User Manual 4.4 Application Click to pop up all the installed APP and setup tools icon. If the preloaded APP is beyond the first page, drag the page towards right or rolling the mouse roller to the second page to find other Apps;... -
Page 11: Settings
MK902II User Manual 5. Settings In the system user can setup according to their own requirements, such as network connection, language, input methods, Video output resolution, Sound output and check storage space. Access to setting to pop up below screen. -
Page 12: Wifi Setting
MK902II User Manual 5.1 WIFI Setting Once turn on WiFi, the MK902II will auto search available wireless router within 20 meters, user just choose a router and input correct password to connected network. 5.2 Ethernet Setting If there is no WIFI in the house, suggest to connect a USB LAN adapter (please select right matched USB LAN adapter) to setting Ethernet. -
Page 13: Sound
MK902II User Manual 5.7 Sound This is for Sound settings; Volume: Control volume level; Operate prompt tone: Setting prompt tone during operating; Screen saver sound: Setting screen saver sound. 5.8 Display Font size: Setting font size according to your favorate. -
Page 14: Apps
MK902II User Manual 5.11 Apps In this option, user could view installed and running apps, at same time could check DDR parameters. 5.12 Security User can set password according to their request. 5.13 Language & input 1. Setting menu language here, there are more than 60 languages build in already. -
Page 15: Install/Uninstall Apps
Long-press a file or folder to pop-up a menu, including: Copy, Delete, Move, Paste, no need execute operation, just click “cancel”. 7. Install/Uninstall Apps MK902II supports many commonly used third-party apps. You can install or uninstall apps freely, there are two methods available for installing Apps. 7.1 Online installation Please login Google Play store or other Android marketing to download Apps (User should have Gmail account if download from Google play store);... -
Page 16: Uninstall Apps
MK902II User Manual 7.3 Uninstall Apps Click Settings Apps, click an Apps you want to uninstall, the uninstall window will pop up click uninstall to uninstall. If you don′t want to uninstall just exit. 8. DLNA DLNA : Through some special APP(such as iMediaShare Lite.), all the multimedia files can be pushed from smart phone or Android tablet PC to big screen, user can share those pictures/music/videos with family or friends freely. -
Page 17: Local Audio & Video Playback
MK902II User Manual New opened webpage will be shown on the screen as tag, click “+” to add new webpage, click “x“ to close the webpage. 10. Local audio & video playback Through the file manager, user can browse & playback those contents of TF card, USB flash or USB HDD. -
Page 18: Switch Input Methods
12. Switch input methods Click the keyboard icon at the right-bottom status bar from desktop; Check below screen, select corresponding favorite IME(Input method editor) 13. System recovery/update If your MK902II has following issues, please solve these issues by recovery/update methods. -
Page 19: Recovery/Update On Windows Xp System
MK902II User Manual 1. If you need update to the latest firmware, 2. After boot, there is no signal; 3. There is only boot screen; 4. System running very slow, crashing; 5. Can’t find the wireless network equipment, or can’t connect wireless;... - Page 20 MK902II User Manual Second, connect MK902II with computer. 1. Prepare USB cable and plug into PC USB port first(don't connect with USB slave now) 2. Prepare a thin metal stick, press the recover button by the stick according below method.
- Page 21 MK902II User Manual 3. Don’t loose the stick, at same time, plug the USB cable to USB slave port of the MK902II, after 3-5s,loose the stick. Third, USB driver installation There will pop up a guide window to install new driver.
- Page 22 MK902II User Manual Choose the options as picture display, then click browse, find out , then click “next” to install. When finished installation, the computer will pop up below window, then click“finish”...
- Page 23 MK902II User Manual After installation, the “connect device” icon on the “batch tool” will changed to blue, as below: Then Click “upgrade” (the second button of below picture) for recovery, as below.
- Page 24 MK902II User Manual This procedure will take 3 minutes also, please wait patiently, during recovery/upgrade, don’t remove the USB cable. When this above prompt window appears, then means recovery is successful, pull out USB cable, then...
-
Page 25: Recovery/Update On Windows Win7 System
MK902II User Manual total process is finished. 13.2 Recovery/update on Windows WIN7 system First, download recovery tool, driver and recovery firmware(img file) from official website. Download, decompression the folder and find to double click, below screen will pop out, then add img file. - Page 26 MK902II User Manual 6. Don’t loose the stick, at same time, plug the USB cable to USB slave port of the MK902II, after 3-5s,loose the stick. Third, install the USB driver. Press “computer” with right key, computer---management--device management--other device, pls check...
- Page 27 MK902II User Manual Double click unknown device. Press update driver,Click browse for driver software on your computer. And choose the correct driver. If your computer is WIN7 32bit, choose x86--win7; if it is WIN7 64bit, choose x64--win7.
- Page 28 MK902II User Manual Press next, will pop up below window, Click on the image below red circle option.Click install. Then pls wait for installation. See below picture.
- Page 29 MK902II User Manual Now the driver was installed successfully. Press close. After successful installation, the batch tool will...
- Page 30 MK902II User Manual connect the MK902II automatically. If it can’t connect automatically, pls reconnect the MK902II to the computer by USB cable again. Then Click “upgrade” for recovery, as below.
- Page 31 MK902II User Manual This procedure will cost 3minutes also, pls wait patiently, during recovery/upgrade, don’t remove the USB cable. When this prompt window appears, then means recovery is successful, pull out USB cable, then total process is finished.
-
Page 32: Question & Answer
MK902II User Manual Notice: 1.Don’t power off during updating or recovering. 2.Same computer just need install driver for one time. 3.First turn on the unit after recovery/update will cost more long time, and even occur some lag issue, it’s normal since internal apk file need be decompressed and occupy RAM, after 5 minutes, then system running well. -
Page 33: Specifications
MK902II User Manual Specifications Model# MK902II Rockchip 3288 Quad core, 28nm Android4.2 2G DDR3 Memory Expand Micro SD T-Flash(Maximum support 32GB) Browser Browse webpage Video Format WMV/ASF/MP4/3GP/3G2M4V/AVI/MJPEG/RV10/DivX/VC-1/MPEG-2/MPEG -4/H.263/H.264/1280*720P HD 30 fps, 1080P/720*480 D1 30fps Audio Format MP3/WMA/APE/FLAC/AAC/OGG/AC3/WAV Music Can be connected to the Internet, listen to music online Picture format Max.8000x8000 JPEG BMP GIF PNG...
