Channel Vision IC824 Instruction Manual page 2

Model IC824
Channel Vision's ARIA™
installation speakers feature high power handling capability
providing true stereo quality sound and not simply
background music. The pivoting tweeter and 15º angled
woofer can be aimed to any position to custom fit any room,
making them perfect for home theater applications as well as
whole-house audio . High quality materials ensure long life
and great performance. Gold speaker wire terminals not only
provide better contact surface but also offer less resistance
to signal transfer for a clearer sound.
Features:
8" High performance in-ceiling loudspeaker
h
High power handling capacity
h
Recommended power: 20W to 200W (peak)
h
Gold speaker terminals
h
Pivoting tweeter technology with 1" voice coil
h
1.5" Soft dome midrange driver
h
15º angled Kevlar woofer with butyl rubber surround
h
Small perforated designer grill
h
2

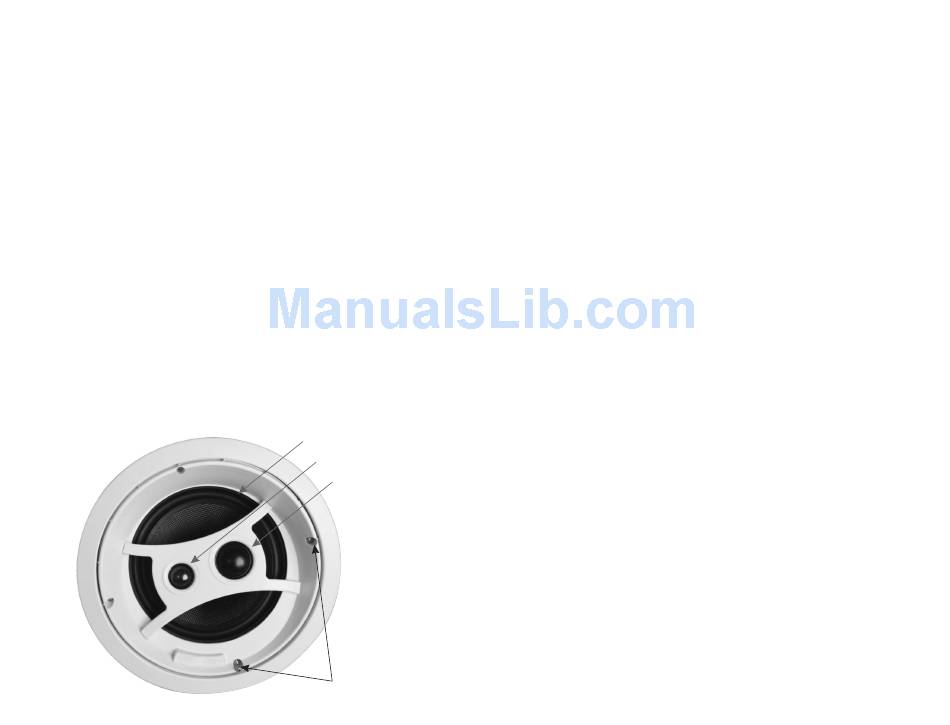

IC824 8" in-ceiling custom
15º Angled Woofer
Pivoting tweeter
Midrange Driver
Mounting screws (4)
Installation:
Use the provided template to mark and cut a 9.88" hole in
h
drywall away from ceiling joists.
We recommend AWG 16
h
For proper phasing, both speakers must be wired alike.
h
Connect red wires to red terminals on the speakers and to
red or plus terminals on the amplifier.
Install IC824 in the hole. Tighten the mounting screws.
h
The mounting "dogs ears" will rotate outward and grip the
drywall. D O OT N O VER IGHTEN
operated drill on a "low clutch" setting is recommended.
Aim tweeter
h
To control the volume of the speaker locally, use an
h
impedance matching volume control, such as the Channel
Vision VC-302.
Specifications:
Frequency range: 40Hz - 22kHz ± 6dB
Crossover: 12dB/octive (low pass)
6dB/octive (mid pass)
12dB/octive (high pass)
Sensitivity: 90dB (1W/1m)
Power Handling: 200 Watts peak
Drivers: 1- 1" Neodymium soft dome
1- 1.5" Soft dome midrange driver
1- 8" 15º Angled Kevlar woofer
Magnet: 22-ounce ferrite magnet
Impedance: 8 ohms
Finish: ABS plastic
Dimensions: 10
(from surface of wall board)
hole size: 9.88 diameter
stranded wire or larger.
T the screws . A battery
pivoting tweeter
-¾" OD. 4-½ height "
"
Specifications subject to change without notice.
3
