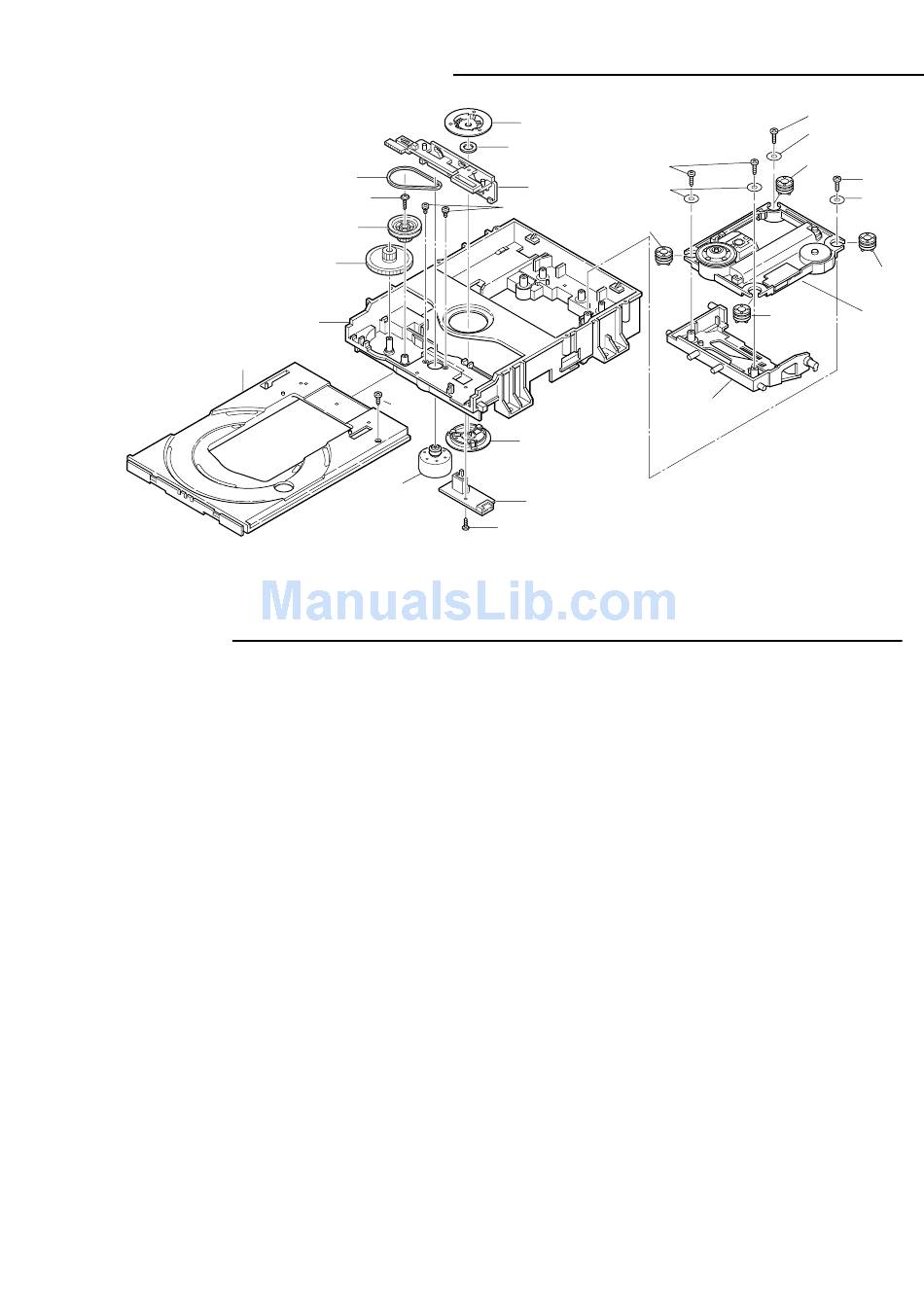

EXPLODED VIEW (DVD MECHANISM)

DM09
DM10

PARTS LIST

DVD MECHANISM CHASSIS
REF.NO.
PART NO.
12
614 332 9442 ASSY,MECHA,LDR898 SA,
DM01
614 325 0074 DISC,CHUCK DISC
DM02
645 051 4920 MAGNET(CHUCK),MAGNET CHUCK
or
645 054 0448 MAGNET(CHUCK),MAGNET CHUCK
DM03
614 325 4591 SLIDE,BASE UP/DOWN
DM04
411 020 0503 SCR PAN PCS 1.7X4,
DM05
614 325 6021 BELT,SQUARE,LOADING
DM06
412 065 3603 SPECIAL SCREW 2.0X8.0,
DM07
614 325 4584 PULLEY,LOADING RETARD PULLY
DM08
614 325 4492 GEAR,LOADING GEAR
DM09
614 329 6317 CHASSIS,LOADING CHASSIS
DM10
614 329 6348 TRAY,TRAY
DM11
645 057 4467 ASSY,MOTOR,LOADING,
or
645 057 4603 ASSY,MOTOR,LOADING,
DM12
614 325 0081 HOLDER,CHUCK HOLDER
DM14
411 021 3008 SCR S-TPG BIN 2.6X8,
DM15
411 021 1608 SCR S-TPG BIN 2.6X10,BASE FIX
DM16
411 188 3200 WASHER Z 2.6X10X0.5,BASE FIX
DM19
614 332 9459 SPACER,MECHA,
DM20
614 329 6324 MOUNTING,
DM21
614 329 4979 ASSY,MECHA,MSA100 BASE,
DM22
411 099 0503 SCR TPG PAN PCS 1.7X6,
DM05
DM06
DM07
DM08
DM22
DM11
DESCRIPTION
MECHANISM ASSY
LOADING MOTOR FIX
PULLEY FIX
LOADING MOTOR
LOADING MOTOR
PWB MECHA SW FIX
BASE MECHA FLOATING
BASE MECHA MOUNTING
BASE MECHA
TRAY STOPPER
DM01
DM02
DM15
DM03
DM16
DM04
DM19
DM12
DM13
DM14
MECH SW P.W.BOARD ASSY
REF.NO.
PART NO.
DM13
614 326 1605 ASSY,PWB,MECHA SW,
CN001
614 310 2618 PLUG,5P,MOTOR&SW PWB CONNE
or
645 006 0922 PLUG,5P,MOTOR&SW PWB CONNE
S0001
645 057 1381 SWITCH,LEVER,MECHA SW
- 16 -
DM15
DM16
DM19
DM19
DM20
DESCRIPTION
MOTOR&SW PWB
DM15
DM16
DM19
DM21
