Kohler Free Freight RKPX60390 Parts List

Kohler Free Freight RKPX60390 Parts List

Complete genuine kohler engine fits jacobsen greens king ii
Hide thumbs

Advertisement

Quick Links

Download this manual
Genuine Kohler
Miniblock
includes Gasket Kit
RK4778298
895.30
GASKET SET
SEALS
WITH
RK4775508
49.55
Model K321S
Fits Jacobsen Greens King II
Complete Genuine

Kohler Engine

R&R Part # RKPX60390
Fits Jacobsen Greens King II
1,794.45
Genuine Kohler
Shortblock
includes Gasket Kit
RK7752255
1,346.50
K SERIES SINGLE CYLINDER
ENGINE SERVICE MANUAL
RKTP2379
15.65
Spec. 60390
521

Advertisement

loading
Need help?

Need help?

Do you have a question about the Free Freight RKPX60390 and is the answer not in the manual?

Questions and answers

Related Manuals for Kohler Free Freight RKPX60390

Summary of Contents for Kohler Free Freight RKPX60390

  • Page 1: Kohler Engine

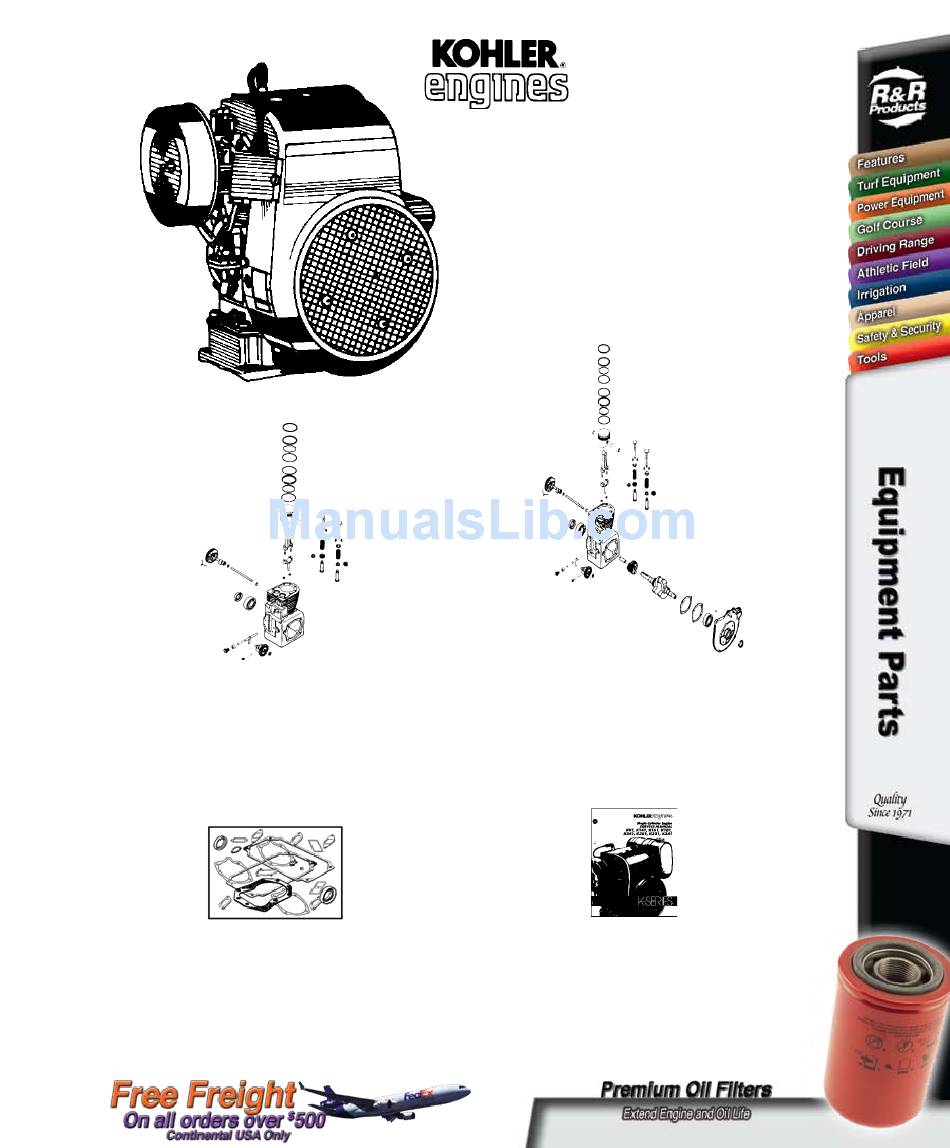

    Genuine Kohler Miniblock includes Gasket Kit RK4778298 895.30 GASKET SET SEALS WITH RK4775508 49.55 Model K321S Spec. 60390 Fits Jacobsen Greens King II Complete Genuine Kohler Engine R&R Part # RKPX60390 Fits Jacobsen Greens King II 1,794.45 Genuine Kohler Shortblock...
  • Page 2 Kohler Reed, Breather Kohler Gasket, Valve Cover Kohler Baffle, Breather Kohler Filter, Breather Kohler Stud, Valve Cover Kohler Plate, Breather Use RKA235418 Kohler Cover, Valve, Incl. #6 & 7 Kohler Gasket Use RK5241301 Kohler Rotator Kohler Retainer, Spring Upper Kohler Spring, Valve Use RK4738009...
  • Page 3 RK200375 200375 Kohler Gasket, Bowl RK200408 200408 Use RK2575703 RK2575703 25 757 03 Kohler Kit, Float Repair, Incl. #19 1 RK4710301 47 103 01 Kohler Needle, Main Fuel Adjusting 1 RK200383 200383 Kohler Spring, Idle Fuel Adjusting 1 RK200439 200439...
  • Page 4 Kohler Kit, Spacer Kohler Timing Tool, Kohler Stud Use RK4704115 Kohler Gasket, Cylinder Head Kohler Head, Cylinder 113.25 Kohler Screw, H.C. 3/8-16 x 1 1/2 A/R Kohler Screw, H.C. Kohler Washer Use RK4744502 Kohler Strap, Lifting Kohler Nut, Hex 3/8-16 Use RK4712308...
  • Page 5 Part No. Part No. Description Electric Start - Group 11 RKX221 X-22-1 Kohler Washer 3/8 RK234948 234948 Kohler Screw, H.C. 3/8-16 x 1 11/32 2 RKA237534 A-237534 Use RK4509809 RK4509809 45 098 09 Kohler Starter Assy RK4575515 45 755 15...
  • Page 6 Kohler Ignition Kit Grommet Washer, Plain #8 Screw, R.H.M. 8-32 x 1/4 Kohler Plug, Pipe 3/8 Kohler Screw, H.C. 3/8-16 x 1 1/4 Kohler Gasket, Pan 126.40 Kohler Base, Oil Pan Kohler Rod, Connecting - Standard Kohler Rod, Connecting - .010 Kohler Piston Assy, Standard 131.90...
  • Page 7 Model M16S Spec. 711528 Fits Jacobsen Greens King IV Complete Genuine Kohler Magnum Engine R&R Part # RKPX711528 1,758.00 Genuine Kohler enuine Kohler Shortblock Miniblock includes Gasket Kit includes Gasket Kit R&R Part # RK711528SB R&R Part # RK4578228 1,211.15 885.75...
  • Page 8 Fax 520-294-1045 • www.rrproducts.com Model M16S Fits Jacobsen Greens King IV Qty. Discounted Description Req. Price Each Kohler Screw, H.C. 10-32 x 5/16 Kohler Nut, Wing Kohler Base, Air Cleaner Kohler Cover, Air Cleaner Kohler Element Kohler Precleaner, Element Kohler Gasket, Air Horn...
  • Page 9 Use RK4585312 RK4585312 45 853 12 Kohler Carburetor Assy. RK232555 232555 Kohler Spring, Idle Speed RK232556 232556 Kohler Screw, Idle Speed Adjusting 1 RK200372 200372 Kohler Gasket, Bowl Retainer Screw 1 RK4710006 47 100 06 Kohler Screw, Bowl Retainer RK235448 235448...
  • Page 10 Kohler Bearing, Needle Kohler Kit, Spacer Use RK4504117 Kohler Gasket, Cylinder Head 118.15 Kohler Head, Cylinder Kohler Screw, H.C. 3/8-16 x 1 1/2 9 Kohler Screw, Hex. Socket Hd. Kohler Washer Kohler Strap, Lifting Kohler Tube, Oil Fill Kohler Dipstick Kohler Bracket, Solenoid Kohler Screw, H.C.
  • Page 11 25 086 24 Kohler Screw, Hex. Mach. 3/8-24x1 1/8 RK2515701 25 157 01 Kohler Fan RK2511204 25 112 04 Kohler Spacer 17/64 I.D., 3/8 O.D. 4 15/64 lg. RK2508621 25 086 21 Kohler Screw, Hex. Wash. Hd. 1/4-20x5/8 RK2516202 25 162 02...
  • Page 12 (12.5" - 14 Gauge Uninsulated push-on tab terminals) Kohler Plug, Pipe 3/8 Kohler Screw, H.C. 3/8-16 x 1 1/4 4 Kohler Gasket, Pan 126.40 Kohler Base, Oil Pan Kohler Rod, Connecting - Standard 1 Kohler Rod, Connecting - .010...
  • Page 13 Fits National Mower Complete Genuine Kohler Engine R&R Part # RKPA47827 DISCONTINUED USE SHORTBLOCK OR MINIBLOCK enuine Kohler Miniblock Genuine Kohler Shortblock includes Gasket Set w/Seals includes Gasket Set w/Seals R Part # RK4778252 R Part # RK7752233 & &...
  • Page 14 Kohler Reed, Breather Kohler Gasket, Valve Cover Kohler Baffle, Breather Kohler Filter, Breather Kohler Stud, Valve Cover Kohler Plate, Breather Kohler Cover, Valve, Incl. #6 & 7 Use RK5241301 Kohler Rotator Kohler Retainer, Spring Upper Kohler Spring, Valve Use RK4738009...
  • Page 15 RK200376 200376 Kohler Pin RK200375 200375 Kohler Gasket, Bowl RK2575703 25 757 03 Kohler Kit, Float Repair, Incl. #19 1 RK4510301 47 103 01 Kohler Needle, Main Fuel Adjusting 1 RK200383 200383 Kohler Spring, Idle Fuel Adjusting 1 RK2504102 25 041 02...
  • Page 16 Kohler Timing Tool, Counter Balance Gears Kohler Stud Use RK4704115 Kohler Gasket, Cylinder Head Kohler Head, Cylinder 113.25 Kohler Screw, H.C. 3/8-16 x 1 1/2 A/R Kohler Screw, H.C. Kohler Washer Use RK4744502 Kohler Strap, Lifting Kohler Nut, Hex 3/8-16 Kohler Dipstick Kohler Washer 3/8 Kohler Screw, H.C.
  • Page 17 X-799-1 Kohler Palnut, 1/4-20 RKX40080 X-400-80 Kohler Spacer RK231355 231355 Kohler Pin, Governor Stop RKX7761 X-776-1 Kohler Screw, sems 1/4-20 x 1 1/4 1 RK235476 235476 Kohler Bushing RK235496 235496 Kohler Spring, Governor RK237022 237022 Kohler Washer, Thrust Kohler Kit, Governor Gear...
  • Page 18 Kohler Screw Screw, R.H.M. 8-32 x 1/4 Grommet Washer, Plain #8 Kohler Plug, Pipe Kohler Screw, H.C. 3/8-16 x 1 1/4 4 Kohler Gasket, Pan 136.25 Kohler Base, Oil Pan Kohler Rod, Connecting - Standard 1 Kohler Rod, Connecting - .010 Kohler Piston Assy, Standard 101.75...
  • Page 19 Kohler Miniblock Includes Gasket Set with Seals R&R Part # RK4778298 895.30 GASKET SET RK4775508 49.55 Order Factory Direct 800-528-3446 Fax 520-294-1045 • www.rrproducts.com Model K321S Fits Toro Greensmaster 3 & 300 For Toro Greensmaster 3000 see pages 828-833...
  • Page 20 For Toro Greensmaster 3100 see pages 844-849 Item R&R KOHLER Part No. Part No. Description Air Intake - Group 1 RKX1672 X-167-2 Kohler Screw, H.C. 10-32 x 5/16 RKX2767 X-276-7 Kohler Nut, Wing 1/4-20 RK235101 235101 Kohler Base, Air Cleaner RK235102 235102 Kohler Cover, Air Cleaner...
  • Page 21 Kohler Spring, Idle Fuel Adjusting 1 Kohler Kit, Carburetor Repair Kohler Gasket, Bowl Baffle Kohler Spring, Float Kohler Plug, Hex. ctsk. 3/4 N.P.T.F. 1 Kohler Screw, H.C. 1/4-20 x 1/2 Kohler Screw, H.C. 3/8-16 x 1 Kohler Plug Kohler Seal, Front Oil...
  • Page 22 47 041 15 Kohler Gasket, Cylinder Head RK237670 237670 Kohler Head, Cylinder RK270158 270158 Kohler Screw, H.C. 3/8-16 x 1 1/2 8 RK270721 270721 Kohler Screw, H.C. 3/8-16X1 3/4 1 RK270889 270889 Kohler Washer, Plain 3/8 Dipstick - Group 10...
  • Page 23 Kohler Kit, Governor Gear (Incl. thrust washer) Kohler Kit, Governor Cross Shaft 1 (Incl. spacer) Kohler Lever, Governor Assy. Kohler Screw, sems 1/4-20 x 1 1/4 1 Kohler Palnut1/4-20 Kohler Bracket, Speed Control Kohler Washer, Pain 1/4 Kohler Washer, Plain 1/4 Kohler Screw, R.H.M.
  • Page 24 25 518 05 Kohler Lead, Black (5" - 14Gauge - Uninsulated Push Tab on Terminals) Oil Pan - Group 21 RKX3054 X-305-4 Kohler Plug, Magnetic Drain Hex. Hd. 3/8 1 RKX1593 X-159-3 Kohler Screw, H.C. 3/8-16 x 1 1/4 4 RK235057 235057...
  • Page 25 Kohler Miniblock includes Gasket Set R&R Part # RK4578228 885.75 GASKET SET RK4575512 37.30 Order Factory Direct 800-528-3446 Fax 520-294-1045 • www.rrproducts.com Model M16S Spec. 711533 Fits Toro Greensmaster 3000 Complete Genuine Kohler Magnum Engine R&R Part # RKPX711533 Shortblock includes Gasket Set R&R Part # RK4552261...
  • Page 26 Item R&R KOHLER Part No. Part No. Description Air Intake - Group 1 RKX1672 X-167-2 Kohler Screw, H.C. 10-32 x 5/16 RKX2767 X-276-7 Kohler Nut, Wing RK4509401 45 094 01 Kohler Base, Air Cleaner RK4508201 45 082 01 Kohler Cover, Air Cleaner...
  • Page 27 Kohler Screw, Throttle & Choke Plate Kohler Plate, Choke Kohler Ball, Choke Friction Kohler Spring, Choke Friction Kohler Shaft, Throttle w/Lever & Seal 1 Kohler Plate, Throttle Kohler Spring, Idle Fuel Kohler Needle, Idle Fuel Adj. Kohler Spring, Idle Speed Kohler Screw, Idle Speed Adj.
  • Page 28 45 041 16 Kohler Gasket, Cylinder Head RK4501509 45 015 09 Kohler Head, Cylinder RK270158 270158 Kohler Screw, H.C. 3/8-16 x 1 1/2 9 RK4708617 47 086 17 Kohler Screw, Hex. Socket Hd. 3/8-16 x 1 RK270889 270889 Kohler Washer...
  • Page 29 Kohler Washer, Plain 13/32 I.D., 1 3/8 O.D. Kohler Screw, Hex. Mach. 3/8-24x1 1/8 Kohler Fan Kohler Spacer 17/64 I.D., 3/8 O.D. 4 15/64 lg. Kohler Screw, Hex. Wash. Hd. 1/4-20x5/8 Kohler Screen, Grass Kohler Screw, H.C. 1/4-20 x 3/4...
  • Page 30 - insulink terminals) Oil Pan - Group 21 RKX3054 X-305-4 Kohler Plug, Pipe 3/8 RKX1593 X-159-3 Kohler Screw, H.C. 3/8-16 x 1 1/4 4 RK235057 235057 Kohler Gasket, Pan RK235147 235147 Kohler Base, Oil Pan Piston & Rod - Group 22...
  • Page 31 37.30 Order Factory Direct 800-528-3446 Fax 520-294-1045 • www.rrproducts.com Model M16QS Spec. 711563 Fits Toro Reelmaster 216 Complete Genuine Kohler Magnum Engine R&R Part # RKPX711563 enuine Kohler Miniblock SEALS GASKET SET WITH All original equipment manufacturers names and part numbers are used for identification purposes only, and we are in no way implying that our products are original equipment parts.
  • Page 32 Kohler Seal RK4875403 48 754 03 Kohler Kit, Air Cleaner Elbow RK5208611 52 086 11 Kohler Screw, Self Tap 1/4-20 x 5/8 1 RK2504106 25 041 06 Kohler Gasket, Air Cleaner Elbow 1 Baffles & Shroud - Group 2 RKX2553...
  • Page 33 Kohler Screw, Sltd. Hd. Kohler Gasket, Carburetor Kohler Connector, Hose Kohler Carburetor Assy. 187.15 Kohler Spring, Idle Speed Kohler Screw, Idle Speed Adjusting 1 Kohler Gasket, Bowl Retainer Screw 1 Kohler Screw, Bowl Retainer Kohler Bowl Kohler Pin Kohler Kit, Float...
  • Page 34 45 041 17 Kohler Gasket, Cylinder Head RK4501509 45 015 09 Kohler Head, Cylinder RK270158 270158 Kohler Screw, H.C. 3/8-16 x 1 1/2 9 RK4708617 47 086 17 Kohler Screw, Hex. Socket Hd. 3/8-16 x 1 RK270889 270889 Kohler Washer...
  • Page 35 Kohler Washer, Lock 1/4 Kohler Washer, Plain 1/4 Kohler Nut, Hex. Kohler Washer, Wave Kohler Lever, Choke Control Kohler Washer, Plain Kohler Spacer 23/64 O.D., 31/64 Lg. 1 Kohler Washer, Lock #10 Kohler Screw Kohler Bracket, Choke Kohler Clamp Kohler Nut, Hex. 8/32...
  • Page 36 Kohler Lead, White, Module Oil Pan - Group 21 RK2513956 X-75-6 Kohler Plug, 3/4 RKX1593 X-159-3 Kohler Screw, H.C. 3/8-16 x 1 1/4 4 RK235057 235057 Kohler Gasket, Pan RK4719910 47 199 10 Kohler Base, Oil Pan Piston & Rod - Group 22...
  • Page 37 Model K582QS Spec. 36315 Fits Toro Turf Pro Complete Genuine Kohler Engine R&R Part # RKPA36315 Discontinued Genuine Kohler Shortblock Includes Gasket Kit with Seals R&R Part # RK4852221 2,596.50 K SERIES TWIN CYLINDER ENGINE SERVICE MANUAL R&R PART #RKENS607 98.35...
  • Page 38 48 155 04 Kohler Connector Baffles & Shroud - Group 2 RK243035 243035 Kohler Grommet RK277058 277058 Kohler Baffle, Blower Hsg. Support 1 RK4802711 48 027 04 Kohler Housing, Blower RK4806308 48 063 08 Kohler Baffle, Side Cylinder #1 RK4806309...
  • Page 39 Kohler Gear, Crankshaft 600.15 Kohler Crankshaft Assy. Kohler Spline, Insert Key Kohler Ring, Retaining Kohler Screw, H.C. 3/8-16 x 1 1/2 18 Kohler Washer, Plain 3/8 130.80 Kohler Head, Cylinder Kohler Gasket, Cylinder Head All original equipment manufacturers names and part numbers are used for identification purposes only, and we are in no way implying that our products are original equipment parts.
  • Page 40 Kohler Elbow, Exhaust Cylinder #1 1 RK4805405 48 054 05 Kohler Elbow, Exhaust Cylinder #2 1 RK4809601 48 096 01 Kohler Cover, Exhaust Elbow Cyl #1 1 RK4809602 48 096 02 Kohler Cover, Exhaust Elbow Cyl #2 1 RK4816407 48 164 07...
  • Page 41 Model K582QS Spec. 36315 Fits Toro Turf Pro Qty. Discounted Description Req. Price Each Kohler Plug Kohler Gasket, Governor Housing 1 Kohler Rod, Throttle Kohler Body, Ball Joint Kohler Rod, Breaker Push Kohler Gasket, Breaker Cover Kohler Diaphragm Kohler Cover, Breaker...
  • Page 42 47 874 14 Kohler Piston Assy, .020 RK4887410 47 874 15 Kohler Piston Assy, .030 RK4810805 48 108 05 Kohler Ring Set, Std. & .003 RK4810806 48 108 06 Kohler Ring Set, .010 RK4810807 48 108 07 Kohler Ring Set, .020...
  • Page 43 Kohler Miniblock includes Gasket Set with Seals R&R Part # RK4778299 996.10 GASKET SET RK4775508 49.55 Order Factory Direct 800-528-3446 Fax 520-294-1045 • www.rrproducts.com Model K321S Spec. 60434 Fits Toro Sand Pro Complete Genuine Kohler Engine R&R Part # RKPX60434 1,815.95...
  • Page 44 45 041 07 Kohler Gasket, Air Horn Baffles & Shroud - Group 2 RKX2553 X-25-53 Kohler Washer RKX1322 X-132-2 Kohler Screw, H.C. 1/4-20 x 3/4 RKX1326 X-132-6 Kohler Screw, H.C. 1/4-20 x 1/2 RK235652 235652 Kohler Baffle, Side Air RK4702718...
  • Page 45 Hose Kohler Gasket, Bowl Baffle Kohler Spring, Float Kohler Rod, Ball Joint Kohler Joint, Ball Kohler Plug, Hex. ctsk. 3/4 N.P.T.F. 1 Kohler Screw, H.C. 1/4-20 x 1/2 Kohler Screw, H.C. 3/8-16 x 1 Kohler Plug Kohler Seal, Front Oil...
  • Page 46 47 041 15 Kohler Gasket, Cylinder Head RK237670 237670 Kohler Head, Cylinder RK270158 270158 Kohler Screw, H.C. 3/8-16 x 1 1/2 8 RK270721 270721 Kohler Screw, H.C. 3/8-16X1 3/4 1 RK270889 270889 Kohler Washer, Plain 3/8 Dipstick - Group 10...
  • Page 47 Kohler Kit, Governor Gear (Incl. thrust washer) Kohler Kit, Governor Cross Shaft 1 (Incl. spacer) Kohler Lever, Governor Assy. Kohler Screw, sems 1/4-20 x 1 1/4 1 Kohler Palnut1/4-20 Kohler Bracket, Speed Control Kohler Washer, Plain 1/4 Kohler Washer, Plain 1/4 Kohler Screw, R.H.M.
  • Page 48 Kohler Rectifier-Regulator 56.95 Kohler Grommet 2.05 Kohler Plug, 7.60 Magnetic Drain Hex. Hd. 3/8 1.30 Kohler Screw, H.C. 3/8-16 x 1 1/4 4 3.50 Kohler Gasket, Pan 126.40 Kohler Base, Oil Pan Kohler Rod, Connecting (Std.) 45.10 Kohler Rod, Connecting (.010) 45.10...
  • Page 49 Model M16S Spec. 711559 Fits Toro Greens Aerator Complete Genuine Kohler Magnum Engine R&R Part # RKPA711559 Discountinued Use Shortblock or Miniblock Genuine Kohler Miniblock Genuine Kohler Shortblock Includes Gasket Set with Seals Includes Gasket Set with Seals R&R Part # RK4578223 R&R Part # RK4552257...
  • Page 50 Kohler Decal, Air Cleaner Baffles & Shroud - Group 2 RKX2553 X-25-53 Kohler Washer RK5208611 52 086 11 Kohler Screw, Hex. Wash. Hd. 1/4-20x 5/8 RK4708608 47 086 08 Kohler Screw, Pozidriv T.H. 1/4-20 x 5/8 RK4706312 47 063 12...
  • Page 51 Kohler Connector, 90 Hose Use RK4585312 191.45 Kohler Carburetor Assy. Kohler Spring, Idle Speed Kohler Screw, Idle Speed Adjusting 1 Kohler Gasket, Bowl Retainer Screw 1 Kohler Screw, Bowl Retainer Kohler Bowl Kohler Pin Kohler Kit, Float Kohler Gasket, Bowl Baffle...
  • Page 52 RK4504117 45 041 17 Kohler Gasket, Cylinder Head RK4501509 45 015 09 Kohler Head, Cylinder RK270158 270158 Kohler Screw, H.C. 3/8-16 x 1 1/2 RK4708617 47 086 17 Kohler Screw, Hex. Socket Hd. 3/8-16 x 1 RK270889 270889 Kohler Washer...
  • Page 53 Kohler Pin, Governor Stop Kohler Washer, Plain 1/4 Kohler Kit, Governor Cross Shaft 1 Kohler Lever, Governor Kohler Bushing, Natural Linkage Retaining 1 Kohler Screw, H.C. Sems, 1/4-20x1 1/4 1 Kohler Palnut 1/4-20 Kohler Linkage, Governor Kohler Spring, Governor Kohler Bushing, Black Linkage Retaining Kohler Screw, H.C.
  • Page 54 - insulink terminals) Oil Pan - Group 21 RKX3054 X-305-4 Kohler Plug, Pipe 3/8 RKX1593 X-159-3 Kohler Screw, H.C. 3/8-16 x 1 1/4 4 RK235057 235057 Kohler Gasket, Pan RK235147 235147 Kohler Base, Oil Pan Piston & Rod - Group 22...
