Operating and installation instructions
Ceramic cooktop
To avoid the risk of accidents or damage to the appliance, it is essential
to read these instructions before it is installed and used for the first time.
en - AU, NZ
M.-Nr. 09 319 560

Advertisement

Table of Contents
loading

Related Manuals for Miele KM 6208

Summary of Contents for Miele KM 6208

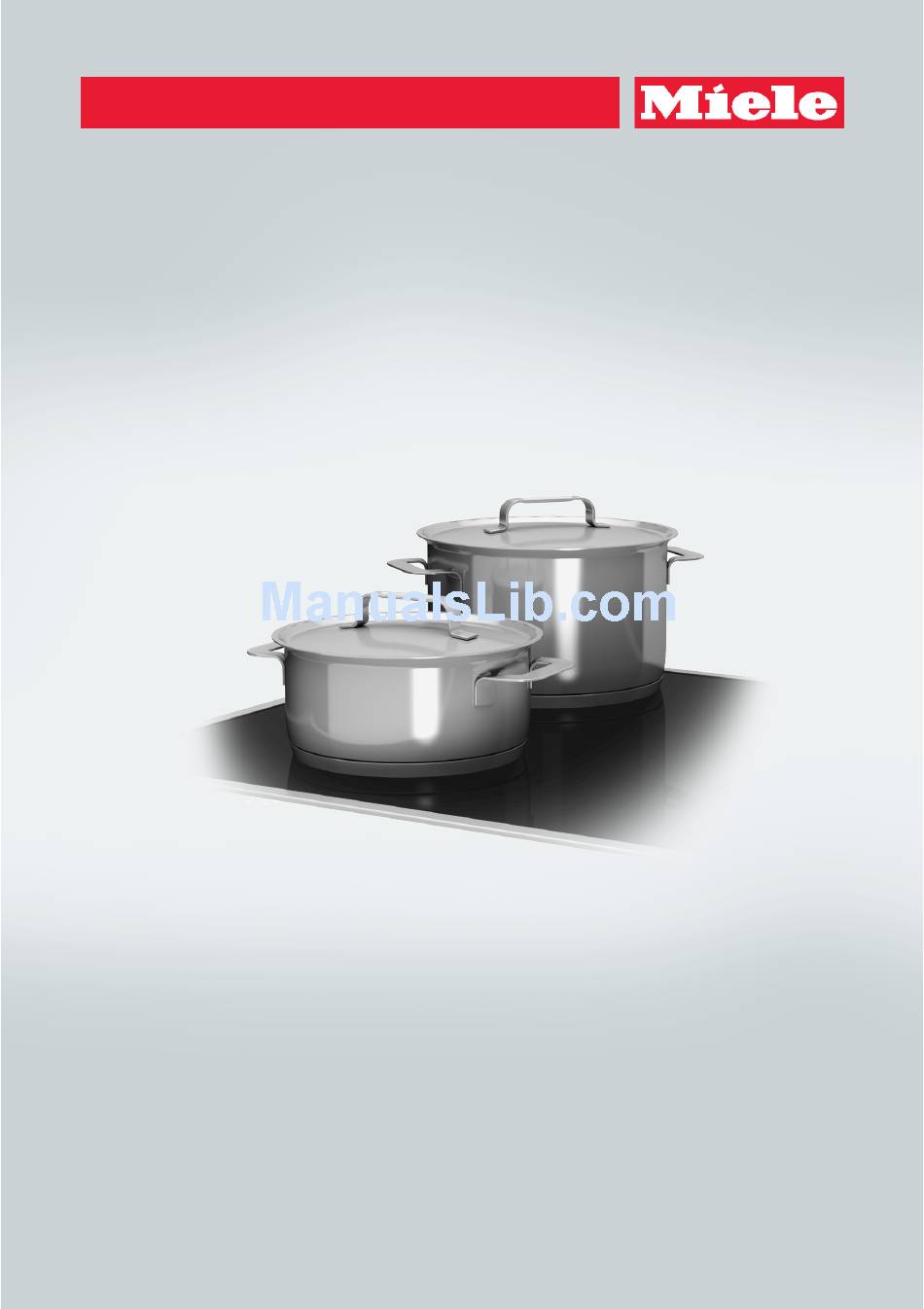

  • Page 1 Operating and installation instructions Ceramic cooktop To avoid the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time. en - AU, NZ M.-Nr. 09 319 560...

  • Page 3: Table Of Contents

    Contents Description of the appliance ......... 5 Cooktop .
  • Page 4 Con|ctivity and Miele|home ........

  • Page 5: Description Of The Appliance

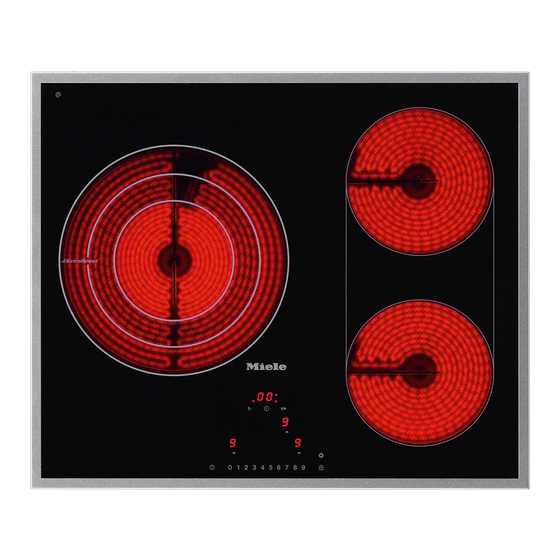

    Description of the appliance Cooktop a Triple circle cooking zone with ExtraSpeed b Single circle cooking zone c Single circle cooking zone, can link with b to make an ExtendedPlus zone d Control panel...

  • Page 6: Control Panel

    Description of the appliance Control panel...
  • Page 7 Description of the appliance Sensors a Cooktop ON/OFF b DirectSelection controls for - Setting the power setting - Setting the time c Safety lock d Extension e For selecting the cooking zones f Stop and Go g - Selecting the timer - Changing the timer functions - Selecting the switch-off time (see "Auto switch-off") h Hour function...

  • Page 8: Cooking Zone Data

    Description of the appliance Cooking zone data Cooking KM 6208 zone C in cm Rating in watts for 230 V 14.5 / 21.0 / 27.0 1200 / 2300 / 3400 18.0 1800 18.0 1800 z + x 18.0 x 41.0...

  • Page 9: Warning And Safety Instructions

    They contain important notes on installation, safety, use and maintenance. Miele cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions.
  • Page 10 Warning and Safety instructions Correct application This cooktop is designed for domestic use and for use in similar environments by guests in hotel or motel rooms, bed & breakfasts and other typical living quarters. This does not include common/shared facilities or commercial facilities within hotels, motels or bed &...
  • Page 11 Warning and Safety instructions Safety with children Small children must be kept away from the appliance unless they are constantly supervised. Older children may only use the appliance if they have been shown how to use it in a safe way and understand the hazards involved.
  • Page 12 Installation, maintenance and repairs by unqualified persons could be dangerous. Miele cannot be held liable for unauthorised work. A damaged appliance can be dangerous. Check the appliance for visible signs of damage.
  • Page 13 The manufacturer can only guarantee the safety of the appliance when original Miele replacement parts are used. Faulty components must only be replaced by genuine Miele original spare parts. The cooktop is not intended for use with an external timer switch or a remote control system.
  • Page 14 Warning and Safety instructions Danger of electric shock. Do not use the cooktop if it is faulty, or if the ceramic surface is cracked, chipped or damaged in any way. Switch it off immediately, and disconnect it from the mains electricity supply. In areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the appliance and its surroundings clean at all times.
  • Page 15 Warning and Safety instructions Correct use Oil and fat can overheat and catch fire. Do not leave the appliance unattended when cooking with oil or fat. If oil or fat does catch fire, do not attempt to put out the flames with water. Disconnect the appliance from the mains and use a suitable fire blanket, saucepan lid, damp towel or similar to smother the flames.
  • Page 16 Warning and Safety instructions The appliance gets hot when in use and remains hot for a while after being switched off. There is a danger of burning until the residual heat indicators go out. You could burn yourself on the hot cooktop. Protect your hands with heat-resistant pot holders or gloves when handling hot pots and pans.
  • Page 17 Pots and pans made of aluminium or with an aluminium base can leave a metallic sheen on the cooktop. This can be removed with the Original Miele ceramic and stainless steel cooktop cleaner (see "Cleaning and care"). To prevent the risk of spillages etc. burning on, remove any soiling as quickly as possible and ensure that pan bases are clean, dry and free of grease.

  • Page 18: Caring For The Environment

    Caring for the environment Disposal of the packing Disposing of your old material appliance The transport and protective packing Electrical and electronic appliances has been selected from materials often contain materials which, if which are environmentally friendly for handled or disposed of incorrectly, disposal and should be recycled.

  • Page 19: Before Using For The First Time

    Before using for the first time Please stick the extra data plate for the appliance supplied with this documentation in the space provided in the "After sales service" section of this booklet. Cleaning for the first time ^ Remove any protective wrapping and adhesive labels. ^ Before using for the first time, clean the appliance with a damp cloth only and then wipe dry.

  • Page 20: How The Cooking Zones Work

    How the cooking zones work Single circle cooking zones have one heating element, whilst double circle cooking zones and extended zones have two. Depending on the model, the heating elements may be separated by an insulating ring. Each cooking zone has overheating protection (a temperature limiter), which stops the ceramic surface from becoming too hot (see "Overheating protection").

  • Page 21: Use

    Operation This ceramic cooktop is equipped with electronic sensor switches which react to finger contact. To operate a cooking zone, touch the relevant sensor. Each time you touch a sensor, an audible tone sounds. The cooking zones and the timer have to be "active" when you want to set or adjust a power setting or the duration.

  • Page 22: Switching On

    Switching on The cooktop must be switched on before any of the zones can be used. Do not leave the appliance unattended whilst it is being used. To switch the cooktop on ^ Touch the "s" sensor. 0 appears in each of the cooking zone displays. If no further entry is made, the cooktop will switch itself off after a few seconds for safety reasons.
  • Page 23 To change the power setting ^ Briefly touch the sensor of the required cooking zone. The selected power setting will flash in the display. ^ Select the required power setting on the control panel by touching the appropriate number. If there is only one cooking zone in operation, you can set or adjust the power setting without activating it first.

  • Page 24: Settings

    Settings The appliance is programmed with 9 power settings at the factory. If you wish to fine-tune a setting, you can extend the power setting range (see "Programming"). The intermediate settings will be represented by an illuminated dot next to the number.

  • Page 25: Auto Heat-Up

    Auto heat-up When Auto heat-up has been activated, the cooking zone switches on automatically at the highest setting and then switches to the continued cooking setting which you have previously selected. The heat-up time depends on which continued cooking setting has been chosen (see chart). As the higher continued cooking settings are generally used for frying food, only a relatively short heat-up time is needed to heat up the pan initially.
  • Page 26 Continued cooking Heat-up time setting* in minutes and seconds (approx.) 1 : 20 2 : 00 2 : 45 3 : 25 4 : 05 4 : 45 5 : 30 6 : 10 6 : 50 7 : 10 1 : 20 2 : 00 2 : 45...

  • Page 27: Extension

    Extension When a two-circle, three-circle or ExtraSpeed cooking zone is switched on, the second circle is automatically switched on. The second circle of a Casserole zone, Casserole Plus zone and the third circle of a three-circle cooking zone need to be switched on manually.
  • Page 28 Casserole Plus zone ^ Touch the front right cooking zone sensor. ^ Select the power setting you require. ^ Touch the "n" sensor while the power setting in the display of the cooking zone is flashing. The power setting will be shown in the front right cooking zone display and the rear right cooking zone display will go out.

  • Page 29: Switching Off And Residual Heat Indicators

    Switching off and residual heat indicators To switch off a cooking zone ^ Touch the sensor of the required cooking zone twice. A "0" flashes in the cooking zone display for a few seconds. If the cooking zone is still hot, the residual heat indicator will then appear in the display.

  • Page 30: Pots And Pans

    – Pots and pans made of aluminium or with an aluminium base can leave a metallic sheen on the cooktop. This can be removed with the Original Miele ceramic and stainless steel cooktop cleaner (see "Cleaning and care"). – Do not use pots and pans on the ceramic cooktop with bases with pronounced edges or ridges, e.g.

  • Page 31: Tips On Saving Energy

    Tips on saving energy – Check that the diameter of the pan base is wide enough for the cooking zone so that heat is not lost unnecessarily. Too small Suitable – Use a lid whenever possible to minimise heat loss. Uncovered Covered –...

  • Page 32: Timer

    Timer The cooking zone has to be switched on if you wish to use the timer. The timer can be used for two different functions: – To set the minute minder – To set a cooking zone to switch off automatically. A duration of between 1 minute (01) and 9 (9^) hours can be set.

  • Page 33: Minute Minder

    Timer Minute minder Setting the minute minder Minutes Example: You want to set the minute minder to 15 minutes. ^ Switch the cooktop on. ^ Touch the "m" sensor. "00" appears in the display, "0" flashes on the right. First the tens digit is set then the units digit. ^ Touch a number on the selection scale to set the tens digit (here: 1).
  • Page 34 Timer Hours Touch the required number on the selection scale to set the hours. Half hours can be selected by touching the area between two numbers. Example: You want to set the timer to 2 hours 30 minutes. ^ Switch the cooktop on. ^ Touch the "m"...
  • Page 35 Timer Change ^ Touch the "m" sensor. ^ Set a new minute minder time as described above. Delete ^ Touch the "m" sensor. "00" appears in the display.

  • Page 36: To Switch A Cooking Zone Off Automatically

    Timer To switch a cooking zone off automatically You can set a time after which the cooking zone will switch off automatically. All cooking zones can be programmed for the same time. If the time programmed is longer than the maximum operational time allowed, the cooking zone will switch off after the maximum time allowed (see relevant section).

  • Page 37: To Use Both Timer Functions At The Same Time

    Timer To use both timer functions at the same time The minute minder and automatic switch-off functions can be used at the same time. If you have programmed in one or more switch-off times, and would like to use the minute minder as well: Touch the "m"...

  • Page 38: Safety Features

    Safety features Safety lock/System lock Keep children away from the cooktop for their own safety. Your appliance is equipped with a safety lock to prevent the cooktop and the cooking zones being switched on or any settings being altered. The safety lock is activated when the cooktop is switched on.
  • Page 39 Safety features To activate ^ Touch the "$" sensor until the indicator light comes on. The indicator light will go out after a short while. You can alter the setting from one-finger to three-finger operation (see "Programming") to make it harder for children to operate the appliance.

  • Page 40: Stop And Go

    Safety features Stop and Go Your appliance has a Stop and Go feature which, when activated, reduces the power of all cooking zones in use to power level 1. When Stop and Go is activated, the cooking zone power levels and the setting of the timer cannot be altered and the cooktop can only be switched off.

  • Page 41: Safety Cut-Out

    Safety features Safety cut-out Safety cut-out if the sensors are covered Your cooktop will switch off automatically if one or several of the sensors remain covered for longer than 13 seconds, for example, by finger contact, food boiling over or by an object such as an oven glove or tea towel.
  • Page 42 Safety features Power setting** Maximum operating time in hours Safety setting 0* Safety setting 1 Safety setting 2 hr : min. hr : min. hr : min. 10:00 8:00 5:00 10:00 7:00 4:00 2 / 2. 5:00 4:00 3:00 3 / 3. 5:00 3:30 2:00...

  • Page 43: Overheating/Pan Protection

    Safety features Overheating/Pan protection Each zone is equipped with an overheating protection mechanism (internal temperature limiter). The ExtraSpeed cooking zone is also equipped with a pan protection mechanism. If you wish to make use of this function, you will need to change the factory default programming (see "Programming").

  • Page 44: Cleaning And Care

    Cleaning and care Do not use a steam cleaning appliance to clean this appliance. The steam could reach the electrical components and cause a short circuit. The appliance should be cleaned regularly, preferably after each use. Allow it to cool down to room temperature before cleaning.
  • Page 45 Wipe all coarse soiling off using a damp cloth. Stubborn soiling may need to be removed with a shielded scraper blade. Then clean the cooktop with the Original Miele ceramic and stainless steel cooktop cleaner (see "Optional accessories"), applied with kitchen paper or a clean cloth. Do not apply cleaner whilst the cooktop is still hot, as this could result in marking.

  • Page 46: Programming

    Programming You can change the default settings of the programme options (see chart). Several settings can be altered in succession. After calling up the programming, P (programme) and S (status) appear in the timer display; in all cooktops with three cooking zones another selection scale will light up in the rear left.
  • Page 47 Programming Programme* Status** Setting 00 Demonstration mode Demonstration mode on and factory default Demonstration mode off settings Factory default settings reinstated 01 Stop and Go 02 Power setting range 9 power settings (1, 2, 3 ... to 9) 17 power settings (1, 1., 2, 2., 3 ...
  • Page 48 Activating the system lock manually Activating the system lock automatically Maximum operating time Safety setting 0 Safety setting 1 Safety setting 2 Miele|home/Con|ctivity not present - only with retrofitted signed off communication signed on module/dongle - The second circle of the...

  • Page 49: Problem Solving Guide

    Problem solving guide With the aid of the following guide, minor problems can be easily corrected without contacting Miele. This will save you time and money because you won't need to book a service technician. Please note that a call-out fee will be applied for unnecessary service visits where the problem could have been rectified as described in these operating instructions.
  • Page 50 Problem solving guide Problem Possible cause Remedy "LC" appears in the timer The system lock has You need to deactivate display for a few been activated. the system lock (see seconds after switching "Safety lock/System on the cooking zone. lock"). After switching on the The appliance is in You need to deactivate...
  • Page 51 Problem solving guide Problem Possible cause Remedy "0" flashes alternately The pan protection See "Overheating with "9" in the display mechanism has been protection/Pan protection". for the ExtraSpeed activated. cooking zone. The appliance switches One or several of the Clean the control area or off during operation sensors are covered, remove the obstruction (see...
  • Page 52 Interrupt the power supply to the cooktop for approx. 1 minute. If this does not solve the problem, please call Miele. FE flashes alternately There has been a fault Interrupt the power supply to with a number in the in the electronics.

  • Page 53: To Test The Power Setting

    To test the power setting You can test the power setting of a cooking zone by measuring how long it takes to bring a specific amount of water to the boil. The pan (and lid) must be stainless steel or enamel. The diameter of the pan must match the cooking zone, and be flat-bottomed or slightly concave.
  • Page 54 To test the power setting Cooking zone Rating in watts for Quantity of water Duration* C in cm 230 V in litres in minutes 10.0 11.0 12.0 700 / 750 13.0 12.0 1200** 11.0 14.5 1000 / 1100 14.5 1200 14.5 1500** 17.0...

  • Page 55: Optional Accessories

    Miele appliances. These can be ordered online at: or from Miele (see back of manual for contact details). Cleaning products Original Miele ceramic and stainless steel cooktop cleaner 250 ml Removes heavy soiling, limescale deposits and aluminium residues.
  • Page 56 The system allows communication enabled appliances to send operating and status information to a display appliance (SuperVision appliance, laptop, tablet etc.). It also enables the integration in a home network such as Miele Gateway or QIVICON smart home platform. Con{ctivity The cooktop sends information on its operating status to the rangehood.

  • Page 57: Con|Ctivity And Miele|Home

    Con|ctivity and Miele|home Signing on the cooktop If you want to – sign on your cooktop to Miele{home, you will need to prepare the sign on process on the master unit first (see Installation instructions - "Miele|home"). – sign on your cooktop to Con|ctivity, you will first need to sign on the rangehood (see Installation instructions - "Con|ctivity").

  • Page 58: Signing Off The Cooktop

    Con|ctivity and Miele|home Signing off the cooktop If you want to sign your cooktop off from Miele{home, you will need to prepare the sign off process on the master unit first (see Installation instructions "Miele|home"). ^ While the cooktop is switched off, touch the s and $ sensors at the same time until the indicator light for the safety lock flashes.

  • Page 59: Safety Instructions For Installation

    Safety instructions for installation After installing the cooktop, ensure All electrical work should be that the connection cable cannot come undertaken by a suitably qualified into contact with the underside of the and competent person in strict appliance. Make sure that there is no mechanical obstruction, such as a accordance with current national and local safety regulations.

  • Page 60: Safety Clearances

    Safety clearances Safety clearance above the appliance When two or more appliances are installed together below a rangehood, e.g. a gas appliance and an electric cooktop, which have different safety distances given in the installation instructions, you should select the greater distance of the two.
  • Page 61 Safety clearances Safety distances to the sides and back of the cooktop Ideally the cooktop should be installed with plenty of space on either side. There may be a wall at the rear or a tall unit or wall on one side (right or left). On the other side, however, no unit or divider should stand higher than the cooktop (see illustrations).

  • Page 62: Notes On Installation

    Notes on installation Seal between the cooktop and the Tiled worktop worktop Grout lines a and the hatched area underneath the cooktop frame must be The sealing strip under the edge of the smooth and even. If they are not, the top part of the appliance provides a cooktop will not sit flush with the sufficient seal for the worktop.

  • Page 63: Building-In Dimensions

    Building-in dimensions a Spring clamps b Front c Building-in height d Building-in height cable outlet e Cable loom, L = 1,550 mm f Miele|home connection g Mains connection box with mains connection cable, L = 1,440 mm...

  • Page 64: Installation

    Installation Wooden worktops Attach the spring clamps and the ^ Seal the cut surfaces of wooden support brackets (only for cooktops worktops with a suitable with bevelled edges) as applicable. heat-resistant sealant to avoid swelling caused by moisture. Cooktops with bevelled edges: These cooktops have a sealing strip Make sure these materials do not underneath them to keep the cooktop...
  • Page 65 Installation Granite and marble worktops Use a strong double-sided tape and silicone for the installation (not supplied). ^ Coat the side edges and the lower edges of the spring clamps and the support brackets with silicone. ^ Fasten the spring clamps and the support brackets (only for cooktops with bevelled edges) with the double-sided tape c.

  • Page 66: Installing The Cooktop

    In stubborn cases, or if the cooktop is spring clamps. not accessible from below, use a cooktop lever (available from Miele) to ^ Using both hands, press down lift up the cooktop. To prevent damage evenly on the sides of the appliance to the worktop, position a cloth or until it clicks into position.

  • Page 67: External Mains Connection Box

    Installation External mains connection box A safety distance of at least 150 mm must be maintained between the mains connection box and the cooktop as well as other heat sources (e.g. oven etc.). The mains connection box must not be installed between a cooktop and The mains connection box can be an undershelf.

  • Page 68: Electrical Connection

    When switched off there must be an type H 05 VV-F, available from all-pole contact gap of at least 3 mm in Miele. the isolator switch (including switch, fuses and relays). Ensure power is not supplied to the appliance until after installation or repair work has been carried out.

  • Page 69: Wiring Diagram

    Electrical connection Wiring diagram The electrical safety of this appliance can only be guaranteed when continuity is complete between it and an effective earthing system, which complies with current local and national safety regulations. It is most important that this basic safety requirement is present and regularly tested and, where there is any doubt, the electrical wiring in the home should be inspected...

  • Page 70: After Sales Service, Data Plate, Warranty

    After sales service, data plate, warranty In the event of any faults which you cannot remedy yourself, please contact Miele. The contact details for Miele are given at the back of these instructions. When contacting Miele, please quote the model and serial number of your appliance.
  • Page 72 KM 6208 en - AU, NZ M.-Nr. 09 319 560 / 05...
