DNA ASS1010 Instruction Manual

10” slimline active subwoofer with built in amplifier

Advertisement

ASS1010
10" SLIMLINE ACTIVE SUBWOOFER
WITH BUILT IN AMPLIFIER
Instruction Manual
MAX
www.dnaaudio.com.au
A
A
CTIVE
SUBWO
O
OFER
E
R

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASS1010 and is the answer not in the manual?

Questions and answers

Summary of Contents for DNA ASS1010

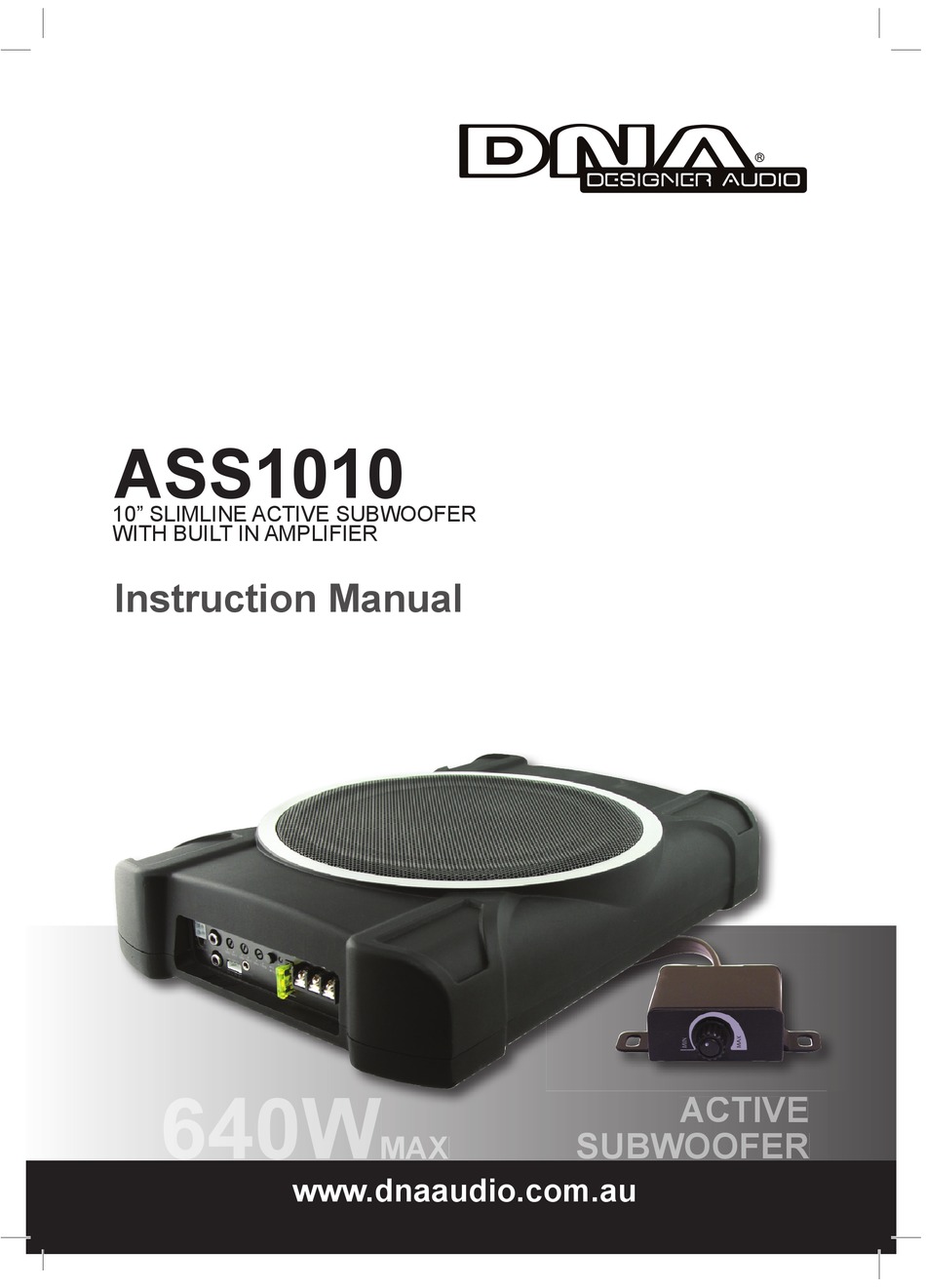

  • Page 1 ASS1010 10” SLIMLINE ACTIVE SUBWOOFER WITH BUILT IN AMPLIFIER Instruction Manual CTIVE SUBWO OFER www.dnaaudio.com.au...
  • Page 3: Table Of Contents

    Connecting The Unit: Wiring Diagram..………..…....……9 Installation……………........……...………..……...10 Trouble Shooting……........……...………..….…...11 Thank you for purchasing this DNA Designer Audio product. It is designed to give you many years of enjoyment. DNA Designer Audio recommends installation by a professional installer. Read all instructions fully before installation.
  • Page 4: Specifi Cations

    Specifi cations Supply Voltage: 13.8V DC (12-15V allowable) Ground: Negative General features: Output impedance: 4 ohm Power: Max Power Sub Output 640W RMS Power Sub Output 160W Max Full Range Speaker Output RMS Full Range Speaker Output Audio controls and specifi cations: Remote control supplied for bass boost adjustment in vehicle Output impedance:...
  • Page 5: Introduction & Inclusions

    Inside the ASS1010 sealed enclosure is a 640 Watt Max amplifi er that supports a powerful sound experience. The subwoofer delivers a clear and strong sounding bass.
  • Page 6: Safety

    Safety Alteration or modifi cations carried out without appropriate authorisation may invalidate the users right to operate the equipment and void warranty. CAUTION • Never replace the fuse with one of greater value. Use of improper fuse could result in overheating, smoke and could cause injury including burns. WARNING •...
  • Page 7: Unit Functions

    Unit Functions 1. Amplifi ed Full Range Speaker Outputs A pairs of speakers can be connected. This will be an amplifi ed speaker output provided the Hi-Input (3.) wires have been connected. 2. RCA Inputs Low level (subwoofer) RCA from the head unit. If your head unit does not have Sub outputs use your normal RCA outouts.
  • Page 8 Unit Functions 7. Power Indicator 8. Full Range Speaker Gain (Volume) Adjustment a.) After you have installed your system, turn this control to a minimum. b.) Turn the head unit on; the subwoofer will turn on via the remote connection. Turn the head unit volume to about 66% full level. c.) Slowly turn up the subwoofer gain control unit, you will hear a small amount of distortion.
  • Page 9: Connecting The Unit: Wiring Diagram

    Wiring Diagram This diagram shows the ideal wiring setup using the head units Sub Out RCA’s and the head units pair of speaker outputs. Note: Where possible run audio (RCA & Speaker) cable and power cable on oppisite sides of the vehicle to prevent noise and interferance. Head Unit Subwoofer Volume 6 m (19 ft.
  • Page 10: Installation

    Installation Before you drill or cut any holes, investigate your car’s layout very carefully. Take special care when you work near the gas tank, fuel lines, hydraulic lines and electric wiring. Step 1: Place the mounting brackets on the aluminum base and fi x them tightly with the 4mm x 8mm screws.
  • Page 11: Trouble Shooting

    Trouble Shooting For advice on simple problems during the course of installation, debugging and general use of the active subwoofer please check the table below: ISSUE OPTIONS Ensure ground wired is earthed correctly. Check the bass boost and wiring loom is fully plugged in, please check the connection.
  • Page 12 www.dnaaudio.com.au...
