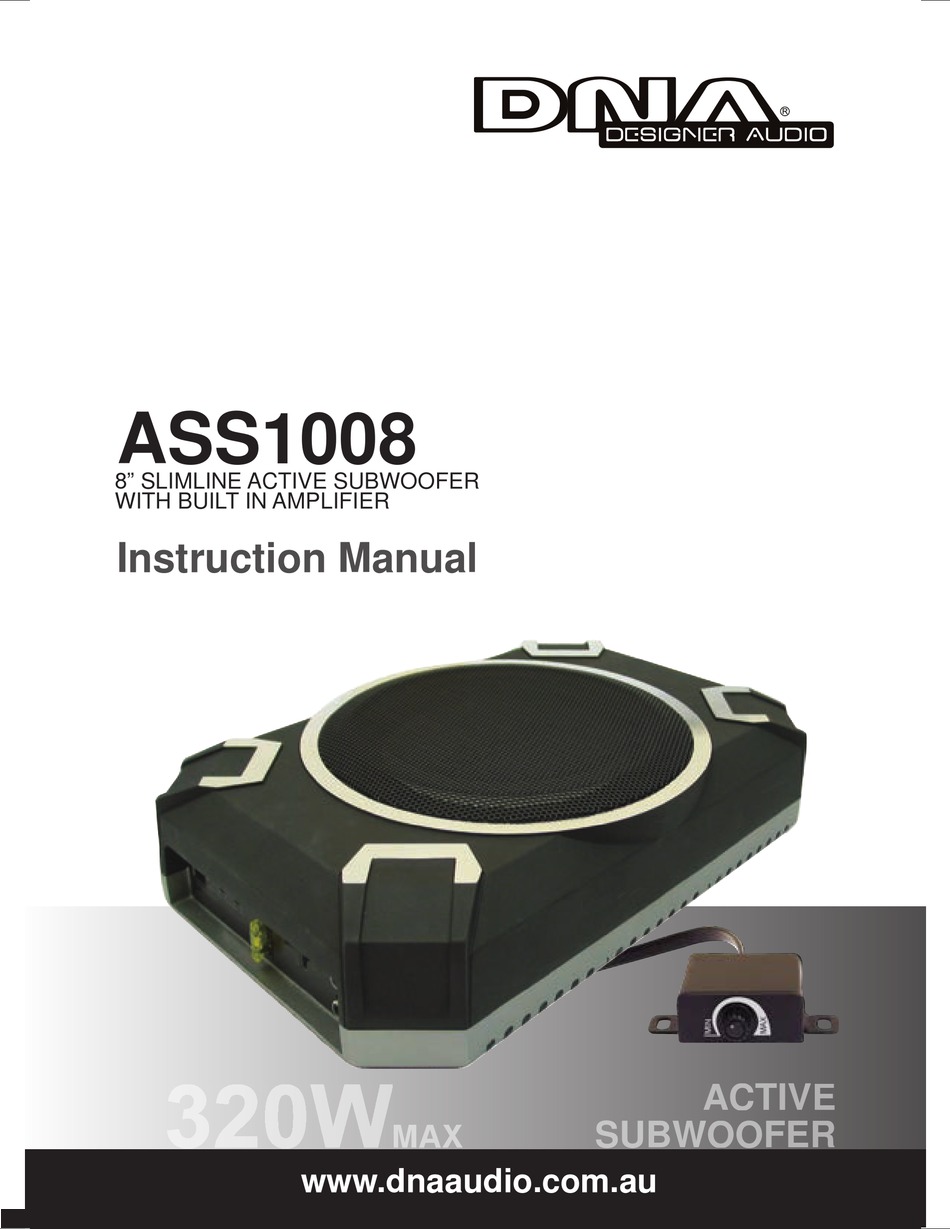

- Page 1 ASS1008 8” SLIMLINE ACTIVE SUBWOOFER WITH BUILT IN AMPLIFIER Instruction Manual CTIVE SUBWO OFER www.dnaaudio.com.au...
-
Page 3: Table Of Contents
Connecting The Unit: Speaker Outputs..…………...……....……9 Installation……………........……...………..……...10 Trouble Shooting……........……...………..….…...11 Thank you for purchasing this DNA Designer Audio product. It is designed to give you many years of enjoyment. DNA Designer Audio recommends installation by a professional installer. Read all instructions fully before installation. -
Page 4: Specifi Cations
Specifi cations Supply Voltage: 13.8V DC (10-16V allowable) Ground: Negative General features: Output impedance: 4 ohm Power: Max Power output 320W RMS Power output Audio controls and specifi cations: Remote control supplied for bass boost adjustment in vehicle Frequency response: 30~120Hz Low level input: 200mV~2.0V... -
Page 5: Introduction & Inclusions
Inside the ASS1008 sealed enclosure is a 320 Watt Max amplifi er that supports a powerful sound experience. The subwoofer delivers a clear and strong sounding bass. -
Page 6: Safety
Safety Alteration or modifi cations carried out without appropriate authorisation may invalidate the users right to operate the equipment and void warranty. CAUTION • Never replace the fuse with one of greater value. Use of improper fuse could result in overheating, smoke and could cause injury including burns. WARNING •... -
Page 7: Unit Features
Unit Functions 1. Remote Control Input Plug in to operate the remote subwoofer volume control. 2. Phase Switch Use this switch to help compensate for time alignment issues in your system. Such problems usually occur when the subwoofer is further away to the listener compared to the vehicle speakers in the system. -
Page 8: Connecting The Unit: Rca Sub Outputs
Connecting the Unit USING RCA SUB OUTPUTS WIRING USING RCA SUB OUT (Recommended) This diagram shows the ideal wiring setup using the head units SUB OUT RCA’s (External Output) Head Unit Audio Outputs Connect to run the bass volume control negative Dont need to be connected for this wiring method... -
Page 9: Connecting The Unit: Speaker Outputs
Connecting the Unit USING SPEAKER OUTPUTS WIRING USING SPEAKER OUTPUTS If your head unit does not have RCA outputs use the wiring diagram below. This method wires into speaker outputs. Head Unit Audio Outputs Connect to run the bass volume control (Yellow) + &... -
Page 10: Installation
Installation Before you drill or cut any holes, investigate your car’s layout very carefully. Take special care when you work near the gas tank, fuel lines, hydraulic lines and electric wiring. Step 1: Place the mounting brackets on the aluminum base and fix them tightly with the 4mm x 8mm screws. -
Page 11: Trouble Shooting
Trouble Shooting For advice on simple problems during the course of installation, debugging and general use of the active subwoofer please check the table below: ISSUE OPTIONS Ensure ground wired is earthed correctly. Check the bass boost and wiring loom is fully plugged in, please check the connection. - Page 12 www.dnaaudio.com.au...
