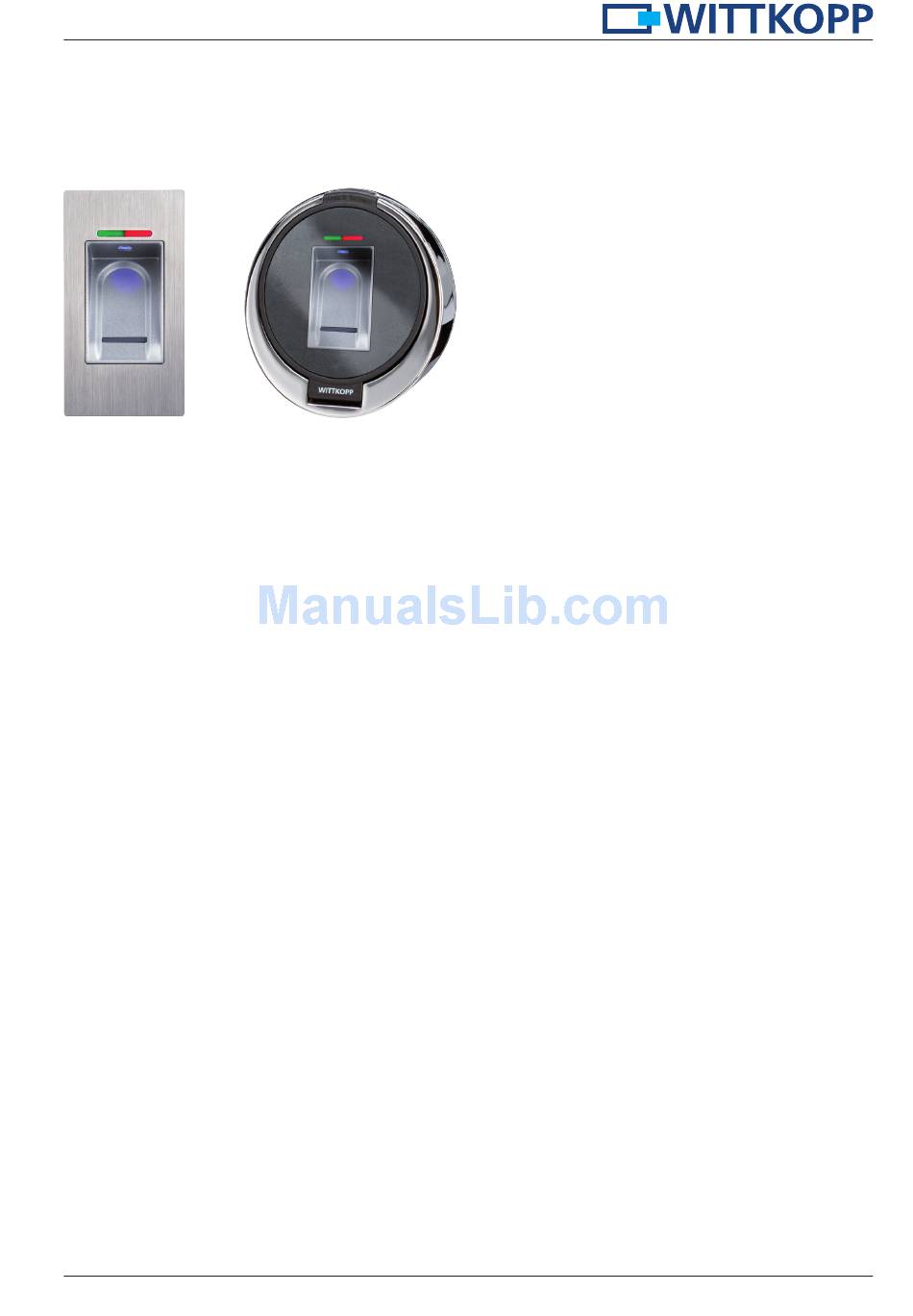

Installation instructions FinKey
Content
1 General instructions _____________________________________________________________ 2
2 System overview _________________________________________________________________ 2
3 Installation reader unit FinKey SL __________________________________________________ 3
4 Installation reader unit FinKey FS __________________________________________________ 4
5 Installation lock Remote 3000/3010 _______________________________________________ 5
6 Installation FinKey divider _________________________________________________________ 7
7 Wiring FinKey system ____________________________________________________________ 8
8 Power supply of FinKey system ____________________________________________________ 11
9 Setting the mode of operation ____________________________________________________ 11
11 Functional test ________________________________________________________________ 11
12 Technical data ________________________________________________________________ 12
© Carl Wittkopp GmbH - Errors and omissions excepted
Installation instructions no 9999-134-0
Advertisement
Table of Contents
Summary of Contents for Wittkopp FinKey SL
-
Page 1: Table Of Contents
Content 1 General instructions _____________________________________________________________ 2 2 System overview _________________________________________________________________ 2 3 Installation reader unit FinKey SL __________________________________________________ 3 4 Installation reader unit FinKey FS __________________________________________________ 4 5 Installation lock Remote 3000/3010 _______________________________________________ 5 6 Installation FinKey divider _________________________________________________________ 7... -
Page 2: General Instructions
• Take care that the reader unit or the lock and the cables are not damaged. 1.2 Installation note • Reader and relay unit are coupled to each other and must not be interchanged with other FinKey systems. 2 System overview FinKey SL FinKey FS Set 1 Set 9... -
Page 3: Installation Reader Unit Finkey Sl
3 Installation reader unit FinKey SL 3.1 Reader unit FinKey SL 3.1.1 Dimensions FinKey SL 25,8 Kabel/Cable 3.2 Mounting 3.2.1 Drill pattern reader unit FinKey SL mind. 37 Opening for cable: drilling min. Drill-hole Ø 11 mm for connection cable has to... -
Page 4: Installation Reader Unit Finkey Fs
Installation instructions FinKey 4 Installation reader unit FinKey FS 4.1 Reader unit FinKey FS 4.1.1 Dimensions FinKey FS Ø 95 4.2 Mounting 4.2.1 Drill pattern reader unit FinKey FS Possible positions for ope- ning for cable: Ø 11 mm for connection cable has to be drilled into the safe door Fixing position for... -
Page 5: Installation Lock Remote 3000/3010
Before mounting the lock the reader unit has to be installed (see chapter 3 to 6). Wittkopp electronic locks of the Remote series have got standard fixing points and can be mounted in all 4 directions (right-hand, left-hand, up, down) •... - Page 6 Installation instructions FinKey 5.2.2 Dimensions lock Remote 3010 - long connection with mechanical emergency lock Remote 3010 66,5 13,5 Hub/stroke 12 Installation example Area around the 58,3 unlocking lever must be protected especially. 66,5 Mechanical emergency lock 5.3 Mounting 5.3.1 Drill pattern lock Remote 3000/3010 66,5 17,3 •...
-
Page 7: Installation Finkey Divider
Installation instructions FinKey 6 Installation FinKey divider In order to make wiring as easy as possible all components are connected to the FinKey divider. The FinKey divider has to be installed within the secure area. 6.1 Drill pattern FinKey divider 65,5 84,5 6.2 Perparing the FinKey divider for wiring... -
Page 8: Wiring Finkey System
RIACON-AST072-10 not secure 26.07.2011 09:16:53 f=2.00 C:\Users\naumann.WITTKOPP\Documents\01 Produkte-Einzelprojekte\03 Elostar Remote\02 Bedienungsanleitungen\Anschlussbelegung.sch (Sheet: 1/ • The blocking input allows to inhibit lock openings. Closing or accordingly extending the bolt, is still possible. • The lock electronically checks at the beginning of every opening cycle, whether a blocking signal is active. To combine multiple locks like a double door system, only one common signal line is necessary (easier cabling). - Page 9 Installation instructions FinKey 7.2 FinKey divider to reader unit Marking Please note the marking on the connector plug when connecting the cables. In order to pull the cable of the reader units through the drilling, disconnect the cable on its coupler between the reader and the relay unit.
- Page 10 Installation instructions FinKey 7.4 FinKey divider with alarm signal (optional) Connect 2-pin plug from rea- der unit to plug “Rel” Resistor for signal loop “alarm” Solder jumper for signal loop “alarm” Screw plug “alarm” (2-pin) for connection of alarm signal to burglar alarm system Solder the resistors for signal loops only if the connection will be lead out, link the solder jumper.
-
Page 11: Power Supply Of Finkey System
Installation instructions FinKey 8 Power supply of FinKey system Plug “power supply” Create power supply by plugging in the plug. Lead the cables for “alarm signal” and tamper signal” underneath the plug. 9 Setting the mode of operation The system can be operated in two modes. •... -
Page 12: Technical Data
Installation instructions FinKey 12 Technical data Dimensions lock (mm) 88 x 60.7 x 34 Material zinc plated steel sheet Ingress protection IP30 Temperature (°C) 5-40 Rel. humidity (%) 10-75 % not condensating Operation conditions (standby *1) supply voltage 12VDC, only power supply without any control contacts (load *2) 7.5 N bold force, supply voltage 12VDC...
